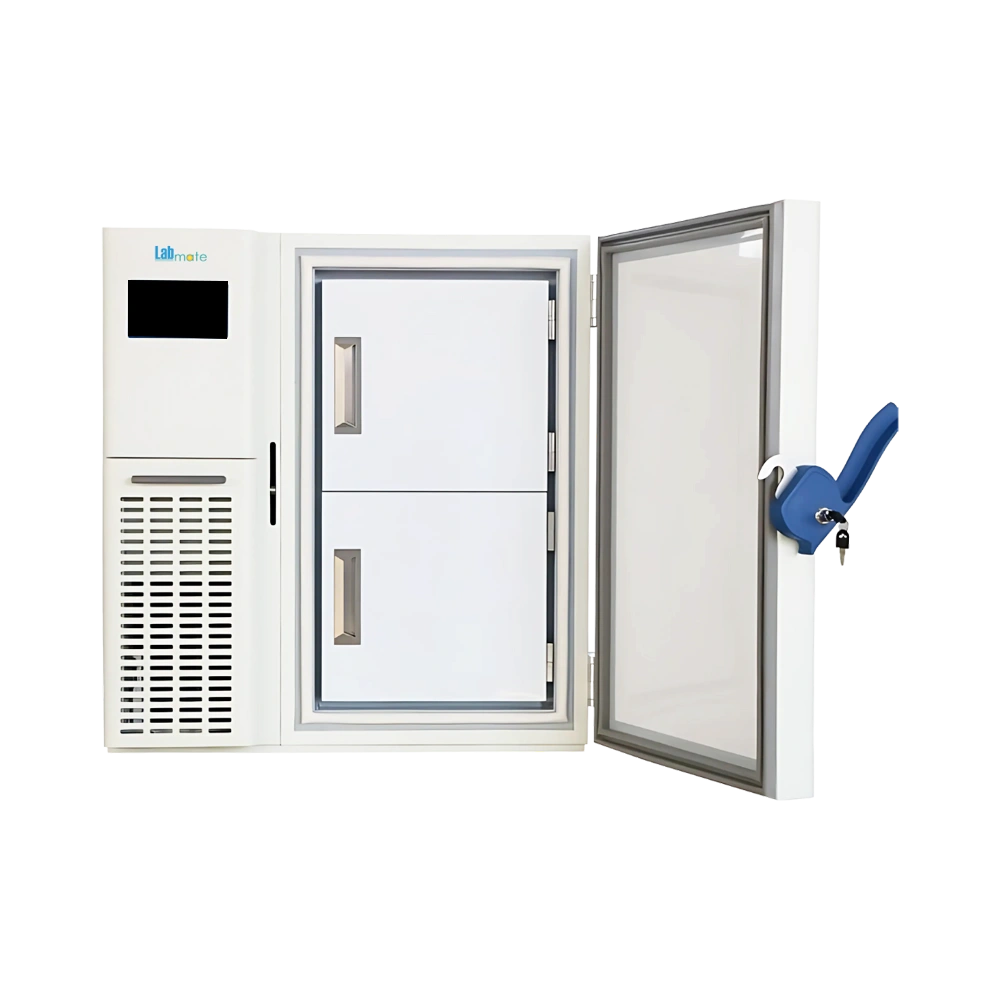

-86℃ Ultra Low Temperature Freezer LMULT-C105 features 96L storage capacity with compact layout. Built in undercounter format for convenient space-saving integration. Equipped with microprocessor-based control system for steady low-temperature maintenance. Designed with intuitive touchscreen interface for seamless monitoring. Our Freezer incorporates polyurethane foam and vacuum insulation panels for superior thermal insulation and energy efficiency.
Specifications
| Capacity | 96L |
| Cooling Performance | -80℃ |
| Temperature Range | -40 to -86℃ |
| Climate Class | N |
| Cabinet Type | Undercounter |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HC mixed |
| Internal Material | Galvanized steel powder coating |
| External Material | Galvanized steel powder coating |
| Insulation | PUF+VIP |
| Thickness of Cabinet Foamed Layer | 90mm |
| Thickness of Door | 70mm |
| Shelf | 1 |
| Inner Door | 2 |
| Storage Capacity | 2-inch Box: 60 |
| Alarm Mode | Sound, light alarm, remote alarm terminal |
| Display | 7-inch touch screen |
| Output | USB port |
| Power Consumption | 5.5 kWh/24h, 460W |
| Power Supply | 220V/50Hz |
| Interior Dimension (W×D×H) | 320×450×610mm |
| Exterior Dimension (W×D×H) | 795×680×815mm |
| Package Dimension (W×D×H) | 850×740×953mm |
| Net Weight | 92kg |
| Gross Weight | 107kg |
Features
Cascade refrigeration technology
Multiple malfunction alerts
Safety door lock
Power-on delay function
Ultra-simple condenser filter
USB port
Stainless steel shelves
Applications
-86℃ Ultra Low Temperature Freezer LMULT-C105 is suitable for storing various biological samples including cells, tissues, germs, erythrocytes, leukocytes, cutis, and viruses.
Similar Products
Frequently Asked Questions
1 What is a -86°C Ultra Low Temperature Freezer?
A -86°C Ultra Low Temperature Freezer is an apparatus designed for long-term storage of sensitive biological samples, including vaccines, enzymes, blood plasma, and tissue samples.
2 How does -86°C Ultra Low Temperature Freezer work?
It uses a cascade refrigeration system to reach and maintain -86°C for storing sensitive samples.
3 What kind of maintenance does -86°C Ultra Low Temperature Freezer require?
Regular maintenance includes checking of refrigeration system, cleaning the interior, verifying temperature calibration, and replacing worn-out components like door seals and compressors.
4 Is -86°C Ultra Low Temperature Freezer suitable for biobanking?
It is used to preserve human tissues, blood, and other bio specimens long-term without compromising quality.
5 How is -86°C Ultra Low Temperature Freezer used in pharmaceutical manufacturing?
It is used to store raw materials, drug formulations, and stability test samples at consistent ultra-low temperatures to maintain efficacy.
6 Is -86°C Ultra Low Temperature Freezer used in IVF labs?
It is used to store embryos, sperm, and other reproductive materials that require strict temperature control.
7 Can -86°C Ultra Low Temperature Freezer be used in forensic labs?
It is used to preserve DNA evidence and biological materials for long-term storage without degradation.
8 How is -86°C Ultra Low Temperature Freezer used in environmental research?
It is used to preserve soil, water, and biological samples collected from extreme environments for later analysis.
9 Is -86°C Ultra Low Temperature Freezer used in stem cell research?
It is essential for preserving stem cells and related samples under conditions that prevent cellular degradation.
10 How is -86°C Ultra Low Temperature Freezer used in gene therapy labs?
It is used to store viral vectors, plasmids, and engineered DNA materials that are highly sensitive to temperature fluctuations.
