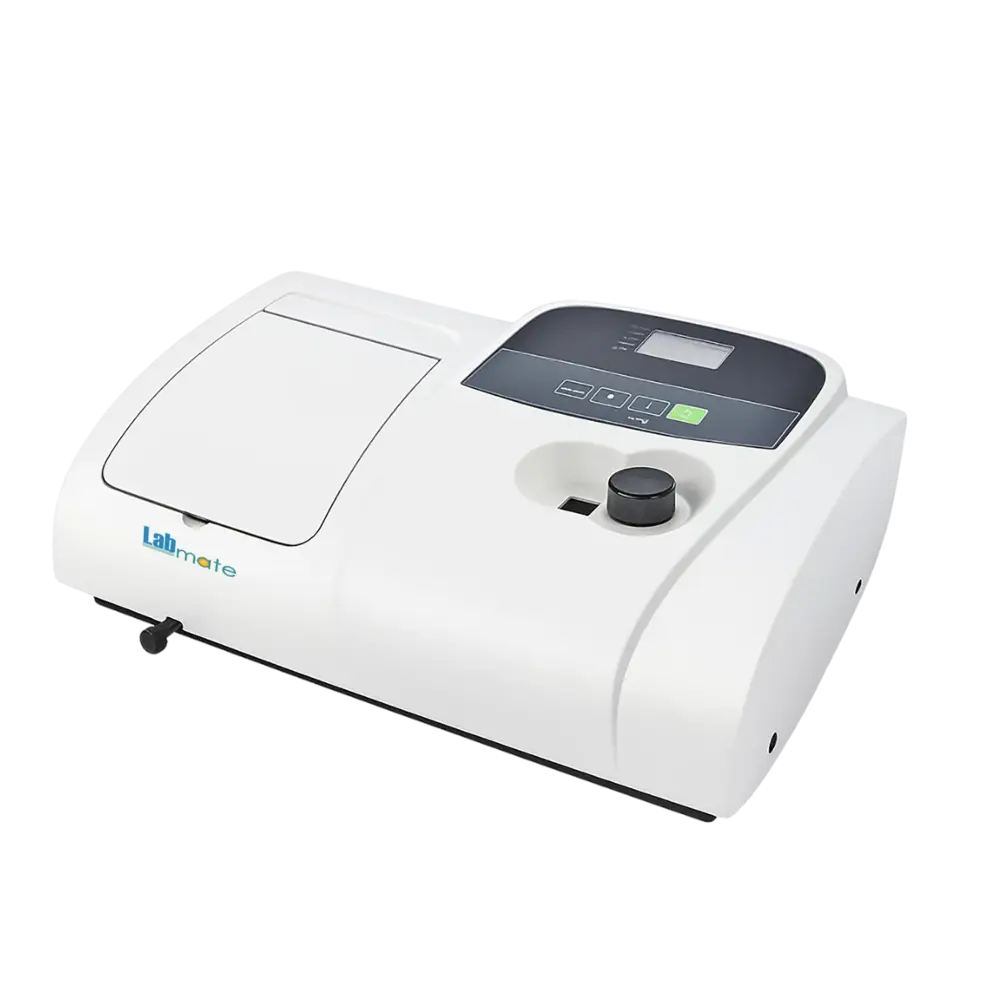

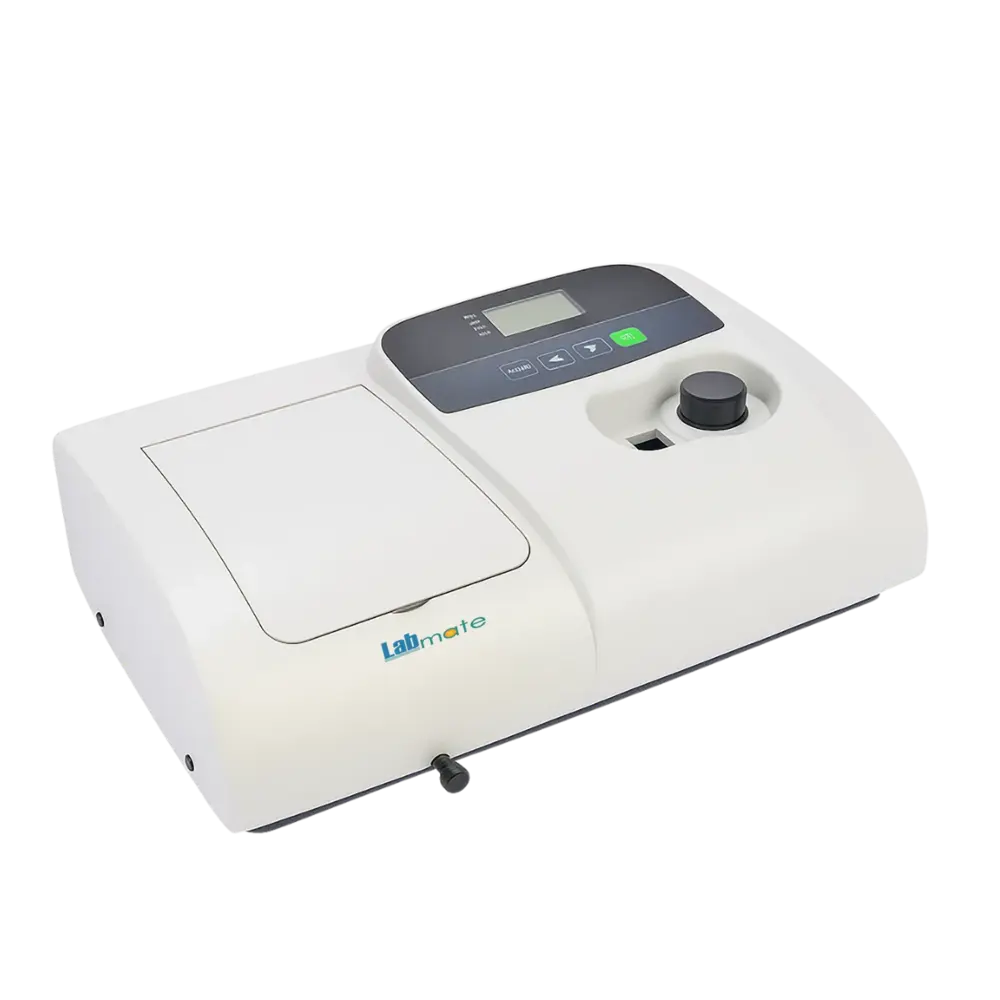

Single Beam Visible Spectrophotometer LMSV-B101 is designed with wavelength range of 325 to 1000 nm. It features microprocessor system for enhanced control, reliable performance, and stable operation. Equipped with wide sample chamber, it allows flexible sample handling and accessory placement. Integrates monochromator offering an extended light path for spectral separation. Our Spectrophotometer is ideal for testing liquid samples in labs, industries, and research centers.
Specifications
| Wavelength Range | 325 to 1000 nm |
| Bandwidth | 4nm |
| Optical System | Single beam, grating 1200 lines/mm |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Lamp |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | Less than or equal to 0.5nm |
| Wavelength Setting | Manual |
| Wavelength Resolution | 0.1nm |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | Less than or equal to 0.2%T |
| Photometric Range | -0.3 to 3A, 0 to 200%T, 0 to 9999C |
| Photometric Mode | T, A, C, F |
| Stray Light | Less than or equal to 0.2%T at 360nm |
| Stability | Less than or equal to 0.002A/30min at 500nm |
| Display | 128×64 Dots LCD |
| Output | USB and Parallel Port |
| Power Supply | AC 85 to 250V |
| Dimension | 420×280×180 mm |
| Weight | 8kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Single Beam Visible Spectrophotometer LMSV-B101 | $ 1625 | Each of 1 |
Features
Auto zero calibration
High resolution optics
Low stray light
USB data output
Four display modes
Quick mode switch
Standard Accessories
Model No. | Accessory name |
LMSV-B101-C1 | 1cm Glass cuvettes |
LMSV-B101-P1 | Power cord |
LMSV-B101-D1 | Dust cover |
LMSV-B101-B1 | Black block |
Optional Accessories
Model No. | Accessory Name | Unit | Quantity |
LMSV-B101-H1 | 10mm Single-position cell holder | Each | 1 |
LMSV-B101-H2 | Manual 10mm 4-position cell holder | Each | 1 |
LMSV-B101-H3 | Manual 50mm/100mm Universal 4-position cell holder | Each | 1 |
LMSV-B101-H4 | 10mm single-position water jacketed ambient cell holder | Each | 1 |
LMSV-B101-H5 | Transparent film holder | Each | 1 |
LMSV-B101-M1 | Micro thermo printer | Each | 1 |
LMSV-B101-L1 | W lamp 12V, 20W | Each | 1 |
LMSV-B101-L2 | D2 lamp | Each | 1 |
LMSV-B101-G1 | 3.5 ml Glass Cuvettes with Lid | Set | 4 |
LMSV-B101-G2 | 17.5 ml Glass Cuvettes with Lid | Set | 4 |
LMSV-B101-G3 | 35 ml Glass Cuvettes with Lid | Set | 4 |
LMSV-B101-Q1 | 3.5 ml Quartz Cuvettes with Lid | Set | 2 |
LMSV-B101-Q2 | 17.5 ml Quartz Cuvettes with Lid | Set | 2 |
LMSV-B101-Q3 | 35 ml Quartz Cuvettes with Lid | Set | 2 |
LMSV-B101-P2 | PC Software-UV Basic | Set | 1 |
LMSV-B101-P3 | PC Software-MetaSpec Pro | Set | 1 |
Applications
Single Beam Visible Spectrophotometer LMSV-B101 is applied for routine testing of liquid samples to determine transmittance, absorbance, concentration, and factor values in quality control, research laboratories, academic institutions, and production environments.
Similar Products
$ 2812.5 / Each of 1
$ 1992.5 / Each of 1
$ 3150 / Each of 1
$ 1175 / Each of 1
$ 2100 / Each of 1
$ 1500 / Each of 1
$ 2150 / Each of 1
$ 1287.5 / Each of 1
$ 1750 / Each of 1
$ 3025 / Each of 1
$ 1962.5 / Each of 1
$ 2737.5 / Each of 1
Frequently Asked Questions
1 What is a Visible Spectrophotometer?
A Visible Spectrophotometer is an apparatus designed to measure the absorbance or transmittance of a sample in the visible region of the electromagnetic spectrum.
2 How does Visible Spectrophotometer work?
It works by passing visible light through a sample and detecting the absorbed amount.
3 How is Visible Spectrophotometer used in pharmaceutical analysis?
It is used in pharmaceutical analysis to determine drug concentration, check purity, and perform quality control of colored compounds.
4 Can Visible Spectrophotometer be used for environmental testing?
It is commonly used in environmental testing to analyze pollutants such as nitrates, phosphates, and heavy metals in water samples.
5 How does Visible Spectrophotometer help in food quality analysis?
It helps in food quality analysis by measuring color intensity, detecting food additives, and quantifying nutrients or contaminants.
6 What role does Visible Spectrophotometer play in biochemical research?
In biochemical research, it is used to monitor enzyme activity, protein concentration, and metabolic reactions involving colored compounds.
7 How does Visible Spectrophotometer aid in textile industry applications?
It aids the textile industry by measuring dye uptake and color consistency on fabrics.
8 Can Visible Spectrophotometer be used in agriculture?
It helps in agriculture by analyzing soil nutrients, plant pigments, and detecting pesticide residues.
9 How is Visible Spectrophotometer applied in forensic science?
In forensic science, it helps identify substances based on their color absorption patterns, aiding in evidence analysis.
10 How does Visible Spectrophotometer support the analysis of antioxidants?
It supports antioxidant analysis by measuring the color change in assays that quantify antioxidant capacity.
