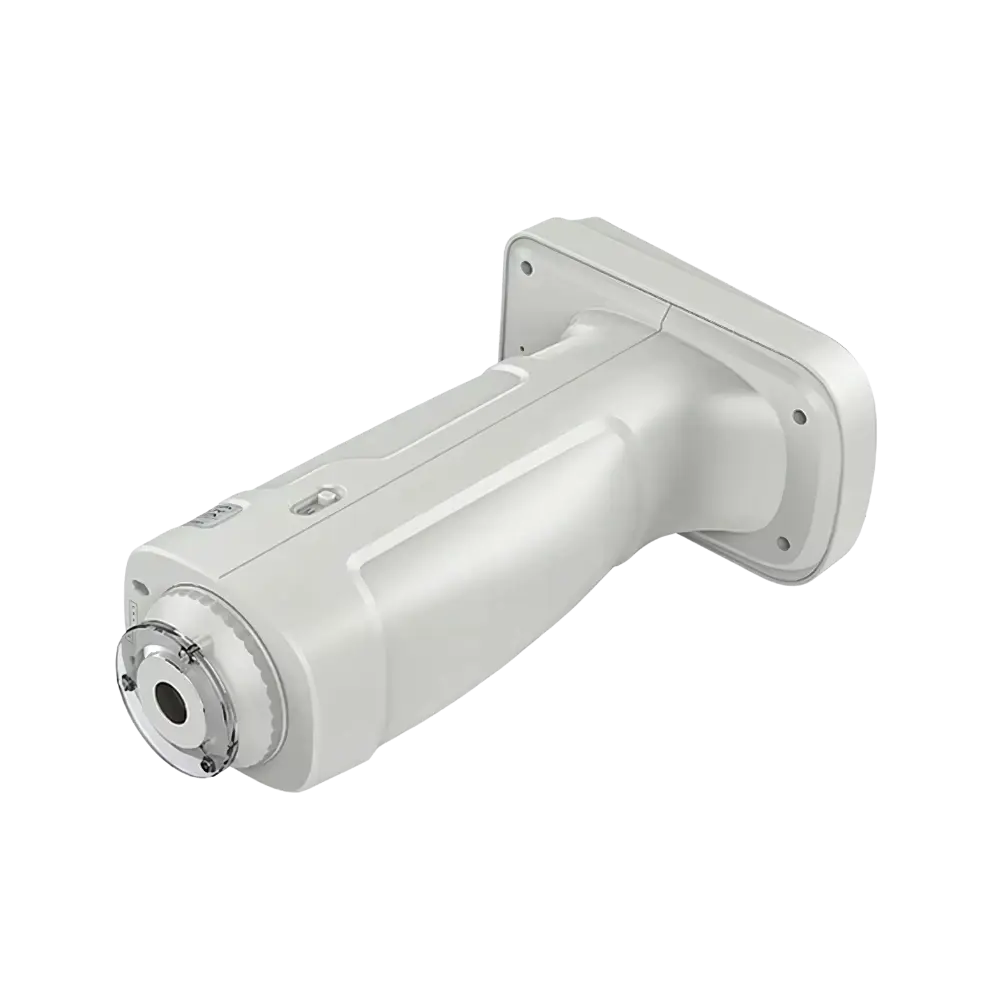

Portable Spectrophotometer LMPS-B100 is designed with wavelength range of 400 to 700 nm. It features full-wavelength balanced LED light source combined with UV illumination for enhanced spectral reliability. Equipped with color screen, it offers vivid display and intuitive interface. Integrates built-in camera for clear visualization of measurement area. Our Spectrophotometer ensures color analysis for quality control across industrial, research, and production environments.
Specifications
| Wavelength Range | 400 to 700nm |
| Reflectance Range | 0 to 200% |
| Spectroscopic Method | Grating |
| Sensor | Dual-row high-precision CMOS array sensor |
| Calibration | Intelligent automatic calibration |
| Wavelength Interval | 10nm |
| Reflectivity Resolution | 0.01% |
| Measurement Time | Less than 2 seconds |
| Light Source | Full-band balanced LED light source+UV |
| Measuring Aperture | Four： Φ11mm，Φ6mm，Φ3mm，1×3mm |
| Measurement Index | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color difference, WI, YI, Blackness, Color Fastness, Tint, Color Density CMYK, Milm, Munsell, Opacity, Color strength |
| Illuminants | A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2 |
| Geometry | D/8 SCI/SCE |
| Repeatability | ΔE*ab less than or equal to 0.02 |
| Software Support | Android, iOS, Windows, WeChat applet |
| Accuracy | Metrology Level I |
| Observer Angles | 2°，10° |
| Sphere Size | 40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Display | IPS Full Color Screen,3.5 inches |
| Display Resolution | 0.01 |
| Interface | USB, Bluetooth |
| Battery Capacity | Rechargeable, 8000 times continuous test |
| Light Source Lifetime | 10 years, 1 million tests |
| Storage | Instrument: 100 standard samples and 10000 samples; APP: mass storage |
| Battery Power | 7.2V/3000mAh |
| Height | 102 mm |
| Packing Dimension | 510×420×200 mm |
| Net Weight | 750 g |
| Gross Weight | 2.3 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Spectrophotometer LMPS-B100 | $ 3362.5 | Each of 1 |
Features
Dual optical path
CMOS array sensor
Auto calibration
Multiple apertures
Versatile sample handling
Wide color indices
Cross-platform support
Standard Accessories
Model No. | Accessory Name |
LMPS-B100-C1 | Calibration Base |
LMPS-B100-C2 | U Disk |
LMPS-B100-C3 | Charger |
LMPS-B100-C4 | USB Data Cable |
LMPS-B100-C5 | 8mm Caliber Version |
LMPS-B100-C6 | 4mm Caliber Version |
LMPS-B100-C7 | 1×3mm Caliber Version |
Optional Accessories
Model No. | Accessory name |
LMPS-B100-F1 | Liquid fixture |
LMPS-B100-F2 | Powder fixture |
Applications
Portable Spectrophotometer LMPS-B100 facilitates color measurement and analysis across various materials, supporting quality control, formulation, and standard compliance in industrial, research, and production environments.
Similar Products
$ 3407.5 / Each of 1
$ 7640 / Each of 1
$ 9757.5 / Each of 1
$ 7387.5 / Each of 1
$ 3362.5 / Each of 1
Frequently Asked Questions
1 What is a Portable Spectrophotometer?
A Portable Spectrophotometer is an apparatus designed to measure the intensity of light across different wavelengths.
2 How does Portable Spectrophotometer work?
It works by shining a light on a sample and measuring the amount of light that is absorbed or reflected, helping to determine the color or chemical composition of the sample.
3 How does Portable Spectrophotometer help in quality control during manufacturing?
It helps in quality control during manufacturing by providing objective color measurements to ensure product consistency and detect any deviations in color before final production.
4 Can Portable Spectrophotometer be used for on-site environmental testing?
It is used in on-site environmental testing to analyze water, soil, or air samples for contaminants by measuring absorbance or transmittance of specific wavelengths.
5 How is Portable Spectrophotometer used in the food and beverage industry?
It is used in the food and beverage industry to assess color, clarity, and concentration of products such as juices, sauces, and oils.
6 How does Portable Spectrophotometer assist in textile color analysis?
It assists in textile color analysis by enabling precise measurement of fabric color under different lighting conditions, aiding in shade sorting and batch-to-batch color consistency.
7 How is Portable Spectrophotometer applied in plastic manufacturing?
It is applied in plastic manufacturing to ensure color uniformity of plastic products and components.
8 What role does Portable Spectrophotometer play in the pharmaceutical sector?
It plays a critical role in the pharmaceutical sector by verifying the identity and concentration of drug substances through spectral analysis during formulation and quality testing.
9 Is Portable Spectrophotometer suitable for automotive paint inspection?
It is suitable for automotive paint inspection, as it ensures color uniformity across parts and helps detect defects or mismatches in coatings.
10 Is Portable Spectrophotometer suitable for drug quality control?
It is used to analyze API concentration, tablet uniformity, or UV-Vis absorbance spectra for raw materials and finished products.
