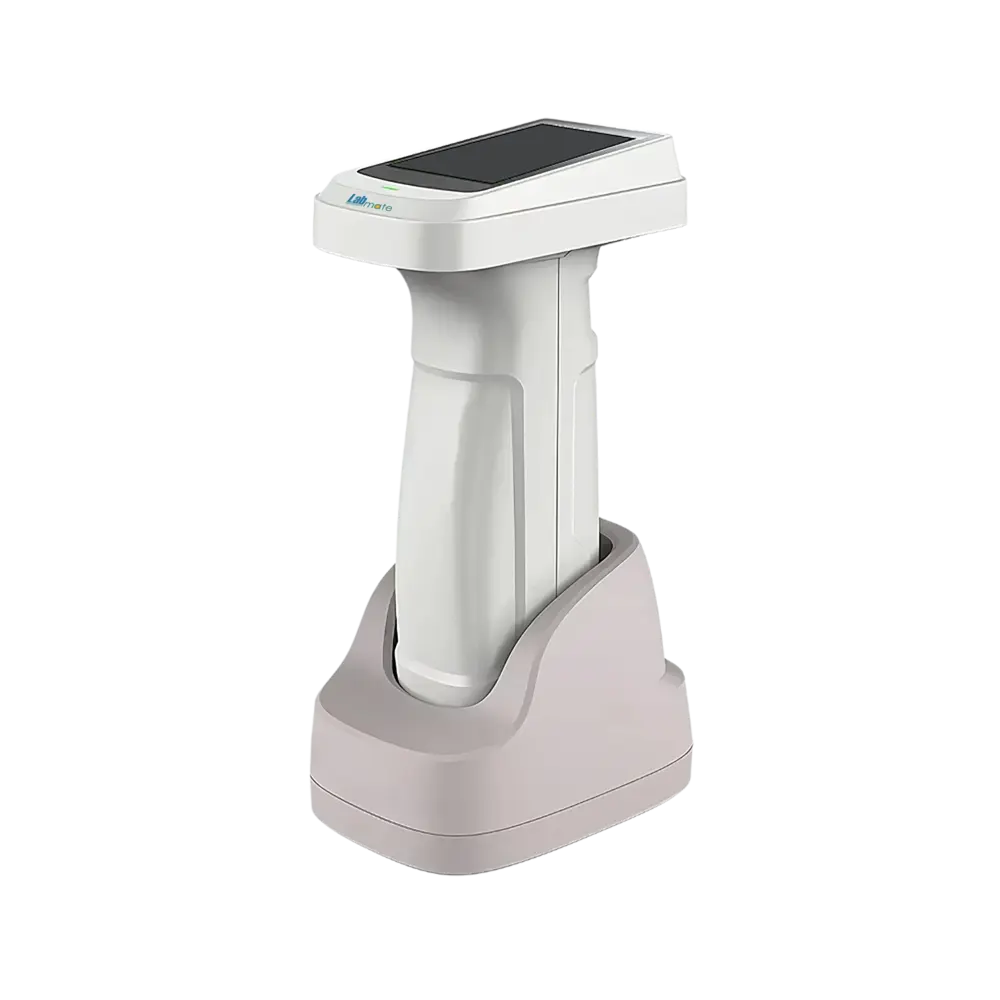

Portable Spectrophotometer LMPS-B100 Catalog

Overview

Portable Spectrophotometer LMPS-B100 is designed with wavelength range of 400 to 700 nm. It features full-wavelength balanced LED light source combined with UV illumination for enhanced spectral reliability. Equipped with color screen, it offers vivid display and intuitive interface. Integrates built-in camera for clear visualization of measurement area. Our Spectrophotometer ensures color analysis for quality control across industrial, research, and production environments.

Features :

Dual optical path

CMOS array sensor

Auto calibration

Multiple apertures

Versatile sample handling

Wide color indices

Cross-platform support

Specifications :

Wavelength Range	400 to 700nm
Reflectance Range	0 to 200%
Spectroscopic Method	Grating
Sensor	Dual-row high-precision CMOS array sensor
Calibration	Intelligent automatic calibration
Wavelength Interval	10nm
Reflectivity Resolution	0.01%
Measurement Time	Less than 2 seconds
Light Source	Full-band balanced LED light source+UV
Measuring Aperture	Four： Φ11mm，Φ6mm，Φ3mm，1×3mm
Measurement Index	Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color difference, WI, YI, Blackness, Color Fastness, Tint, Color Density CMYK, Milm, Munsell, Opacity, Color strength
Illuminants	A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Geometry	D/8 SCI/SCE
Repeatability	ΔE*ab less than or equal to 0.02
Software Support	Android, iOS, Windows, WeChat applet
Accuracy	Metrology Level I
Observer Angles	2°，10°
Sphere Size	40mm
Standards	CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Display	IPS Full Color Screen,3.5 inches
Display Resolution	0.01
Interface	USB, Bluetooth
Battery Capacity	Rechargeable, 8000 times continuous test
Light Source Lifetime	10 years, 1 million tests
Storage	Instrument: 100 standard samples and 10000 samples; APP: mass storage
Battery Power	7.2V/3000mAh
Height	102 mm
Packing Dimension	510×420×200 mm
Net Weight	750 g
Gross Weight	2.3 kg

Standard Accessories :

Model No.	Accessory Name
LMPS-B100-C1	Calibration Base
LMPS-B100-C2	U Disk
LMPS-B100-C3	Charger
LMPS-B100-C4	USB Data Cable
LMPS-B100-C5	8mm Caliber Version
LMPS-B100-C6	4mm Caliber Version
LMPS-B100-C7	1×3mm Caliber Version

Optional Accessories :

Model No.	Accessory name
LMPS-B100-F1	Liquid fixture
LMPS-B100-F2	Powder fixture

Applications :

Portable Spectrophotometer LMPS-B100 facilitates color measurement and analysis across various materials, supporting quality control, formulation, and standard compliance in industrial, research, and production environments.
