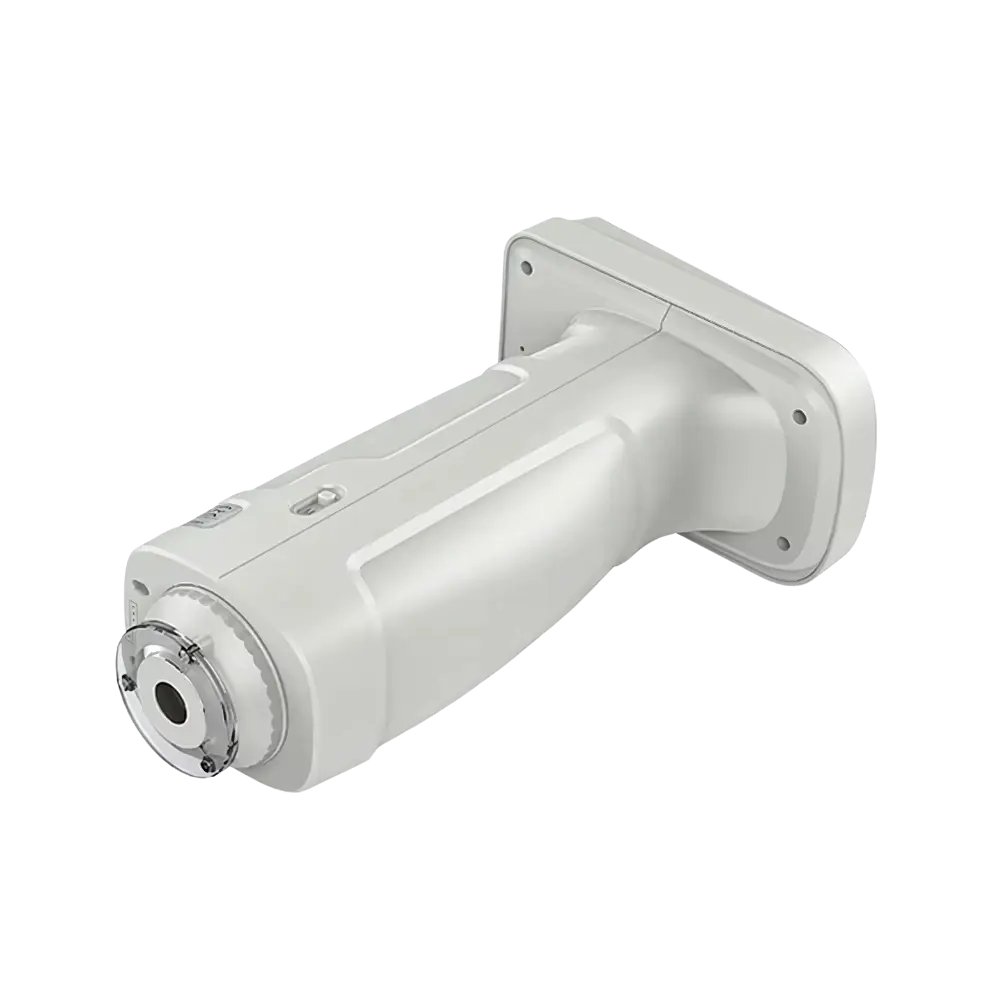

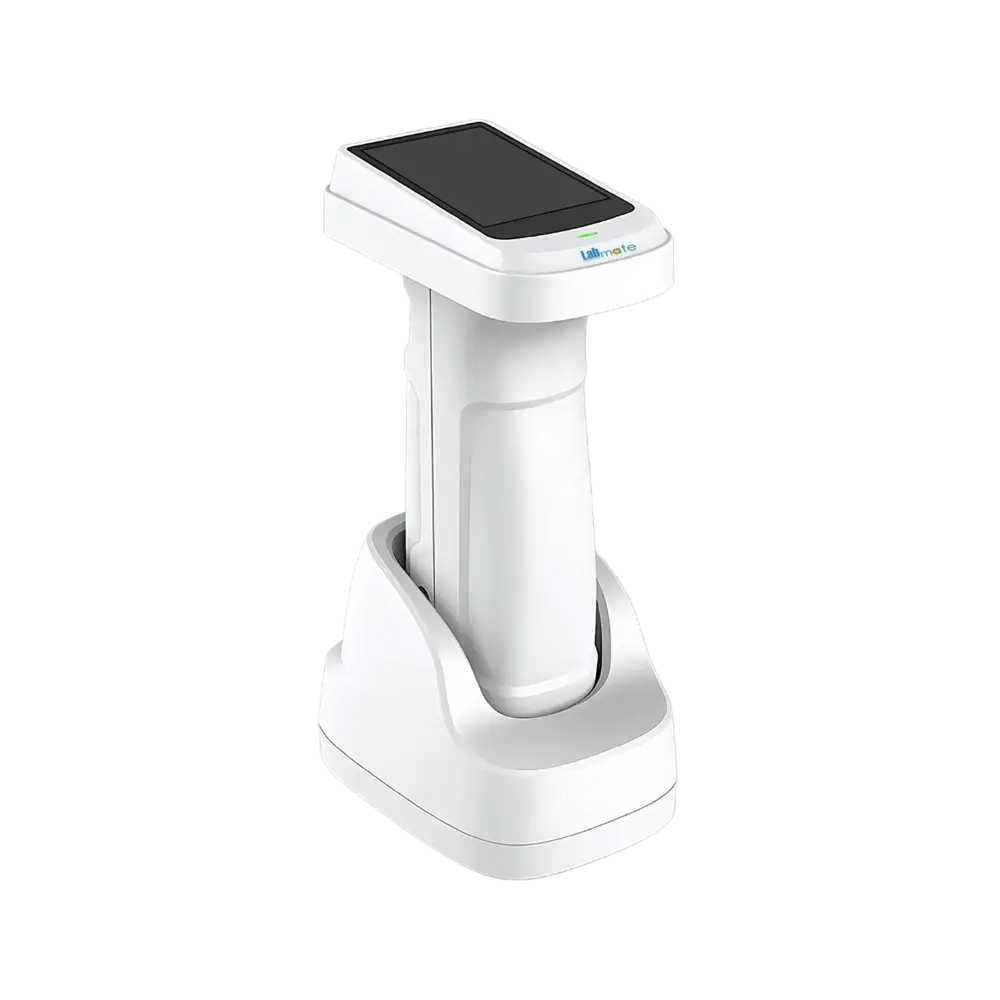

Portable Spectrophotometer LMPS-B102 features an array sensor with range of 400 to 700 nm. It supports more than 30 color indices and 37 illuminants for comprehensive analysis for diverse standards. Equipped with USB and Bluetooth interfaces for flexible data transfer and seamless device connectivity across platforms. Integrates full-wavelength balanced LED light source for enhanced spectral reliability. Our Spectrophotometer is ideal for color examining in printing, plastics, coatings, and packaging.
Specifications
| Wavelength Range | 400 to 700nm |
| Reflectance Range | 0 to 200% |
| Spectroscopic Method | Grating |
| Sensor | Array sensor |
| Calibration | Intelligent automatic calibration |
| Wavelength Interval | 10nm |
| Reflectivity Resolution | 0.01% |
| Measurement Time | Less than 2.5 seconds |
| Light Source | Full-band balanced LED light source |
| Measuring Aperture | Two： Φ11mm, Φ6mm |
| Measurement Index | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color difference, WI, YI, Blackness, Color Fastness, Tint, Color Density CMYK, Milm, Munsell, Opacity, Color strength |
| Illuminants | A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2 |
| Geometry | D/8 SCI/SCE |
| Repeatability | ΔE*ab less than or equal to 0.025 |
| Software Support | Android, iOS, Windows, WeChat applet |
| Accuracy | Metrology Level I |
| Observer Angles | 2°, 10° |
| Sphere Size | 40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Display | IPS Full Color Screen,3.5 inches |
| Display Resolution | 0.01 |
| Interface | USB, Bluetooth |
| Battery Capacity | Rechargeable, 8000 times continuous test |
| Light Source Lifetime | 10 years, 1 million tests |
| Storage | Instrument: 100 standard samples and 10000 samples; APP: mass storage |
| Battery Power | 7.2V/3000mAh |
| Height | 102 mm |
| Packing Dimension | 510×420×200 mm |
| Net Weight | 750 g |
| Gross Weight | 2.3 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Spectrophotometer LMPS-B102 | $ 3212.5 | Each of 1 |
Features
Auto calibration
ZrO₂ white tile
Multiple apertures
Tool-free aperture swap
Cross-platform support
Windows compatibility
Visible measurement zone
Standard Accessories
Model No. | Accessory Name |
LMPS-B102-C1 | Calibration Base |
LMPS-B102-C2 | U Disk |
LMPS-B102-C3 | Charger |
LMPS-B102-C4 | USB Data Cable |
LMPS-B102-C5 | 8mm Caliber Version |
LMPS-B102-C6 | 4mm Caliber Version |
LMPS-B102-C7 | 1×3mm Caliber Version |
Optional Accessories
Model No. | Accessory name |
LMPS-B102-F1 | Liquid fixture |
LMPS-B102-F2 | Powder fixture |
Applications
Portable Spectrophotometer LMPS-B102 enables portable color evaluation and analysis in quality control, production inspection, and material matching across printing, plastics, textiles, coatings, and packaging.
Similar Products
$ 7237.5 / Each of 1
$ 7490 / Each of 1
$ 9607.5 / Each of 1
$ 3212.5 / Each of 1
$ 3257.5 / Each of 1
Frequently Asked Questions
1 What is a Portable Spectrophotometer?
A Portable Spectrophotometer is an apparatus designed to measure the intensity of light across different wavelengths.
2 How does Portable Spectrophotometer work?
It works by shining a light on a sample and measuring the amount of light that is absorbed or reflected, helping to determine the color or chemical composition of the sample.
3 How does Portable Spectrophotometer help in quality control during manufacturing?
It helps in quality control during manufacturing by providing objective color measurements to ensure product consistency and detect any deviations in color before final production.
4 Can Portable Spectrophotometer be used for on-site environmental testing?
It is used in on-site environmental testing to analyze water, soil, or air samples for contaminants by measuring absorbance or transmittance of specific wavelengths.
5 How is Portable Spectrophotometer used in the food and beverage industry?
It is used in the food and beverage industry to assess color, clarity, and concentration of products such as juices, sauces, and oils.
6 How does Portable Spectrophotometer assist in textile color analysis?
It assists in textile color analysis by enabling precise measurement of fabric color under different lighting conditions, aiding in shade sorting and batch-to-batch color consistency.
7 How is Portable Spectrophotometer applied in plastic manufacturing?
It is applied in plastic manufacturing to ensure color uniformity of plastic products and components.
8 What role does Portable Spectrophotometer play in the pharmaceutical sector?
It plays a critical role in the pharmaceutical sector by verifying the identity and concentration of drug substances through spectral analysis during formulation and quality testing.
9 Is Portable Spectrophotometer suitable for automotive paint inspection?
It is suitable for automotive paint inspection, as it ensures color uniformity across parts and helps detect defects or mismatches in coatings.
10 Is Portable Spectrophotometer suitable for drug quality control?
It is used to analyze API concentration, tablet uniformity, or UV-Vis absorbance spectra for raw materials and finished products.
