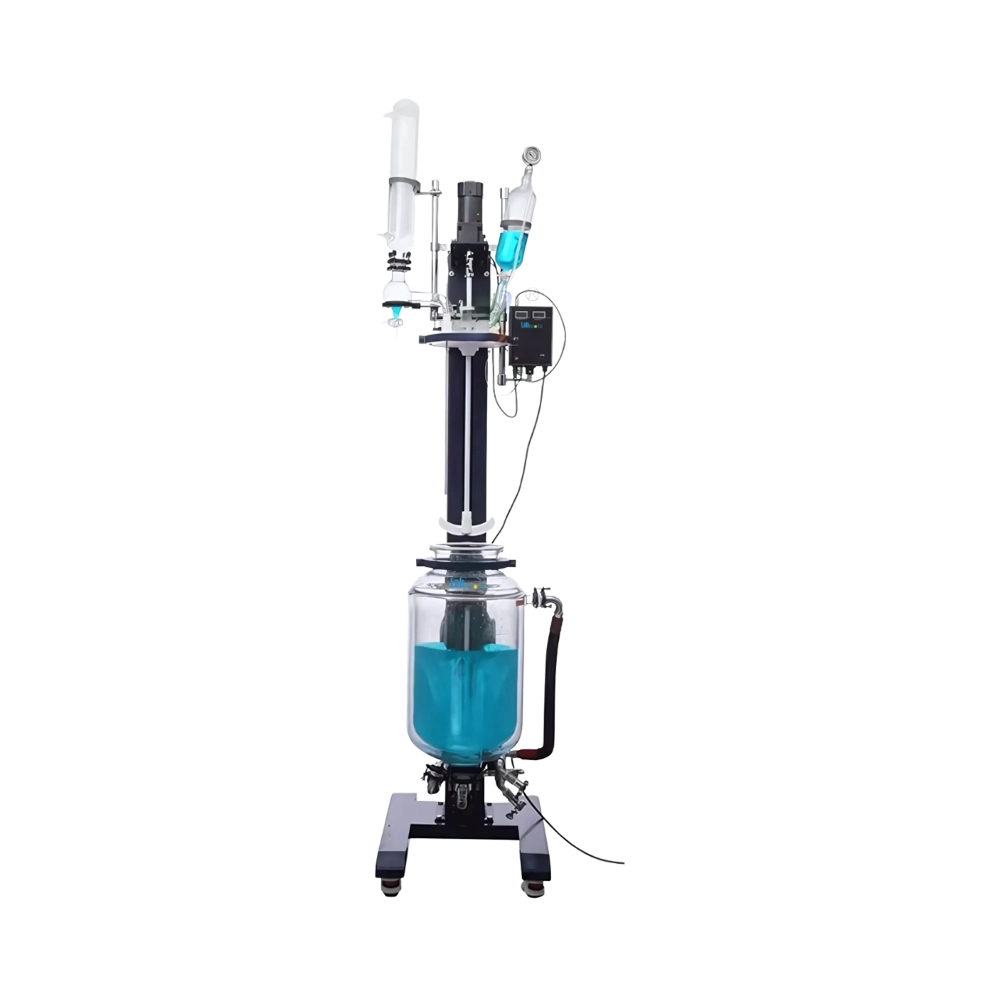

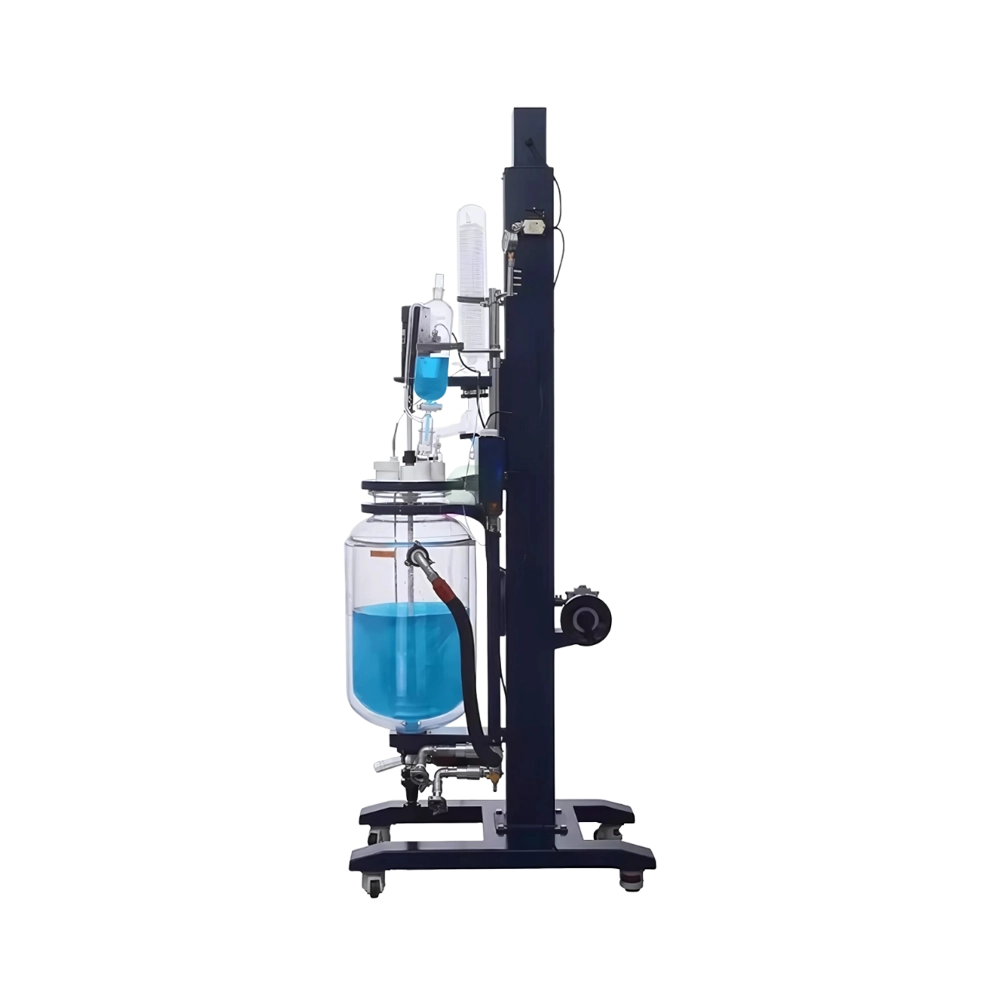

Jacketed Glass Reactor LMJGR-D101 provides 10-liter capacity. It features constant-pressure funnel for controlled addition of liquids without system imbalance. Equipped with solid charging port, it introduces powders or granules into reactor. Integrated stirring motor and universal coupling enable consistent mixing through an internal paddle. Our Reactor ensures compound synthesis, solvent distillation, crystallization, and concentration.
Specifications
| Reactor Volume | 10 L |
| Jacket Volume | 5 L |
| Dropping Funnel Volume | 1 L |
| Operating Temperature Range | -80°C to 250°C |
| Vacuum Degree | 0.098 MPa |
| Rotation Speed Range | 0 to 450 rpm |
| Temperature Measurement Accuracy | ±1°C |
| Lifting Distance | 500 mm |
| Lifting Power | 40W1/12.5 |
| Stirring Power | 120W1/3 |
| Power Consumption | 130W |
| Power Supply | 220V/50Hz |
| Glass Vessel Lid Diameter | 265 mm |
| Condenser Size (D×H) | 100×600 mm |
| Dimension (W×D×H) | 700×850×(1820 to 2250) mm |
| Weight | 120 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Jacketed Glass Reactor LMJGR-D101 | $ 6887.5 | Each of 1 |
Features
Speed regulator panel
Temperature sensor port
Manual handwheel lift
Mobile caster base
Overflow protection
Smooth rotation
Easy pouring angle
High vacuum integrity
Applications
Jacketed Glass Reactor LMJGR-D101 is ideal for compound synthesis, solvent distillation, temperature-controlled mixing, crystallization, and concentration tasks in pharmaceutical labs, university research, chemical engineering, and biotechnology.
Similar Products
$ 10237.5 / Each of 1
$ 3375 / Each of 1
$ 7450 / Each of 1
$ 13725 / Each of 1
$ 6625 / Each of 1
$ 8450 / Each of 1
$ 11125 / Each of 1
$ 3150 / Each of 1
$ 6825 / Each of 1
$ 9575 / Each of 1
$ 2412.5 / Each of 1
$ 3962.5 / Each of 1
$ 10862.5 / Each of 1
$ 3075 / Each of 1
$ 12912.5 / Each of 1
Frequently Asked Questions
1 What is a Jacketed Glass Reactor?
A Jacketed Glass Reactor is a laboratory or industrial reactor that features a double-layered glass vessel, allowing for precise temperature control by circulating heating or cooling fluids through the outer jacket.
2 How does Jacketed Glass Reactor work?
It works by circulating thermal fluids (such as water, oil, or glycol) through the outer jacket, which maintains a stable internal temperature for the reactions occurring inside the glass vessel.
3 Can Jacketed Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis due to its excellent temperature control and chemical resistance, which are essential for producing high-purity compounds.
4 Is Jacketed Glass Reactor suitable for polymerization reactions?
It is highly suitable for polymerization reactions because it allows controlled heating or cooling, preventing runaway reactions and enabling better product quality.
5 How is Jacketed Glass Reactor used in essential oil extraction?
It is used in essential oil extraction through solvent-based methods, where temperature control is critical to preserve volatile compounds and improve yield.
6 Can Jacketed Glass Reactor be used in pilot-scale chemical production?
It is commonly used in pilot-scale chemical production to replicate lab-scale processes before full-scale manufacturing.
7 How is Jacketed Glass Reactor used in API development?
It is essential in Active Pharmaceutical Ingredient (API) development for maintaining reaction conditions that are critical to producing high-purity drug compounds.
8 Can Jacketed Glass Reactor be used in nanomaterials synthesis?
It is often used in the synthesis of nanomaterials, where precise control over temperature and mixing is essential for size and shape control.
9 Can Jacketed Glass Reactor be used in petrochemical research?
It is commonly used in petrochemical research for controlled hydrocarbon synthesis, catalyst testing, and process development.
10 Can Jacketed Glass Reactor be used for biofuel research and development?
It is useful in biofuel R&D for conducting controlled reactions involving biomass conversion, transesterification, or catalytic upgrading.
