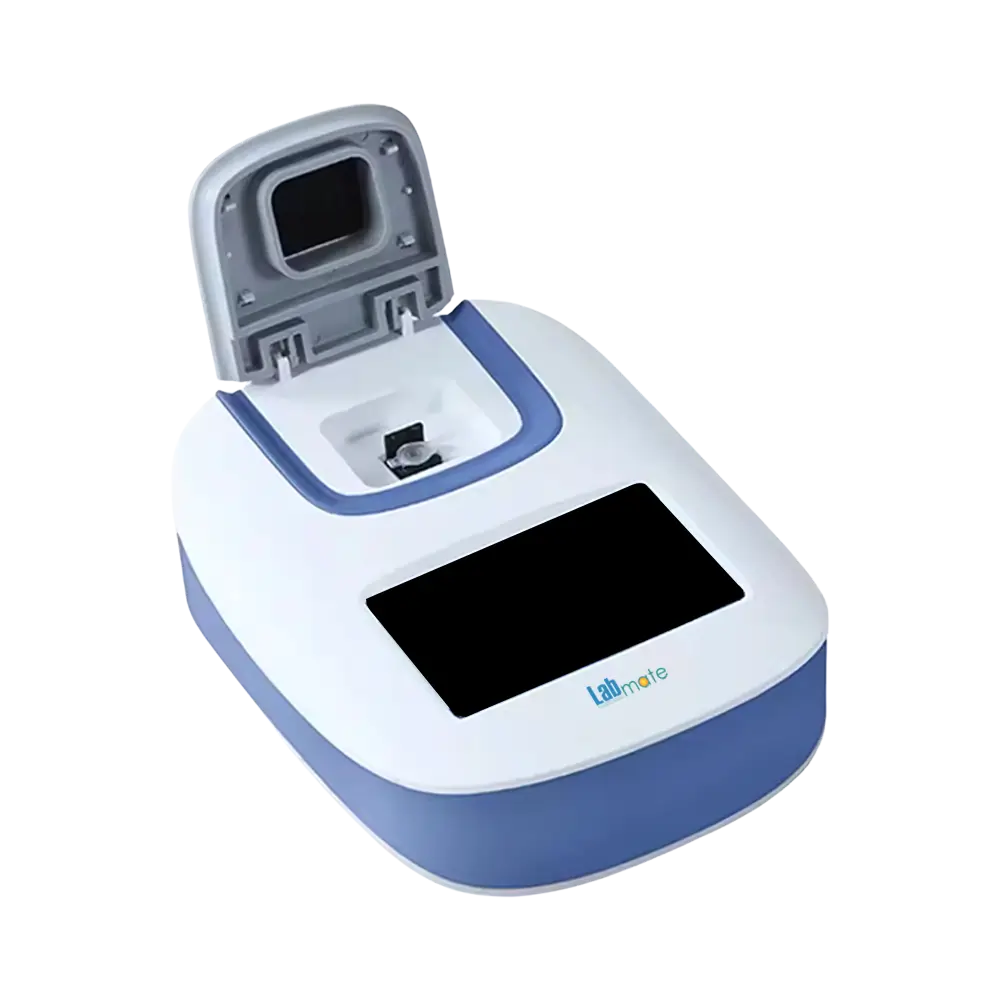

Fluorometer LMFMR-A100

Fluorometer LMFMR-A100 is the next generation benchtop dual-channel fluorometers having excitation filters of 365 ± 20 nm and 460 ± 20 nm. It measures ds-DNA concentration with great sensitivity and a lower DNA detection limit of 0.5 ng/µl. Designed to provide fluorescence in the UV and blue channels for accurate determination of sample concentration.

Catalog Send Mail Whatsapp Get Quote

Specifications

Dynamic range	Five orders of magnitude
Linear dynamic range	R2 >0.995
Processing time	3s (Once)
Light source	UV LED Blue LED
Excitation filters	365 ± 20 nm 460 ± 20 nm
Emission filters	420 to 480 nm (60 nm) 525 to 570 nm (45 nm)
Detector	Photodiode
Repeatability	< 1.5 %
Stability	< 1.5 %
Sensitivity	ds DNA: 0.5 ng/ml
Dimension (W × D × H)	194 × 155 × 72.5 mm
Weight	0.4 kg

Features

Designed with 4.3-inch touch screen, small and easy to use
Simple protein, RNA, and DNA measurements in 3 seconds
Detects DNA with high sensitivity with a limit of 0.5 ng/µl
Five orders of magnitude linear dynamic range
Provided with two fluorescence channels for nucleic acid, protein quantitation in one detection
Offers opening system for ease of the user
Adopts PCR tube adapter for efficient operation
Saves at most 1,000 data and output data by USB port

Standard Accessories

Adapter for 0.5 ml qPCR tube

Optional Accessories

Adapter for 0.2 ml qPCR tube

Applications

Fluorometer is used to measure concentration of the substances on the basis of fluorescence emitted by them across mineralogy, medicine, and chemical sensors.

Selection Guide

Fluorometer LMFMR-A100 is a highly sensitive instrument designed for fluorescence-based detection and quantification in various research and laboratory applications. Based on research studies, this model is commonly used in molecular biology, biochemistry, environmental monitoring, and clinical diagnostics, where accurate measurement of fluorescent signals is required. It features a wide dynamic range of five orders of magnitude and a linear dynamic range with R² > 0.995, ensuring reliable and accurate results over a broad concentration span. The processing time of just 3 seconds per measurement supports fast throughput in routine or high-volume testing. Equipped with both UV LED and Blue LED light sources, it is versatile for detecting a wide range of fluorophores. Customers should consider these specifications along with relevant certifications and compliance with laboratory standards when selecting this model for experiments requiring sensitivity, speed, and accuracy.
