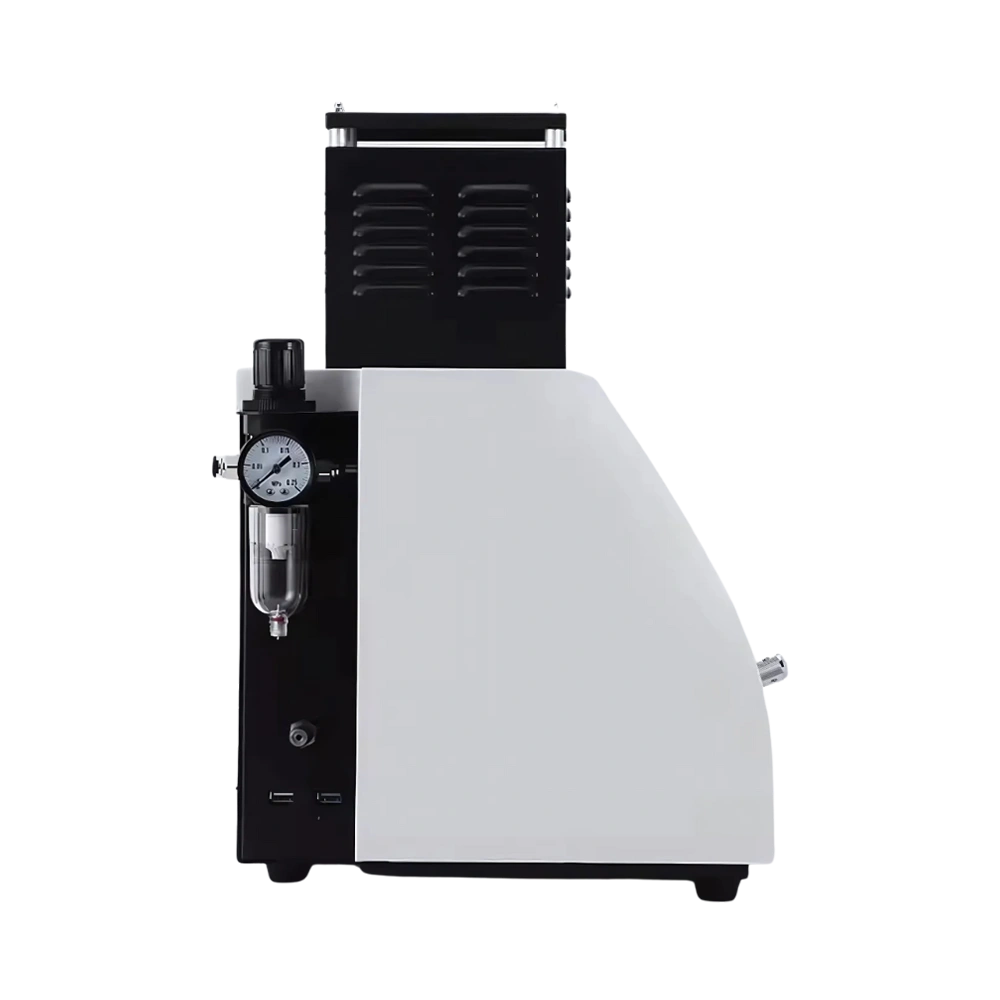

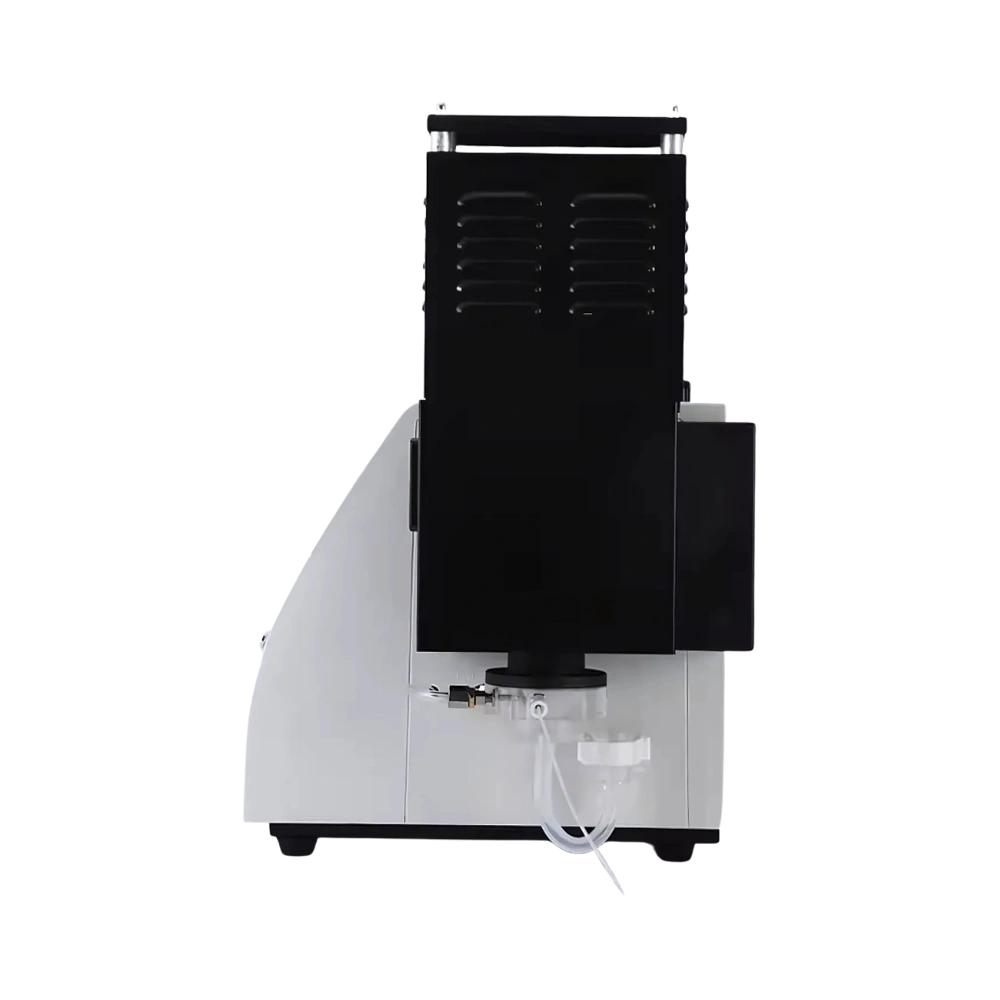

Flame Photometer LMFM- A100

Flame Photometer LMFM- A100 is a scientific tool used to quantify the concentration of specific chemical substances particularly alkali and alkaline earth metals in a solution. It functions using the fundamental ideas of flame emission spectroscopy, which includes sample ingestion at a rate of 6 mL per min. Especially beneficial for analyzing elements with strong atomic emission lines, which include sodium (Na) and potassium(K).

Catalog Send Mail Whatsapp

Specifications

Elements Detected	K, Na
Sample Uptake	< 6mL/ min
Response Time	< 8 s
Dimension	400 × 250 × 500 mm
Repeatability	< 3% coefficient of variation for 7 consecutive samples
Range	K 0 to 100 ppm, Na 0 to 160 ppm
Sensitivity	K 0.01 ppm, Na 0.01 ppm
Linearity	K 0.195 ppm, Na 0.69 ppm
Power Supply	AC 220 V;50 Hz
Power Consumption	250 W
Net Weight	8 Kg

Features

Conveniently built with a USB port making it easy to connect to peripheral devices
7-inch color touchscreen provides a clear and vibrant display
Enables the determining of various concentration units
Incorporated with an Optical Lens System for better isolation and focus of emitted light
Analysis requires only a small quantity of samples
Provide with an automatic gas on/off mechanism for safety purposes
Built-in thermal printer makes it user-friendly
Allows to choose from different flame sizes
Simplified device with cost-effective maintenance

Optional Accessories

Software

Printer

Atomizer

Applications

The Flame Photometer is used for estimating the concentration of metal ions in a solution. Mainly used in industries like pharmaceutical, and petrochemical industries for environmental and agricultural analysis.

Flame Photometer LMFM-B104

Test Element: K, Na, Li
Channel Quantity: 3
Reading Range: Concentration: 0.000 to 999.9, Energy 0 to 65535
Test Range: K: 0 to 100 ppm, Na: 0 to 160 ppm, Li: 0 to 100 ppm
Limit Of Detection: K: less than 0.004mmol/L, Na: less than 0.008mmol/L, Li: less than 0.015mmol/L

Flame Photometer LMFM-A102

Test Element: K, Na, Ca
Channel Quantity: 3
Test Range: K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Ca: 0.1 to 1000 ppm
Limit Of Detection: K: less than or equal to 0.158 ppm, Na: less than or equal to 0.184 ppm, Ca: less than or equal to 2 ppm
Linear Error: K: less than or equal to 0.195 ppm, Na: less than or equal to 0.69 ppm, Ca: less than or equal to 3 ppm

Flame Photometer LMFM-B100

Test Element: K, Na, Li, Ca, Ba
Channel Quantity: 5
Reading Range: Concentration: 0.000 to 999.9, Energy 0 to 65535
Test Range: K: 0 to 100 ppm, Na: 0 to 160 ppm, Li: 0 to 100 ppm, Ca: 0 to 1000 ppm, Ba: 0 to 3000ppm
Limit Of Detection: K: less than 0.004mmol/L, Na: less than 0.008mmol/L, Li: less than 0.015mmol/L, Ca: less than 0.050mmol/L, Ba: less than 0.044mmol/L

Flame Photometer LMFM-A101

Test Element: K, Na, Li
Channel Quantity: 3
Test Range: K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Li: 0.1 to 30 ppm
Limit Of Detection: K: less than or equal to 0.158 ppm, Na: less than or equal to 0.184 ppm, Li: less than or equal to 0.1035 ppm
Linear Error: K: less than or equal to 0.195 ppm, Na: less than or equal to 0.69 ppm, Li: less than or equal to 0.1449 ppm

Flame Photometer LMFM-A104

Test Element: K, Na, Ca, Li, Ba
Channel Quantity: 5
Test Range: K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Li: 0.1 to 30 ppm, Ca: 0.1 to 1000 ppm, Ba: 0.1 to 300 ppm
Limit Of Detection: K: less than or equal to 0.158 ppm, Na: less than or equal to 0.184 ppm, Li: less than or equal to 0.1032 ppm, Ca: less than or equal to 2 ppm, Ba: less than or equal to 6.028
Linear Error: K: less than or equal to 0.195 ppm, Na: less than or equal to 0.69 ppm, Li: less than or equal to 0.1449 ppm, Ba: less than or equal to 9.402, Ca: less than or equal to 3 ppm

Flame Photometer LMFM-B101

Test Element: K, Na, Li, Ca
Channel Quantity: 4
Reading Range: Concentration: 0.000 to 999.9, Energy 0 to 65535
Test Range: K: 0 to 100 ppm, Na: 0 to 160 ppm, Li: 0 to 100 ppm, Ca: 0 to 1000 ppm
Limit Of Detection: K: less than 0.004mmol/L, Na: less than 0.008mmol/L, Li: less than 0.015mmol/L, Ca: less than 0.050mmol/L

Flame Photometer LMFM-B102

Test Element: K, Na, Ba
Channel Quantity: 3
Reading Range: Concentration: 0.000 to 999.9, Energy 0 to 65535
Test Range: K: 0 to 100 ppm, Na: 0 to 160 ppm, Ba: 0 to 3000 ppm
Limit Of Detection: K: less than 0.004mmol/L, Na: less than 0.008mmol/L, Ba: less than 0.044mmol/L

Flame Photometer LMFM-B103

Test Element: K, Na, Ca
Channel Quantity: 3
Reading Range: Concentration: 0.000 to 999.9, Energy 0 to 65535
Test Range: K: 0 to 100 ppm, Na: 0 to 160 ppm, Ca: 0 to 1000 ppm
Limit Of Detection: K: less than 0.004mmol/L, Na: less than 0.008mmol/L, Ca: less than 0.050mmol/L

Flame Photometer LMFM-A103

Test Element: K, Na, Ca, Li
Channel Quantity: 4
Test Range: K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Li: 0.1 to 30 ppm, Ca: 0.1 to 1000 ppm
Limit Of Detection: K: less than or equal to 0.158 ppm, Na: less than or equal to 0.184 ppm, Li: less than or equal to 0.1032 ppm, Ca: less than or equal to 2 ppm
Linear Error: K: less than or equal to 0.195 ppm, Na: less than or equal to 0.69 ppm, Li: less than or equal to 0.1449 ppm, Ca: less than or equal to 3 ppm

Frequently Asked Questions

1 What is a Flame Photometer?

A Flame Photometer is an apparatus designed to measure the intensity of light emitted by excited atoms or ions in a flame.

2 What is the role of flame temperature in Flame Photometer?

The flame temperature is crucial in determining the excitation of the metal ions.

3 Is Flame Photometer suitable for high-throughput testing?

It provides quick and reliable results therefore is suitable for high-throughput testing.

4 Can Flame Photometer be used for environmental monitoring?

It is used to measure metal ions such as sodium and potassium in water, soil and air samples.

5 How is Calibration done in Flame Photometer?

It is done by preparing a series of standard solutions with known concentrations of the metal ion being analyzed.

6 Is Flame Photometer used in pharmaceutical analysis?

It is used in pharma industry to measure the levels of metals in drug formulations.
