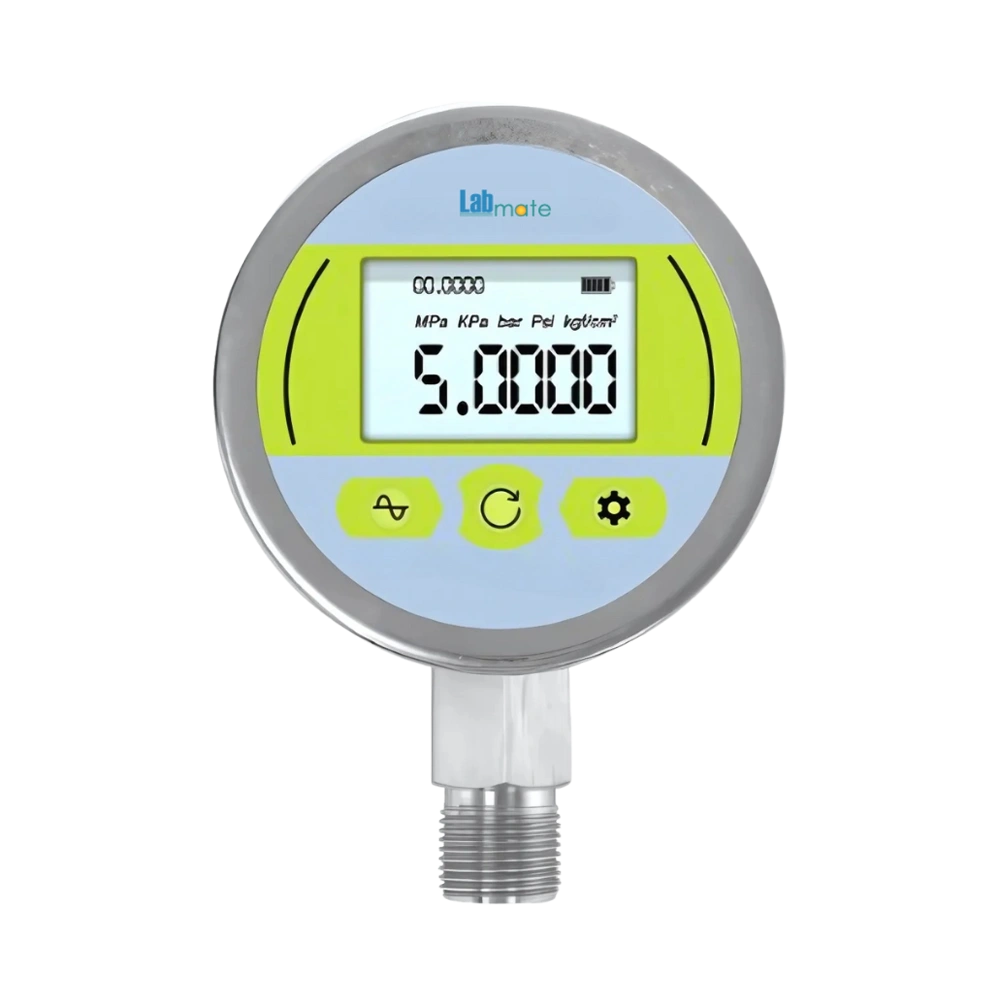

Digital Pressure Gauge LMDPG-A104 is high-precision instrument designed for monitoring the pressure of range of 60 MPa to 100 MPa. Features clear, high-contrast LCD screen, a fast-response sensor, and an energy-efficient electronic system. Integrated with robust stainless-steel housing offering excellent resistance to corrosion. Engineered to measure vacuum, gauge, and absolute pressures. Supports easy installation and smooth integration into both new and existing systems. Our Digital Pressure Gauge LMDPG-A104 is ideal choice for industrial settings, laboratory use, and other critical applications requiring highly accurate pressure measurement.
Specifications
| Pressure Range | 60MPa to 100MPa |
| Dial Size | 80 mm |
| Accuracy | 0.5% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 4-digit LCD |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | 3×AAA Batteries / RS485 (7–24V) |
| Case Material | Stainless Steel |
| Pressure Units | MPa, KPa, Bar, Psi, Kg/cm² |
| Medium Temperature | -20°C to 80°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/2, NPT1/4, Customizable |
| Mounting Type | Male Thread (standard) |
| Gross Dimension | 213 × 150 ×90 |
| Weight | 0.5 Kg |
Features
High-visibility LCD screen
Reliable micro-pressure sensing element
Optimized for low energy draw
Durable rustproof exterior
Applications
Digital Pressure Gauge LMDPG-A104 is well-suited for installation in pipelines, storage vessels, and various industrial systems. It functions reliably in industries such as chemical manufacturing, pharmaceutical processing, water treatment facilities, and HVAC applications. Moreover, it is highly applicable in laboratory settings, hydraulic machinery, and areas that are explosive or considered hazardous in nature.
