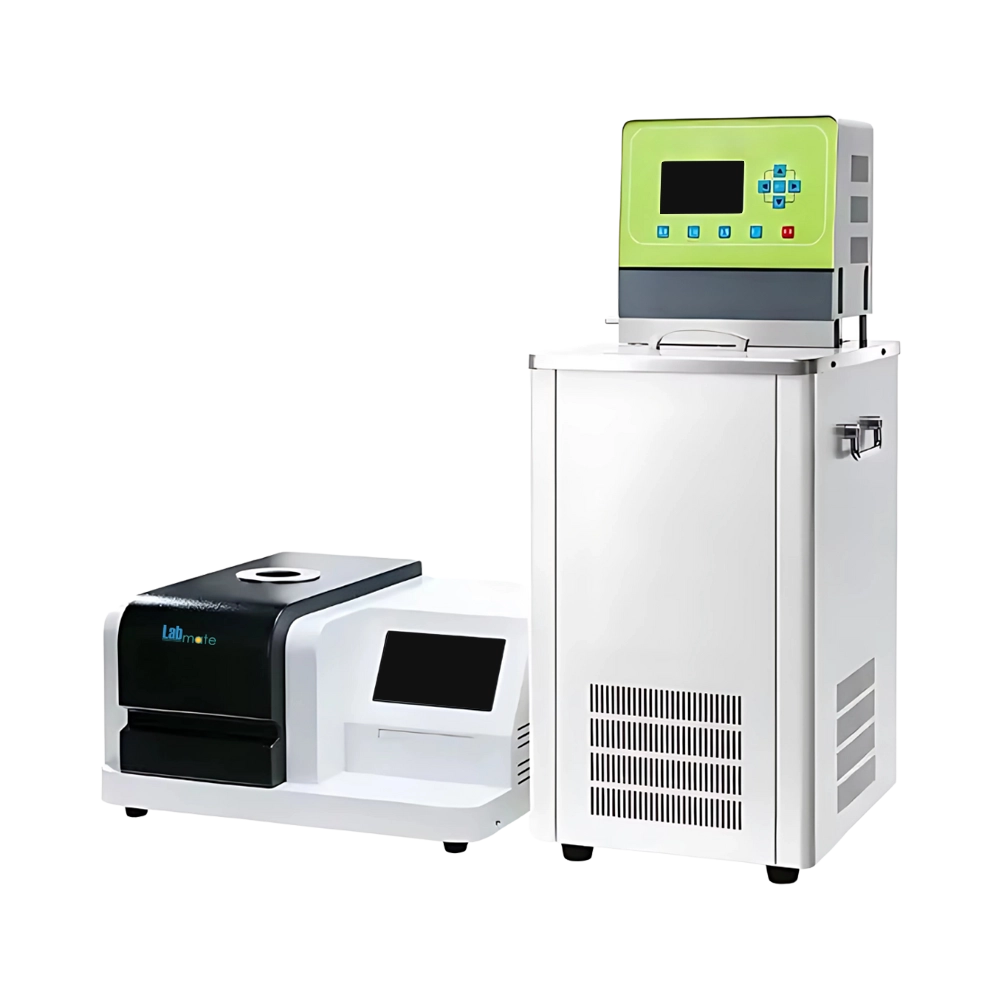

Differential Scanning Calorimeter LMDSC-A105

Differential Scanning Calorimeter LMDSC-A105 provides 0 to ±800 mW range for comprehensive thermal analysis. Integrated with mechanical cooling method supports efficient temperature regulation. It features calibrated Indium and Tin materials to ensure consistent measurement during tests. Incorporated with a USB port enabling seamless and rapid transfer of collected experimental data. Our Differential Scanning Calorimeter offers 2 sets of thermocouples for monitoring both sample and internal ambient conditions.

Catalog Send Mail Whatsapp

Specifications

DSC Range 0 to ± 800mW
Temperature Range -40°C to 600°C
Heating Rate 0.1 to 100℃/min
Cooling Rate 0.1 to 40℃/min
Cooling Method Mechanical Cooled
Scanning Method Heating and Cooling
Constant Temperature Time Up to 24 hours (programmable)
Temperature Resolution 0.001℃
Temperature Fluctuation ±0.01℃
Temperature Repeatability ±0.01℃
DSC Noise 0.01μW
DSC Resolution 0.01μW
DSC Accuracy 0.01mW
DSC Sensitivity 0.01mW
Temperature Control Modes Rising, Constant, Cooling (Automatic)
Curve Scanning Rising and Cooling
Gas Types Nitrogen, Oxygen (Switch Automatically)
Gas Flow Rate 0 to 300mL/min
Gas Pressure Less than or equal to 5mPa
Display 7-inch LCD touchscreen, 24-bit color
Data Interface USB
Calibration Materials Indium, Tin
Software 4 in 1 operating software
Thermocouples 2 Sets (Sample & Internal Ambient)
Packaging Dimension 590 × 520 × 970 mm
Weight 50 kg

Features

Variable Heating and Cooling Rates

Dual Scanning Modes

Automatic Gas Switching

7-inch LCD touchscreen

Advanced Software

Standard Accessories

Model No.Accessory
LMDSC-A105-S1Software
LMDSC-A105-A1Aluminum Crucibles
LMDSC-A105-T1Pure Tin Particles
LMDSC-A105-F110A Fuses
LMDSC-A105-A2Air Tubes
LMDSC-A105-T2Tweezers and Related Tools
LMDSC-A105-D2Data Cable
LMDSC-A105-P1Power Cable
LMDSC-A105-L1Low Temperature Thermostatic Bath

Applications

Differential Scanning Calorimeter LMDSC-A105 is vital for studying phase transitions, melting points, and crystallization in materials. It is ideal for characterizing metals, alloys, and composites in material science.

Similar Products

Differential Scanning Calorimeter LMDSC-A100

  • DSC Range: 0 to ± 600mW
  • Temperature Range: Room Temperature to 600°C
  • Heating Rate: 0.1 to 100℃/min
  • Cooling Method: Air Cooled
  • Scanning Method: Heating

Differential Scanning Calorimeter LMDSC-A102

  • Temperature Range: -100 to 800 ° C(Liquid-nitrogen cooled)
  • Temperature Resolution: 0.001 °C
  • Temperature Fluctuation: ± 0.001 °C
  • Temperature Repeatability: ± 0.1 °C
  • Heating Rate: 0.1 ~ 80 °C/ min

Differential Scanning Calorimeter LMDSC-A104

  • DSC Range: 0 to ± 600mW
  • Temperature Range: -170°C to 600°C
  • Heating Rate: 0.1 to 100℃/min
  • Cooling Rate: 0.1 to 40℃/min
  • Cooling Method: Liquid Nitrogen Cooled
Differential Scanning Calorimeter LMDSC-A101
  • DSC Range: 0 to ± 600mW
  • Temperature Range: Room Temperature to 600°C
  • Heating Rate: 0.1 to 100℃/min
  • Cooling Method: Air Cooled
  • Scanning Method: Heating and Cooling
Differential Scanning Calorimeter LMDSC-A103
  • Temperature Range: RT to 550 ° C(Air-cooled)
  • Temperature Resolution: 0.001 °C
  • Temperature Fluctuation: ± 0.001 °C
  • Temperature Repeatability: ± 0.1 °C
  • Heating Rate: 0.1 ~ 80 °C/ min

Frequently Asked Questions

1 What is a Differential Scanning Calorimeter?

A Differential Scanning Calorimeter is an apparatus designed to measure heat flow differences between a sample and a reference to analyze thermal transitions.

2 How does a Differential Scanning Calorimeter work?

It works by heating or cooling a sample and comparing its heat flow to that of a reference material to detect thermal events.

3 What materials can be analyzed using Differential Scanning Calorimeter?

It can analyze a wide range of materials, including polymers, metals, pharmaceuticals and liquids.

4 Can Differential Scanning Calorimeter analyze chemical reactions?

It can analyze chemical reactions by measuring the heat released or absorbed during the reaction.

5 Can Differential Scanning Calorimeter be used to study pharmaceutical formulations?

It is used to investigate the thermal behavior of pharmaceutical compounds, including melting points, stability and interactions between active ingredients and excipients.

6 Can Differential Scanning Calorimeter be used for biodegradable material research?

It is used to study the thermal properties of biodegradable materials, helping in the development of eco-friendly materials with specific thermal behaviors.

7 Can Differential Scanning Calorimeter be used in environmental studies?

It is used to analyze the thermal properties of materials in environmental applications, such as evaluating the thermal degradation of pollutants or studying biopolymer stability.

8 Can Differential Scanning Calorimeter be used to evaluate textile materials?

It is used to analyze the thermal behavior of textile materials, including their melting points and heat resistance.

9 Can Differential Scanning Calorimeter be used to study nanocomposites?

It is used to study the thermal properties of nanocomposites, such as their melting points, glass transitions, and curing behaviors.

10 What is the role of Differential Scanning Calorimeter in studying food packaging materials?

It is used to study the thermal behavior of food packaging materials, such as their melting and crystallization points, in order to ensure that they maintain food quality and prevent spoilage.
