Differential Scanning Calorimeter LMDSC-A101

Differential Scanning Calorimeter LMDSC-A101

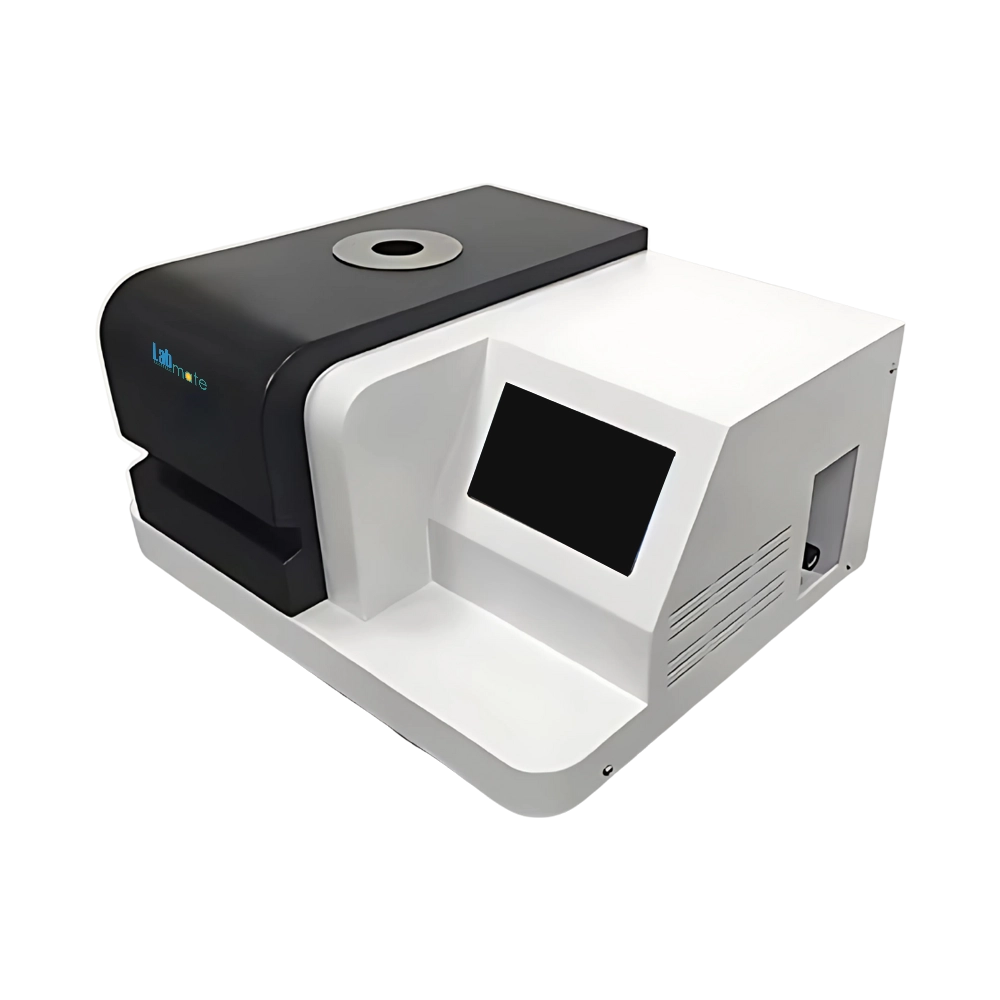

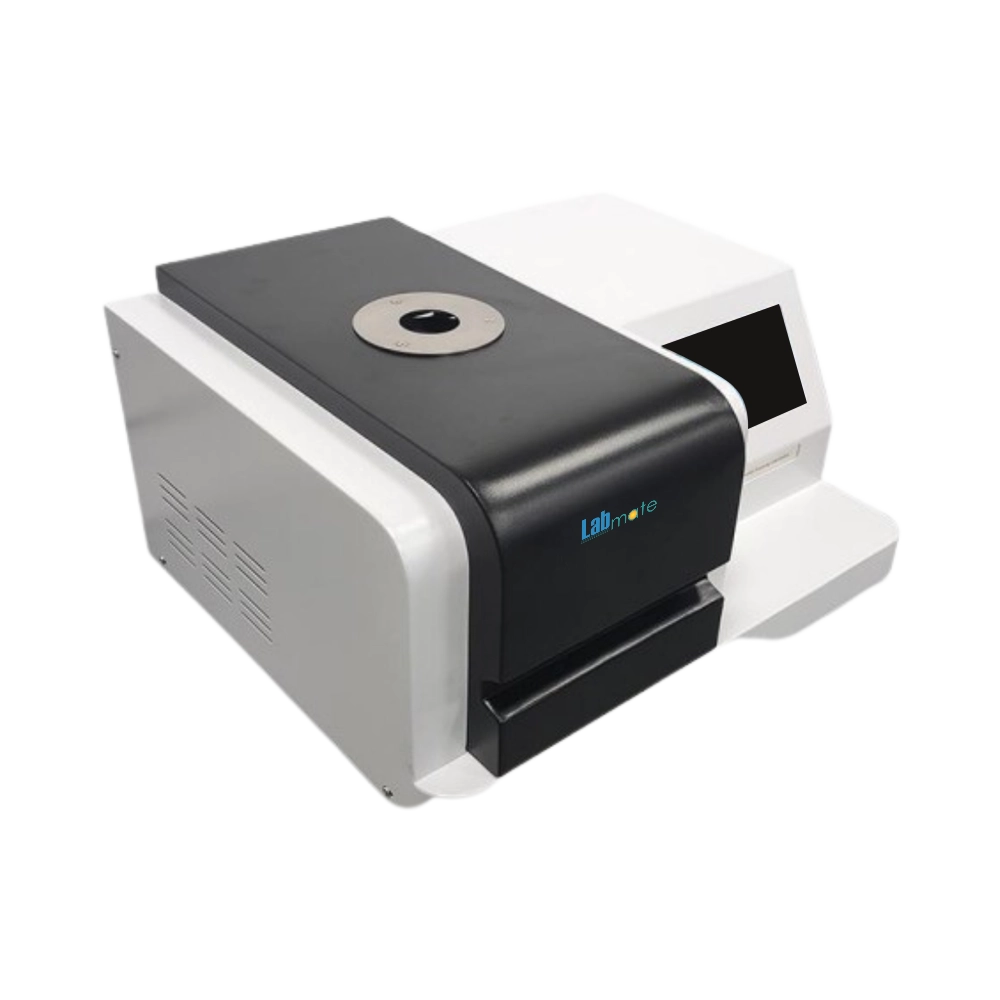

Differential Scanning Calorimeter LMDSC-A101 is newly designed to ensure high resolution and high base line stability in the temperature range of RT to 600 ° C. An imported e-couple sensor offers excellent anti-interference performance and shield protection for the signal acquisition circuit. The model uses heating scan and air-cooling method to develop an output on a 7-inch LCD touch screen display.

Get Quote
Temperature Range RT to 600 ° C (Air-cooled)
Temperature Resolution 0.01 °C
Temperature Fluctuation ± 0.1 °C
Temperature Repeatability ± 0.1 °C
Heating Rate 0.1 to 100 °C/ min
DSC Range 0 to ± 600 mW
DSC resolution 0.01 µW
DSC accuracy 0.01 mW
DSC sensitivity 0.01 mW
Temperature control mode Rising Temp, Constant Temp, Cooling Temp
Curve scanning Rising Scan
Atmosphere Control Gas Nitrogen, Oxygen
Gas Flow 0 to 300 mL/ min
Gas Pressure 0.2 Mpa
Scanning Method Heating scan
Thermocouple Total 3 sets of thermocouples for: Test sample temperature, Test furnace temperature, Test Internal Ambient Temperature
Standard material Indium and Tin
Display 24-bit color, 7-inch LCD touch screen display
Data Interface Standard USB interface
Software 4 in 1 operating software
Standard Material Indium and Tin
Power Supply AC 220 V, 50 Hz
Dimensions (D × W × H) 500 × 450 × 260 mm
Weight 12.4 Kg

point.png Metal furnace structure provides better baseline and higher precision

point.png Indirect conduction mode is adopted in heating, which has high uniformity and stability, and reduces pulse radiation, making it better than traditional heating mode

point.png USB communication interface, strong versatility, reliable communication, support self-recovery connection function

point.png Nitrogen and oxygen atmosphere control gas

point.png Equipped with sample, furnace body and internal environment temperature thermocouple

point.png Fully automatic heating, constant and cooling temperature control mode

point.png Automatic switching of two-way atmosphere flow, fast switching speed and short stable time

point.png User-friendly software and an industrial level 7- inch touch screen display

Name Quantity
Main Machine 1 pc
Professional Software 1 pc
Aluminium Crucibles 100 pcs
Ceramic Crucible 100 pcs
Pure Tin Particles 1 pack
10a Fuse 5 pcs
10a Fuse 5 pcs
Air Tube 2 pcs
Tweezers And Related Tools 1 set
Data Cable 1 pc
Power Line 1 pc
Liquid Nitrogen Container 1 pc
Low Temperature Thermostatic Bath 1 pc

Differential Scanning Calorimeter is the most frequently used thermal analysis technique, measuring enthalpy changes in samples due to changes in their physical and chemical properties as a function of temperature or time.
