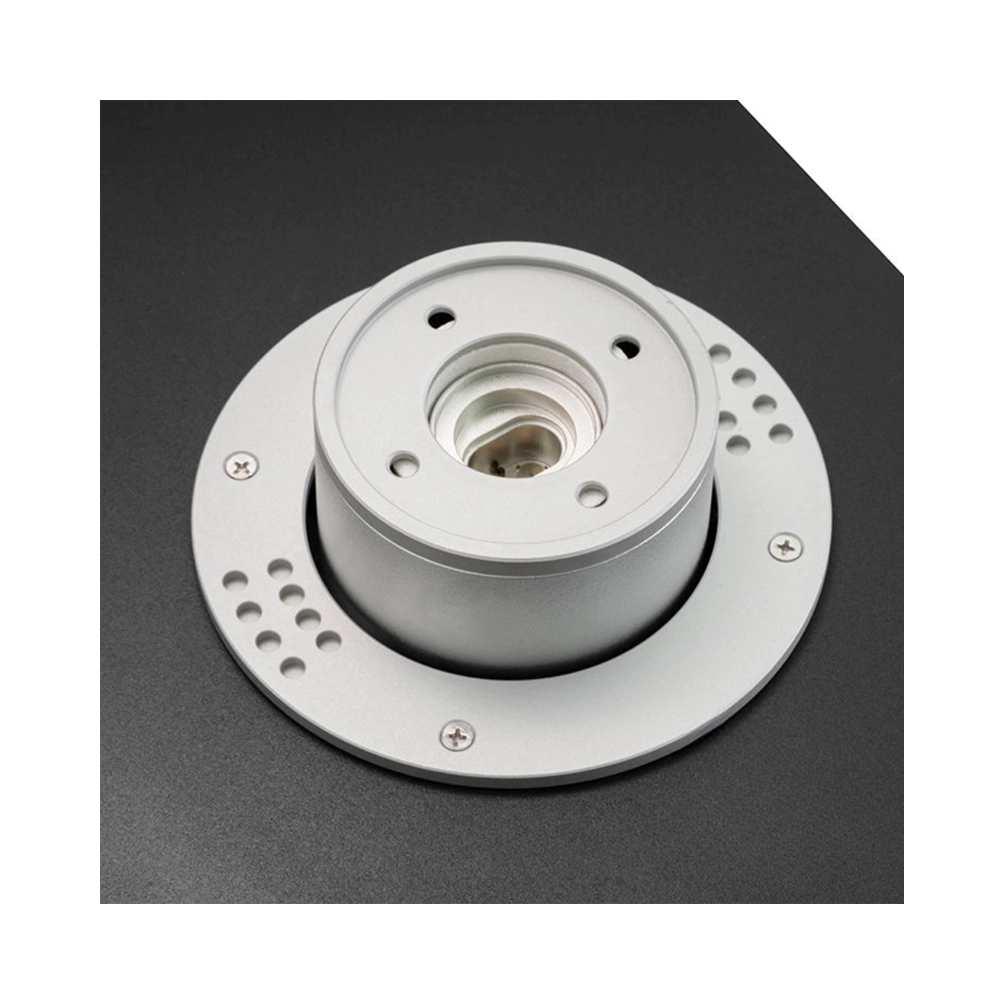

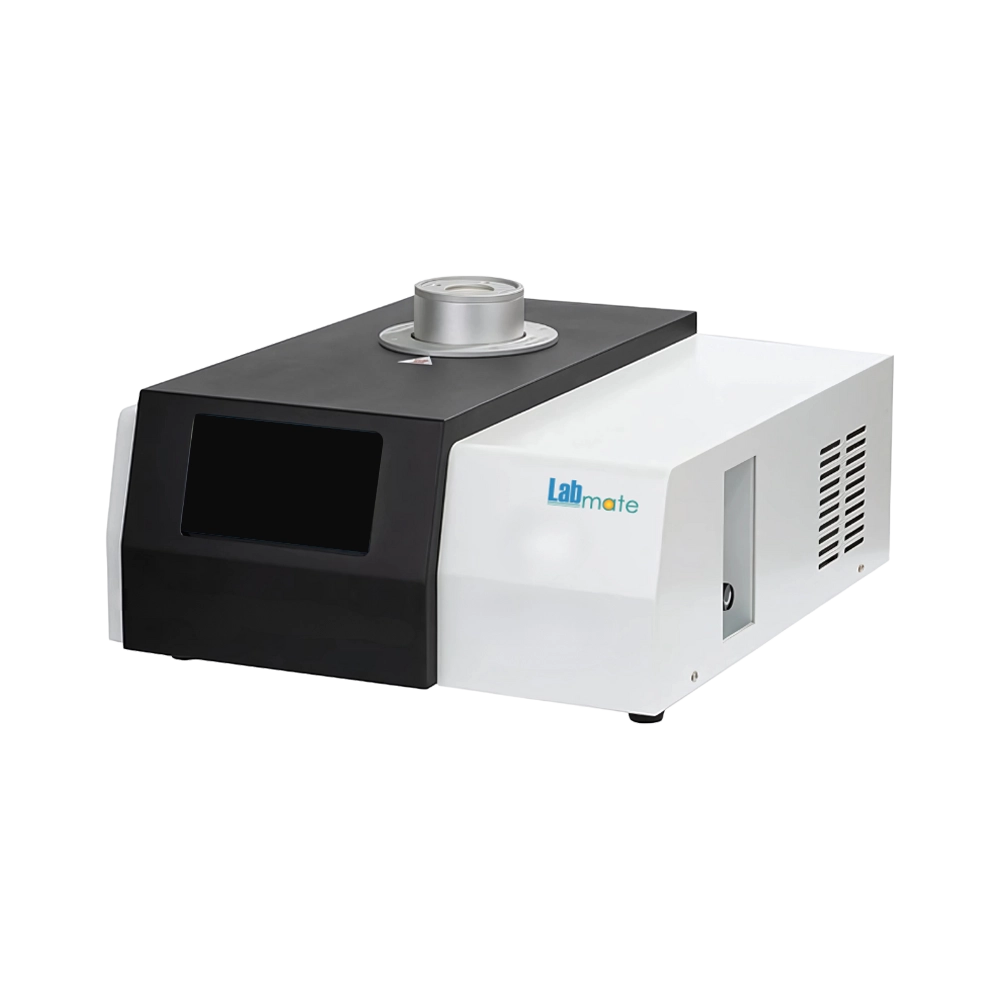

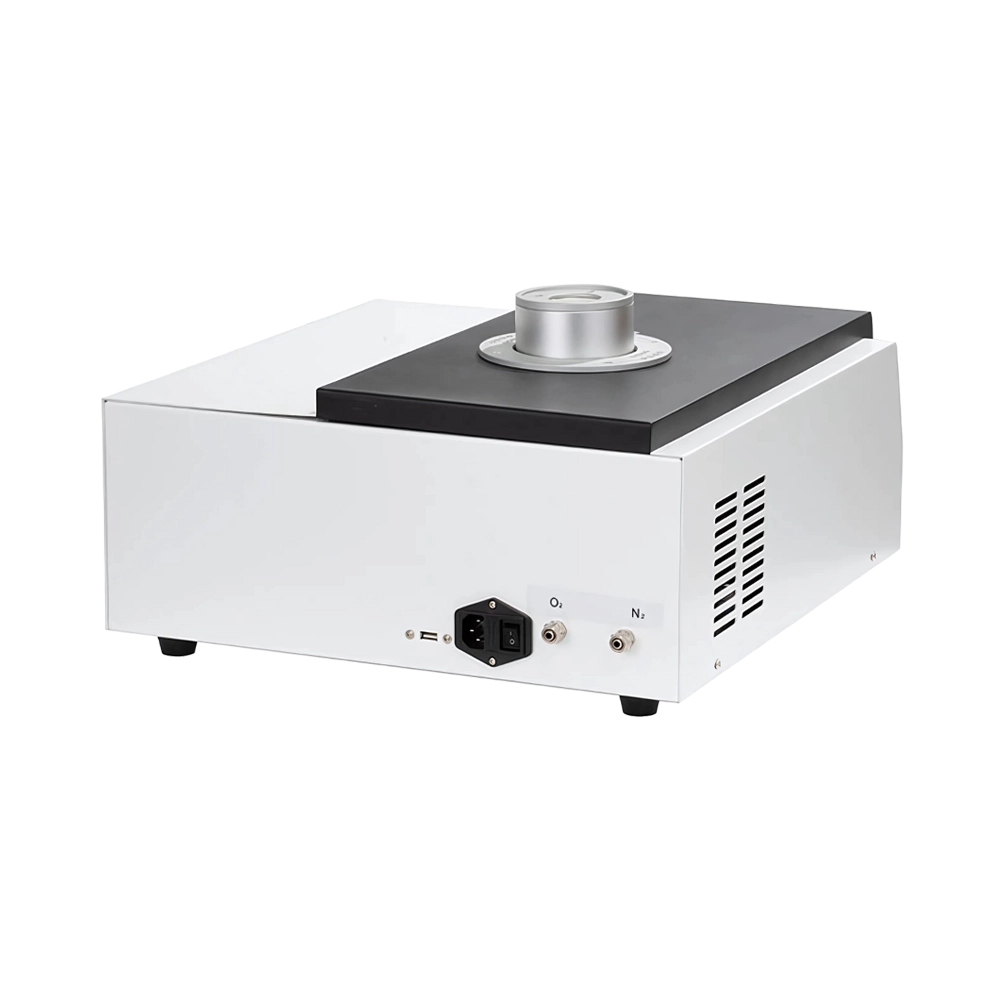

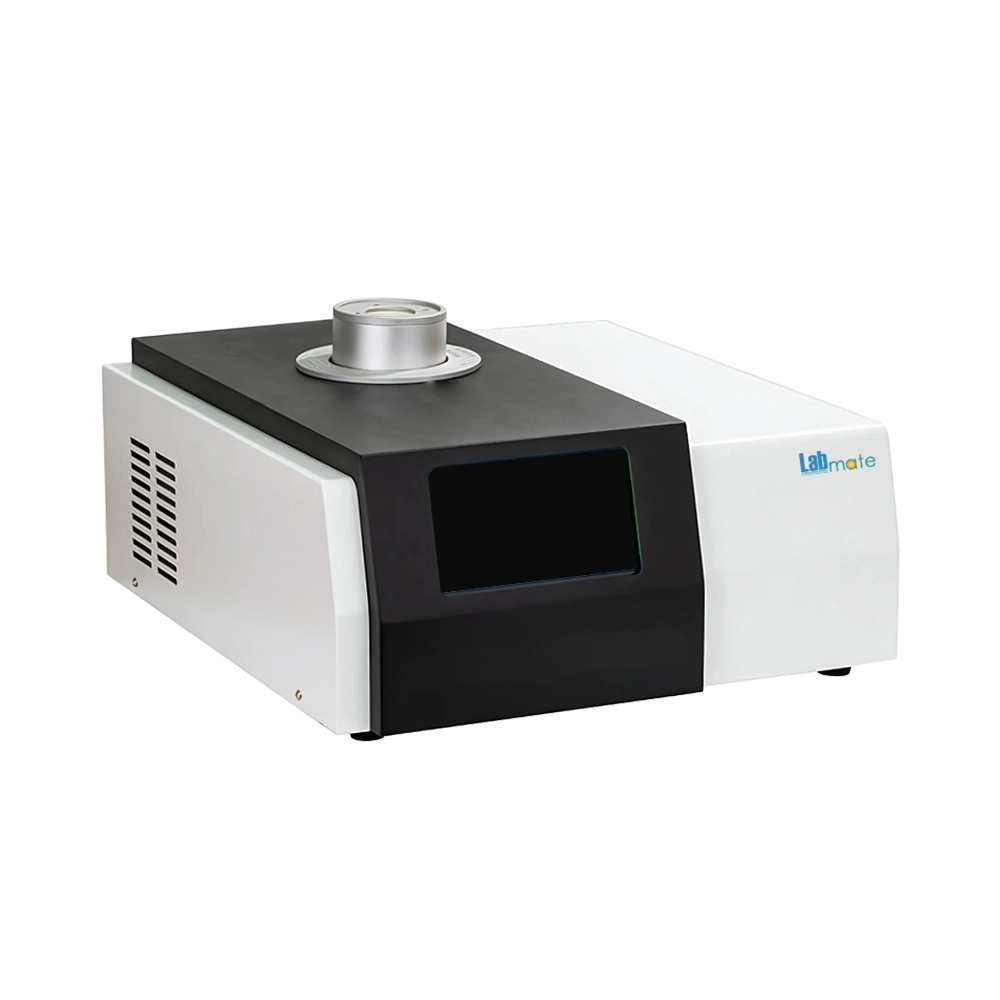

Differential Scanning Calorimeter LMDSC-A100

Differential Scanning Calorimeter LMDSC-A100 provides 0 to ±600 mW range for detailed heat flow measurements. Built in sturdy construction ensures easy installation and seamless integration into lab environments with reliable performance. It features an air-cooling method for quick and efficient regulation during experiments. It offers dual curve scanning to deliver an in-depth thermal evaluation. Our Differential Scanning Calorimeter is calibrated through high-quality materials like indium and tin for consistent results.

Catalog Send Mail Whatsapp

Specifications

DSC Range 0 to ± 600mW
Temperature Range Room Temperature to 600°C
Heating Rate 0.1 to 100℃/min
Cooling Method Air Cooled
Scanning Method Heating
Temperature Resolution 0.01℃
Temperature Fluctuation ±0.1℃
Temperature Repeatability ±0.1℃
DSC Noise 0.01μW
DSC Resolution 0.01μW
DSC Accuracy 0.01mW
DSC Sensitivity 0.01mW
Temperature Control Modes Rising, Constant, Cooling (Automatic)
Curve Scanning Rising and Cooling
Gas Types Nitrogen, Oxygen (Switch Automatically)
Gas Flow Rate 0 to 300mL/min
Gas Pressure Less than or equal to 5mPa
Display 7-inch LCD touchscreen
Data Interface USB
Calibration Materials Indium, Tin
Software 4 in 1 operating software
Thermocouples 3 Sets (Sample, Furnace & Internal Ambient)
Packaging Dimension 660 × 570 × 580 mm
Weight 32 kg

Features

Automatic Gas Type Switching

7-Inch LCD Touchscreen Display

USB Data Interface

Triple Thermocouple Setup

Comprehensive Operating Software

Standard Accessories

Model No.Accessory
LMDSC-A100-S1Software
LMDSC-A100-A1Aluminum Crucibles
LMDSC-A100-T1Pure Tin Particles
LMDSC-A100-F110A Fuses
LMDSC-A100-A2Air Tubes
LMDSC-A100-T2Tweezers and Related Tools
LMDSC-A100-D2Data Cable
LMDSC-A100-P1Power Cable

Applications

Differential Scanning Calorimeter LMDSC-A100 is ideal for examining thermal decomposition, chemical reaction kinetics and evaluating the curing process, stability, and transition temperatures in coatings and paints.

Similar Products

Differential Scanning Calorimeter LMDSC-A104

  • DSC Range: 0 to ± 600mW
  • Temperature Range: -170°C to 600°C
  • Heating Rate: 0.1 to 100℃/min
  • Cooling Rate: 0.1 to 40℃/min
  • Cooling Method: Liquid Nitrogen Cooled

Differential Scanning Calorimeter LMDSC-A101

  • DSC Range: 0 to ± 600mW
  • Temperature Range: Room Temperature to 600°C
  • Heating Rate: 0.1 to 100℃/min
  • Cooling Method: Air Cooled
  • Scanning Method: Heating and Cooling

Differential Scanning Calorimeter LMDSC-A105

  • DSC Range: 0 to ± 800mW
  • Temperature Range: -40°C to 600°C
  • Heating Rate: 0.1 to 100℃/min
  • Cooling Rate: 0.1 to 40℃/min
  • Cooling Method: Mechanical Cooled
Differential Scanning Calorimeter LMDSC-A103
  • Temperature Range: RT to 550 ° C(Air-cooled)
  • Temperature Resolution: 0.001 °C
  • Temperature Fluctuation: ± 0.001 °C
  • Temperature Repeatability: ± 0.1 °C
  • Heating Rate: 0.1 ~ 80 °C/ min
Differential Scanning Calorimeter LMDSC-A102
  • Temperature Range: -100 to 800 ° C(Liquid-nitrogen cooled)
  • Temperature Resolution: 0.001 °C
  • Temperature Fluctuation: ± 0.001 °C
  • Temperature Repeatability: ± 0.1 °C
  • Heating Rate: 0.1 ~ 80 °C/ min

Frequently Asked Questions

1 What is a Differential Scanning Calorimeter?

A Differential Scanning Calorimeter is an apparatus designed to measure heat flow differences between a sample and a reference to analyze thermal transitions.

2 How does a Differential Scanning Calorimeter work?

It works by heating or cooling a sample and comparing its heat flow to that of a reference material to detect thermal events.

3 What materials can be analyzed using Differential Scanning Calorimeter?

It can analyze a wide range of materials, including polymers, metals, pharmaceuticals and liquids.

4 Can Differential Scanning Calorimeter analyze chemical reactions?

It can analyze chemical reactions by measuring the heat released or absorbed during the reaction.

5 Can Differential Scanning Calorimeter be used to study pharmaceutical formulations?

It is used to investigate the thermal behavior of pharmaceutical compounds, including melting points, stability and interactions between active ingredients and excipients.

6 Can Differential Scanning Calorimeter be used for biodegradable material research?

It is used to study the thermal properties of biodegradable materials, helping in the development of eco-friendly materials with specific thermal behaviors.

7 Can Differential Scanning Calorimeter be used in environmental studies?

It is used to analyze the thermal properties of materials in environmental applications, such as evaluating the thermal degradation of pollutants or studying biopolymer stability.

8 Can Differential Scanning Calorimeter be used to evaluate textile materials?

It is used to analyze the thermal behavior of textile materials, including their melting points and heat resistance.

9 Can Differential Scanning Calorimeter be used to study nanocomposites?

It is used to study the thermal properties of nanocomposites, such as their melting points, glass transitions, and curing behaviors.

10 What is the role of Differential Scanning Calorimeter in studying food packaging materials?

It is used to study the thermal behavior of food packaging materials, such as their melting and crystallization points, in order to ensure that they maintain food quality and prevent spoilage.
