Controlled Heating Mantle LMCHM-A105

Controlled Heating Mantle LMCHM-A105

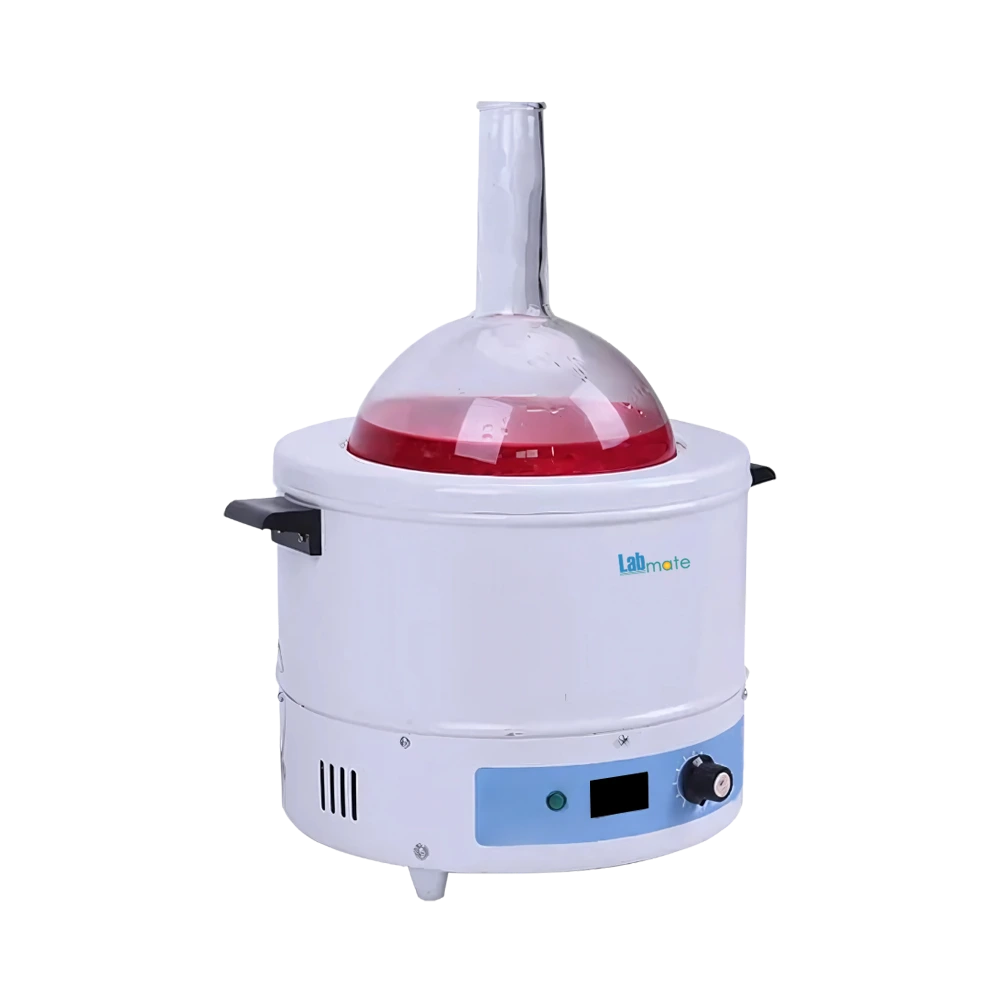

Controlled Heating Mantle LMCHM-A105 is a fully spontaneous flexible heating mantle combined with a digital controller and motor that enables precise, low-speed stirring control for efficient heat transfer and fast boiling. It features a capacity of 3000 mL that works at maximum temperatures up to 380 °C. All parameters displayed on ordinary type display that allow quick recognition of working status. Enhanced with an electrostatic temperature controller that provides accurate results.

Catalog

Specifications

Capacity	3000 mL
Working Temperature	380 °C
Temperature Controller	Electronic Thermostat Regulation
Display	Ordinary Type
Power Consumption	600 W
Power Supply	AC 110 / 220 V ; 60 / 50 Hz
Internal Dimension (Diameter x Height)	200 mm × 100 mm
External Dimension (Diameter x Height)	289 mm × 240 mm
Net Weight	4.2 kg
Gross Weight	4.5 kg

Pricing

Product	Get Quote
Controlled Heating Mantle LMCHM-A105

Features

Ordinary knob control for temperature setting
Electronic thermostat temperature regulation with continuous working
High-temperature resistance alkali-free glass fiber insulation
Nichrome resistive conductor weaved in the hemispherical insulating material
Rapid heating with temperature uniformity
Sufficient heating area with good heat preservation
It has two side handles to hold the case
Corrosion-resistant durable steel case with electrostatic surface treatment

Applications

It is extensively used in research facilities, laboratories, pharmaceuticals, hospitals, and medical fields for chemical synthesis, distillation, reflux, and other reactions
