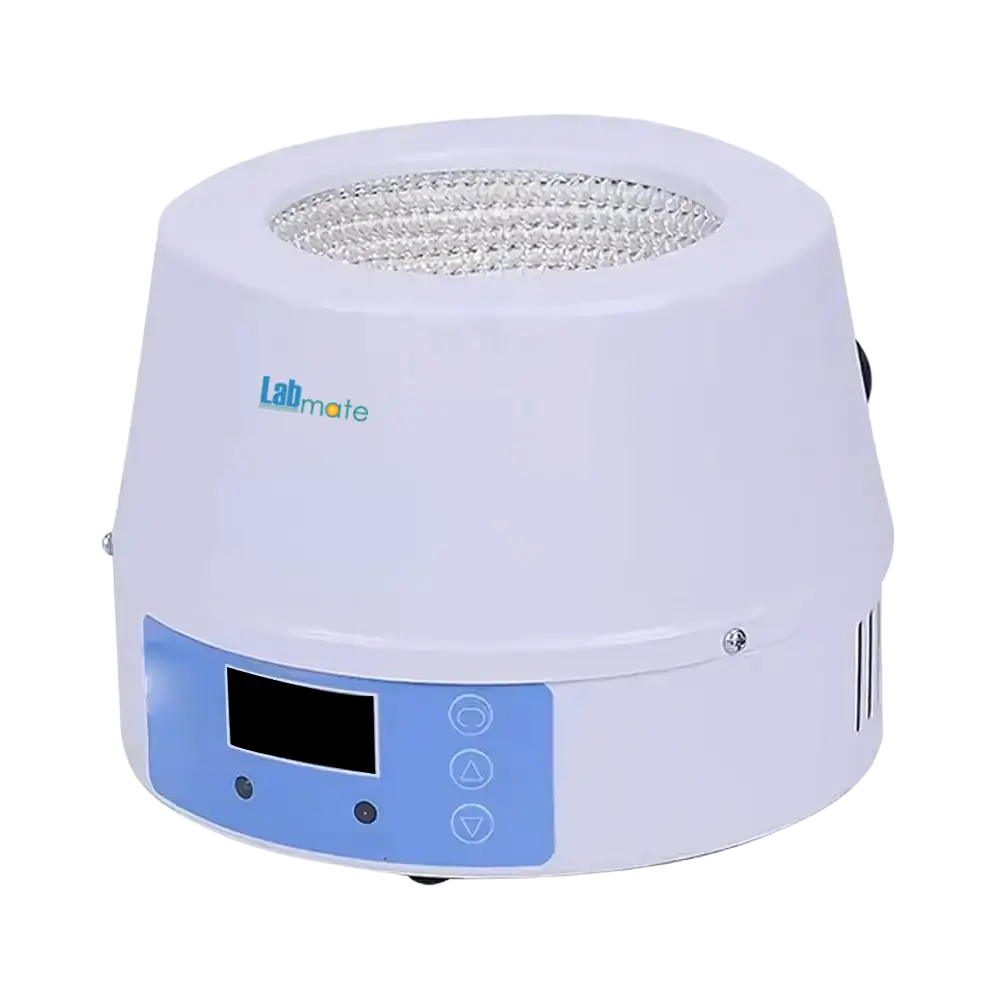

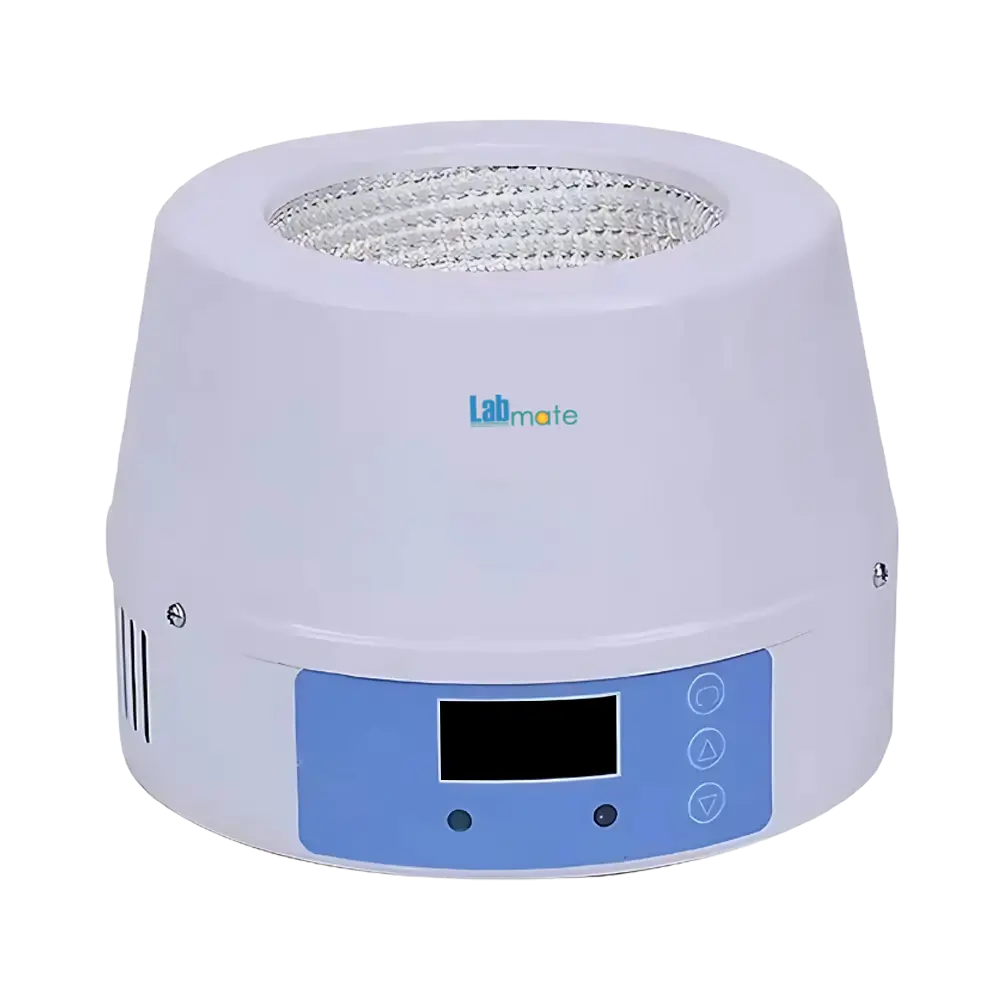

Controlled Heating Mantle LMCHM-A208

Controlled Heating Mantle LMCHM-A208 is designed with precise temperature control technology that evenly distributes heat across the surface of glassware to enable convenient sample heating. Featuring a loading capacity of 20000 mL that heats the sample at 380 °C with better working conditions. Configured with a digital display that shows all running status of working parameters on-screen with excellent illumination. User-friendly dual temperature sensor that offers accurate and reliable results.

Specifications

Capacity 20000 mL
Working Temperature 380 °C
Temperature Controller Intelligent Temperature Control
Display Digital Type
Power Consumption 2500 W
Power Supply AC 110 / 220 V ; 60 / 50 Hz
Internal Dimension (Diameter x Height) 380 mm × 190 mm
External Dimension (Diameter x Height) 489 mm × 285 mm
Net Weight 13.3 kg
Gross Weight 14.6 kg

Features

Digital display of temperature setting
Intelligent temperature control with continuous working
Dual sensor temperature can be measured separately
High-temperature resistance alkali-free glass fiber insulation
Nichrome resistive conductor weaved in the hemispherical insulating material
Rapid heating with temperature uniformity
Corrosion-resistant durable steel case with electrostatic surface treatment

Applications

It is extensively used in research facilities, laboratories, pharmaceuticals, hospitals, and medical fields for chemical synthesis, distillation, reflux, and other reactions
