Protein Electrophoresis Cell LMES-B205

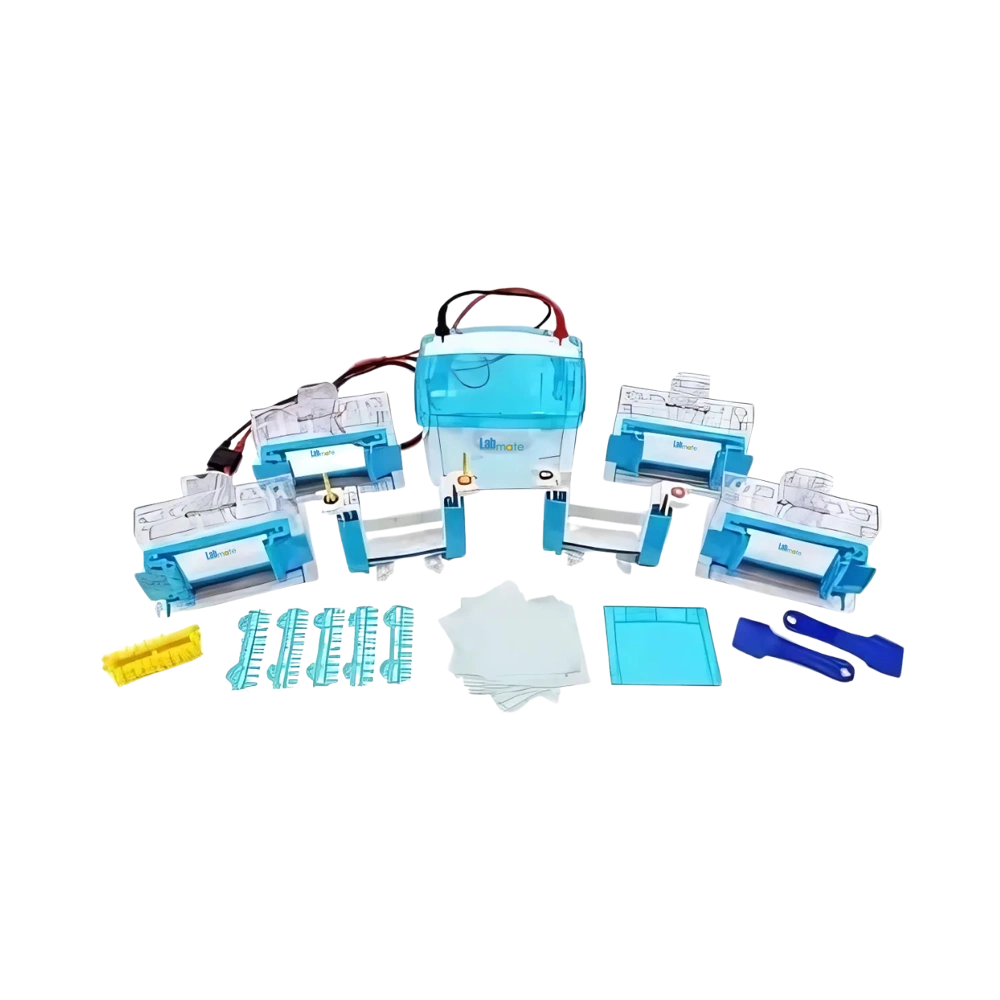

Protein Electrophoresis Cell with platinum electrodes, leak-free, durable and easy to use

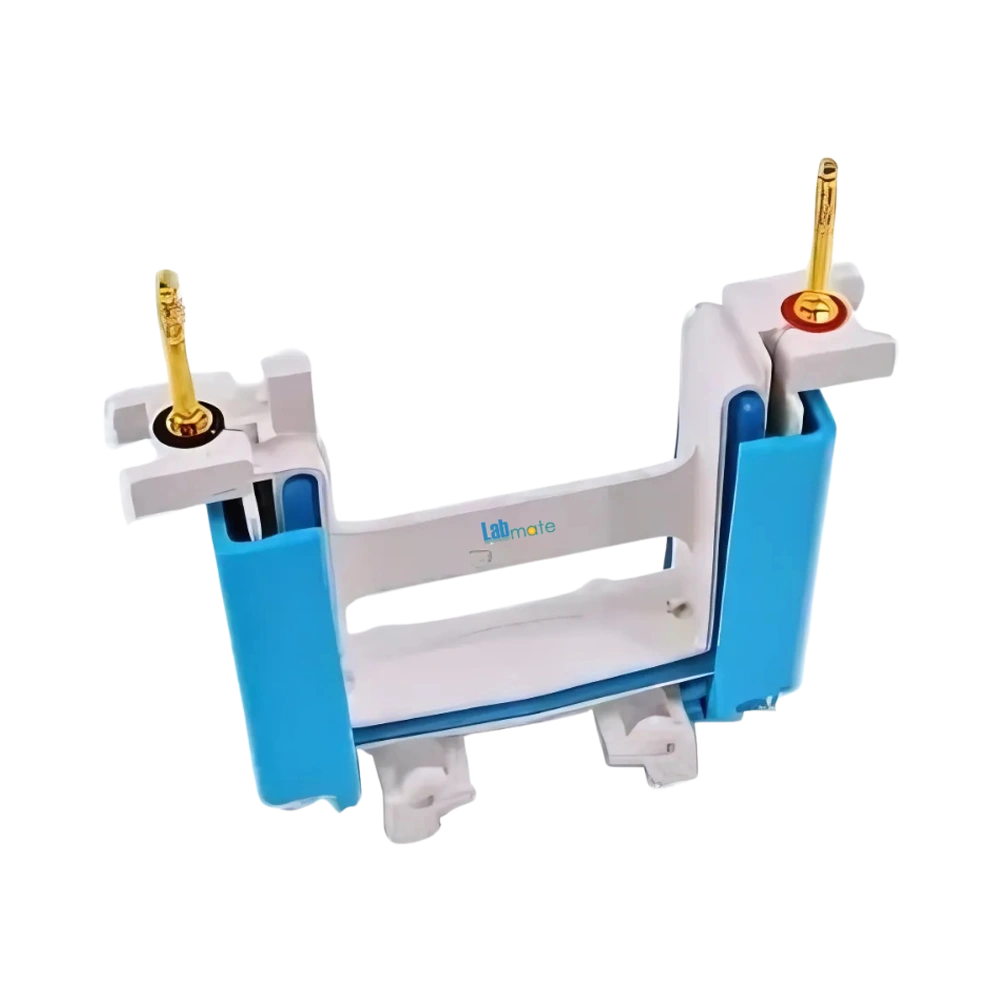

Protein Electrophoresis Cell with platinum electrodes, leak-free, durable and easy to use

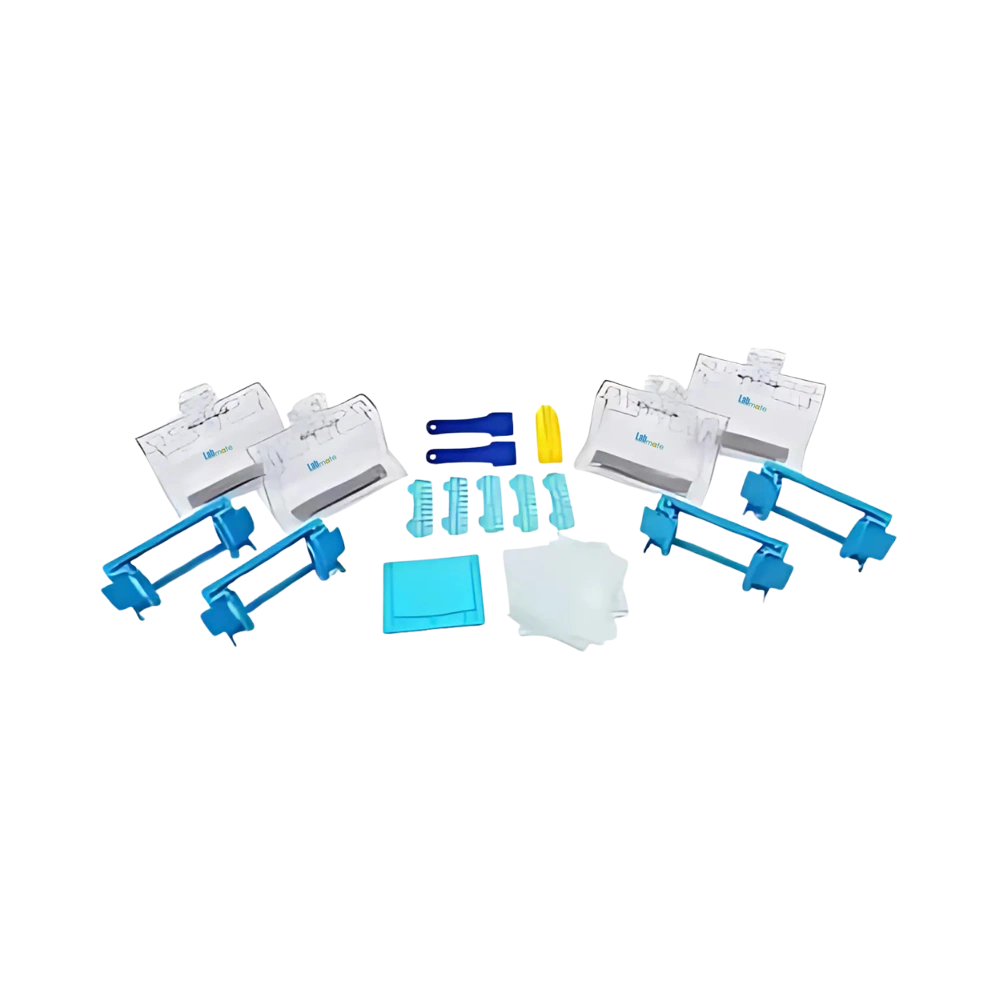

Protein Electrophoresis Cell with platinum electrodes, leak-free, durable and easy to use
Protein Electrophoresis Cell with platinum electrodes, leak-free, durable and easy to use

Protein Electrophoresis Cell LMES-B205
Protein Electrophoresis Cell LMES-B205 accommodates both hand-cast and precast gels of varying thicknesses. It efficiently runs 1 to 4 polyacrylamide gels within 45 minutes, allowing for high-throughput processing of multiple samples. It features a specialized comb design and can load up to 10 different samples in a single run. Our cell requires 1000 ml of buffer for 4 gels and 700 ml for 2 gels to ensure efficient buffer coverage and optimal protein separation.
Catalog Send Mail Whatsapp

Specifications

Gel Size (L×W) 83×73 mm (Handcast) 86×68 mm (Precast)
Comb 10 wells
Comb Thickness 1.0 mm
Short Glass Plate 101×73mm
Spacer Glass Plate 101×82mm
Buffer Volume ml 2gels:700 ml 4 gels: 1000 ml
Weight 2.0kg

Pricing

Product Price Unit Action
Protein Electrophoresis Cell LMES-B205 $ 1825 Pack of 1

Features

Leak-free electrophoresis
Equipped with high pure platinum electrodes
Durable construction
Easy assembly and operation

Standard Accessories

Lid × 1 pcs
Buffer Tank × 1 pcs
lead × 1 pair
Main Tank Body × 2 units
Spacer Glass Plates with 1.0 mm Internal Spacers × 5 pcs
Glass Plates × 5 pcs
10 Teeth Comb (1.0mm) × 5 pcs
Casting Stand with gasket × 2 pcs
Casting Frame × 4 pcs
Buffer Dam × 1 pcs
Gel Releaser × 2 pc
Electrophoresis Power Supply × 1 unit
Power Supply Power Cord ×1 pcs
Power Supply Fuse 4 A × 2 pcs

Optional Accessories

Electrophoresis lid with lead
Lower Tank
Main Tank Body(with platinum wires)
Spacer Glass Plates with 1.0 mm Internal Spacers × 5 pcs
Spacer Glass Plates with 1.5 mm Internal Spacers × 5 pcs
Spacer Glass Plates with 0.75 mm
Internal Spacers × 5 pcs
Glass Plates × 5 pcs
Glass Plates × 10 pcs
Comb 10 teeth comb (1.0 mm) × 5 pcs
Comb 15 teeth comb (1.0 mm) × 5 pcs
Comb 10 teeth comb (1.5 mm)× 5 pcs
Comb 15 teeth comb (1.5 mm) × 5 pcs
Comb 10 teeth comb (0.75 mm)× 5 pcs
Comb 15 teeth comb (0.75 mm)× 5 pcs
Casting Stand with gasket
Casting Frame(blue)
Gel Releaser
Buffer Dam
Gasket
U shape sealing frame (blue)×2 pcs
Clamp frame
Lead ×2 pcs

Applications

Protein Electrophoresis Cell is used to separate proteins and is widely utilized in protein analysis, molecular weight determination, protein purification, disease research, and quality control.

Power Supply Selection

Output Voltage 6600V
Output Current 4 to 400mA
Output Terminal 4 pairs in parallel
Output Power 240W
Dimension (L×W×H) 315 × 290 × 128mm
Weight 5.0 kg
