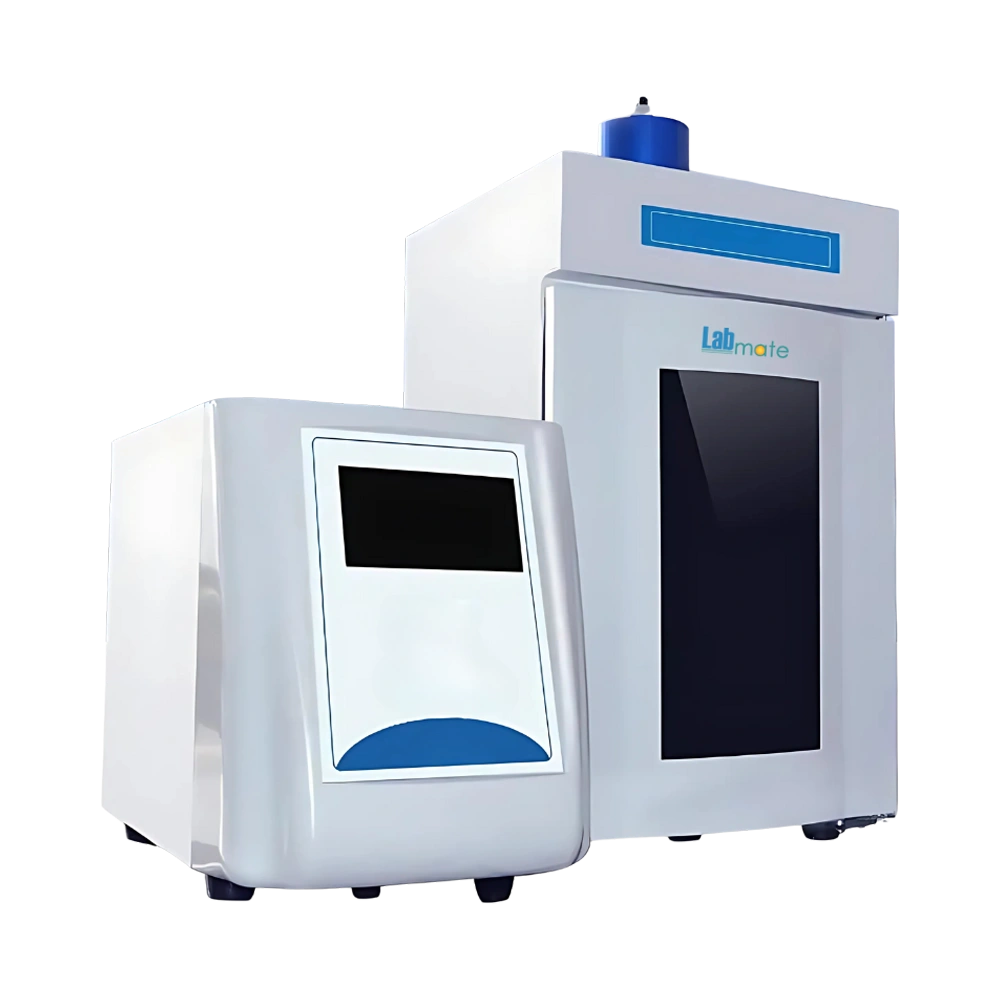

Ultrasonic Homogenizer LMUH-A104

Ultrasonic Homogenizer LMUH-A104 is highly reliable homogenizer uses ultrasonic waves to disrupt or homogenize samples. It hold a capacity of 0.1 to 750 mL. Equipped with temperature detection capabilities, as indicated by the sample temperature detection. Improved with TFT touch screen display allows users to monitor and control the temperature of the system or environment. Utilized with overload protection functionality, which safeguards it against excessive loads to prevent damage and ensures longevity.

Specifications

Ultrasonic Power 10 to 1000 W
Disruption Capacity 0.1 - 750 mL
Standard Probe ɸ 6 mm
Optional Probe ɸ 2, ɸ 3, ɸ 8, ɸ 10, ɸ 12, ɸ 15 mm
Operating Frequency 19.5 - 20.5 KHz, Automatic Tracking
Temperature Control Range 0 - 100 °C
Data Storage 20 sets
Ultrasonic Setting Time 0.1 - 99.9 s
Total Working Time 1 - 99 h 59 m 59 s
Alarm function Time, temperature , over load, no-load and over temp
Power 220V / 50 Hz
Dimension 410 x 225 x 290 mm

Features

Single chip microcomputer controlled with TFT Touch Screen
Sample temperature detection
Memory storage up to 20 groups
Automatic frequency tracking and automatic fault alarm
Overload protect function
Voice alarm for over temperature or operation error

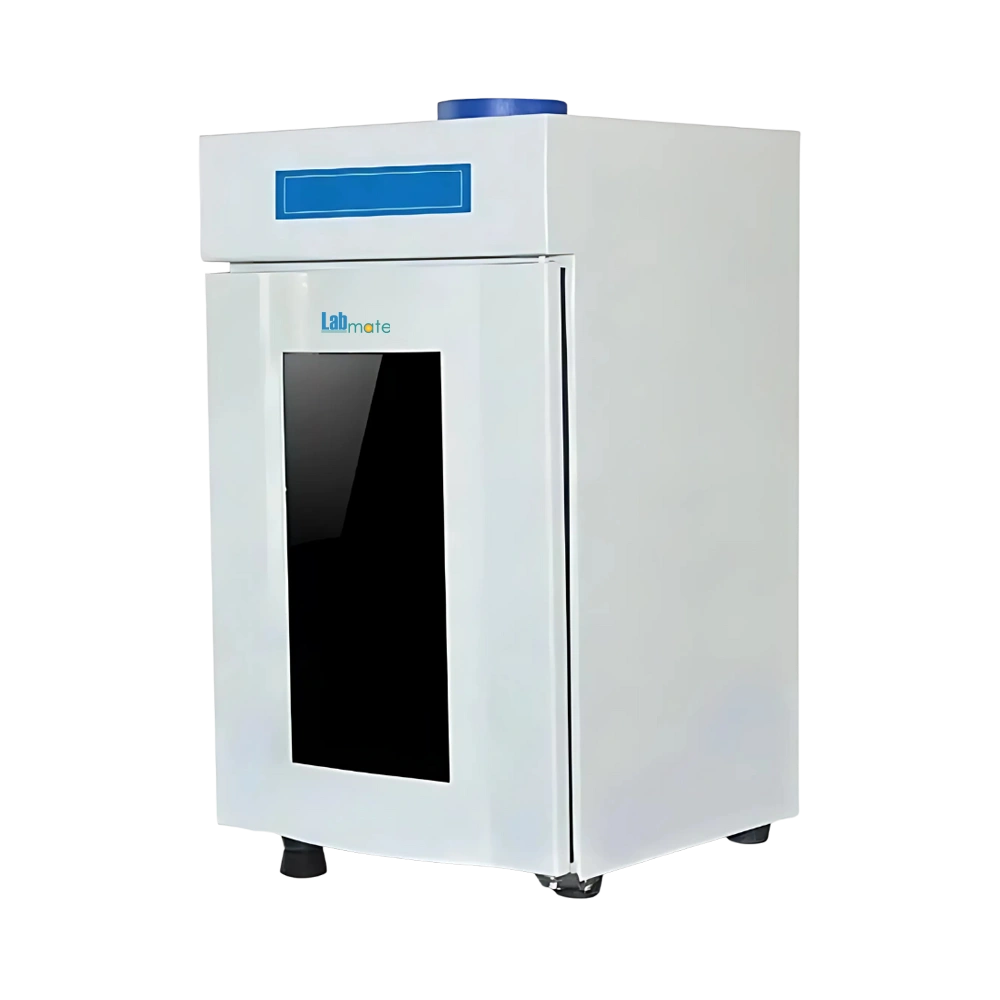

Optional Function: Data printing function and sound proof cabinet lighting and sterilization

Applications

Ultrasonic homogenizers is mainly used in biological and chemical laboratories for DNA, RNA, and protein extraction, as well as for preparing samples for chromatography, spectroscopy, and other analytical techniques.
