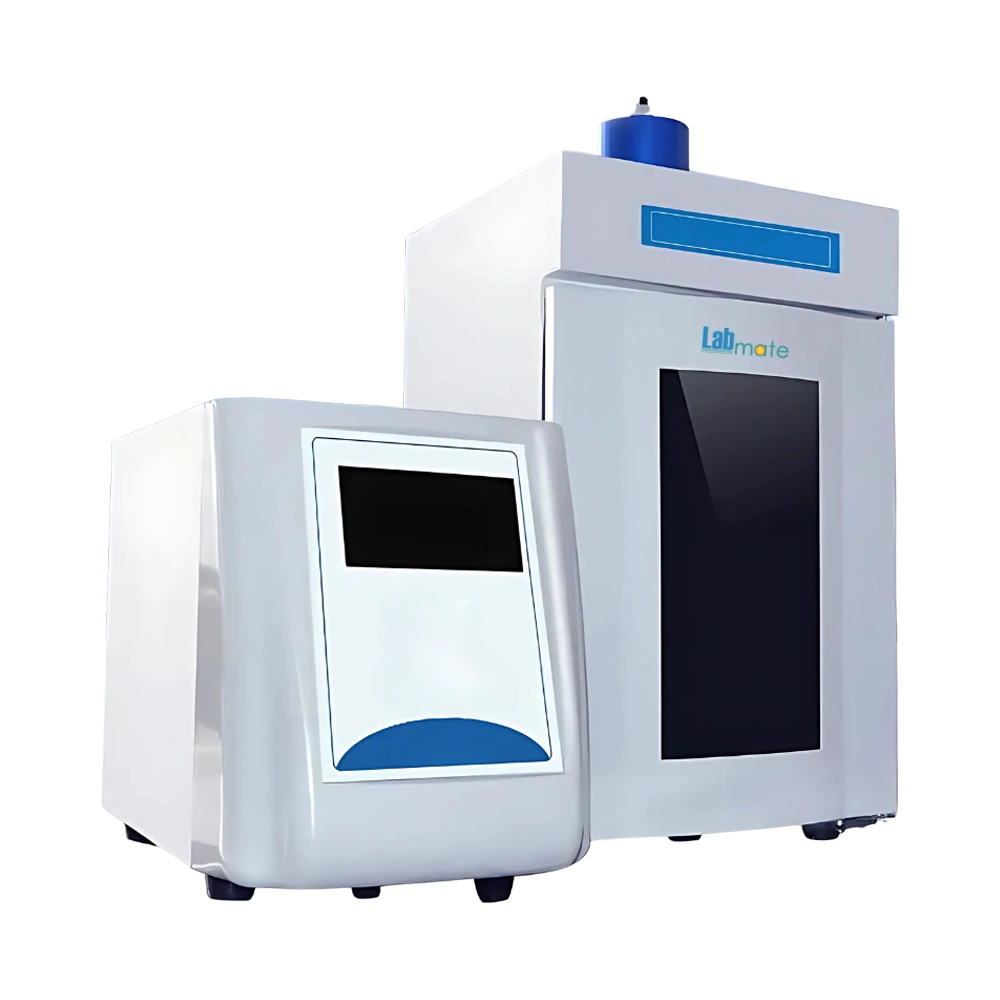

Ultrasonic Homogenizer with touchscreen control and automatic frequency tracking

Ultrasonic Homogenizer LMUH-A101

Name: Ultrasonic Homogenizer LMUH-A101
Brand: Labmate
SKU: LMUH-A101
Rating: 4.9 (405 reviews)

Ultrasonic Homogenizer LMUH-A101 uses ultrasound to disrupt cells, disperse particles and emulsify liquid samples from 0.1 to 300 milliliter. Output ranges from 2.5 to 250 watt, and automatic frequency tracking holds the operating frequency between 20 and 25 kilohertz as load changes. A 6 millimeter standard probe is included, with 2, 3, 8 and 10 millimeter probes available separately. Microcomputer control with a TFT display stores 20 groups of settings,...

Catalog Send Mail Whatsapp

Specifications

Ultrasonic Power	2.5 to 250 W
Disruption Capacity	0.1 to 300 mL
Standard Probe	ɸ 6 mm
Optional Probe	ɸ 2, ɸ 3, ɸ 8, ɸ 10 mm
Operating Frequency	20 to 25 KHz, Automatic Tracking
Temperature Control Range	0 to 100 °C
Data Storage	20 sets
Ultrasonic Setting Time	0.1 to 99.9 s
Total Working Time	1 to 99 h 59 m 59 s
Alarm Function	Time, temperature, over load and no-load
Net Weight	12 Kg
Gross Weight	16 Kg
Packaging Dimension (L × W × H)	470 × 305 × 430 mm

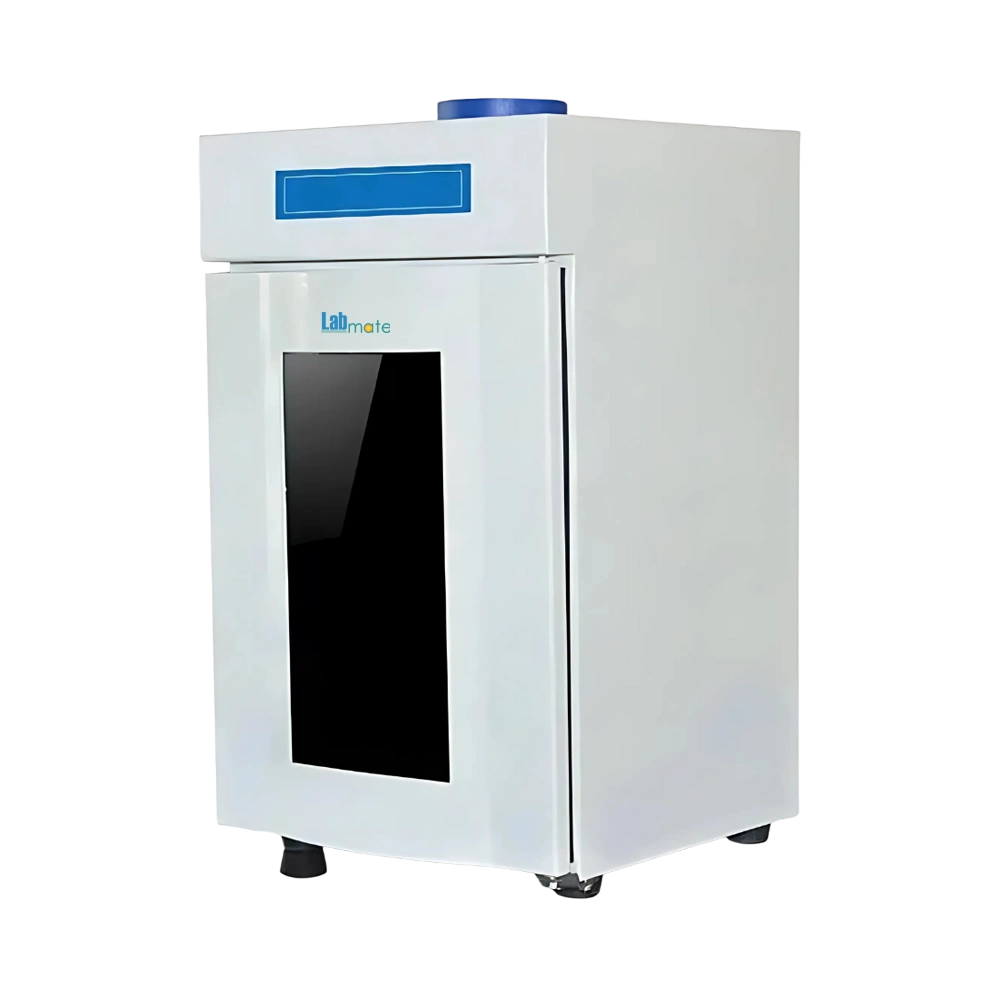

Soundproof Box Weight	10 Kg

Pricing

Product	Price	Unit	Action
Ultrasonic Homogenizer LMUH-A101	$ 2637.5	Each of 1

Features

Ultrasonic power of 2.5 to 250 watt for disruption capacity of 0.1 to 300 milliliter.
Automatic frequency tracking across 20 to 25 kilohertz.
6 millimeter standard probe, with 2, 3, 8 and 10 millimeter probes optional.
Microcomputer control with TFT touchscreen operation.
Memory for up to 20 groups of settings.
Sample temperature detection with 0 to 100 degrees Celsius range.
Ultrasonic setting time from 0.1 to 99.9 seconds, total working time up to 99 hours 59 minutes 59 seconds.
Automatic fault alarm, overload protection and voice alarm for over temperature or operating errors.
Optional data printing, soundproof cabinet lighting and sterilization.

Optional Accessories

Model No	Accessory Name	Unit	Quantity
LMUH-A101-P1	Probe (ɸ 2mm)	Each	1
LMUH-A101-P2	Probe (ɸ 3mm)	Each	1
LMUH-A101-P3	Probe (ɸ 8mm)	Each	1
LMUH-A101-P4	Probe (ɸ 10mm)	Each	1

Applications

Ultrasonic homogenizers is mainly used in biological and chemical laboratories for DNA, RNA, and protein extraction, as well as for preparing samples for chromatography, spectroscopy, and other analytical techniques.

Ultrasonic Homogenizer LMUH-A109

Ultrasonic Power: 4000 W
Operating Frequency: 20 KHz
Temperature Control Range: -30℃ to 200℃
Temperature Precision: ± 0.5℃
Control System: PID Fuzzy Controller

$ 15262.5 / Each of 1

Ultrasonic Homogenizer LMUH-A104

Ultrasonic Power: 10 to 1000 W
Disruption Capacity: 0.1 to 750 mL
Standard Probe: ɸ 6 mm
Optional Probe: ɸ 2, ɸ 3, ɸ 8, ɸ 10, ɸ 12, ɸ 15 mm
Operating Frequency: 19.5 - 20.5 KHz, Automatic Tracking

$ 3500 / Each of 1

Ultrasonic Homogenizer LMUH-A106

Ultrasonic Power: 50 to 1800 W
Disruption Capacity: 1 to 1200 mL
Standard Probe: ɸ 22 mm
Optional Probe: ɸ 3, ɸ 6, ɸ 10, ɸ 15, ɸ 20, ɸ 25, ɸ 28 mm
Operating Frequency: 19.5 to 20.5 KHz, Automatic Tracking

$ 4662.5 / Each of 1

Ultrasonic Homogenizer LMUH-A107

Disruption Capacity: 1 to 2,500ml
Probe Material: Titanium alloy
Optional Probe: ɸ 6, ɸ 8, ɸ 13
Operating Frequency: 20KHz
Temperature Range: 0°C to 300°C

$ 4237.5 / Each of 1

Ultrasonic Homogenizer LMUH-A103

Ultrasonic Power: 10 to 900 W
Disruption Capacity: 0.1 to 600 mL
Standard Probe: ɸ 6 mm
Optional Probe: ɸ 2, ɸ 3, ɸ 10, ɸ 12, ɸ 15 mm
Operating Frequency: 20 to 25 KHz, Automatic Tracking

$ 3812.5 / Each of 1

Ultrasonic Homogenizer LMUH-A108

Ultrasonic Power: 4000W
Operating Frequency: 20 KHz
Temperature Control Range: -30℃ to 200℃
Temperature Precision: ± 0.5℃
Control System: PID

$ 13387.5 / Each of 1

Ultrasonic Homogenizer LMUH-A110

Frequency: 20 to 25 KHz
Crushing Capacity: 0.5 to 500 ml
Standard Horn: Ø6 mm
Adjustable Protection Temperature: Sample temperature up to 80°C
Horn Lifting Distance: 120 mm

$ 3347.5 / Each of 1

Ultrasonic Homogenizer LMUH-A102

Ultrasonic Power: 10 to 650 W
Disruption Capacity: 0.1 to 500 mL
Standard Probe: ɸ 6 mm
Optional Probe: ɸ 2, ɸ 3, ɸ 10, ɸ 12 mm
Operating Frequency: 20 to 25 KHz, Automatic Tracking

$ 3462.5 / Pack of 1

Ultrasonic Homogenizer LMUH-A100

Ultrasonic Power: 1.5 to 150 W
Disruption Capacity: 0.1 to 150 mL
Standard Probe: ɸ 6 mm
Optional Probe: ɸ 2, ɸ 3, ɸ 8 mm
Operating Frequency: 20 to 25 KHz, Automatic Tracking

$ 2837.5 / Pack of 1

Ultrasonic Homogenizer LMUH-A105

Ultrasonic Power: 20 to 1200 W
Disruption Capacity: 1 to 1000 mL
Standard Probe: ɸ 20 mm
Optional Probe: ɸ 3, ɸ 6, ɸ 10, ɸ 15, ɸ 22, ɸ 25 mm
Operating Frequency: 19.5 to 20.5 KHz, Automatic Tracking

$ 4137.5 / Each of 1

Frequently Asked Questions

1 What is an Ultrasonic Homogenizer?

An Ultrasonic Homogenizer is an apparatus designed to use high-frequency ultrasonic waves to break down particles in a liquid, resulting in a uniform and stable mixture.

2 How does an Ultrasonic Homogenizer work?

It works by converting electrical energy into ultrasonic vibrations, which create cavitation in the liquid and disrupt particles, cells, or droplets.

3 Can Ultrasonic Homogenizer be used for biological sample processing?

It is ideal for biological sample processing, including disrupting cells, and breaking down tissues for further analysis.

4 What materials can be processed using an Ultrasonic Homogenizer?

It can process a wide range of materials, including cell suspensions, emulsions, plant extracts, polymers, and nano-materials.

5 Can Ultrasonic Homogenizer be used for liposome preparation?

It is commonly used to prepare liposomes by reducing lipid vesicle size and ensuring uniform dispersion of active ingredients.

6 Can Ultrasonic Homogenizer be used in protein extraction?

It is ideal for protein extraction as it disrupts cell membranes and releases intracellular proteins with minimal sample loss.

7 Is Ultrasonic Homogenizer suitable for DNA shearing in molecular biology?

It can be used for DNA shearing, allowing controlled fragmentation for applications like next-generation sequencing.

8 How is Ultrasonic Homogenizer used in wastewater treatment?

It is used in wastewater treatment to break down sludge, improve digestibility, and enhance biogas production through cell disruption.

9 Can Ultrasonic Homogenizer be used for pesticide formulation?

It is used in pesticide formulation to create fine and stable emulsions or dispersions, enhancing the effectiveness and shelf life of the final product.

10 Can Ultrasonic Homogenizer be used in forensic science?

It is used in forensic science for DNA extraction, tissue sample processing, and trace evidence preparation from small or degraded samples.
