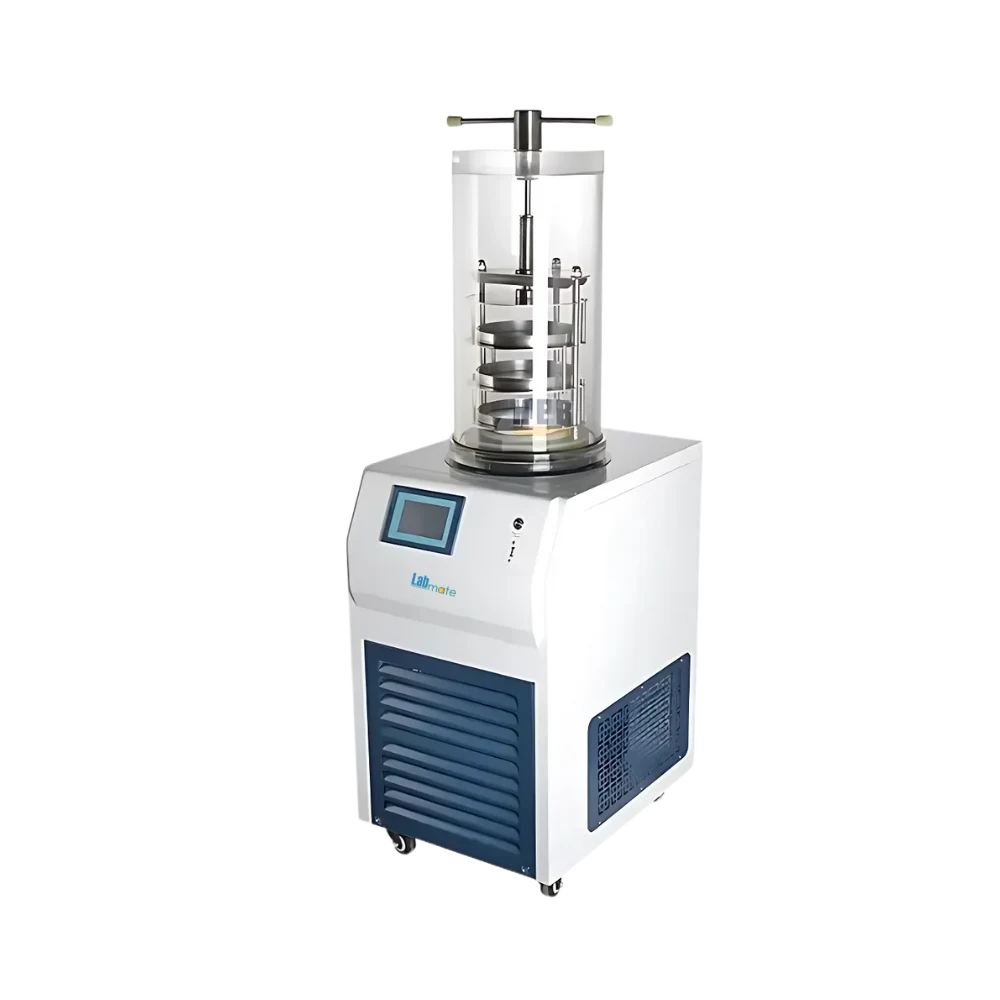

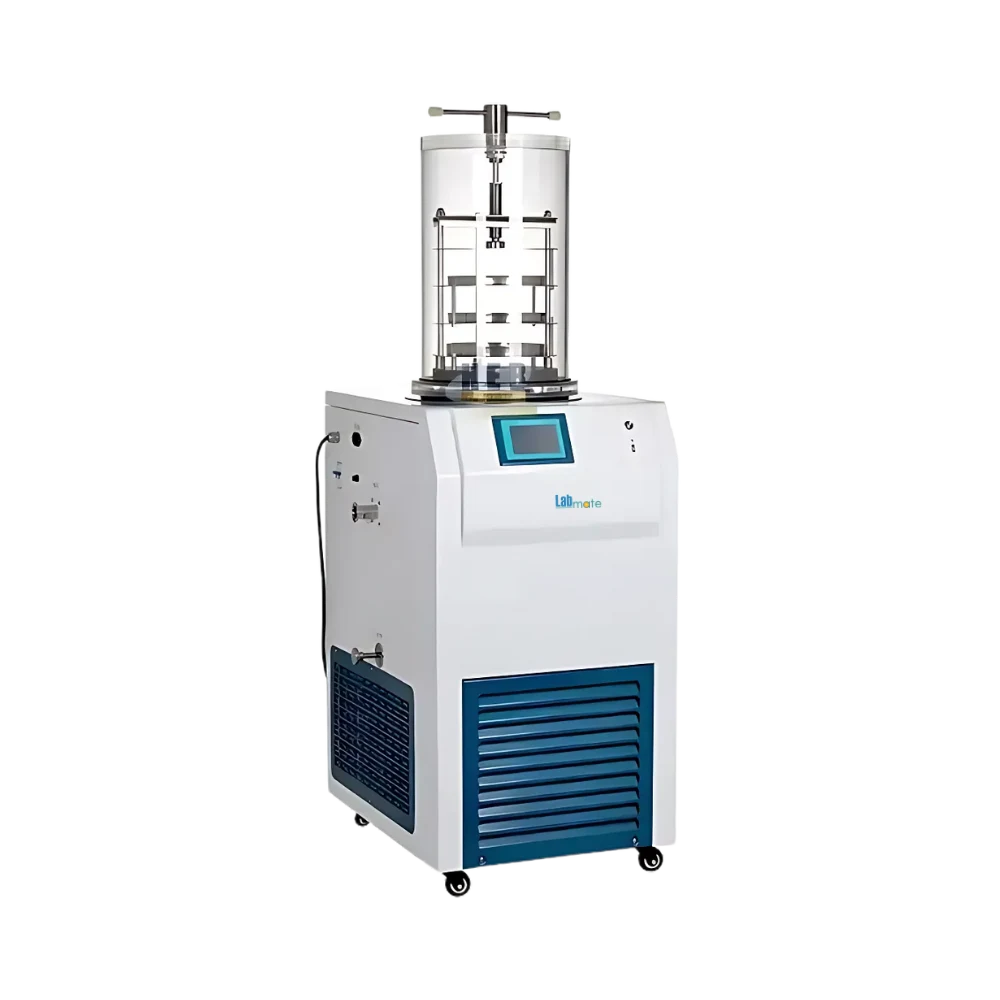

Top Press Vacuum Freeze Dryer LMTVD-A102 offers -55℃ temperature with 4 trays. It features transparent vacuum hood, sealing gasket, and acrylic flange for clear visibility and airtight sealing. Equipped with 7-inch color LCD touch display with lock screen for easy and secure operation. Incorporates built-in reminder that notifies when maintenance is required for continuous performance. Our Freeze Dryer is ideal for drying process in labs, research centers, and universities.
Specifications
| Drying Area | 0.12 m² |
| Condenser Temperature | -55℃ |
| Ice Capacity Per Batch | 6 Kg |
| Pumping Speed | 4 L/S |
| Number Of Material Tray | 4 |
| System Vacuum Degree | 0.1Pa |
| Standard Vacuum Degree | Less than or equal to 10 Pa |
| Eggplant Shaped Flask | 100ml×2, 150ml×2, 250ml×2, 500ml×2 |
| Vial Loading Capacity | Vial ɸ 12mm: 630 pieces, Vial ɸ 16mm: 358 pieces, Vial ɸ 22mm: 180pieces |
| Noise | Less than or equal to 55dB |
| Ambient Temperature | Less than or equal to 35°C |
| Disc Spacing | 100mm |
| Power Consumption | 1100W |
| Power Supply | AC220V 50HZ or 110V/60HZ |
| Tray Diameter | 240 mm |
| Dimension | 560×560× 980 mm |
| Packaging Dimension | 630×670×1500 mm |
| Net Weight | 88 Kg |
| Gross Weight | 150 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Top Press Vacuum Freeze Dryer LMTVD-A102 | $ 6200 | Each of 1 |
Features
Auto data saving
Quick defrost button
Corrosion-resistant pipe
Front ventilation window
Waterproof inflation valve
Air exhaust outlet
Mobile caster wheels
Applications
Top Press Vacuum Freeze Dryer LMTVD-A102 is applied for small-batch drying of plant extracts, microbial cultures, and food samples in labs, research centers, universities, and pilot production.
