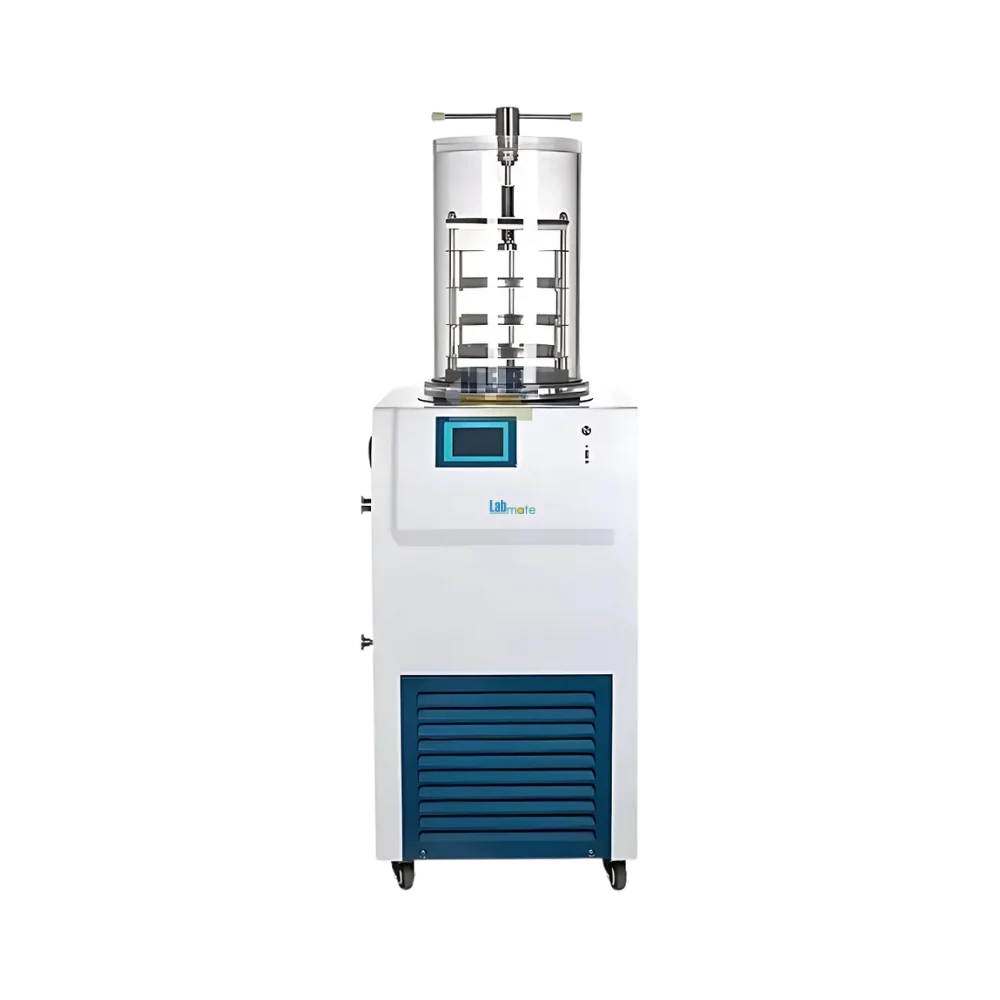

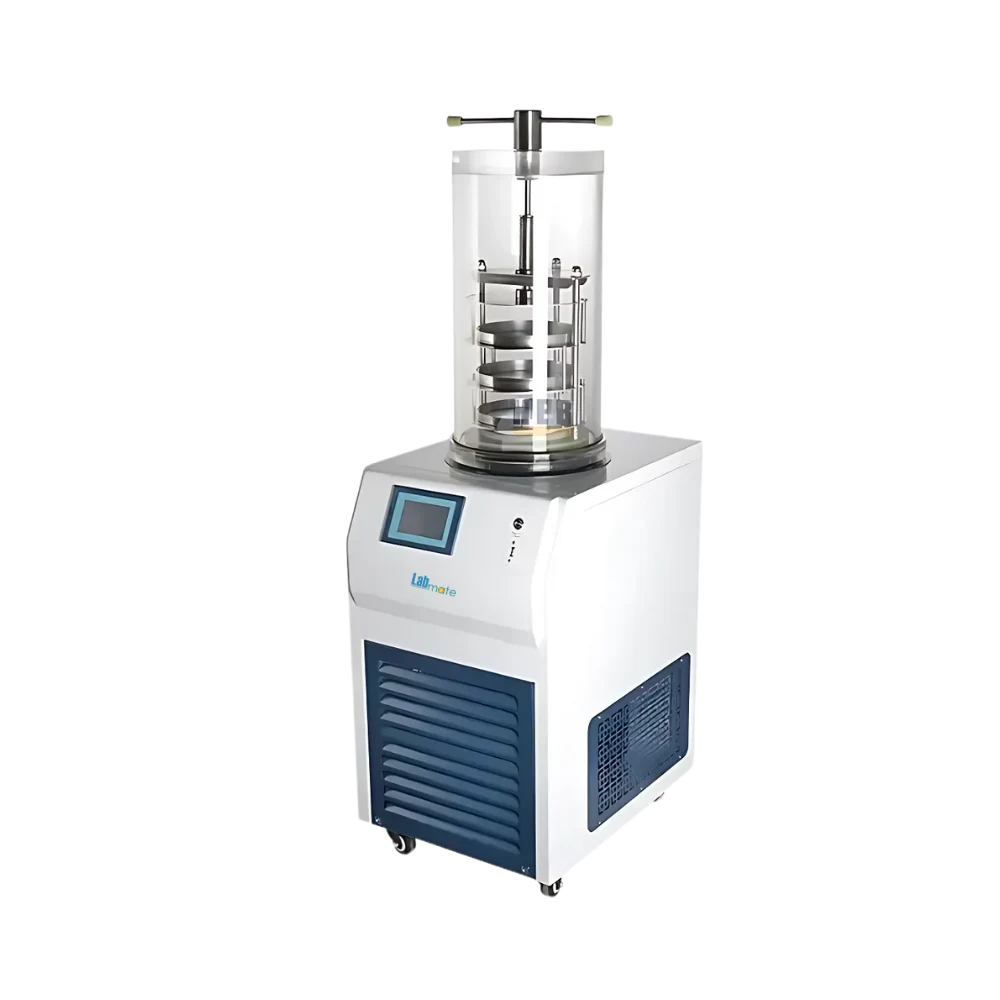

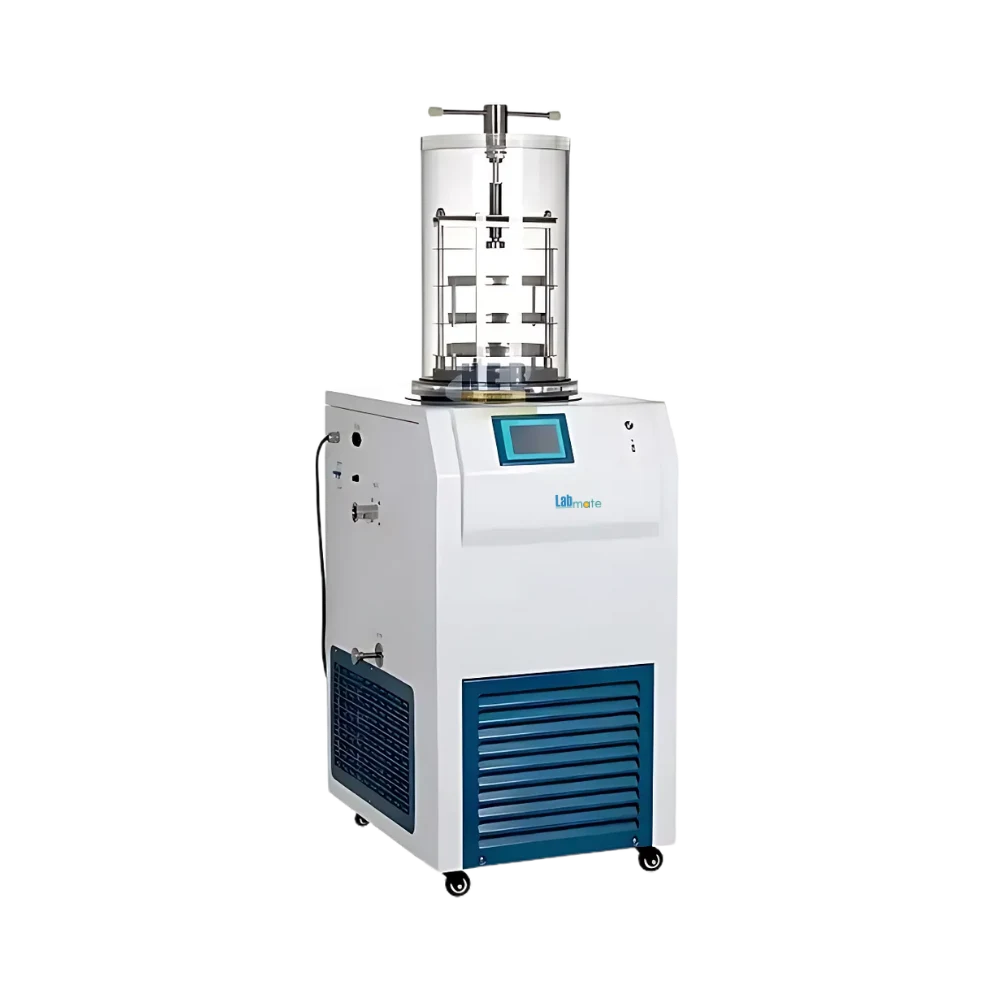

Top Press Vacuum Freeze Dryer LMTVD-A101 has 0.08 m2 drying area and 3-tray capacity. Its cold trap pre-freezing function eliminates liquid nitrogen or ultra-low temperature storage. Incorporates waterproof inflation valve and side air outlet for stable internal pressure during operation. Equipped with smooth-rolling casters and front ventilation window for mobility and cooling efficiency. Our Freeze Dryer is ideal for drying plant extracts, microbial cultures, and food samples.
Specifications
| Drying Area | 0.08 m² |
| Condenser Temperature | -55℃ |
| Ice Capacity Per Batch | 4 Kg |
| Pumping Speed | 2 L/S |
| Number Of Material Tray | 3 |
| System Vacuum Degree | 0.1Pa |
| Standard Vacuum Degree | Less than or equal to 10 Pa |
| Eggplant Shaped Flask | 100ml×2, 150ml×2, 250ml×2, 500ml×2 |
| Vial Loading Capacity | Vial ɸ 12mm: 560 pieces, Vial ɸ 16mm: 318 pieces, Vial ɸ 22mm: 165 pieces |
| Noise | Less than or equal to 55dB |
| Ambient Temperature | Less than or equal to 35°C |
| Disc Spacing | 100mm |
| Power Consumption | 950W |
| Power Supply | AC220V 50HZ or 110V/60HZ |
| Tray Diameter | 180 mm |
| Dimension | 480× 600×770 mm |
| Packaging Dimension | 620×850×920 mm |
| Net Weight | 63 Kg |
| Gross Weight | 140 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Top Press Vacuum Freeze Dryer LMTVD-A101 | $ 4062.5 | Each of 1 |
Features
Color touch screen
USB export support
Quick defrost button
Corrosion-resistant pipe
Transparent vacuum hood
Sealing gasket ring
Applications
Top Press Vacuum Freeze Dryer LMTVD-A101 is applied for small-batch drying of plant extracts, microbial cultures, and food samples in labs, research centers, universities, and pilot production, ensuring low-temperature preservation, minimal shrinkage, and extended shelf stability.
