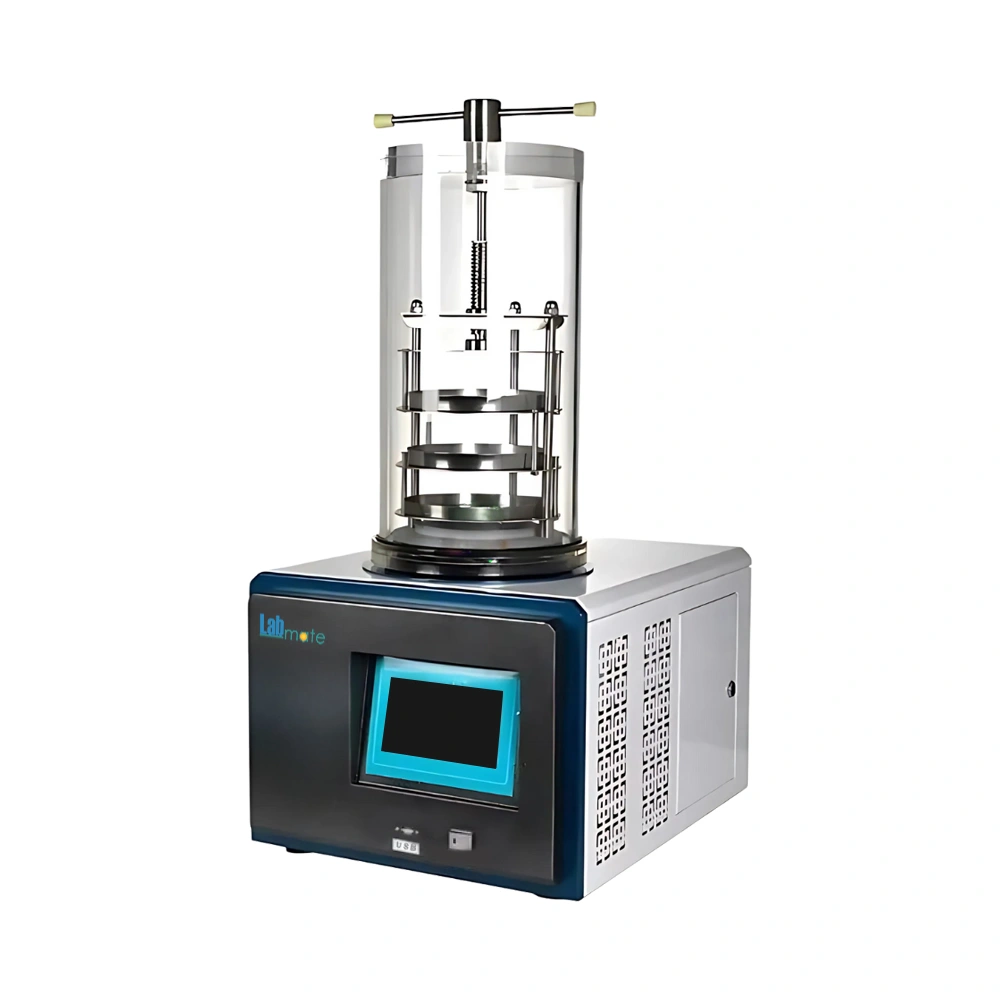

Top Press Vacuum Freeze Dryer LMTVD-A100 is designed to offer -55℃ temperature. It supports ampoules, vials, flasks, plasma bottles, and trays for flexible sample types. Equipped with stainless steel vacuum connecting pipe, it ensures corrosion resistance and secure airtight sealing. Incorporates an alarm system that alerts if vacuum levels fall below optimal during drying. Our Freeze Dryer enables drying of heat-sensitive materials in pharmaceutical, food, and biotech sectors.
Specifications
| Drying Area | 0.08 m² |
| Condenser Temperature | -55℃ |
| Ice Capacity Per Batch | 4 Kg |
| Pumping Speed | 2 L/S |
| Number Of Material Tray | 3 |
| System Vacuum Degree | 0.1Pa |
| Standard Vacuum Degree | Less than or equal to 10 Pa |
| Eggplant Shaped Flask | 100ml×2, 150ml×2, 250ml×2, 500ml×2 |
| Vial Loading Capacity | Vial ɸ 12mm: 560 pieces, Vial ɸ 16mm: 318 pieces, Vial ɸ 22mm: 165 pieces |
| Noise | Less than or equal to 55dB |
| Ambient Temperature | Less than or equal to 35°C |
| Disc Spacing | 100mm |
| Power Consumption | 950W |
| Power Supply | AC220V 50HZ or 110V/60HZ |
| Tray Diameter | 180 mm |
| Dimension | 520×600×400 mm |
| Packaging Dimension | 740×810×850 mm |
| Net Weight | 48 Kg |
| Gross Weight | 98 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Top Press Vacuum Freeze Dryer LMTVD-A100 | $ 3962.5 | Each of 1 |
Features
Eco refrigeration compressor
User-friendly interface
USB export support
Quick defrost button
Acrylic flange structure
Waterproof inflation valve
Air exhaust outlet
Applications
Top Press Vacuum Freeze Dryer LMTVD-A100 enables gentle drying of heat-sensitive materials in pharmaceuticals, food, and biotech sectors, ensuring structural integrity, long shelf life, and rapid reconstitution without additives.
