Standard Sample Concentrator LMSCN-A103 offers wide temperature range of RT+5℃ to 150℃. Built with independent nitrogen gas channels for each needle, allowing flexible gas flow adjustment. Its dual-block design enhances throughput, making it ideal for high-volume sample processing. Equipped with rapid heating system that accelerates evaporation efficiency. Our Sample Concentrator features height-adjustable stand with scale for reliable needle positioning.
Specifications
| Block Quantity | 2 |
| Temperature Control Range | RT +5℃ to 150℃ |
| Temperature Set Range | 0℃ to 150℃ |
| Heating Up Rate | Less than or equal to 30min (20℃ to 150℃) |
| Temperature Stability at 40℃ | ±0.3℃ |
| Temperature Stability at 100℃ | ±0.5℃ |
| Temperature Stability at 120℃ | ±1℃ |
| Nitrogen Flow | 0 to 12L/min |
| Pressure | Less than or equal to 0.2MPa |
| Timer | 0 to 99h59min |
| Power Consumption | 400W |
| Dimension (W×D×H) | 220×290×540 mm |
| Weight | 5kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Standard Sample Concentrator LMSCN-A103 | $ 1800 | Each of 1 |
Features
Stable thermal performance
User-friendly interface
PID-controller
High capacity
Easy calibration
Compatible with various vessels
Optional Accessories
Model No. | Accessory |

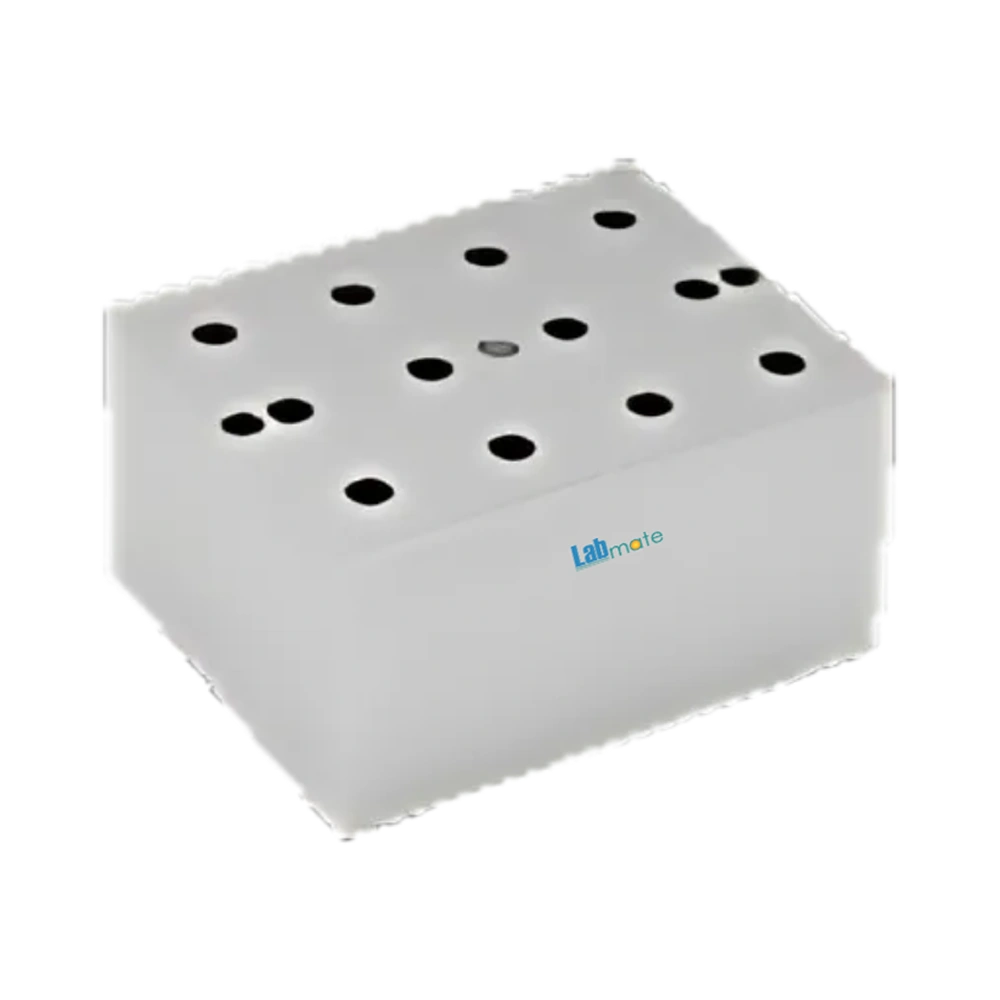

LMSCN-A103-B1 | 6mm × 12tube Block |
| LMSCN-A103-B2 | 7mm × 12tube Block |

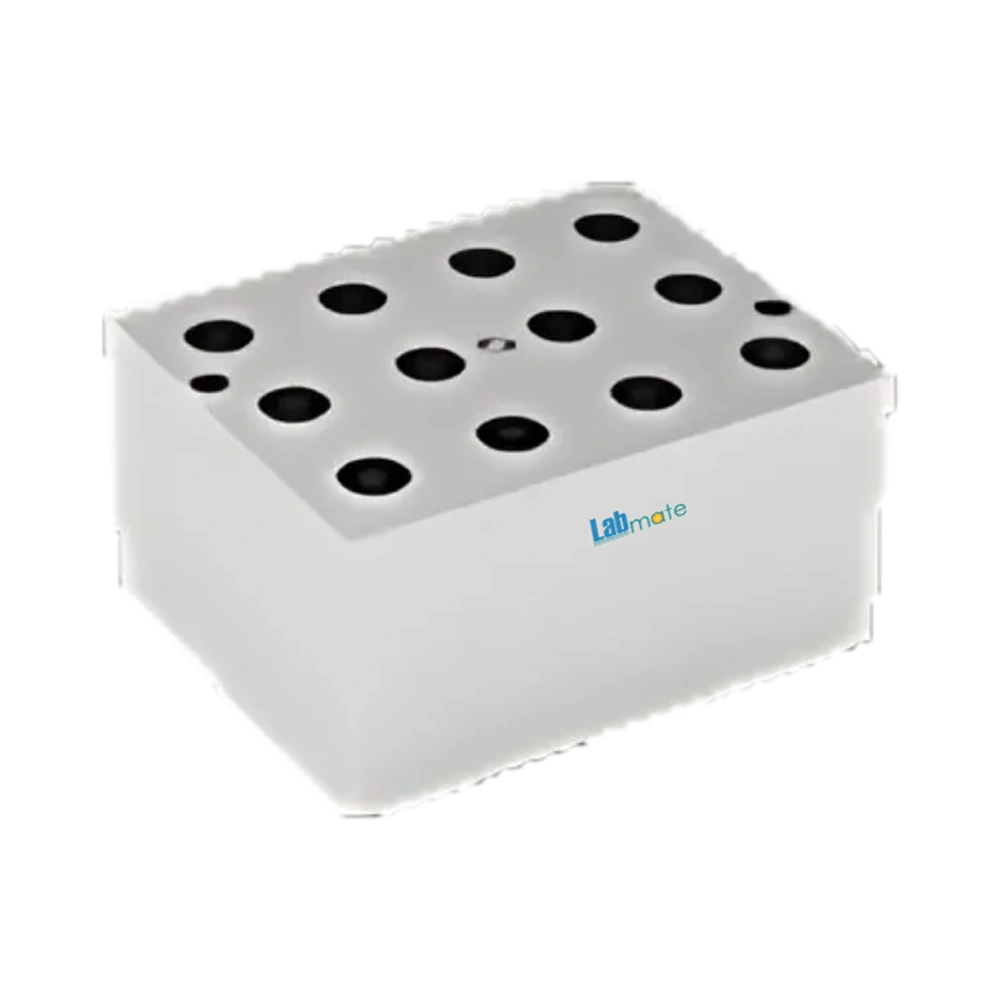

| LMSCN-A103-B3 | 10mm × 12tube Block |

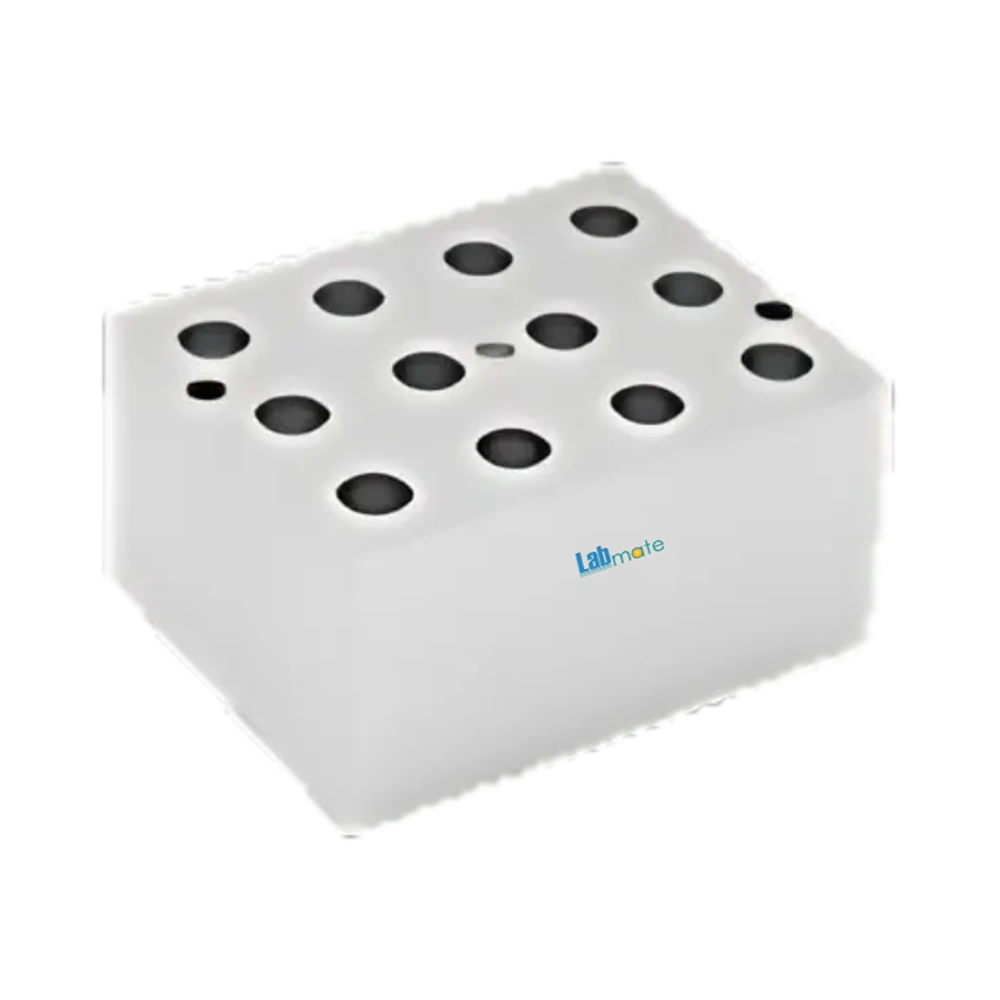

| LMSCN-A103-B4 | 12mm × 12tube Block |

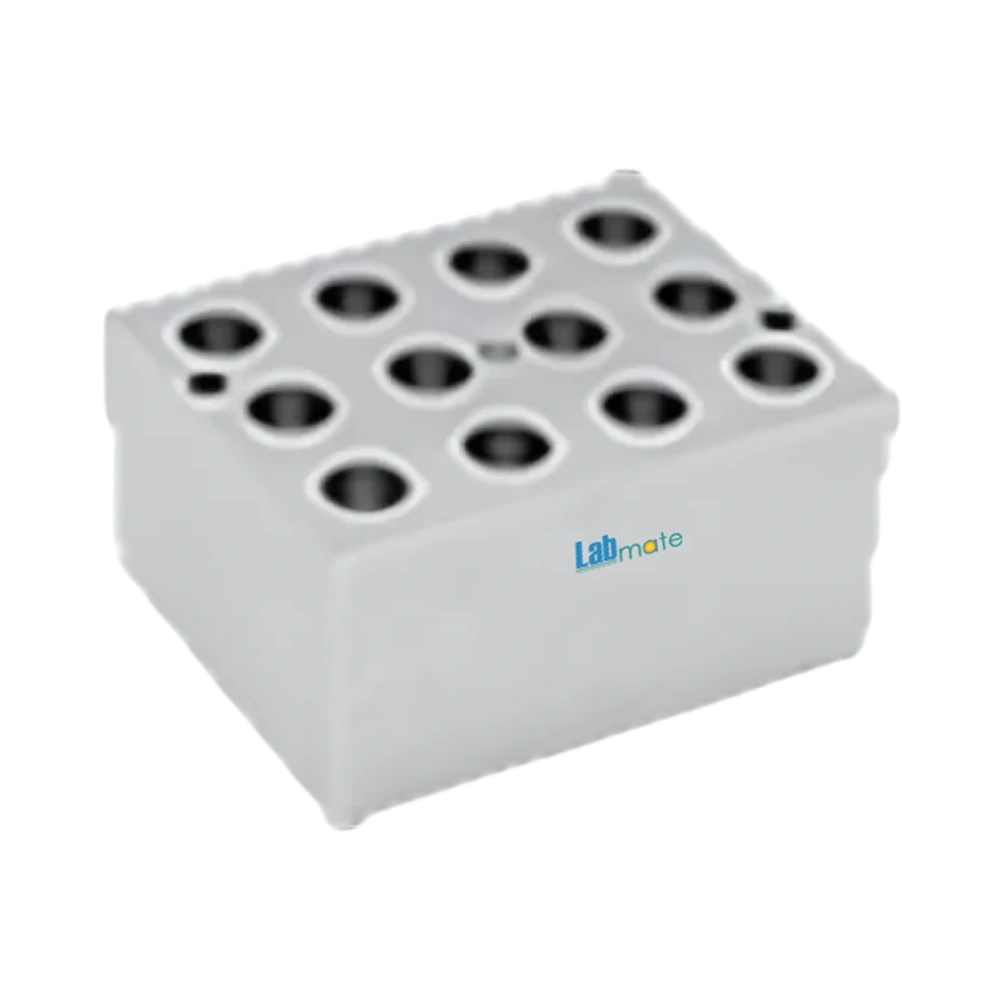

| LMSCN-A103-B5 | 13mm × 12tube Block |

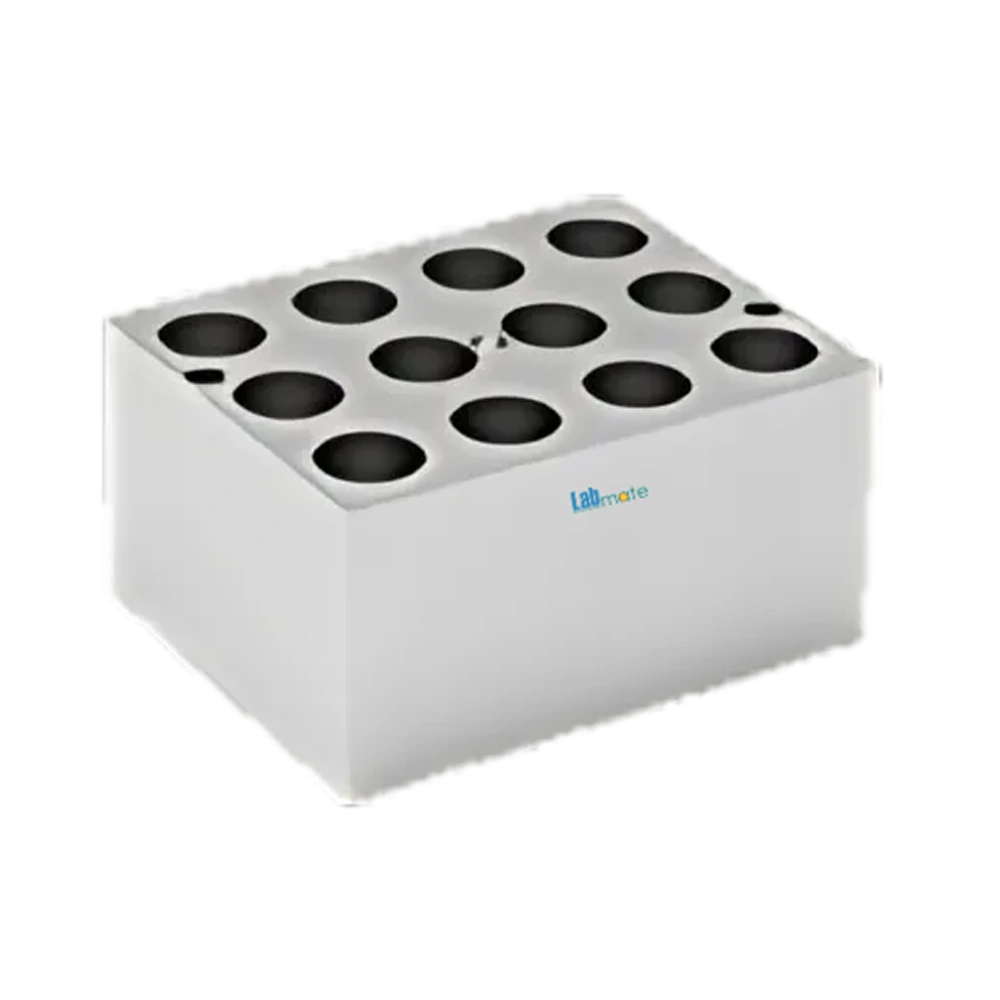

| LMSCN-A103-B6 | 15mm × 12tube Block |

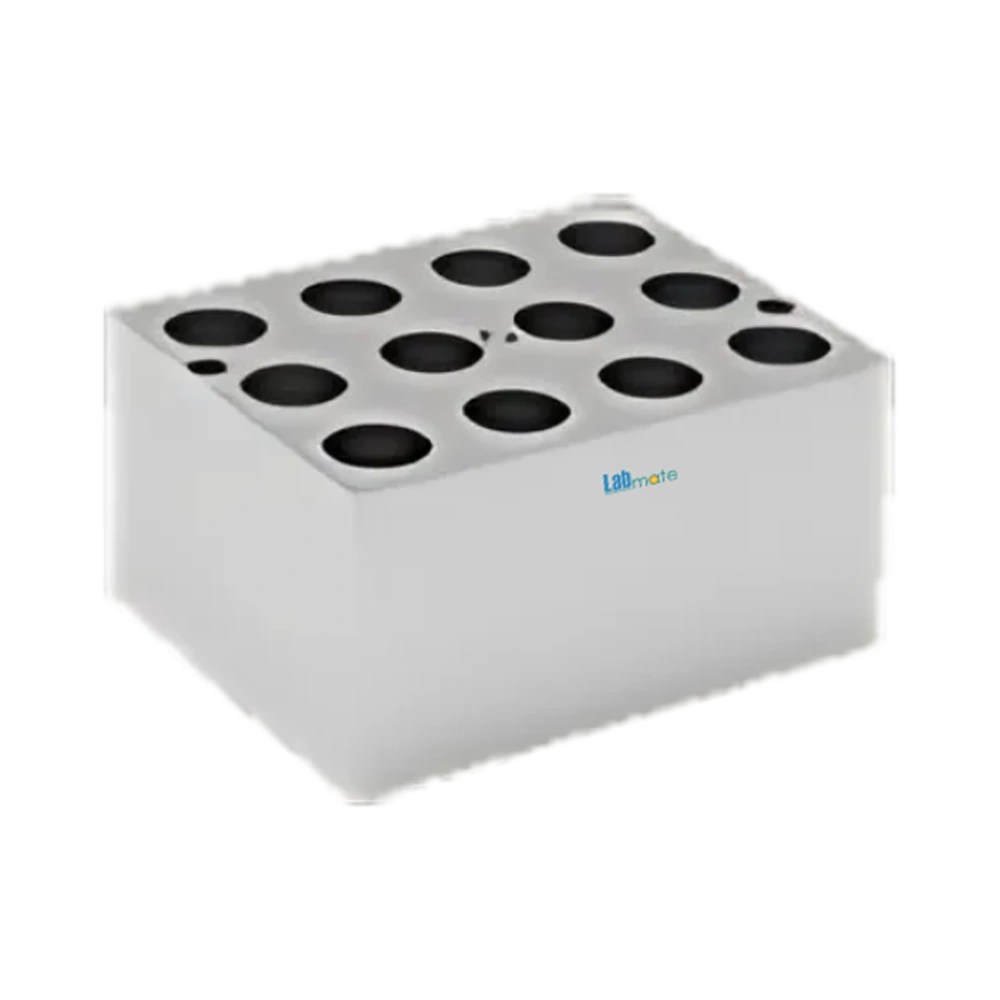

| LMSCN-A103-B7 | 16mm ×12tube Block |

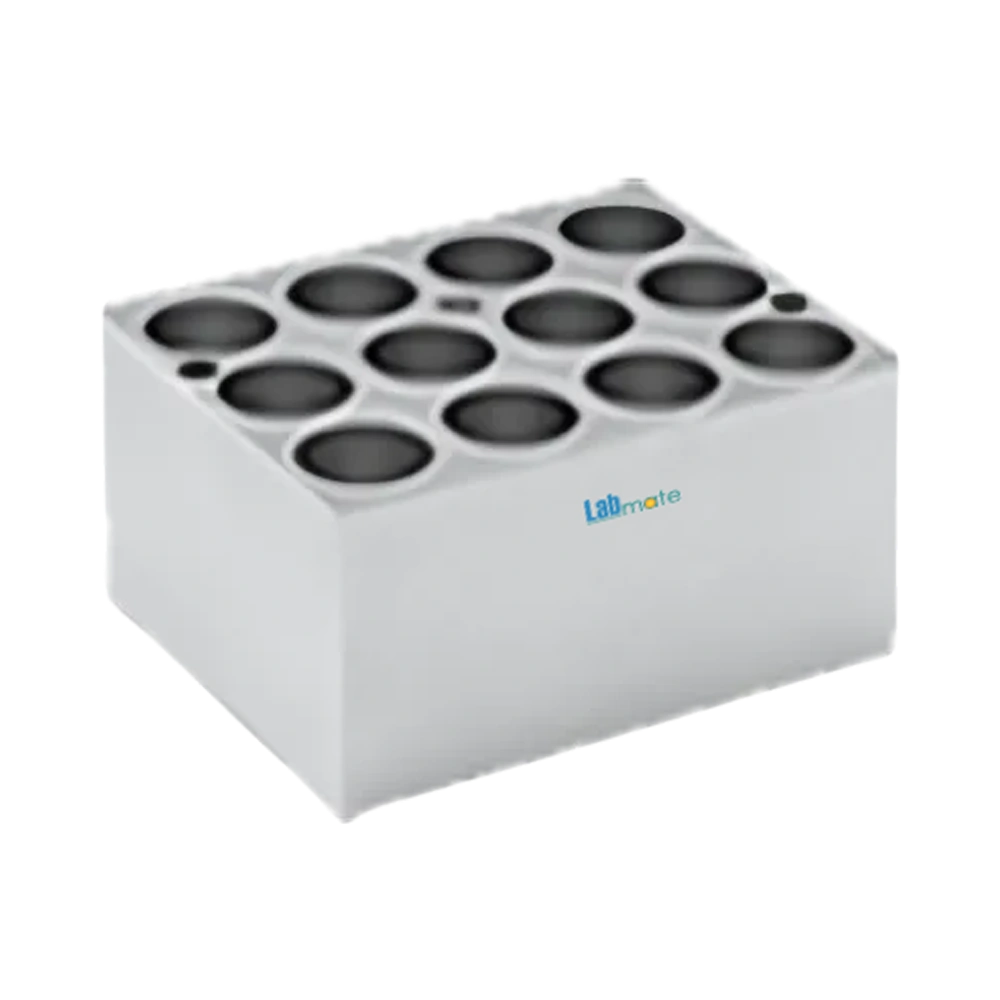

| LMSCN-A103-B8 | 19mm × 12tube Block |

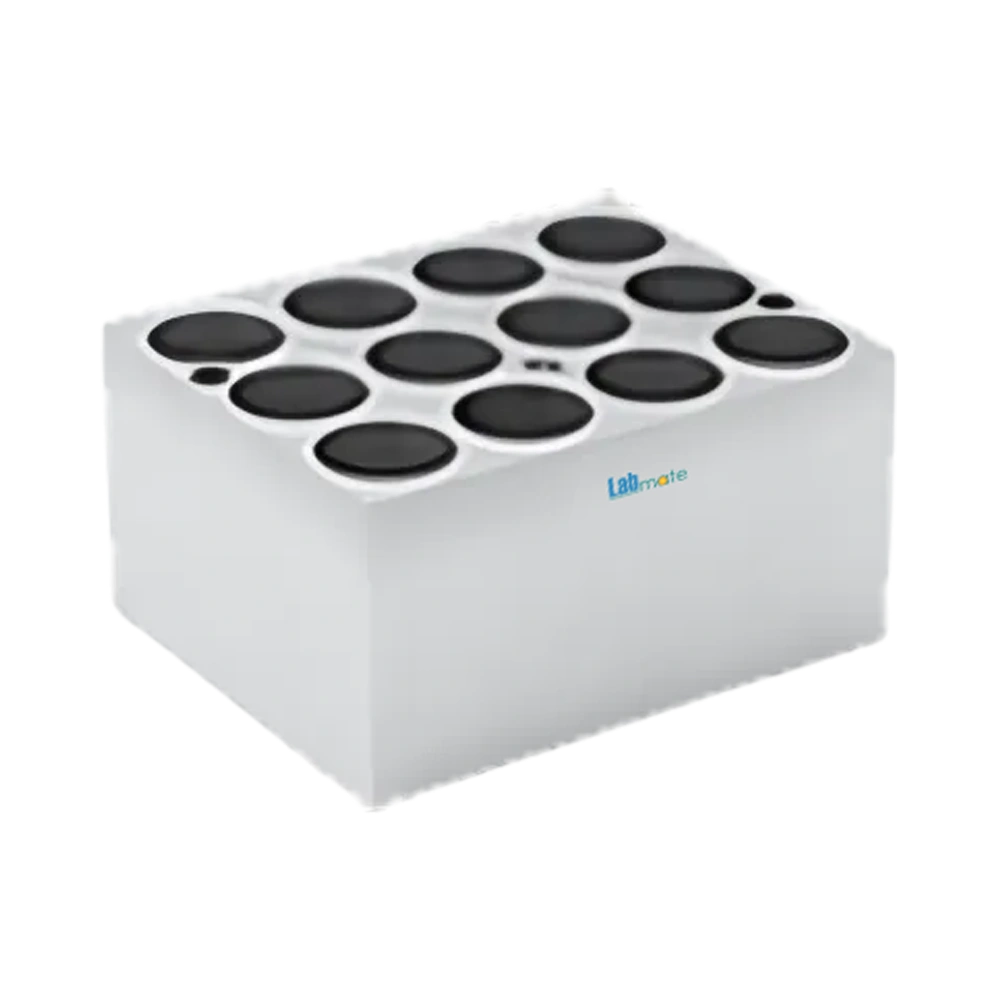

| LMSCN-A103-B9 | 20mm ×12tube Block |

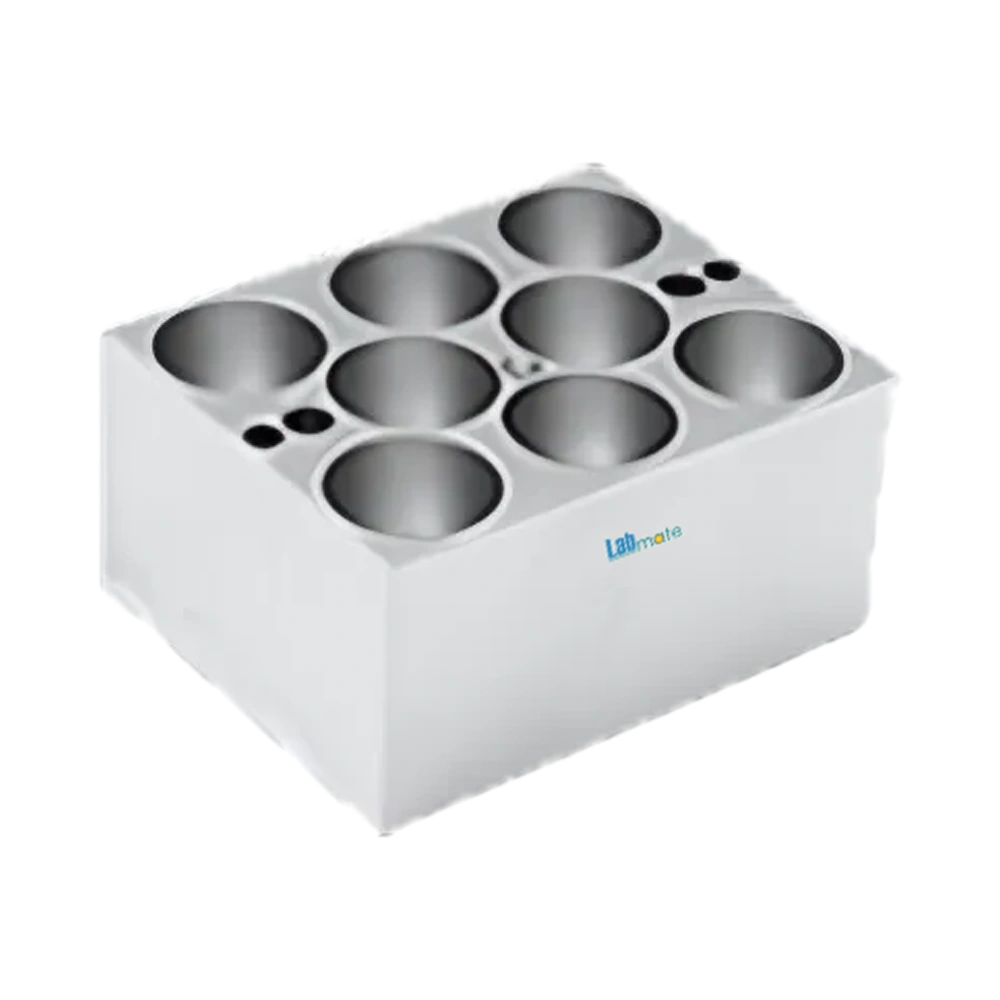

| LMSCN-A103-B10 | 26mm × 8tube Block |

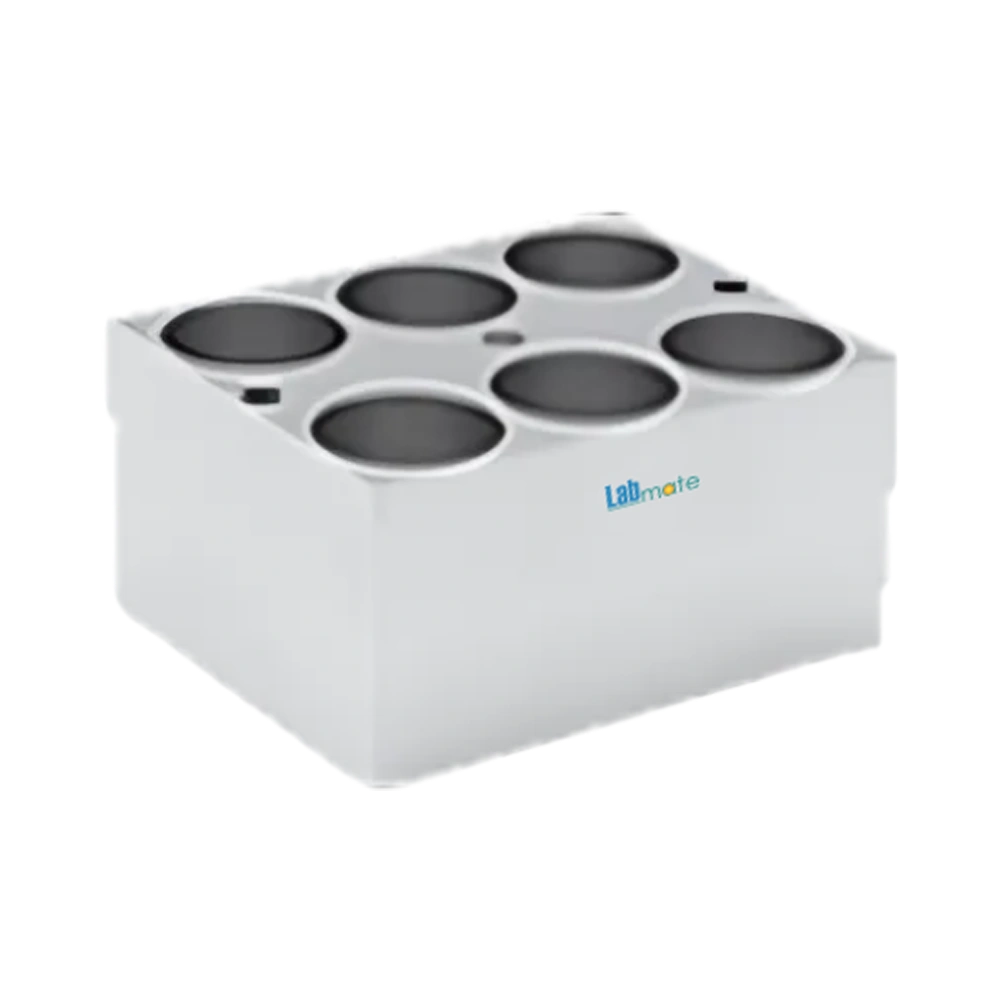

| LMSCN-A103-B11 | 28mm × 6tube Block |

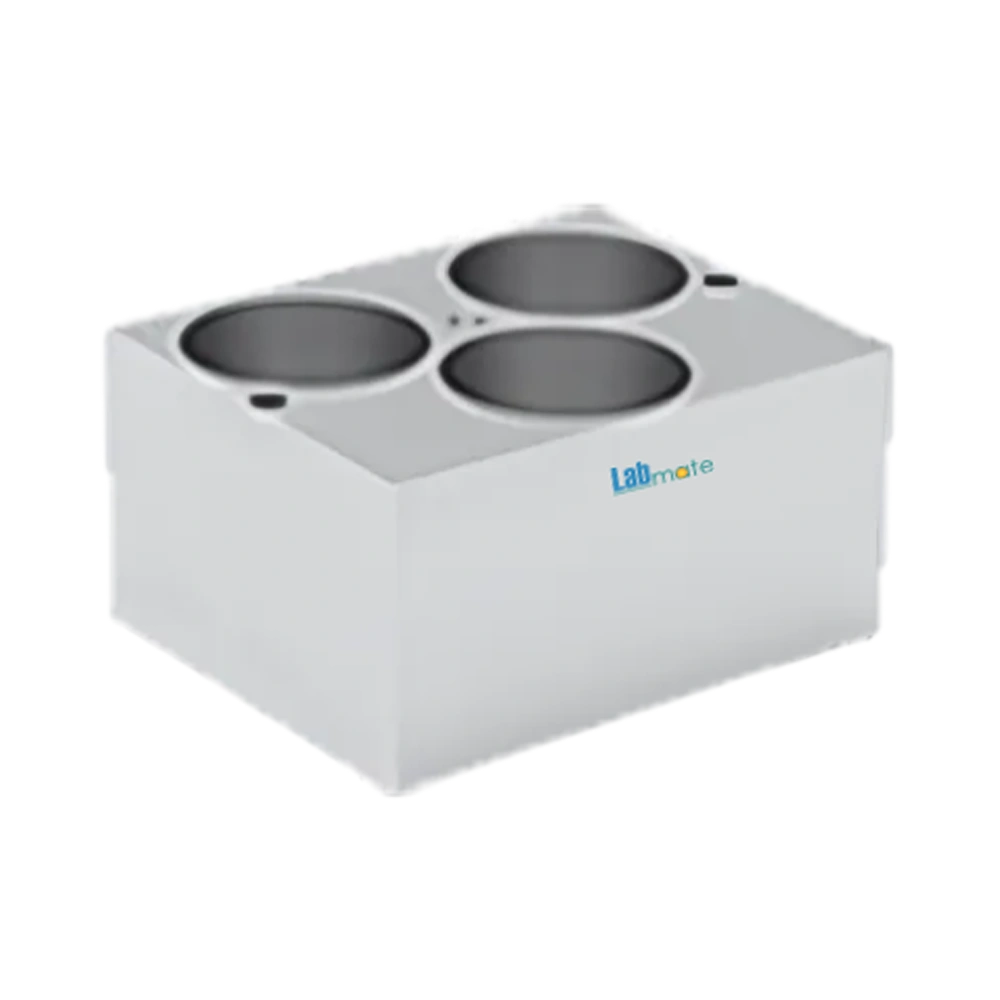

| LMSCN-A103-B12 | 38mm × 3tube Block |

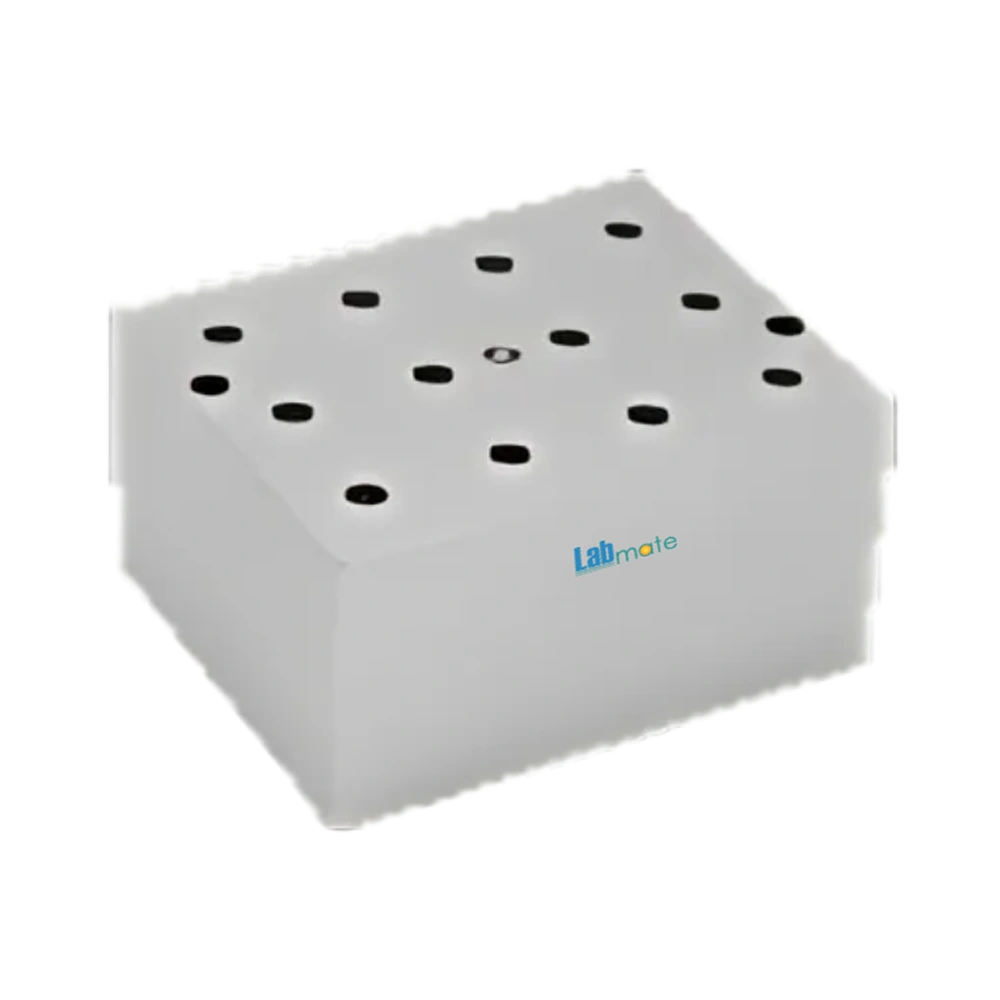

| LMSCN-A103-B13 | 0.2 ml × 12tube Block |

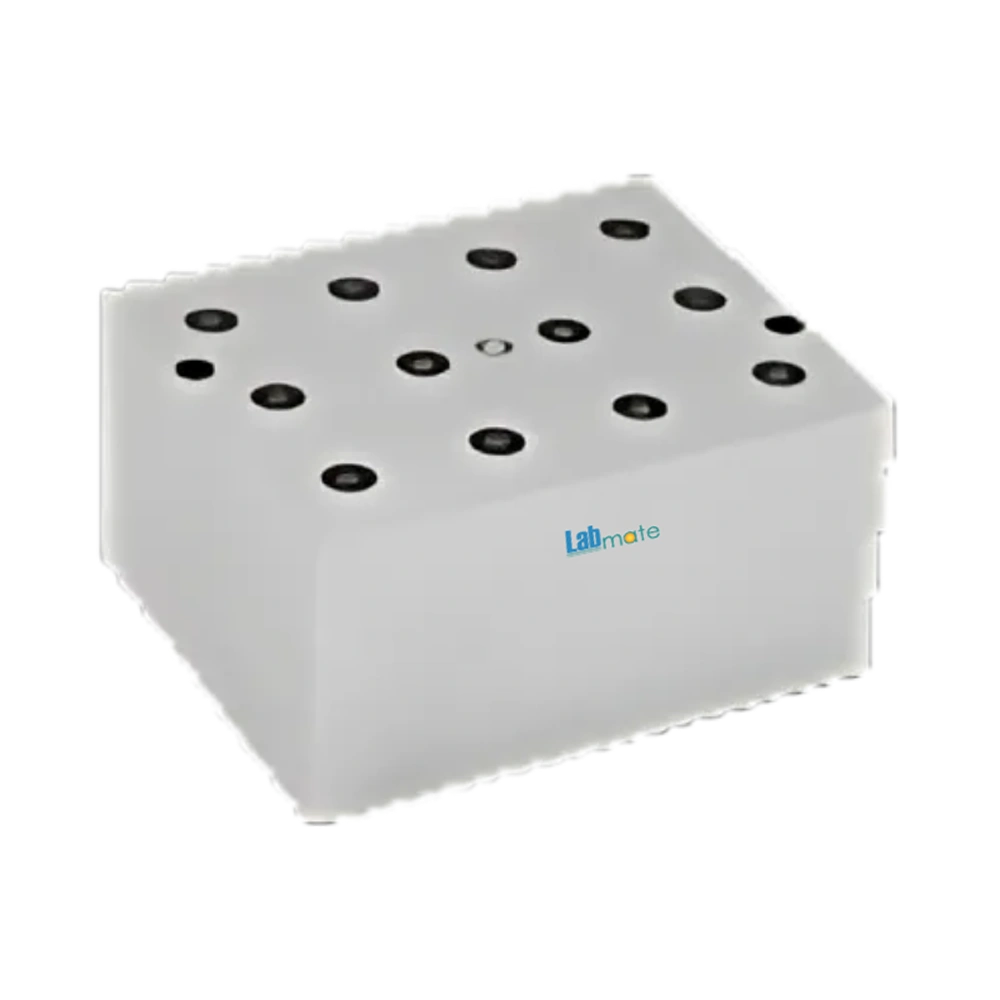

| LMSCN-A103-B14 | 0.5 ml × 12tube Block |

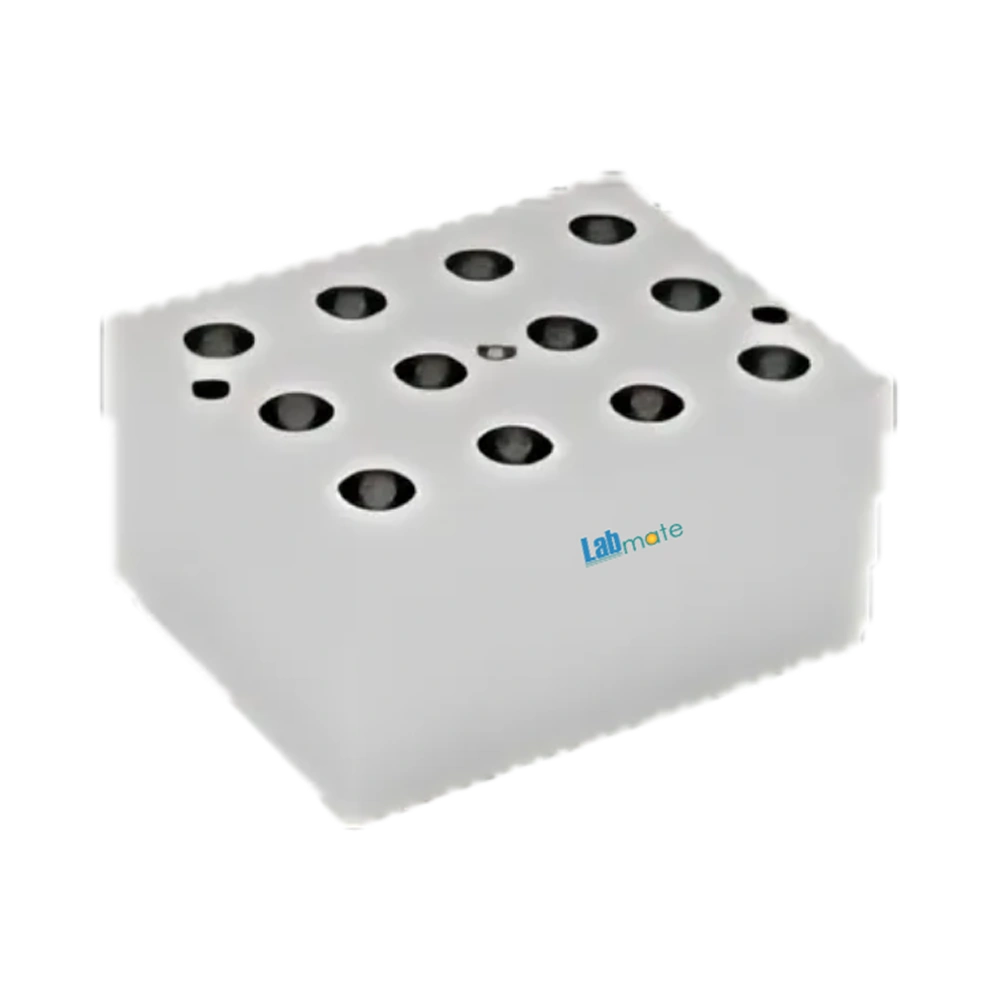

| LMSCN-A103-B15 | 1.5 ml × 12tube Block |
| LMSCN-A103-B16 | 2.0 ml × 12tube Block |
| LMSCN-A103-N1 | Needles |
| LMSCN-A103-F1 | Gas flow controller |
Applications
Standard Sample Concentrator LMSCN-A103 is employed in research, pharmaceutical, and clinical laboratories for rapid solvent evaporation and concentration of biological, chemical, or analytical samples.
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 6mm tubes, Slot Size: Φ6.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 7mm tubes, Slot Size: Φ7.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 10mm tubes, Slot Size: Φ10.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 12mm tubes, Slot Size: Φ12.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 13mm tubes, Slot Size: Φ13.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 15mm tubes, Slot Size: Φ15.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 16mm tubes, Slot Size: Φ16.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 19mm tubes, Slot Size: Φ19.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 20mm tubes, Slot Size: Φ20.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 8 slots for 26mm tubes, Slot Size: Φ26.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 6 slots for 28mm tubes, Slot Size: Φ28.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 3 slots for 38mm tubes, Slot Size: Φ38.5×47
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 0.2ml tubes, Slot Size: Φ6.1×17
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 0.5ml tubes, Slot Size: Φ8×23
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 1.5ml tubes, Slot Size: Φ10.8×31
Block Size: 96.5×76.5×50mm, Block capacity: 12 slots for 2ml tubes, Slot Size: Φ10.8×31
Similar Products
$ 3212.5 / Pack of 1
$ 1800 / Each of 1
$ 1600 / Each of 1
$ 1875 / Each of 1
$ 3600 / Pack of 1
$ 1675 / Each of 1
$ 1650 / Each of 1
$ 1725 / Each of 1
$ 1462.5 / Each of 1
$ 1850 / Each of 1
Frequently Asked Questions
1 What is a Standard Sample Concentrator?
A Standard Sample Concentrator is an apparatus designed to evaporate solvents from multiple samples simultaneously using controlled heat and gas flow.
2 How does a Standard Sample Concentrator work
It works by applying a gentle stream of inert gas, typically nitrogen, and heat to accelerate the evaporation of solvents from test samples.
3 What types of samples can be used with a Standard Sample Concentrator?
It is suitable for concentrating liquid samples.
4 Can Standard Sample Concentrator be used for high-throughput analysis?
It is ideal for high-throughput analysis due to its ability to process multiple samples simultaneously with reproducible results.
5 How is Standard Sample Concentrator used in pharmaceutical testing?
In pharmaceutical testing, it is used to remove solvents from drug formulations or extracts before chromatographic or spectroscopic analysis.
6 Can Standard Sample Concentrator be used for pesticide residue analysis?
It is commonly used in pesticide residue analysis to concentrate extracts from food or environmental samples for improved detection sensitivity.
7 What role does Standard Sample Concentrator play in environmental testing?
In environmental testing, it is used to evaporate solvents from water, soil, or air samples to concentrate pollutants or contaminants for further analysis.
8 How does Standard Sample Concentrator help in forensic laboratories?
It assists forensic laboratories by concentrating trace evidence or chemical residues, improving detection limits in toxicology or drug testing.
9 Can Standard Sample Concentrator be used in food safety labs?
It is widely used in food safety labs to prepare and concentrate samples for analysis of contaminants such as mycotoxins, pesticides, and additives.
10 How does Standard Sample Concentrator assist in quality control procedures?
It enhances quality control procedures by ensuring consistent and efficient sample preparation, leading to more accurate and reproducible test results.
