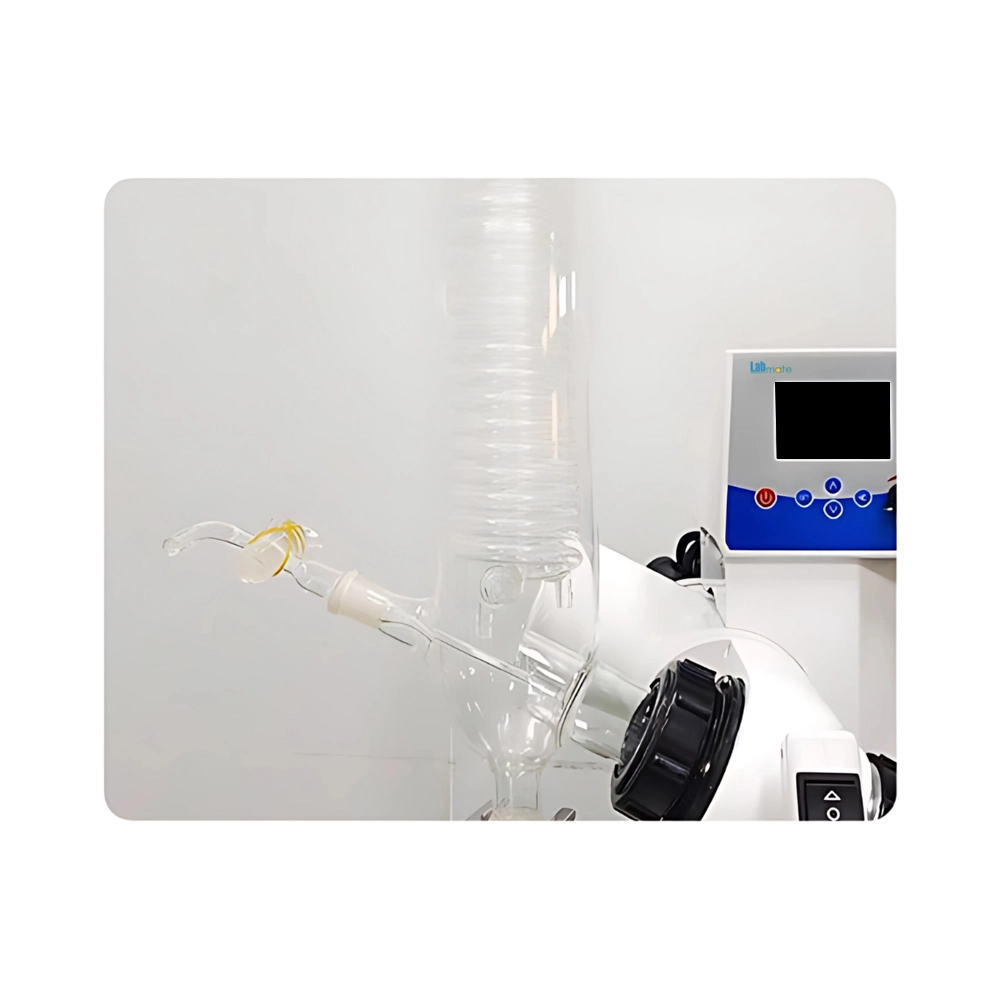

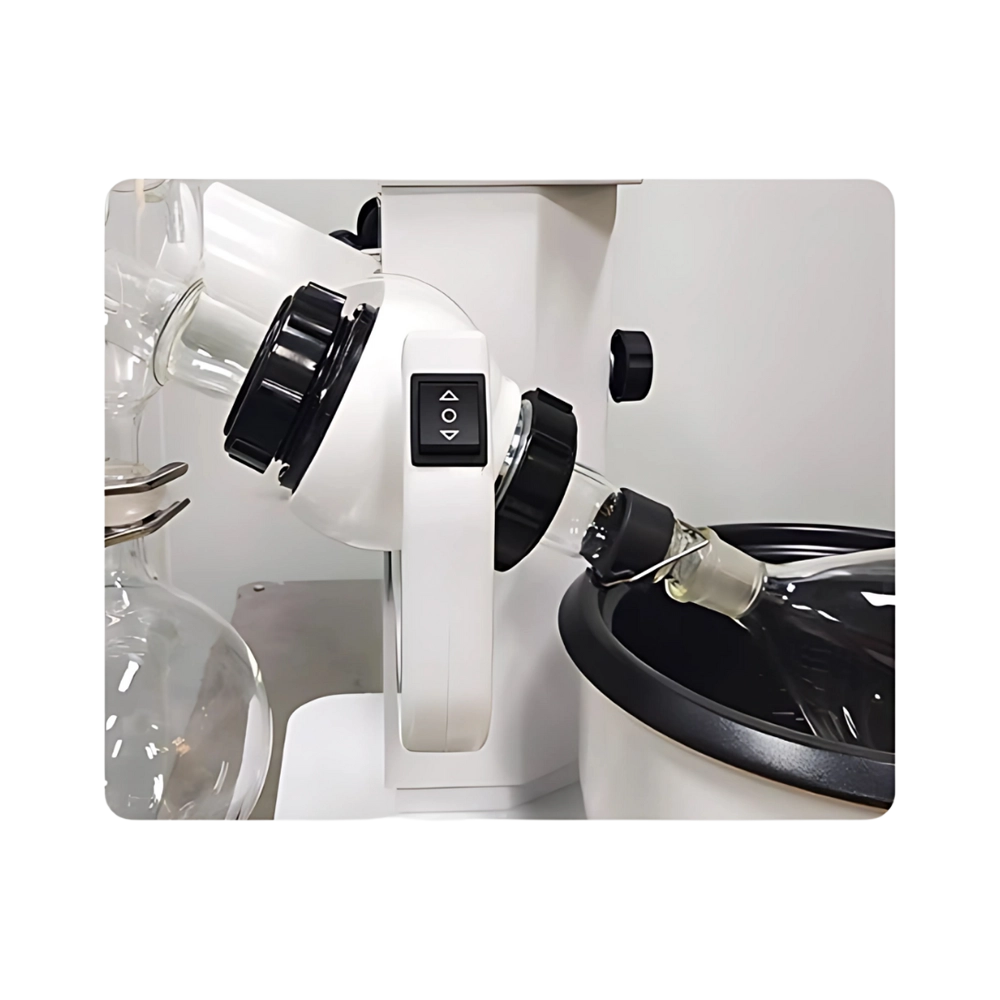

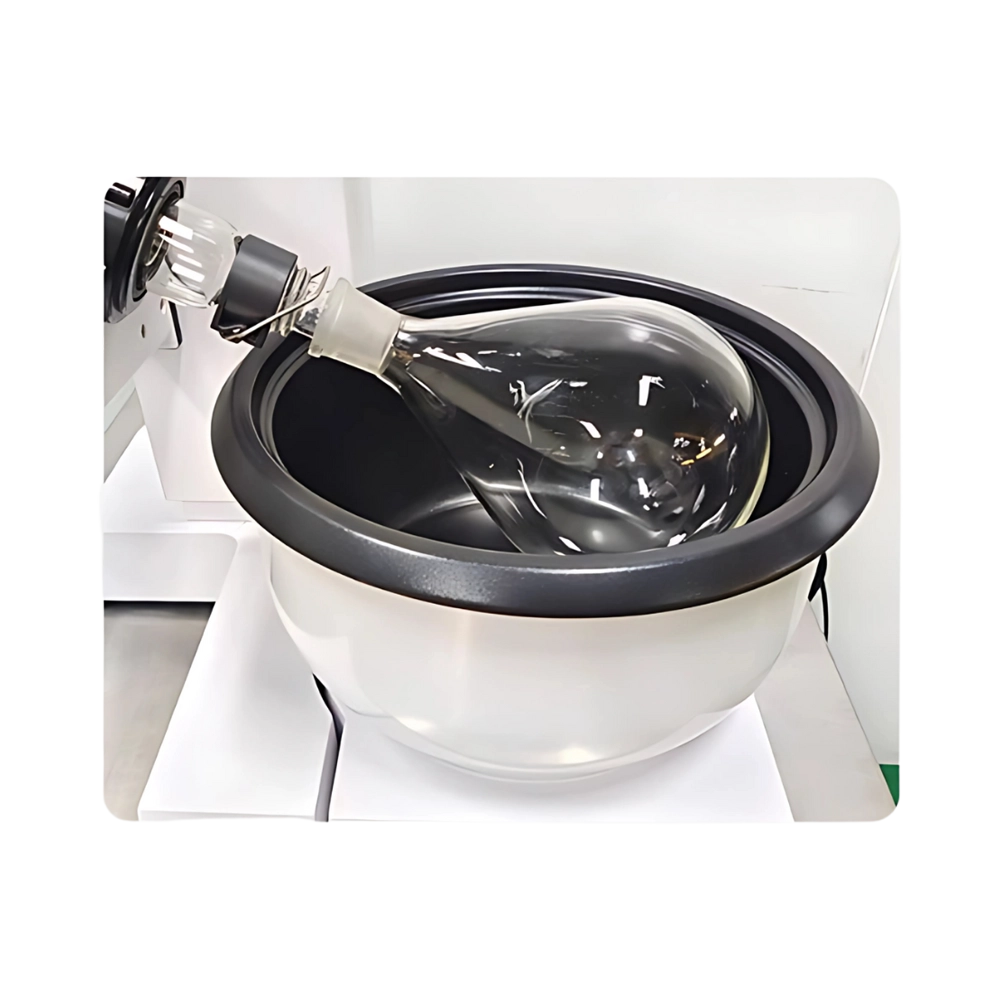

Rotary Evaporator LMRE-B102 is designed to offer 3 L bottle capacity. It consists of rotary motor, distillation bottle, heating pot, and condenser. Equipped with an LCD digital display, it offers real-time data visualization with adjustable temperature and rotation speed. Integrated motorized lift features one-button operation that eliminates manual effort. Our Rotary Evaporator ensures concentration, crystallization, and separation of solvents in various settings.
Specifications
| Rotary Bottle Volume | 3 L |
| Collection Bottle Volume | 2 L |
| Evaporation Rate | Greater than or equal to 2.2 L/h |
| Speed Range | 20 to 120 rpm |
| Working Temperature Range | RT to 200°C |
| Lift Range | 0 to 180 mm |
| Power Supply | 220V/50Hz,1P |
| Dimensions | 840×460×1100 mm |
| Net Weight | 35 Kg |
Features
Interchangeable rotary flask
Double-coil condenser
High solvent recovery
PTFE & Viton seals
Strong corrosion resistance
High vacuum sealing
Applications
Rotary Evaporator LMRE-B102 is widely applied for evaporation, concentration, crystallization, drying, separation, and solvent recovery of volatile solvents in pharmaceuticals, chemicals, and biological settings.
Similar Products
Frequently Asked Questions
1 Why is Rotary Evaporator preferred in pharmaceutical formulation?
It is preferred in pharmaceutical formulation for drying active pharmaceutical ingredients and concentrating drug solutions under mild, controlled conditions.
2 Can Rotary Evaporator be used in polymer research?
It is used in polymer research to remove solvents from polymer solutions during synthesis or modification processes.
3 How is Rotary Evaporator applied in environmental testing?
It is applied in environmental testing for concentrating analytes from water or soil extracts, improving the detection of pollutants or residues.
4 How is Rotary Evaporator used in academic teaching labs?
It is used in academic teaching labs to demonstrate solvent evaporation techniques and train students in practical aspects of sample concentration.
5 How does Rotary Evaporator assist in essential oil production?
It assists in essential oil production by efficiently removing solvents from plant extracts, preserving the integrity of volatile aromatic compounds.
6 Why is Rotary Evaporator used in QC labs of chemical manufacturing?
It is used in QC labs of chemical manufacturing to remove solvents from test batches for purity analysis and ensure final product specifications are met.
7 What is a Rotary Evaporator?
A Rotary Evaporator is an apparatus designed to efficiently and gently remove solvents from samples by evaporation under reduced pressure.
8 How does Rotary Evaporator work?
It works by rotating a flask containing the sample while applying vacuum and heat, which lowers the boiling point and facilitates the evaporation of the solvent.
9 What types of solvents can be removed using Rotary Evaporator?
It is used to remove a wide range of volatile solvents such as ethanol, methanol, acetone, and hexane.
10 How is Rotary Evaporator used in organic chemistry?
It is used in organic chemistry to remove solvents from reaction mixtures, concentrating and purifying organic compounds without exposing them to high temperatures.
