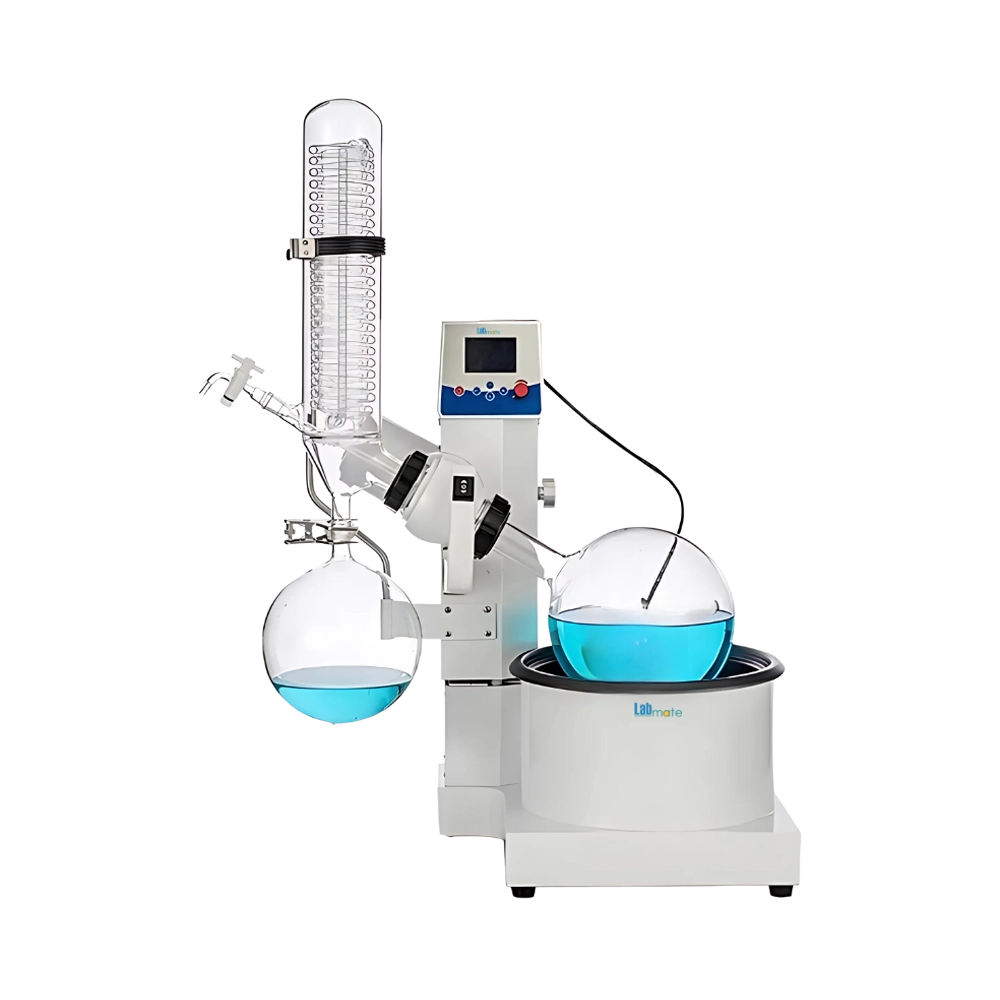

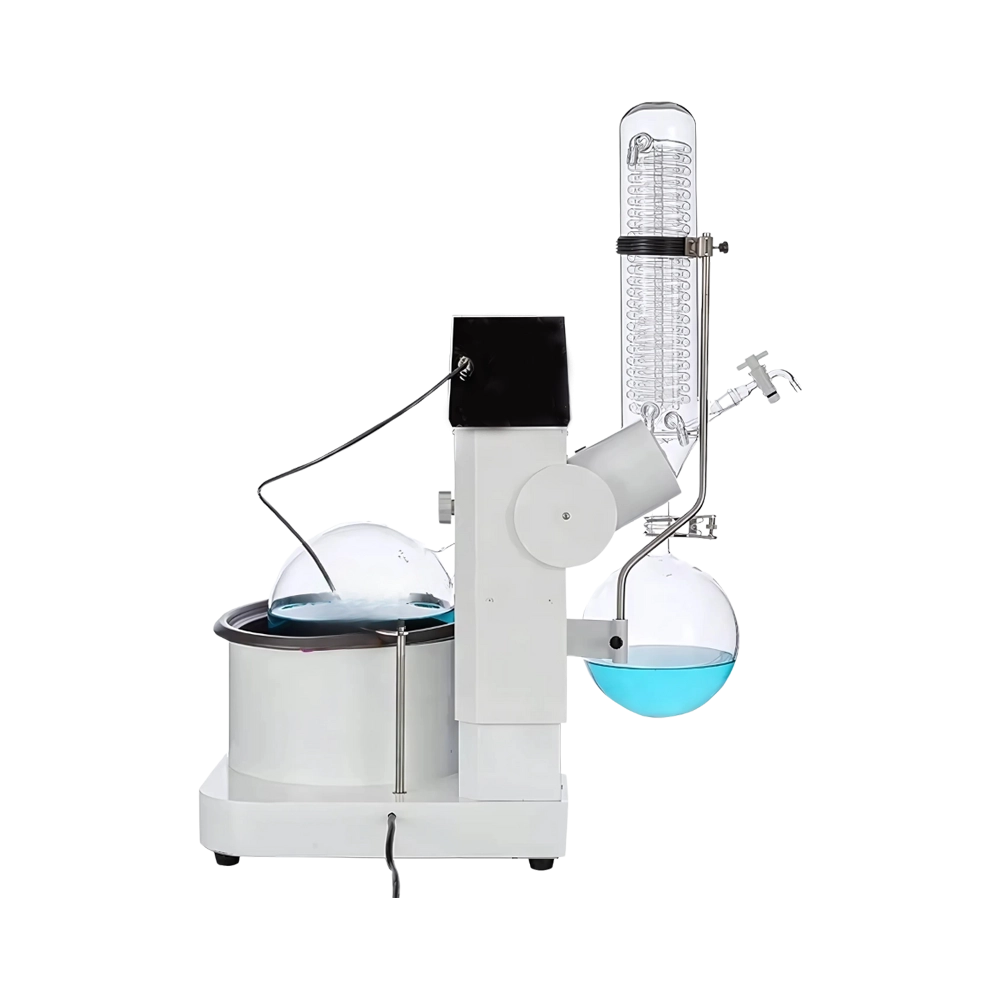

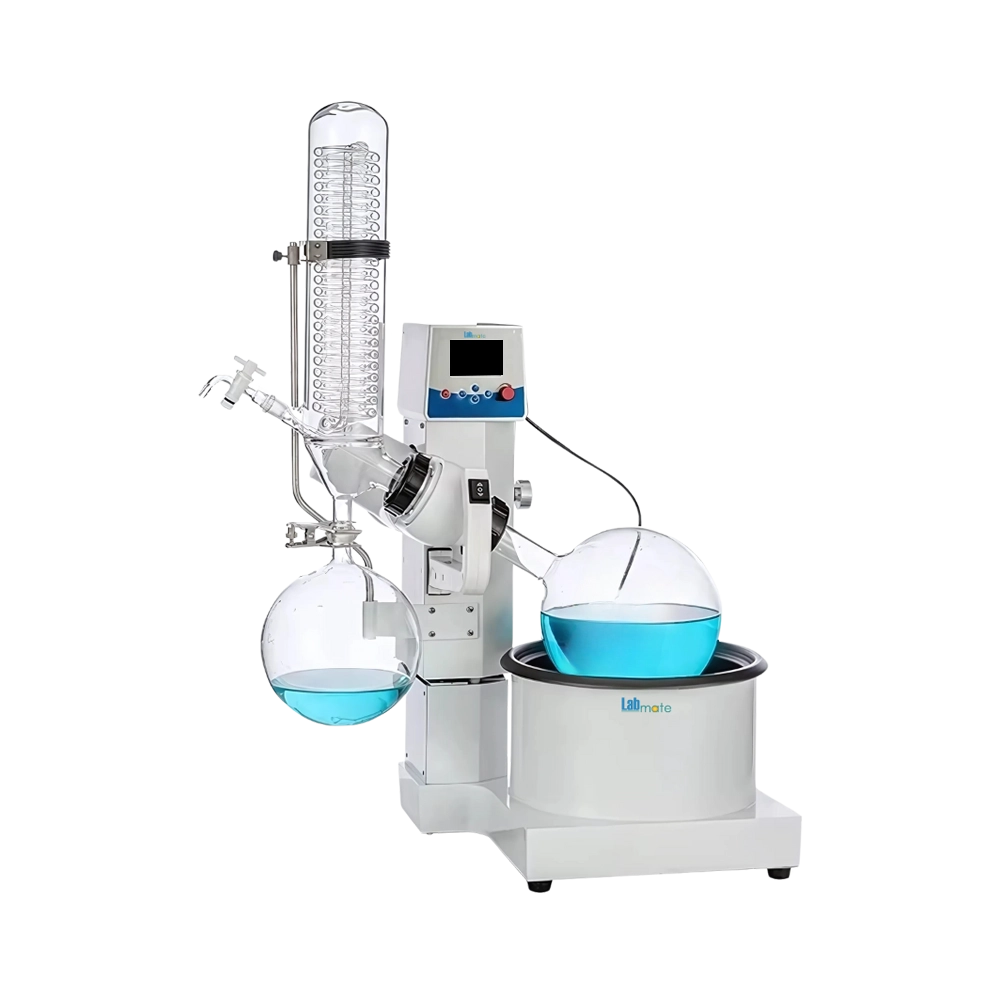

Rotary Evaporator LMRE-C206 is designed with of 5-liter capacity. It features glass condenser that cools solvent vapor and collection bottle for efficient recovery. Equipped with rotating and heating dual fuses for enhanced safety protection. Incorporates an electric lifting for effortless handling and positioning. Our Rotary Evaporator is ideal for separation, purification, and recycling in pharmaceuticals and research labs.
Specifications
| Rotary Bottle Volume | 5 L |
| Collection Bottle Volume | 3 L |
| Bath Volume | 9.5 L |
| Speed Range | 0 to 200rpm |
| Working Temperature Range | RT to 99℃ (Water bath), RT to 180℃ (Oil bath) |
| Temperature Control Accuracy | ±1℃ |
| Control Panel | LCD display of temperature and rotation speed |
| Vacuum Degree | 0.098 MPa |
| Lifting Mode | Electric |
| Lifting Distance | 90 mm |
| Condensing Area | 0.26 m² |
| Rotating Motor Power | 40W |
| Lifting Motor Power | 20W |
| Heating Power | 1500W |
| Power Consumption | 1560W |
| Power Supply | 220 to 240V/50Hz |
| Rotary Bottle Diameter | 230 mm |
| Collection Bottle Diameter | 195 mm |
| Bath Dimension (L×H) | 275×160 mm |
| Dimension (W×D×H) | 690×440× (825 to 915) mm |
| Weight | 30 Kg |
Features
High vacuum stability
Clear observation
LCD display
Corrosion free
Double coil condenser
Heat-resistant construction
Applications
Rotary Evaporator LMRE-C206 is applied in concentration, crystallization, drying, separation, solvent recovery, purification, and recycling in pharmaceutical, chemical, biopharmaceutical labs, pilot plants, and industrial systems.
Similar Products
Frequently Asked Questions
1 Why is Rotary Evaporator preferred in pharmaceutical formulation?
It is preferred in pharmaceutical formulation for drying active pharmaceutical ingredients and concentrating drug solutions under mild, controlled conditions.
2 Can Rotary Evaporator be used in polymer research?
It is used in polymer research to remove solvents from polymer solutions during synthesis or modification processes.
3 How is Rotary Evaporator applied in environmental testing?
It is applied in environmental testing for concentrating analytes from water or soil extracts, improving the detection of pollutants or residues.
4 How is Rotary Evaporator used in academic teaching labs?
It is used in academic teaching labs to demonstrate solvent evaporation techniques and train students in practical aspects of sample concentration.
5 How does Rotary Evaporator assist in essential oil production?
It assists in essential oil production by efficiently removing solvents from plant extracts, preserving the integrity of volatile aromatic compounds.
6 Why is Rotary Evaporator used in QC labs of chemical manufacturing?
It is used in QC labs of chemical manufacturing to remove solvents from test batches for purity analysis and ensure final product specifications are met.
7 What is a Rotary Evaporator?
A Rotary Evaporator is an apparatus designed to efficiently and gently remove solvents from samples by evaporation under reduced pressure.
8 How does Rotary Evaporator work?
It works by rotating a flask containing the sample while applying vacuum and heat, which lowers the boiling point and facilitates the evaporation of the solvent.
9 What types of solvents can be removed using Rotary Evaporator?
It is used to remove a wide range of volatile solvents such as ethanol, methanol, acetone, and hexane.
10 How is Rotary Evaporator used in organic chemistry?
It is used in organic chemistry to remove solvents from reaction mixtures, concentrating and purifying organic compounds without exposing them to high temperatures.
