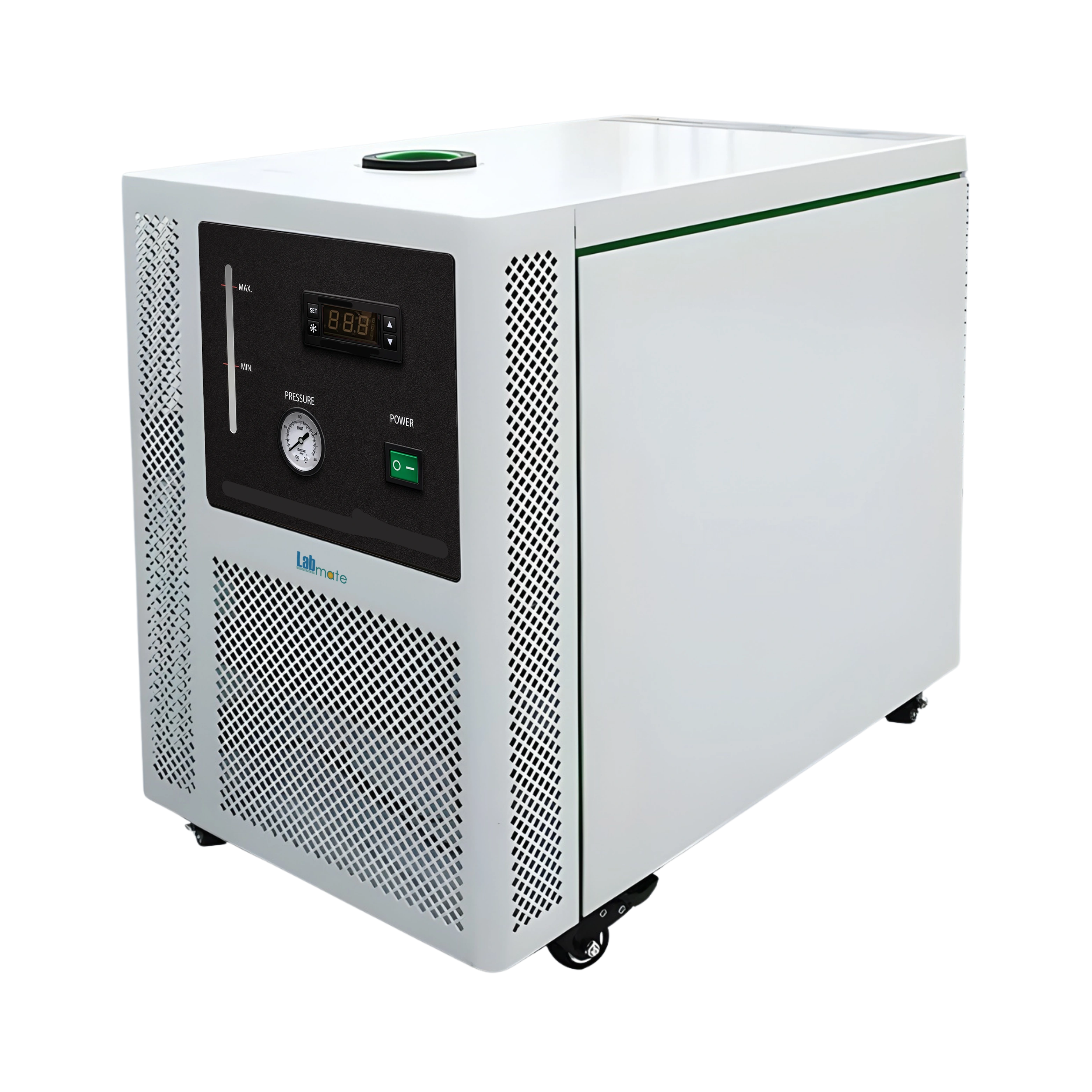

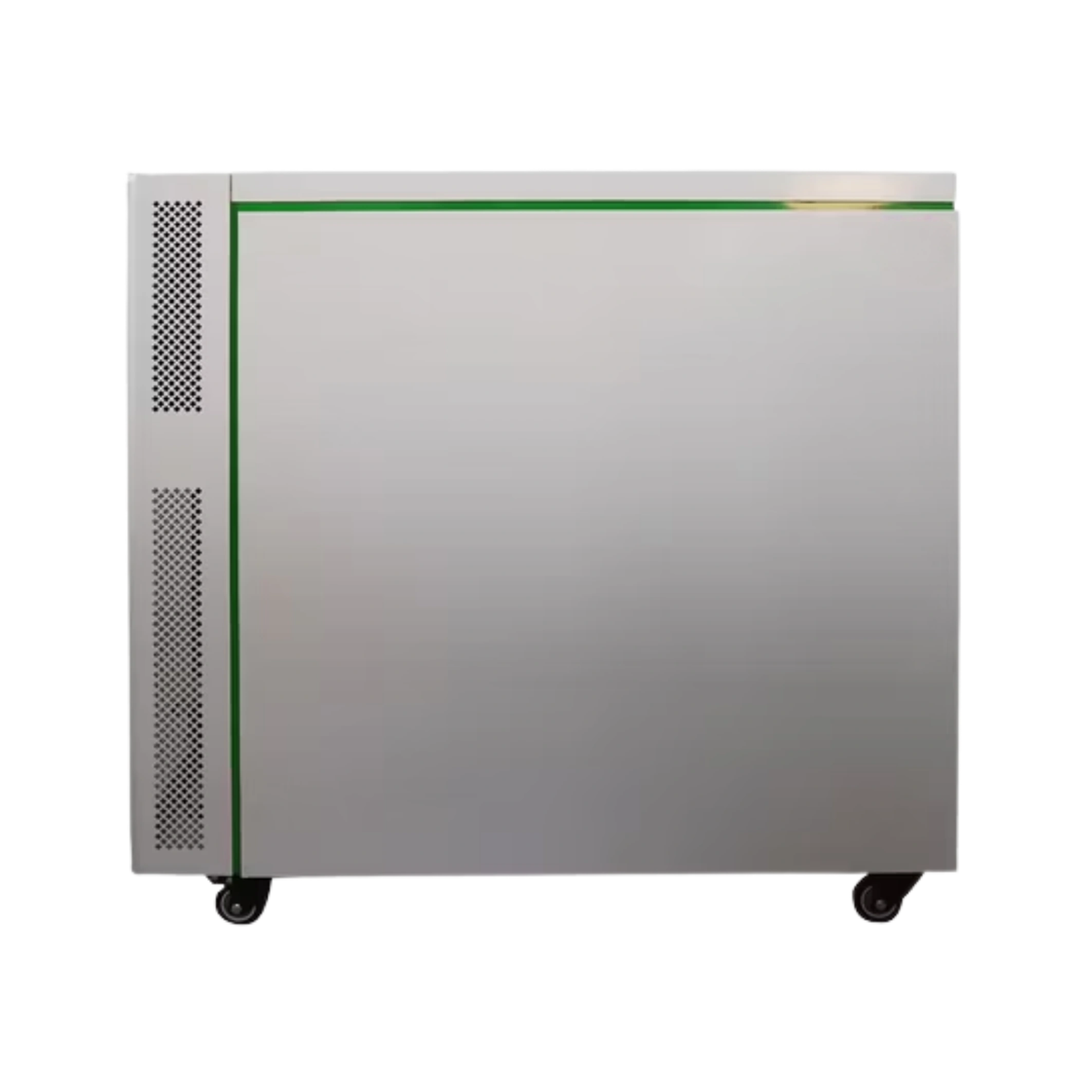

Refrigerated And Heating Circulators LMRH-A104 maintain a broad working temperature range of -20°C and 35°C. It features a 16L tank, constructed with PVC for enhanced durability. Enhanced with PID control system for maintaining desired temperatures. Incorporated with rear exhaust and side air intake, which optimizes ventilation. Includes alerts for high and low temperatures, supporting ecofriendly operation. Our refrigerated and heating circulators stabilize the molecular pumps, delivering consistent performance.
Specifications
| Temperature Range | -20°C to 35°C |
| Maximum Flow | 40 L/min |
| Rated Flow | 15 L/min at 2.4 bar |
| Max Pressure | 2.5 bar |
| Temperature Stability | ±0.2℃ |
| Tank Volume | 16 L PVC |
| Cooling Capacity | 2800 W at 25℃ |
| Control Mode | Hot gas bypass PID control |
| Temperature Control | PID |
| Controller | A4001 |
| Size Of Connector | Half inch royal pipe |
| Refrigerant | R134a |
| Exhaust Method | Rear exhaust, air intake on both sides |
| Power Consumption | 1920 W |
| Power Supply | 220 V, 50 Hz |
| External Dimensions W × D × H | 450 × 660 × 702 - 72 mm |
| Net Weight | 92 kg |
| Gross Weight | 100 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Refrigerated And Heating Circulators LMRH-A104 | $ 4162.5 | Each of 1 |
Features
Easy to operate
Compressor Based Cooling
Horizontal compact structure
External filter
Flow switch
Small water reservoir
Circulation liquid saving
Applications
Refrigerated And Heating Circulators provide reliable temperatures for cool molecular pumps, rotary evaporators, and distillation ensuring efficient operation.
Similar Products
$ 13487.5 / Each of 1
$ 25362.5 / Each of 1
$ 3437.5 / Pack of 1
$ 28912.5 / Each of 1
$ 17037.5 / Each of 1
$ 3575 / Pack of 1
$ 16287.5 / Each of 1
$ 21400 / Each of 1
$ 25212.5 / Each of 1
$ 13650 / Each of 1
$ 3150 / Pack of 1
$ 21662.5 / Each of 1
$ 10100 / Each of 1
$ 3587.5 / Pack of 1
$ 12737.5 / Each of 1
Frequently Asked Questions
1 What safety features are included in Refrigerated and Heating Circulator?
It includes over-temperature protection, low-liquid level alarms, pressure sensors and automatic shut-off mechanisms for safe operation.
2 Can Refrigerated and Heating Circulator be used with rotary evaporators?
It is commonly used with rotary evaporators to control the temperature of the condenser coil, enhancing solvent recovery efficiency by ensuring precise cooling.
3 Why is Refrigerated and Heating Circulator important in pharmaceutical testing?
It is used to simulate and control specific storage or reaction conditions, supporting drug stability testing, crystallization studies and bioassay development.
4 What is the role of Refrigerated and Heating Circulator in biotechnology?
It is used to maintain specific temperatures for cell cultures, enzyme reactions and DNA amplification processes in biotechnology labs.
5 Can Refrigerated and Heating Circulator be used in petroleum and petrochemical labs?
It is used in viscosity tests, flash point studies and distillation experiments where stable thermal conditions are crucial for reliable data.
6 Can Refrigerated and Heating Circulator be used for crystallization control?
It is used in temperature-sensitive crystallization processes to control nucleation and crystal growth conditions.
7 Can Refrigerated and Heating Circulator be used in photobioreactor systems?
It is used to maintain optimal temperature in photobioreactor systems used for algae cultivation, ensuring stable growth conditions for biofuel applications.
8 What is a Refrigerated and Heating Circulator?
A Refrigerated and Heating Circulator is an apparatus designed to precisely control fluid temperature by both cooling and heating for laboratory or industrial applications.
9 How does a Refrigerated and Heating Circulator work?
It works by circulating temperature-controlled fluid through an external system using built-in heating and cooling elements.
10 Can Refrigerated and Heating Circulator be used with closed-loop systems?
It is engineered for both open and closed-loop systems, providing stable and efficient heat transfer.
