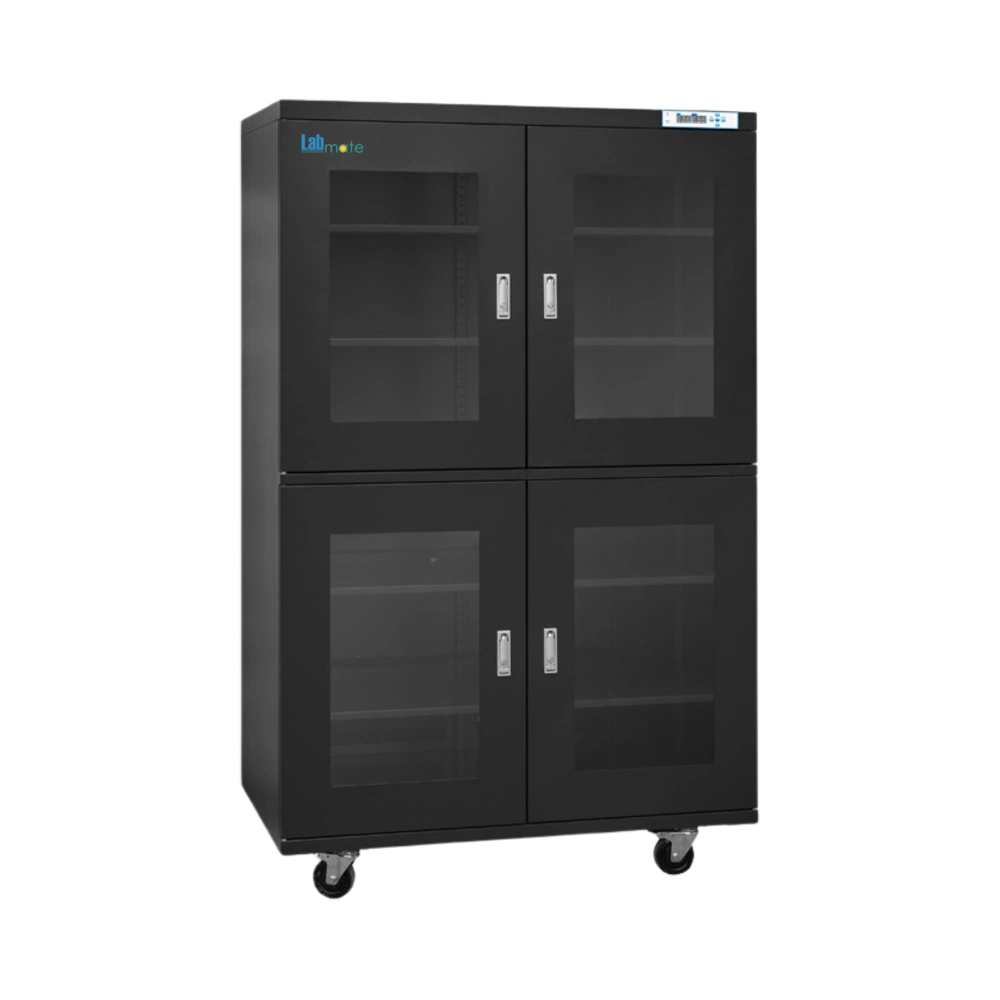

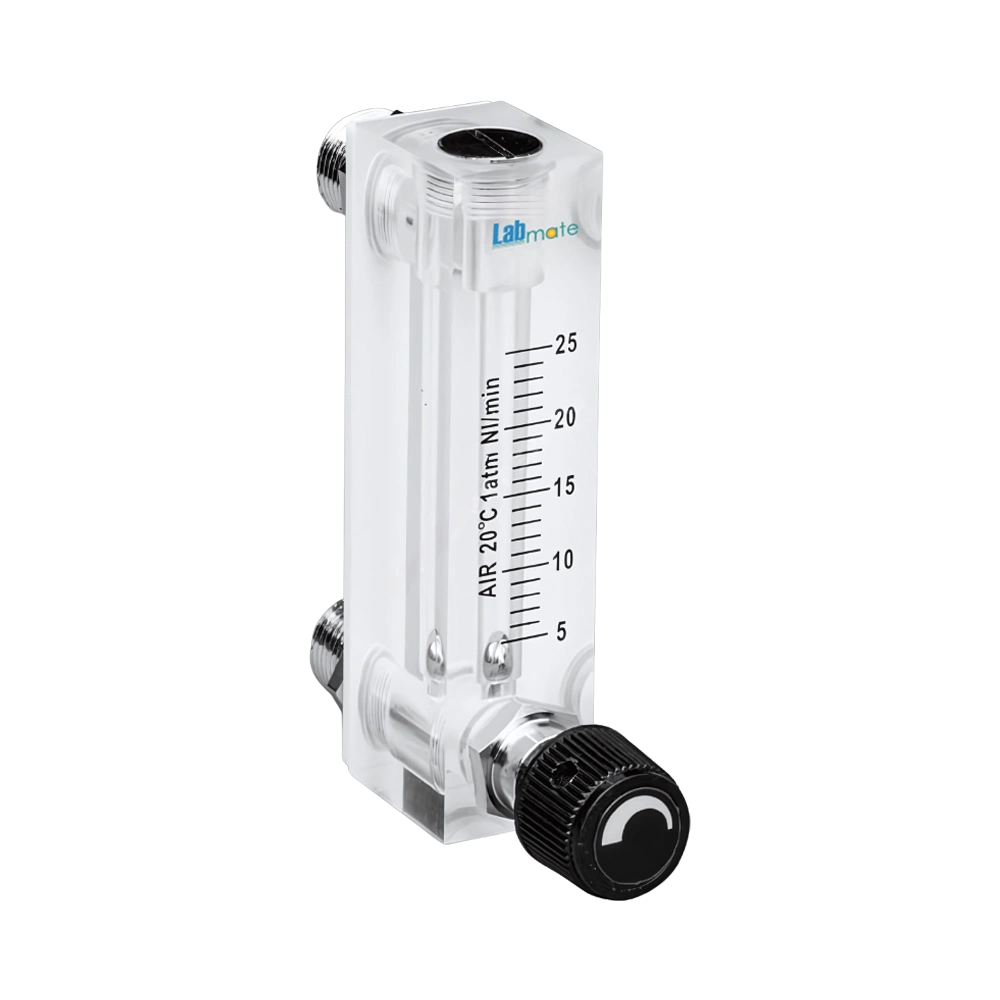

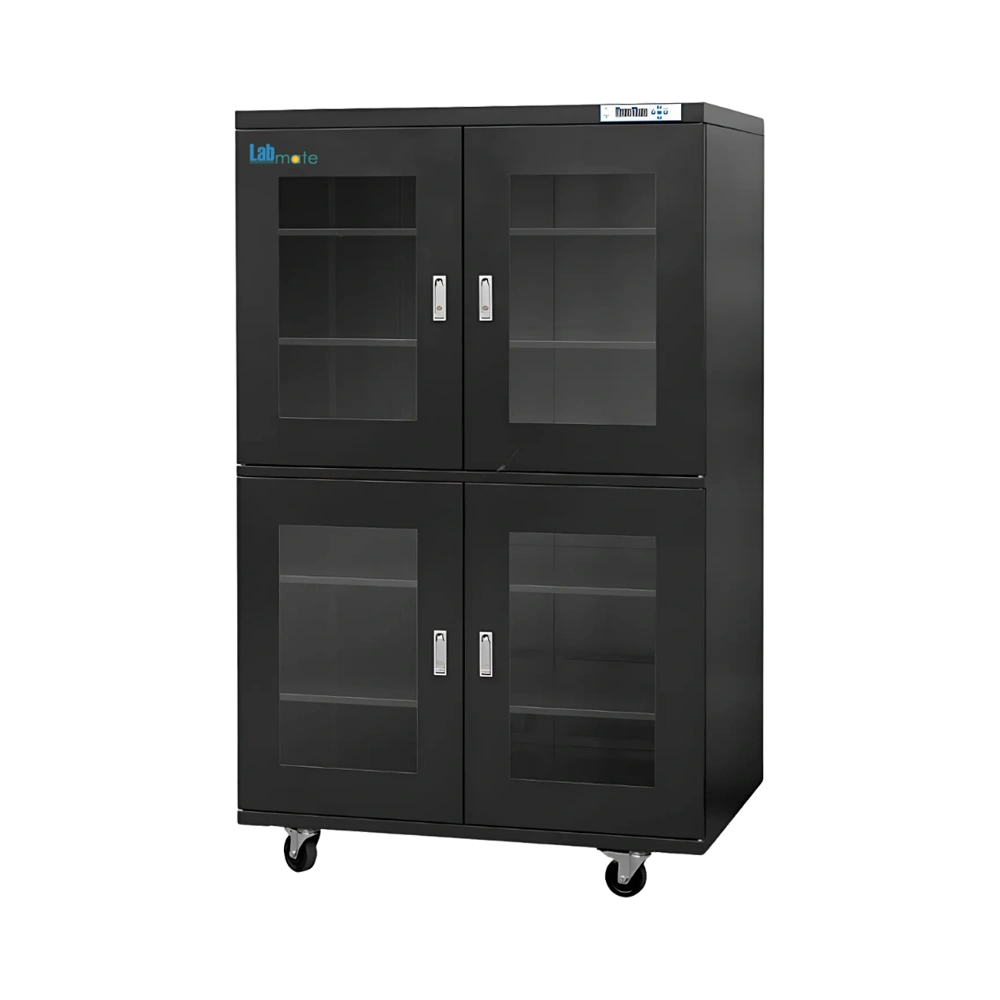

Nitrogen Cabinet LMNNC-A108 offers a 1436 L chamber for safeguarding moisture‑sensitive components. Incorporated with a 1% to 60% RH range, it shields contents from corrosion and static hazards. It features a swift 15‑minute humidity recovery after a 30‑second access cycle. Equipped with a flow meter ensuring consistent nitrogen levels and reduced gas consumption. Our Nitrogen Cabinet includes 5 adjustable shelves for allowing organized storage of components with varying weights.
Specifications
| Storage Capacity | 1436 L |
| Humidity Range | 1% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 4 |
| Recovery Time | Maximum 15 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 25 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 1198 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Nitrogen Cabinet LMNNC-A108 | $ 4237.5 | Each of 1 |
Features
Galvanized Steel Construction
Pressurized Zinc Alloy Locks
LED Display
Four Airtight Doors
Tempered Front Glass Windows
Optional Accessories
| Model no. | Accessory |
| LMNNC-A108-A1 | Over Humidity Buzzer Alarm |
| LMNNC-A108-A2 | Open Door Buzzer Alarm |
| LMNNC-A108-A3 | Three-Color Flashing Light Alarm |
| LMNNC-A108-D1 | Data Logging System With USB Interface |
| LMNNC-A108-S1 | Extra Shelf |
Applications
Nitrogen Cabinet LMNNC-A108 is ideal for secure preservation of PCBs, ICs, and semiconductors, protecting them from oxidation and charge accumulation.
