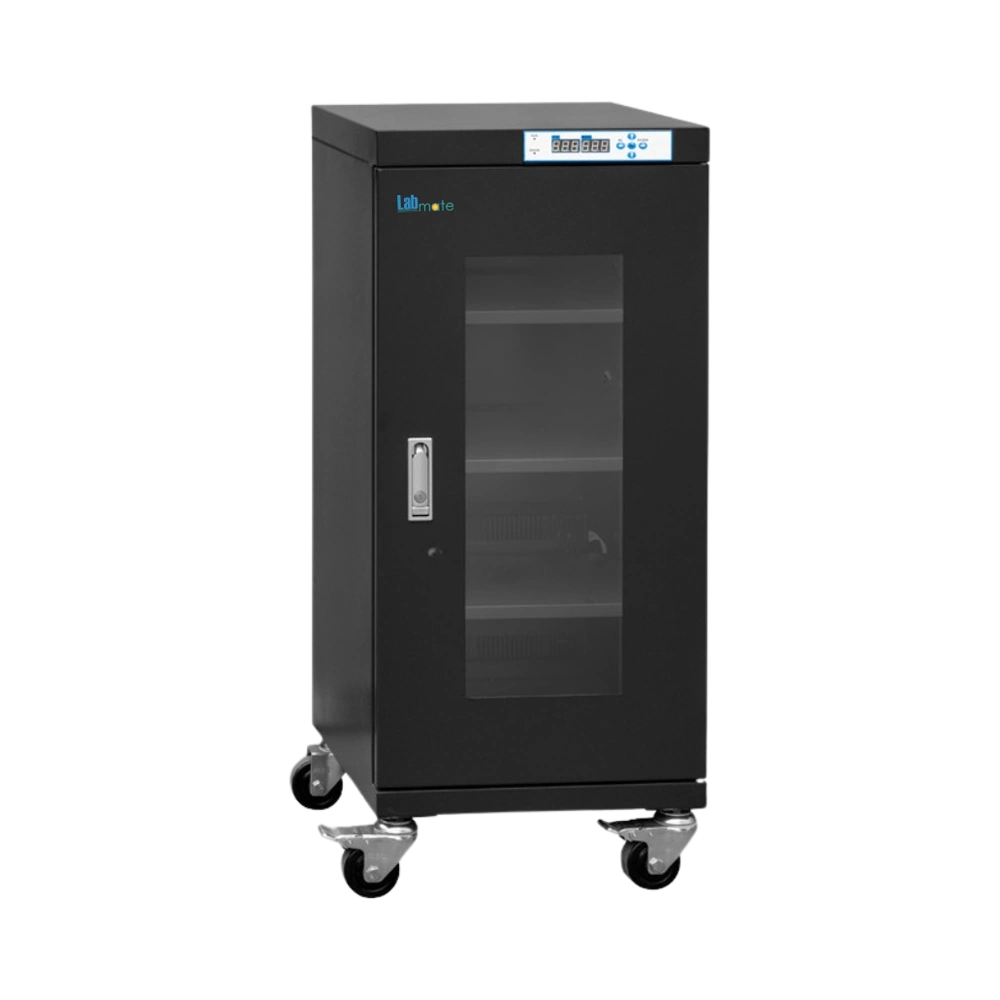

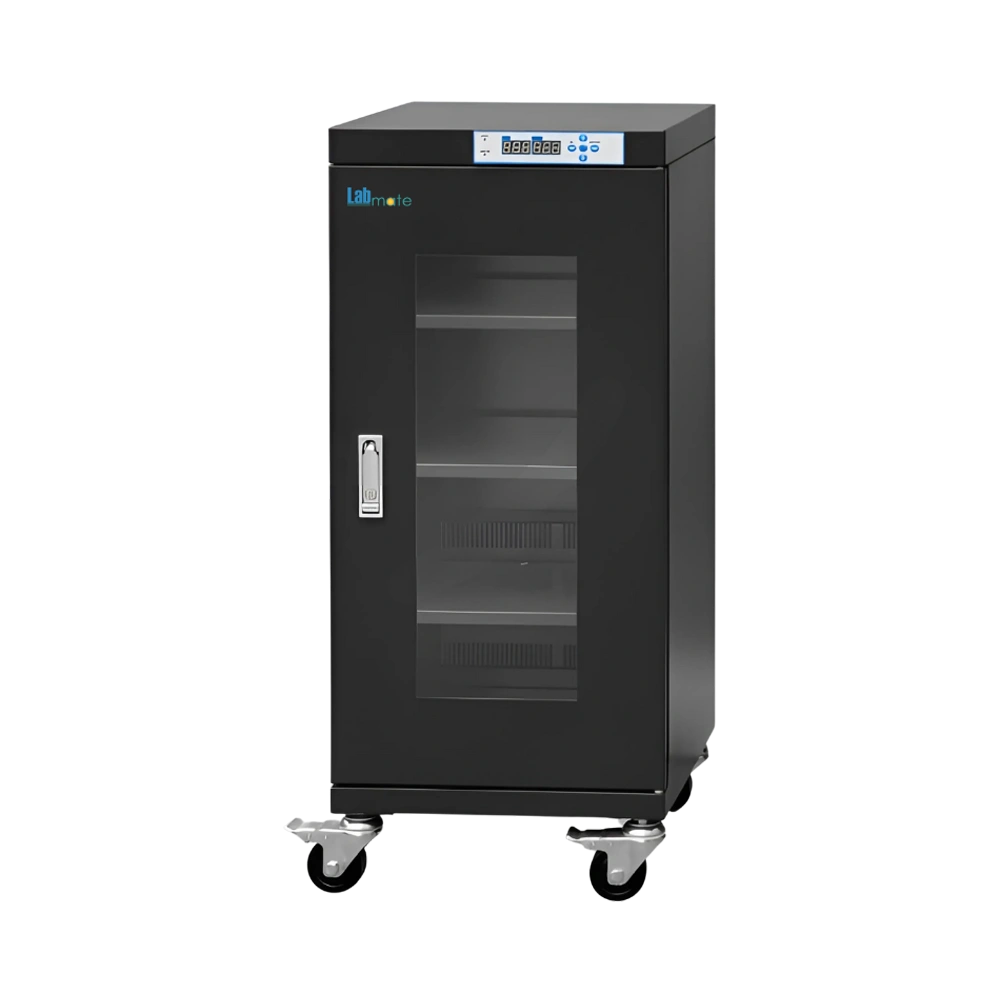

Nitrogen Cabinet LMNNC-A101 is designed with 160 L chamber for storing moisture sensitive components. It features a single airtight door that minimizes moisture ingress during access. Equipped with ESD‑safe polyurethane wheels ensuring smooth movement and effortless relocation. Built with a pressurized zinc‑alloy lock providing reinforced security and structural strength. Our Nitrogen Cabinet includes a flowmeter for controlled N₂ regulation.
Specifications
| Storage Capacity | 160 L |
| Humidity Range | 1% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 1 |
| Recovery Time | Maximum 15 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 446 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 448 × 450 × 1010 mm |
| Net Weight | 31 Kg |
| Gross Weight | 43 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Nitrogen Cabinet LMNNC-A101 | $ 2475 | Each of 1 |
Features
Tempered Front Glass Window
Galvanized Steel Build
LED Display
Robust Load Support
Triple Perforated Shelves
Optional Accessories
| Model no. | Accessory |
| LMNNC-A101-A1 | Over Humidity Buzzer Alarm |
| LMNNC-A101-A2 | Open Door Buzzer Alarm |
| LMNNC-A101-A3 | Three-Color Flashing Light Alarm |
| LMNNC-A101-D1 | Data Logging System With USB Interface |
| LMNNC-A101-S1 | Extra Shelf |
Applications
Nitrogen Cabinet LMNNC-A101 is essential for shielding integrated circuits and LEDs from oxidation, humidity, and electrostatic damage.
