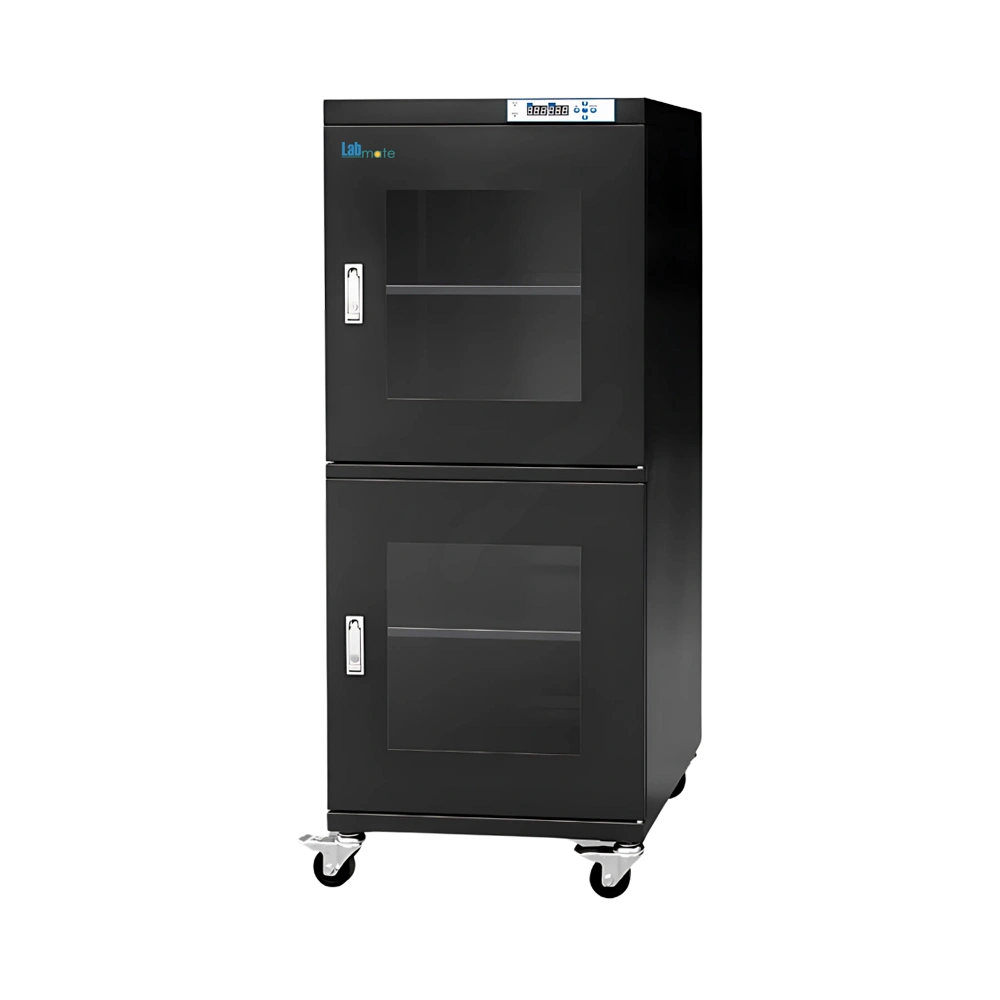

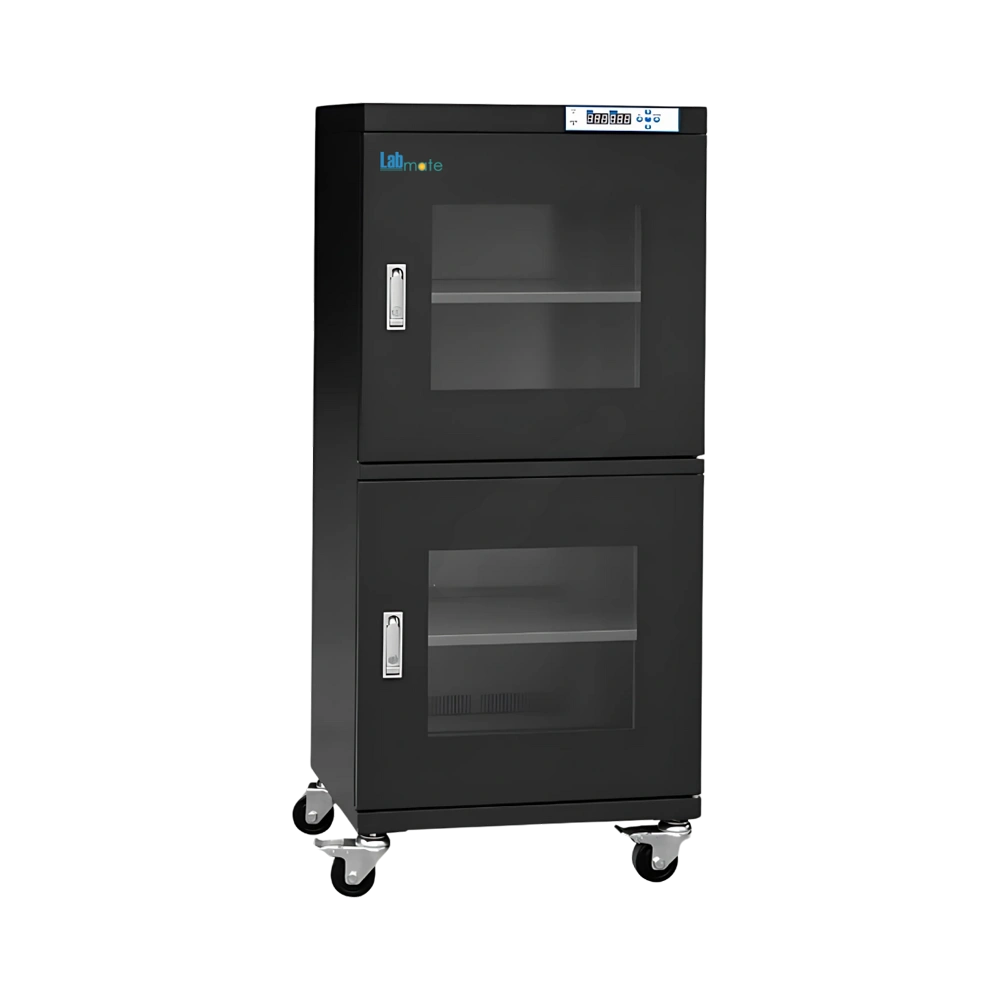

Nitrogen Cabinet LMNNC-A102 offers 240 L capacity for maintaining moisture-sensitive components in a controlled environment. Equipped with triple perforated shelving, allowing adjustable configuration of varied stored materials. Integrated with load-bearing tiers supporting 50 kg each, ensuring secure heavy-duty placement. It features an LED interface for continuous monitoring of internal humidity levels. Our Nitrogen Cabinet includes tempered front glass windows for effortless visual inspection.
Specifications
| Storage Capacity | 240 L |
| Humidity Range | 1% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 15 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 596 × 372 × 1148 mm |
| Exterior Dimension(W×D×H) | 598 × 400 × 1310 mm |
| Net Weight | 42 Kg |
| Gross Weight | 57 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Nitrogen Cabinet LMNNC-A102 | $ 2512.5 | Each of 1 |
Features
Galvanized Steel Construction
Two Airtight Doors
ESD-Safe Polyurethane Wheels
Energy-Efficient

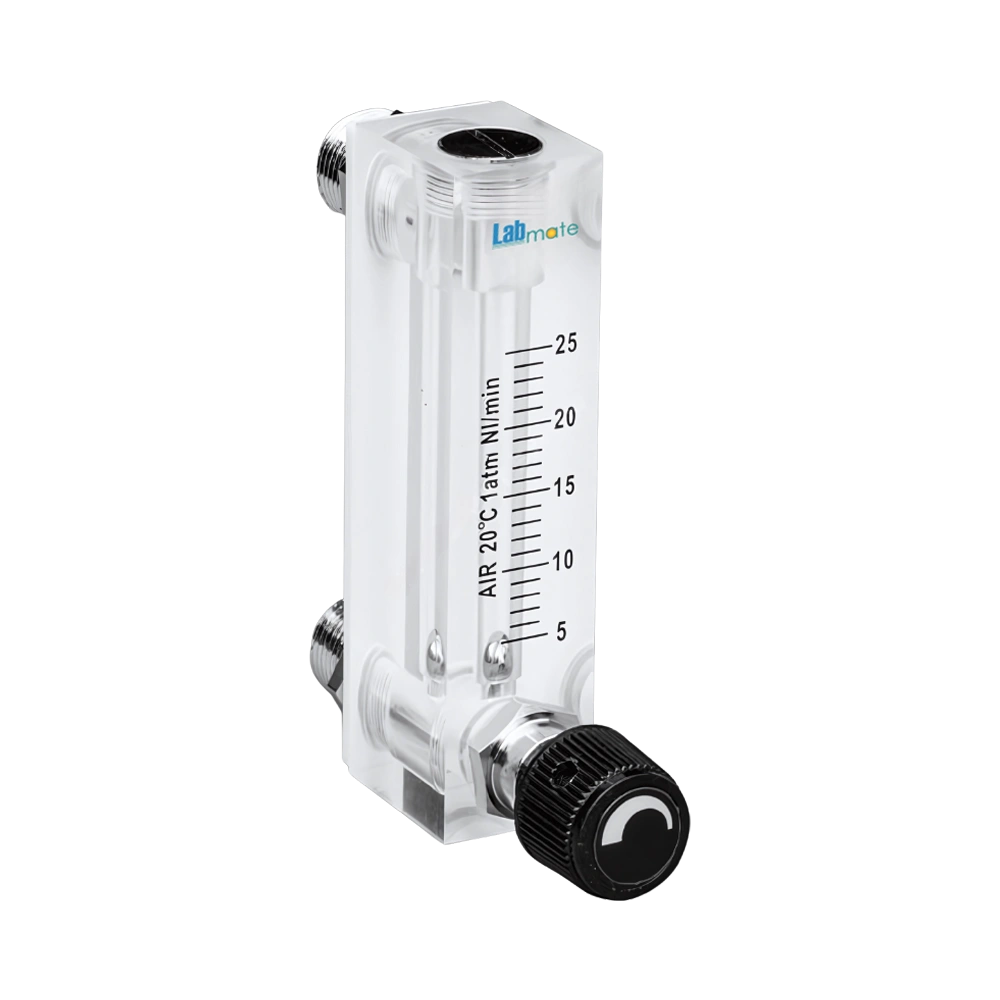

Built In Flowmeter
Optional Accessories
| Model no. | Accessory |
| LMNNC-A102-A1 | Over Humidity Buzzer Alarm |
| LMNNC-A102-A2 | Open Door Buzzer Alarm |
| LMNNC-A102-A3 | Three-Color Flashing Light Alarm |
| LMNNC-A102-D1 | Data Logging System With USB Interface |
| LMNNC-A102-S1 | Extra Shelf |
Applications
Nitrogen Cabinet LMNNC-A102 is crucial for protecting resistors, capacitors, connectors, and related components from corrosion and deterioration in electronic assemblies.
