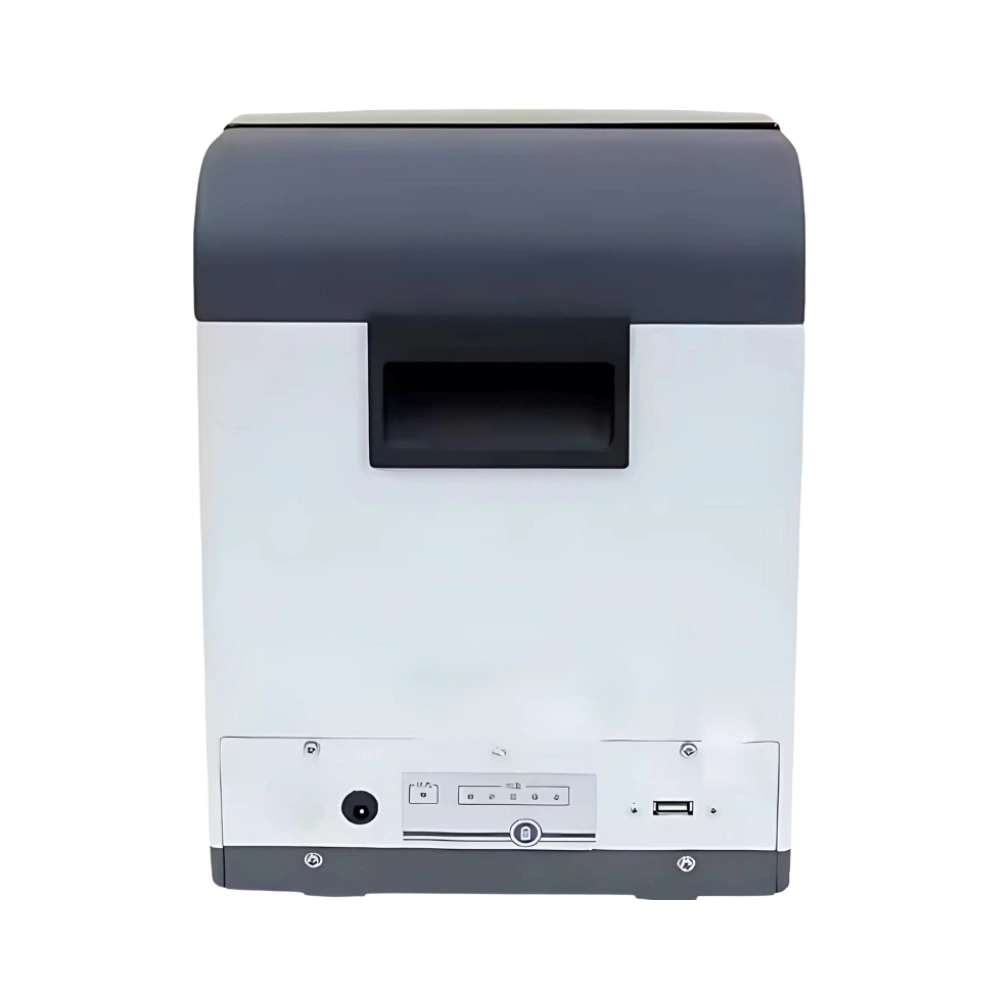

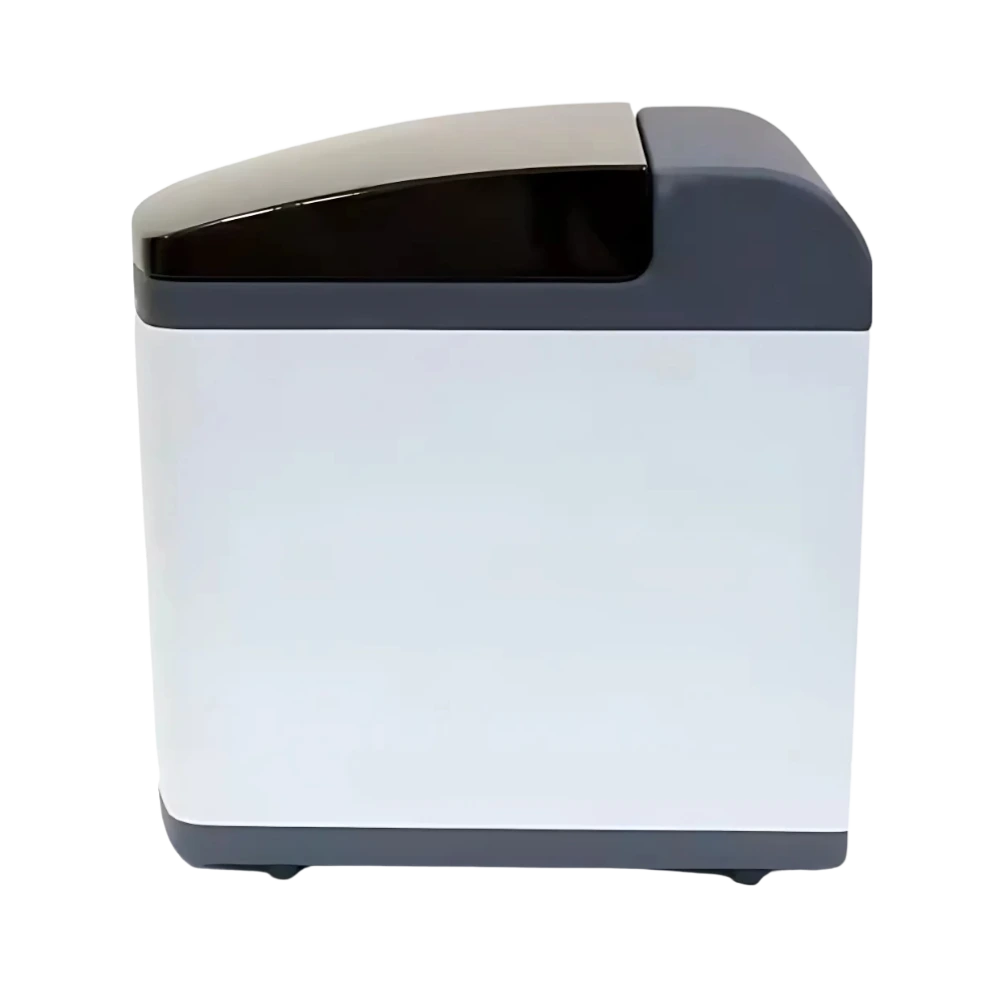

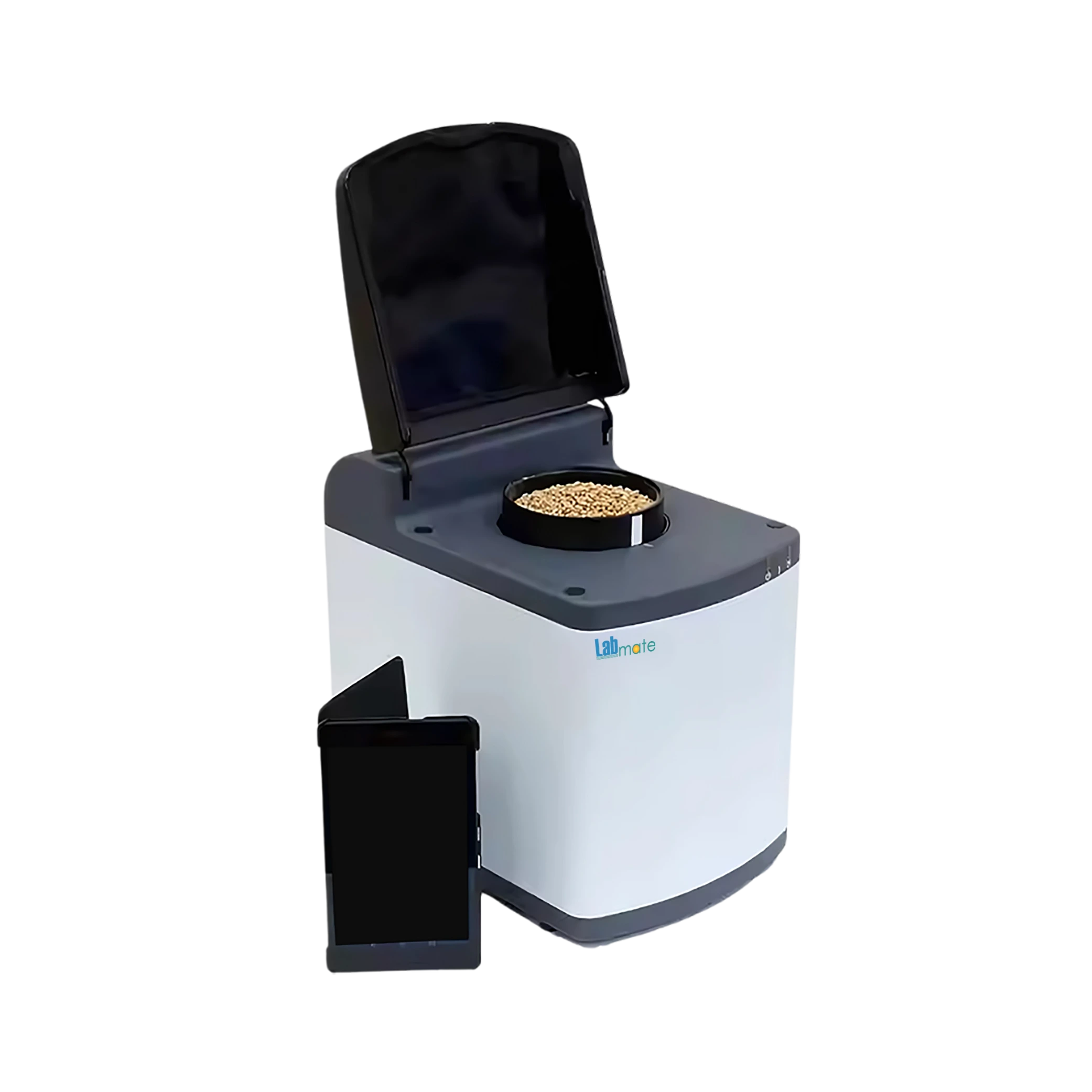

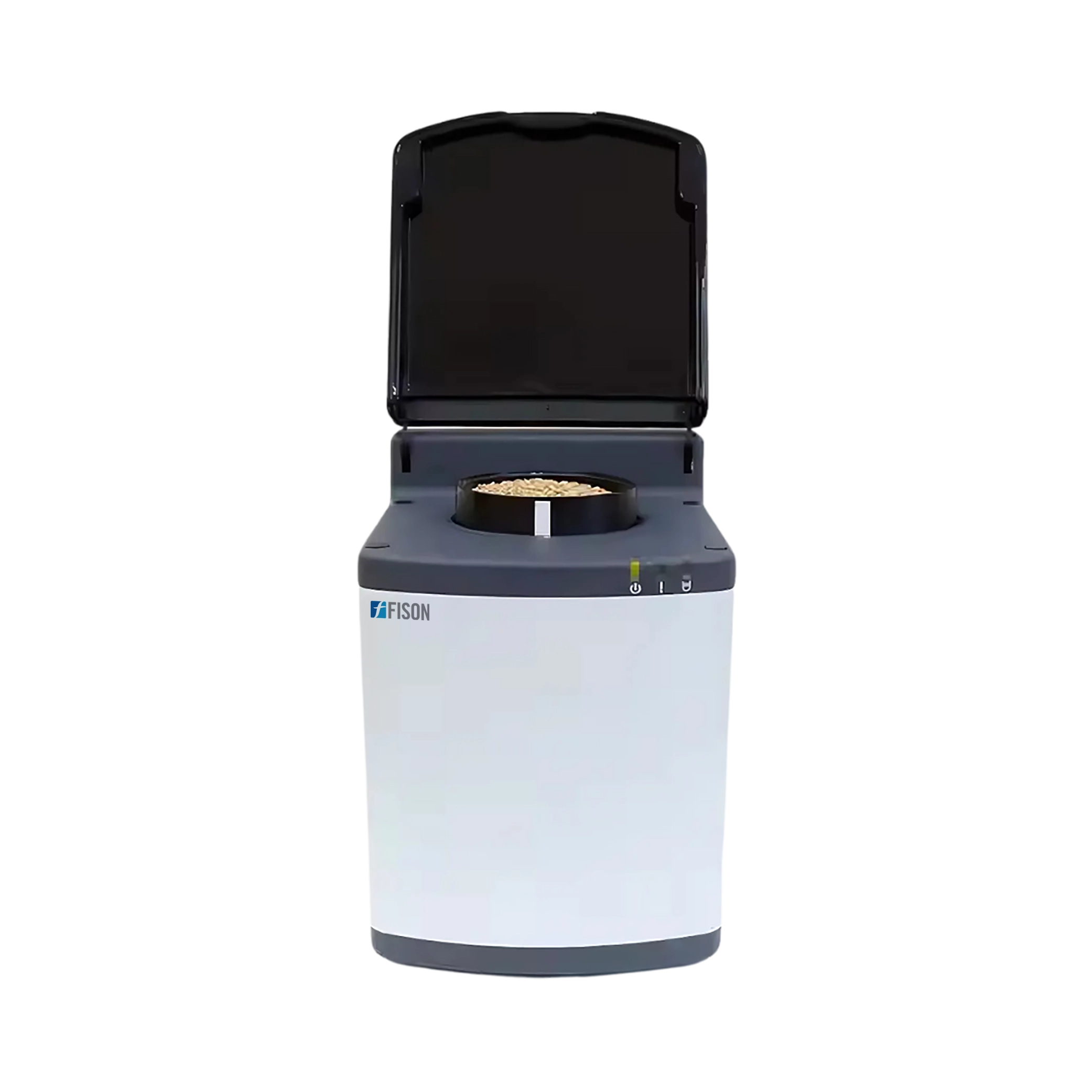

NIR Spectrophotometer LMNIR-B100 provides accurate material composition analysis using Near-infrared diffuse technology. Covers broad wavelength range from 1000 to 1800nm for precise analytical performance. Delivers rapid measurements in under 10 seconds, ensures efficient workflow during routine testing. Lightweight construction offers easy portability for field inspections and efficient on-site quality evaluation tasks. Our Spectrophotometer has an user friendly interface supporting quick operation and dependable analysis.
Specifications
| Wavelength range | 1000 to 1800 nm |
| Wavelength accuracy | ≤ + 0.2 nm |
| Light Source | Tungsten halogen lamp |
| Detector | High performance ultra-cooled lnGaAs (Indium Gallium Arsenide) |
| Bandwidth | 10.95 + 0.3 nm at 1395.5 nm |
| Signal to noise ratio | > 10000:1 |
| Sample Volume | 200 mL |
| Analysis time | 6 to 10 seconds |
| Wavelength repeatability | < 0.05 nm |
| Stray light | < 0.1% |
| Communication | Bluetooth |
| Temperature range | 0 to 40 ℃ |
| Humidity range | 5 to 85 % |
| Power supply | (220 ± 20) V/50 Hz |
| Dimensions (L × W × H) | 220 × 310 × 310 mm |
| Weight | 10 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| NIR Spectrophotometer LMNIR-B100 | $ 15487.5 | Each of 1 |
Features
On-site testing
24-hour battery
Bluetooth connectivity
Raw material assessment
Mobile integration
Sample integrity preservation
User friendly
Applications
NIR Spectrophotometer LMNIR-B100 supports applications in agriculture, food industries, pharmaceuticals, and environmental analysis.
Similar Products
$ 15950 / Pack of 1
Frequently Asked Questions
1 What is a NIR Spectrophotometer?
A NIR Spectrophotometer is an analytical apparatus used for near-infrared analysis in applications such as material identification & quality control.
2 How does NIR Spectrophotometer work?
It works by measuring the interaction of near-infrared light with a sample resulting into an absorption spectra that helps in determining its chemical composition.
3 What kind of materials can be analyzed by NIR Spectrophotometer?
It can analyze a wide variety of materials including solids, liquids, powders, gels, fibers & films.
4 Is NIR Spectrophotometer user-friendly for first time operators?
It is designed with intuitive interface & easy-to-understand software therefore is easy to use.
5 How does the NIR Spectrophotometer improve quality control?
It is designed for rapid & non-destructive analysis, allowing users to monitor & maintain consistent quality in production process.
6 What is the sample preparation process for NIR Spectrophotometer analysis?
It requires minimal to no sample preparation, enabling faster & more efficient analysis.
