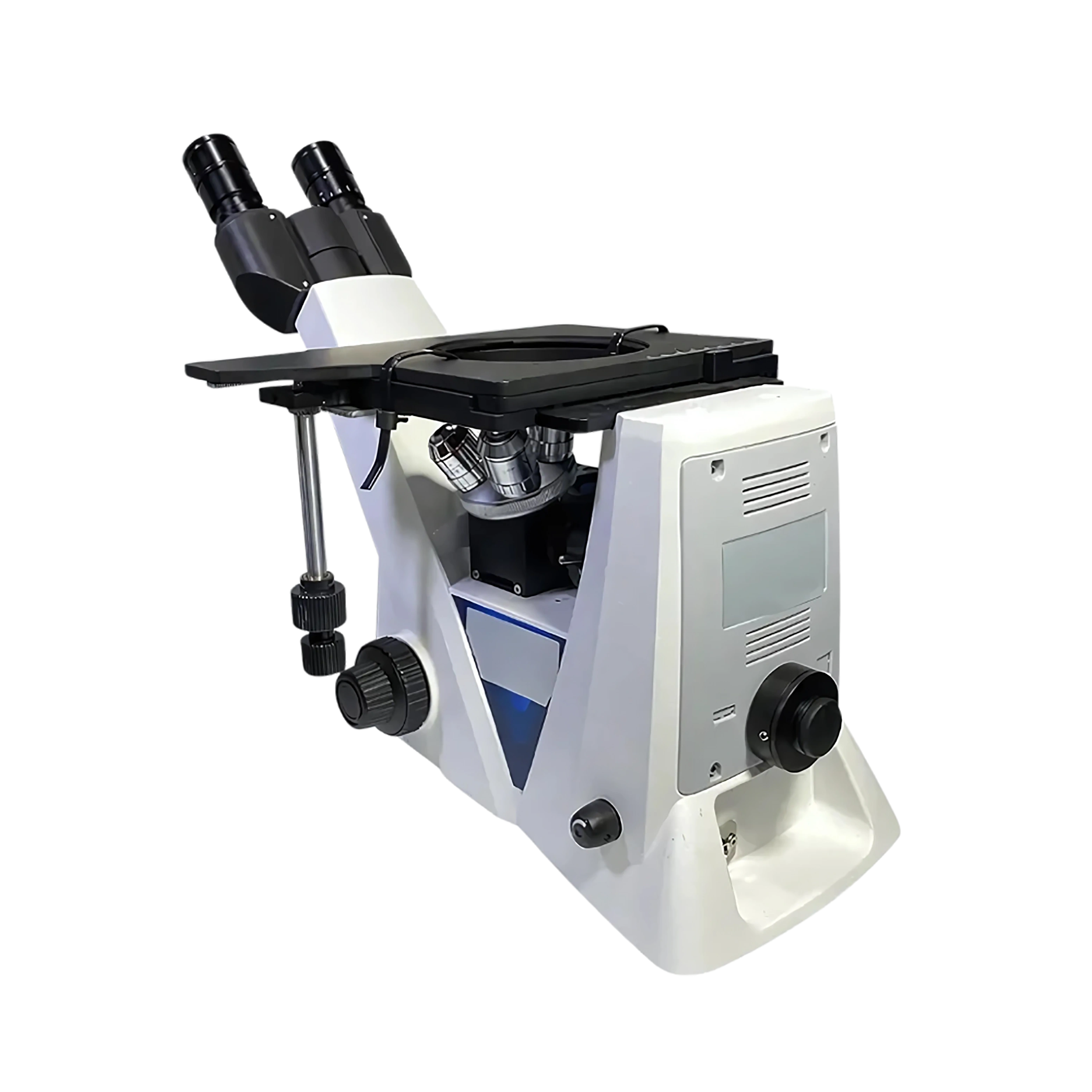

Inverted Metallographic Microscope LMIMM-A201 with 5X/10X/20X/50X LWD Infinity plan objectives ensures sharp clarity. Integrated with a 0.65X C-mount supporting digital camera attachment for capturing high-resolution analysis. It features a binocular head inclined at 45° and rotatable 360° for ergonomic observation. It offers adjustable interpupillary distance of 48 to 75 mm for comfortable viewing adaptation. Our Inverted Metallographic Microscope with 70:30 ratio supports industrial and research inspections.
Specifications
| Magnification Range | 50X to 1000X |
| Eyepiece | WF10X/20mm |
| Plan Objectives | 5X/10X/20X/50X |
| Viewing Head | Binocular Head |
| Head Position | 45° inclined, 360° rotatable |
| Interpupillary Distance | 48 to 75mm |
| Light Distribution Ratio | 70:30 |
| C-Mount | 0.65X C-mount |
| Nosepiece | Quadplex |
| Polarizing Unit | Polarizer/ Analyzer |
| Focusing Knob | Coaxial coarse and fine focusing knob |
| Coarse Stroke | 10mm |
| Fine Stroke Per Rotation | 0.2mm |
| Fine Division | 2µm |
| Illumination System | 5W LED |
| Mechanical Stage Dimension | 180 × 155 mm |
| Mechanical Stage Round Slide Size | φ110mm |
| Mechanical Stage Scale Division | 0.1mm |
| Mechanical Stage Adjustment Range | 75 × 40 mm |
| Power Supply | 110V to 240V |
| Packaging Dimension | 500mm × 425mm × 305mm |
| Net Weight | 7 kg |
| Gross Weight | 9 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Inverted Metallographic Microscope LMIMM-A201 | $ 3187.5 | Each of 1 |
Features
Wide-Field Eyepiece
Quadplex Nosepiece
Built-in polarizer
Dual Knob Focusing System
Energy-Efficient LED
Lightweight and Portable
Applications
Inverted Metallographic Microscope LMIMM-A201 enables examination of corrosion patterns and surface degradation in metals and alloys.
