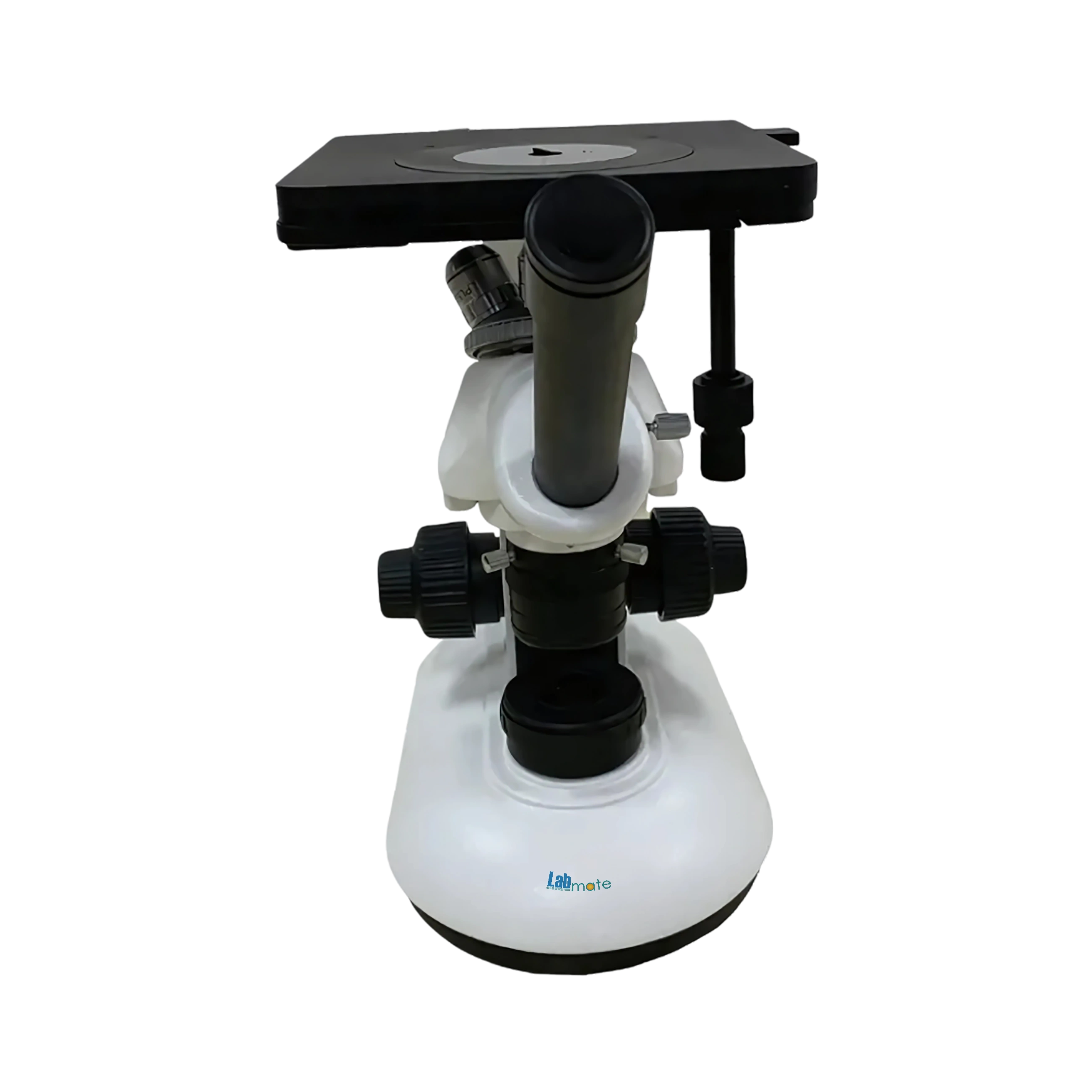

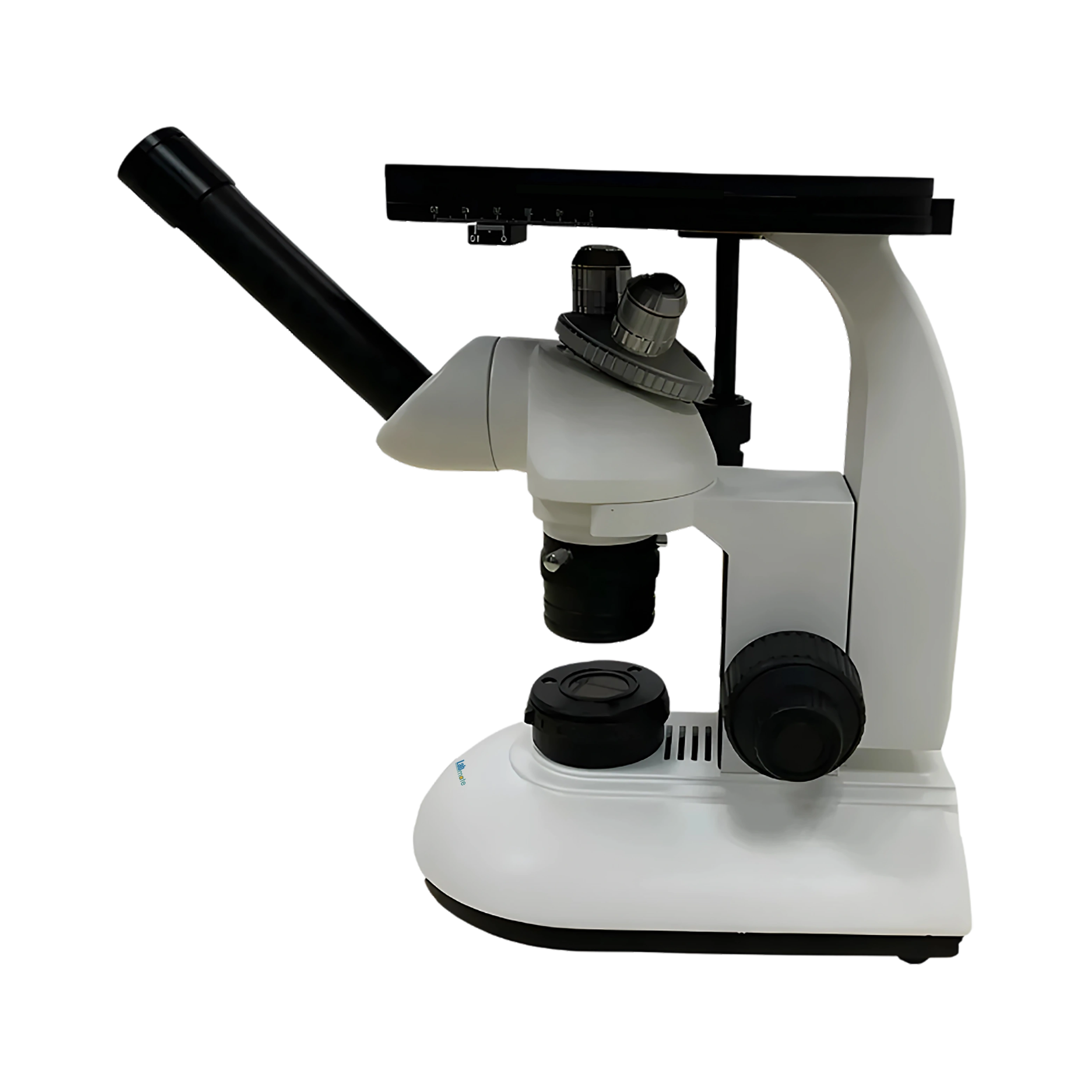

Inverted Metallographic Microscope LMIMM-A100 offers 50X to 1000X magnification for detailed sample examination. It offers WF10X/18mm wide-field eyepiece ensuring comfortable viewing and reducing eye strain. It features long working distance (LWD) 5X, 10X, 50X objectives for clear, unobstructed specimen analysis. Integrated with a monocular head design for convenient observation of metallic microstructures and grains. Our Inverted Metallographic Microscope is ideal for research labs, educational institutes, and industrial material testing.
Specifications
| Magnification Range | 50X to 1000X |
| Eyepiece | WF10X/18mm |
| Plan Objectives | 5X/10X/50X |
| Viewing Head | Monocular Head |
| Head Position | 45° inclined |
| Filters | Blue, Green, Grey |
| Nosepiece | Quadplex |
| Focusing Knob | Coaxial coarse and fine focusing knob |
| Illumination System | 3W LED |
| Mechanical Stage Dimension | 180 × 180 mm |
| Mechanical Stage Round Slide Size | φ110mm |
| Mechanical Stage Adjustment Range | 30 × 30 mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 437mm × 268mm ×522mm |
| Net Weight | 7 kg |
| Gross Weight | 8 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Inverted Metallographic Microscope LMIMM-A100 | $ 2762.5 | Each of 1 |
Features
Quadplex Nosepiece
LED Illumination Source
Multi Colour Filters
Compact And Lightweight
Adjustable Mechanical Stage
Applications
Inverted Metallographic Microscope LMIMM-A100 is employed in examining metallic components for defects, inclusions, and surface irregularities, supporting consistent quality control in production processes.
