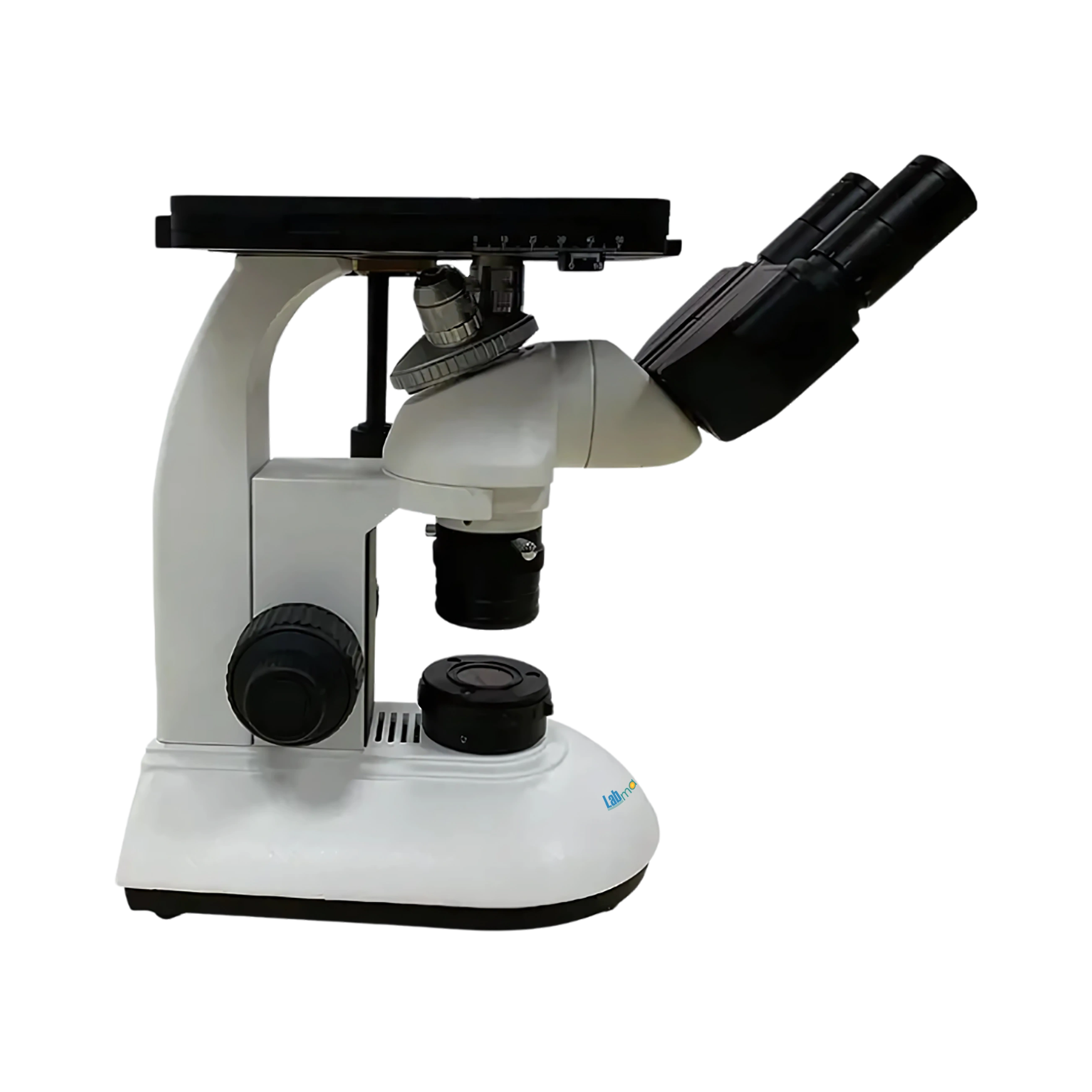

Inverted Metallographic Microscope LMIMM-A102 offers WF10X/18mm eyepiece for a wide field observation. It features coaxial coarse and fine focusing knobs ensure smooth focus adjustments. Incorporated stable metal base reduces vibrations, ensuring clear and sharp imaging during analysis. Equipped with mechanical stage supporting 110mm round slide support for culture plates and samples. Our Inverted Metallographic Microscope includes a quadplex nosepiece for rapid objective transitions, enhancing workflow efficiency.
Specifications
| Magnification Range | 50X to 1000X |
| Eyepiece | WF10X/18mm |
| Plan Objectives | 5X/10X/50X |
| Viewing Head | Trinocular Head |
| Head Position | 45° inclined |
| C-Mount | 0.5X C-mount |
| Filters | Blue, Green, Grey |
| Nosepiece | Quadplex |
| Focusing Knob | Coaxial coarse and fine focusing knob |
| Illumination System | 3W LED |
| Mechanical Stage Dimension | 180 × 180 mm |
| Mechanical Stage Round Slide Size | φ110mm |
| Mechanical Stage Adjustment Range | 30 × 30 mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 437mm × 268mm ×522mm |
| Net Weight | 7 kg |
| Gross Weight | 8 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Inverted Metallographic Microscope LMIMM-A102 | $ 2450 | Each of 1 |
Features
Long Working Distance Objectives
C-Mount Adapter
Trinocular Head
Multiple Contrast Filters
LED Illumination System
Applications
Inverted Metallographic Microscope LMIMM-A102 is vital for analyzing grain structures, heat treatment effects, and weld joints during metallurgical studies.
