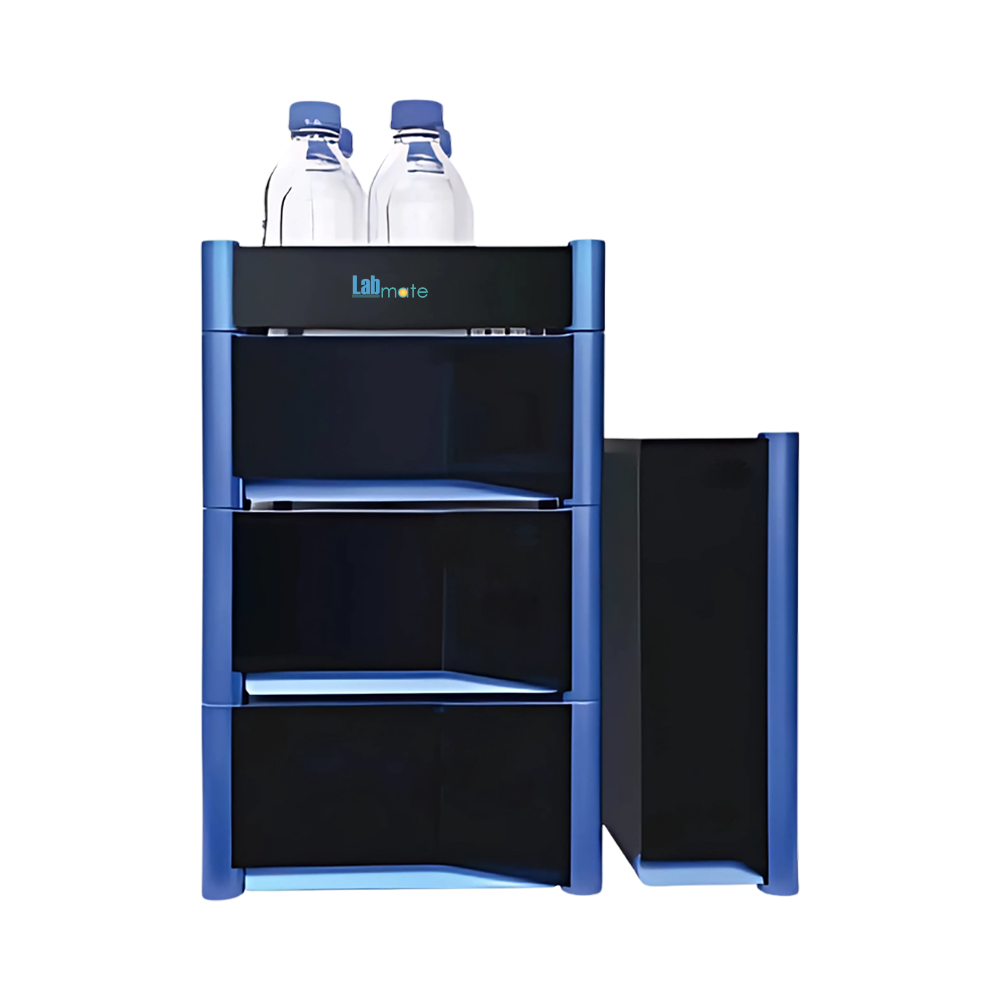

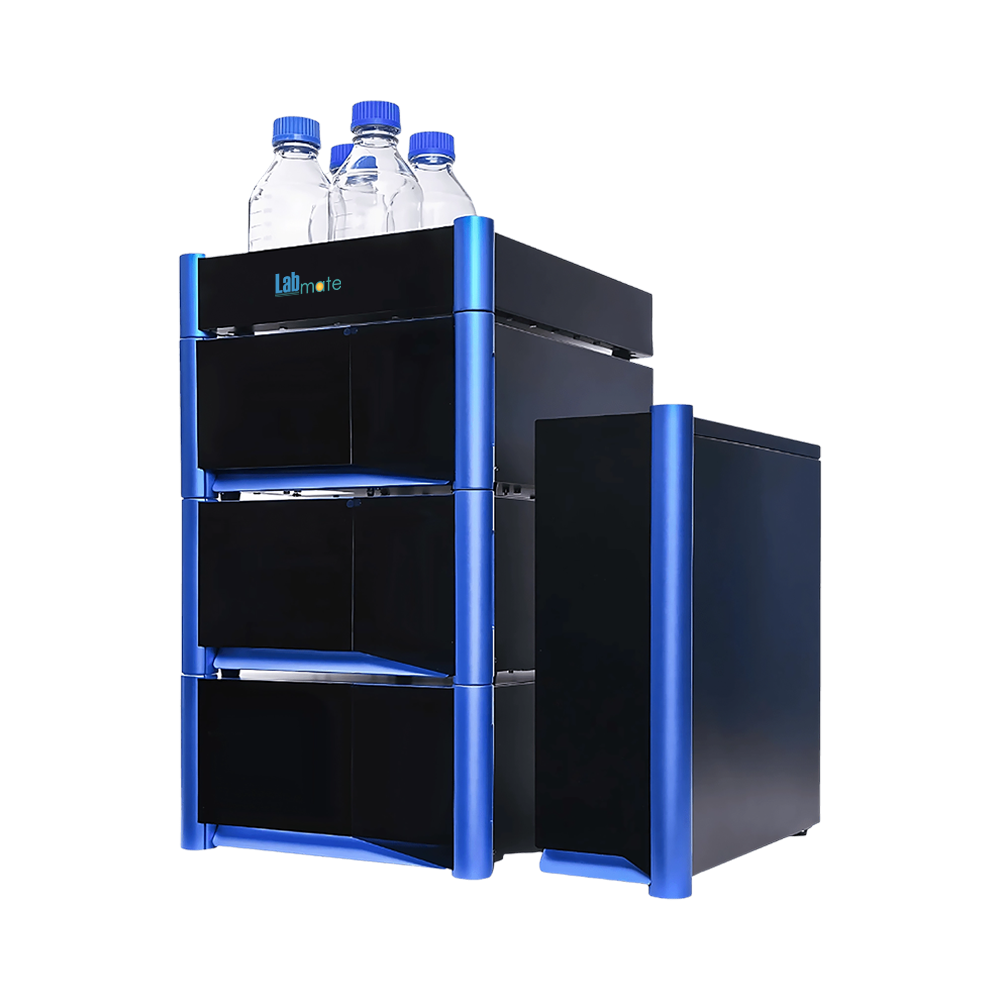

HPLC System LMHLS-A205 is an analytical system equipped with high-pressure constant flow pump. Features two solvent channels for precise and stable solvent delivery. Comes with a UV-Visible detector capable of detecting wavelengths in the 190 to 800 nm range. Designed with an automatic calibration function that enhances accuracy by optimizing deuterium lamp energy. Built with EMC electromagnetic compatibility to minimize external interference, ensuring reliable performance. Our HPLC system is ideal for laboratory and industrial chromatography applications, delivering consistent and accurate analytical results.
Specifications
| Pump Type | High pressure constant flow pump |
| Solvent Channel | 2 |
| Flow Range | 0.001 to 10.000 mL/min |
| Pump Flow Accuracy | Up to ± 0.3 % |
| Pump Flow Stability | Up to 0.06 % |
| Maximum Operating Pressure | 120 MPa |
| Pump Display Pressure Error | Up to 1.0 % |
| Pump Pressure Limit Alarm Range | 0 to 90 MPa |
| Pump Gradient Mixing Accuracy | ± 0.5% |
| Pump Gradient Mixing Precision | Up to 0.1% |
| Pump Gradient Composition Range | 0 to 100% |
| Pump Gradient Composition Increment | 0.01% |
| Pump Power Consumption | 200 W |
| Pump Power Supply | 110 to 220 V, 50 to 60 Hz |
| Pump Dimension (W×D×H) | 540 × 380 × 180 mm |
| Pump Packing Dimension (W×D×H) | 600 × 440 × 380 mm |
| Pump Net Weight | 13 kg |
| Pump Gross Weight | 15 kg |
| Detector Type | UV-visible detector |
| Detector Wavelength Range | 190 to 800 nm |
| Detector Wavelength Repeatability | ± 0.1 nm |
| Detector Band Width | 8 nm |
| Detector Linearity Range | ≥ 2.5 AU (customizable: 3.0 AU) |
| Detector Dynamic Short-term Noise | ± 2.5 × 10⁻⁵ AU |
| Detector Dynamic Baseline Drift | ± 1 nm |
| Minimum Detectable Concentration | Up to 1.0 × 10⁻⁹ g/mL |
| Detector Light Source | Deuterium lamp |
| Detection Pool Withstand Pressure | 10.3 MPa |
| Detector Power Consumption | 100 W |
| Detector Power Supply | 110 V / 220 V, 50 / 60 Hz |
| Detector Dimension (W×D×H) | 600 × 380 × 180 mm |
| Detector Packing Dimension (W×D×H) | 600 × 440 × 380 mm |
| Detector Net Weight | 13 kg |
| Detector Gross Weight | 15 kg |
| Autosampler Temperature Range | Room temperature |
| Autosampler Injection Method | Full loop, non-destructive, destructive injection |
| Autosampler Injection Range | 0 to 100 µL |
| Autosampler Sample Capacity | 210 bits (1 mL vial); 120 bits (2 mL vial); 72 bits (4 mL vial); Dual 96-well plates (supports base magnetic plate option) |
| Autosampler Sample Residue | Less than 0.002% |
| Autosampler Repeatability | Less than 0.3% |
| Autosampler Injection Speed | “Extremely fast injection” mode, fastest injection time: 1 sec |
| Autosampler Packing Dimension (W×D×H) | 600 × 440 × 380 mm |
| Autosampler Net Weight | 13 kg |
| Autosampler Gross Weight | 15 kg |
| Standard Software | Kromstation workstation |
| Accessories Packing Dimension (W×D×H) | 500 × 360 × 300 mm |
| Accessories Net Weight | 7 kg |
| Accessories Gross Weight | 8 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| HPLC System LMHLS-A205 | $ 36112.5 | Each of 1 |
Features
Rapid sampling rate
Dual signal output
Cooled sample tray
Superior stability and precision
Kromstation control software
Standard Accessories
Accessory | Quantity | Unit |
High Pressure Constant Flow Pump | 1 | Piece |
UV-Vis Detector (exclude sample cell) | 1 | Piece |
sample cell | 1 | Piece |
Autosampler | 1 | Piece |
solvent Bottle Tray | 1 | Piece |
Kromstation Workstation | 1 | Piece |
system tool kits | 1 | Piece |
Mobile phase bottles (1000ML) | 2 | Pieces |
Optional Accessories
Column Oven
Applications
HPLC System LMHLS-A205 is ideal for precise analysis in pharmaceuticals, biochemistry, and environmental testing. It is used for separating and quantifying compounds in drugs, proteins, food samples, and chemical formulations, as well as detecting pollutants and metabolites in research and industrial applications.
Similar Products
$ 49000 / Each of 1
$ 27437.5 / Each of 1
$ 34982.5 / Each of 1
$ 60062.5 / Each of 1
$ 51237.5 / Each of 1
$ 21000 / Each of 1
$ 80741.25 / Each of 1
$ 51237.5 / Each of 1
Frequently Asked Questions
1 What is a calibration curve in HPLC?
It is a graph that plots the known concentrations of a standard compound versus the detector response.
2 Is pH important in HPLC?
The pH of the mobile phase plays a crucial role in analyzing ionizable compounds.
3 Can HPLC be used for biomolecule analysis?
It is widely used for separation and analysis of biomolecules such as proteins, peptides and nucleic acids.
4 What is meant by elution strength in HPLC?
It refers to the ability of the mobile phase to elute the analytes from the stationary phase.
5 What is a HPLC?
A HPLC is an apparatus designed to separate, identify and quantify the components of a complex mixture.
6 On what principle is HPLC based on?
It is based on the differential interactions between the analytes and the stationary phase.
7 What is meant by resolution in HPLC?
Resolution refers to the ability of the system to separate two peaks.
8 What is meant by retention time in case of HPLC?
It is the time taken by specific compound to travel through the HPLC column and reach the detector.
