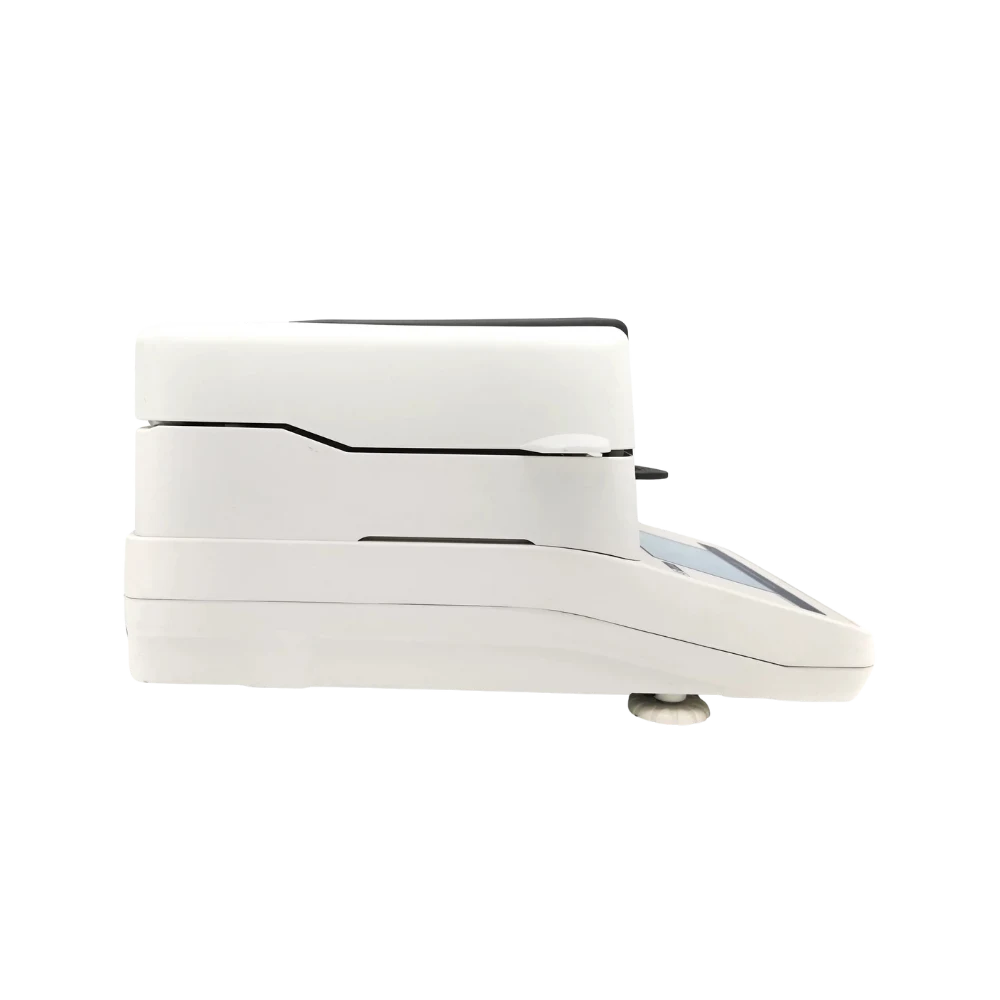

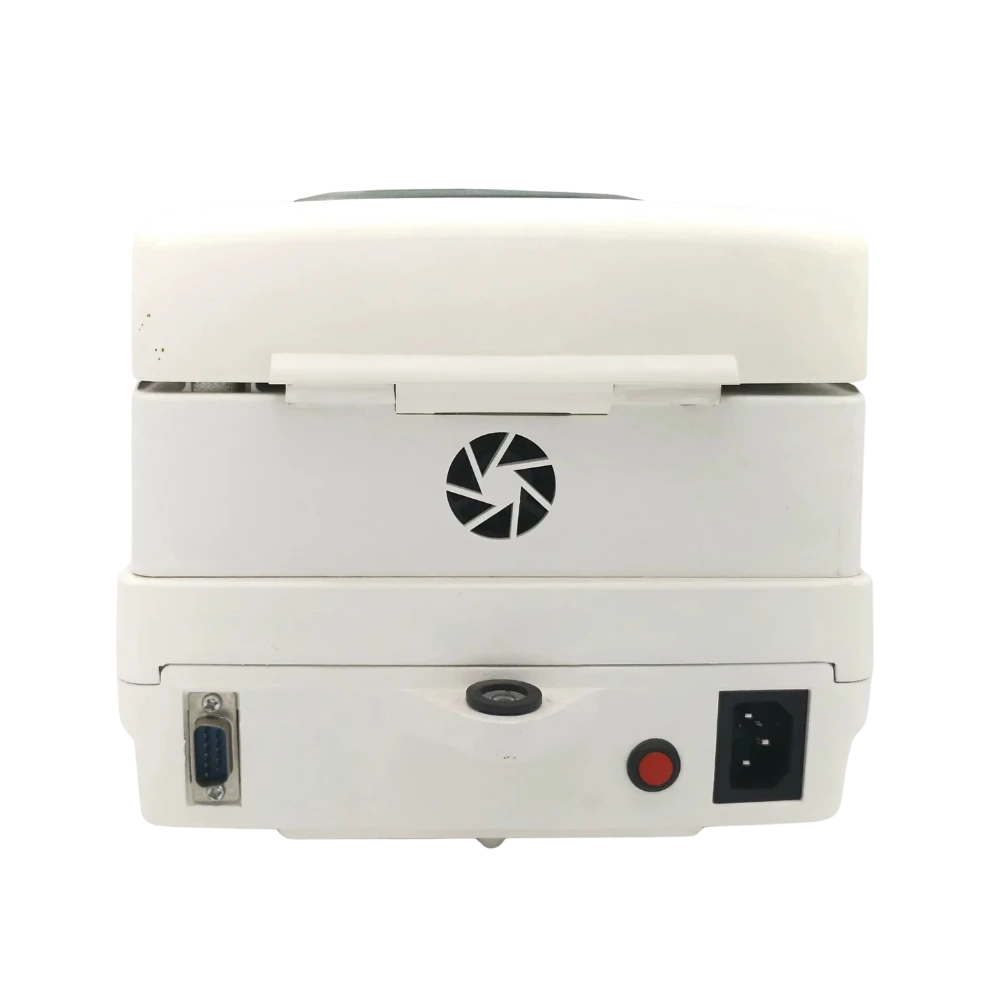

Halogen Moisture Analyzer LMHA-601

Halogen Moisture Analyzer LMHA-601 can be used to determine the moisture content of any substance. The robust housing and die cast structure is designed for easy, tool-free cleaning and durability. With a weighing range of 110 g and a readability of 0.001 g, the sample heating temperature range is 40° – 199°C and the heat up time is 1 – 99 minutes. An intuitive 5-inch LCD color touch screen icon-driven menu guides the user through each step of operating process.

Catalog Send Mail Whatsapp

Specifications

Weighing Range 110 g
Readability 0.001 g
Operating Temperature Range 5° - 35°C
Heating Temperature Range 40° - 199°C
Temperature Resolution 1°C
Temperature Sensor PT 100
Heating Source Halogen lamp
Moisture Range 0.0% - 100%
Moisture Readability 0.0001
Dry Residual Range 100.00% - 0.00%
Dry Residual Readability 0.0001
Pan Size ɸ 90mm
Chamber Height 22 mm
Time Setting 1 – 99 min
Calibration External
Display 5-inch LCD touch screen
Data Storage 20 sets
Interface RS232
Power 400 W
Voltage Supply 220V ±15%, 50Hz
Dimension (W×L×H) 360×490×350 mm

Features

5 inch LCD touch screen, moisture analysis curve
High precision temperature sensor
Halogen lamp heating source
Dry state can be directly confirmed to speculate the finish time
Automatic peeling function
Zero drift correction
Measure immediately and continuously
High memory capacity
High speed measurements
Reliable performance testing
User-friendly operation
Easy to clean and maintain
Display of measurement status
20 sets data storage and program setting

Applications

The typical areas of application include moisture analysis of foods, beverages, pharmaceuticals, chemicals, paper materials, plastic and product for environmental protection.
