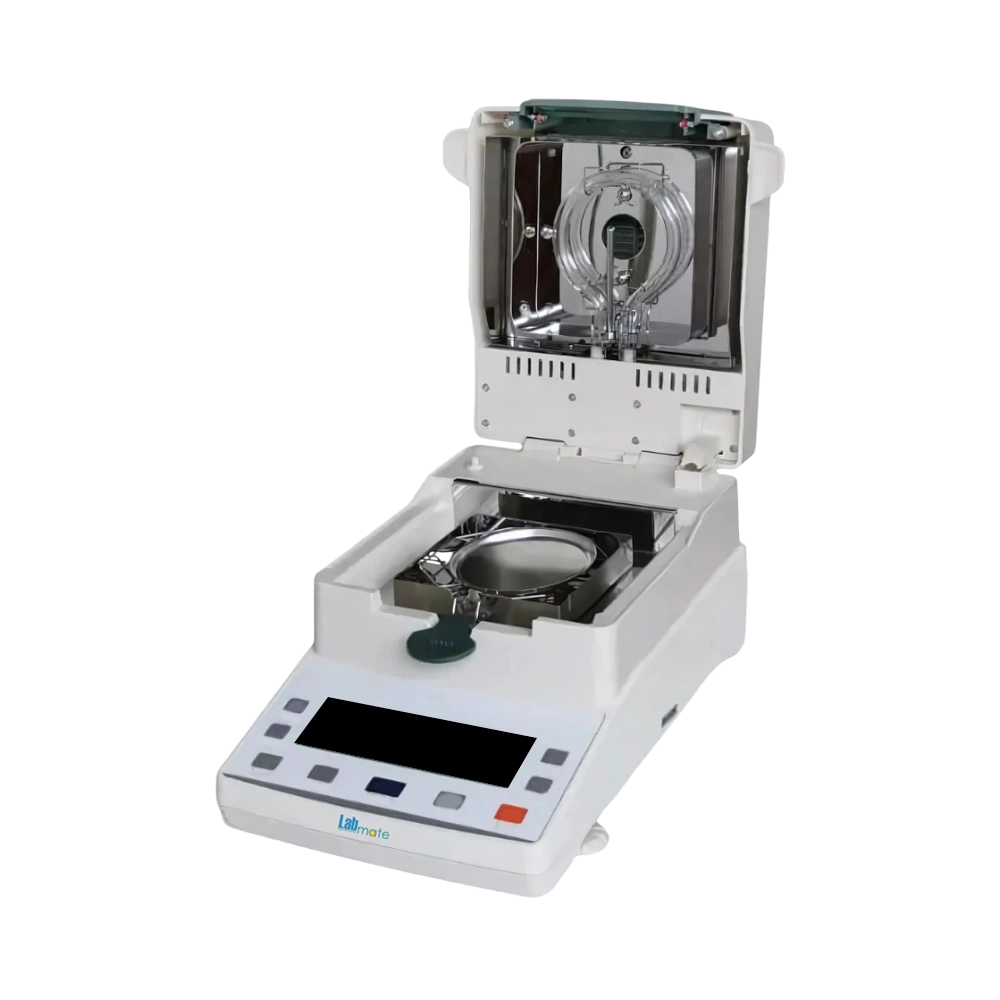

Halogen Moisture Analyzer LMHA-505 combines high quality and durable construction into a compact design, offering dependable, accurate results for wide variety of applications. It features a halogen lamp heating system which helps to yield fast results with readability up to 0.01 g, weighing range of 110 g operating from 40° - 199°C temperature range. The LCD display with backlight is easy to operate with soft push buttons and also has a measuring pan of 90 mm diameter with cover lid.
Get Quote| Weighing Range | 110 g |
| Readability | 0.01 g |
| Operating Temperature Range | 5° - 35°C |
| Heating Temperature Range | 40° - 199°C |
| Temperature Resolution | 1°C |
| Temperature Sensor | PT 100 |
| Heating Source | Halogen lamp |
| Moisture Range | 0.0% - 100% |
| Moisture Readability | 0.001 |
| Dry Residual Range | 100.00% - 0.00% |
| Dry Residual Readability | 0.002 |
| ATRO | 0% - 999% |
| Pan Size | ɸ 90mm |
| Time Setting | 1 – 99 min |
| Calibration | External |
| Display | LCD |
| Auto Stop | 0.1% - 9.9% within 1 minute |
| Data Storage | 15 sets |

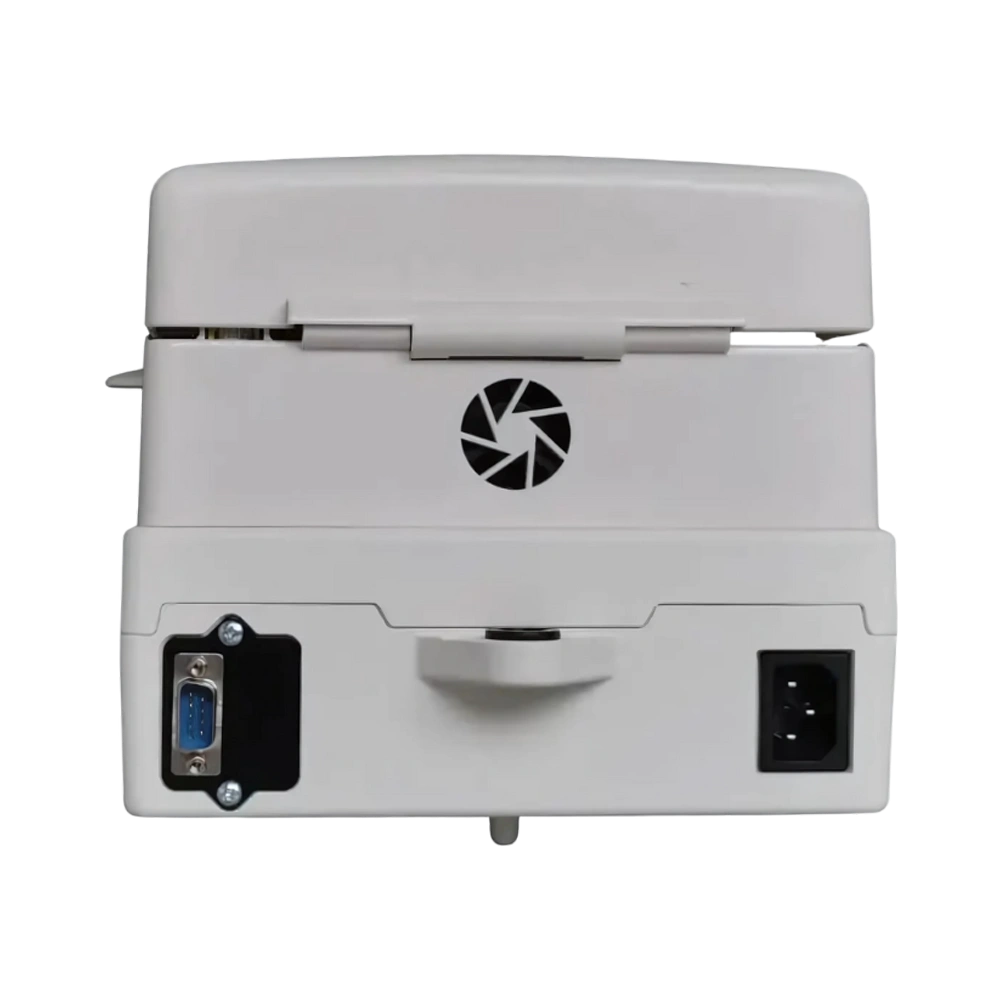

| Interface | R232 |
| Dimension (W×L×H) | 200×180×380 mm |
| Weight | 5.8 Kg |
LCD with high resolution backlight
High precision temperature sensor
Halogen lamp heating source
Dry state can be directly confirmed to speculate the finish time
Automatic peeling function
Zero drift correction
Measure immediately and continuously
High memory capacity
High speed measurements
Reliable performance testing
User-friendly operation
Easy to clean and maintain
Display of measurement status
The typical areas of application include moisture analysis of foods, beverages, pharmaceuticals, chemicals, paper materials, plastic and product for environmental protection.
Get Quote for
Halogen Moisture Analyzer LMHA-505
Labmate offers a diverse selection of halogen moisture analyzers designed for swift and precise analysis of a broad spectrum of product samples. These analyzers employ a top-notch ring halogen lamp to swiftly and uniformly heat the samples. They possess a weighing capacity spanning from 10 grams to 100 grams, with a readability of 10 milligrams. The sample heating temperature range varies from 40°C to 230°C, and the rapid heat-up time can be adjusted within the 1 to 99-minute range. Utilizing a spacious 100 mm diameter pan, these analyzers accommodate a wide array of materials, ensuring precise outcomes with a straightforward procedure: merely place the material on the pan and close the cover.
