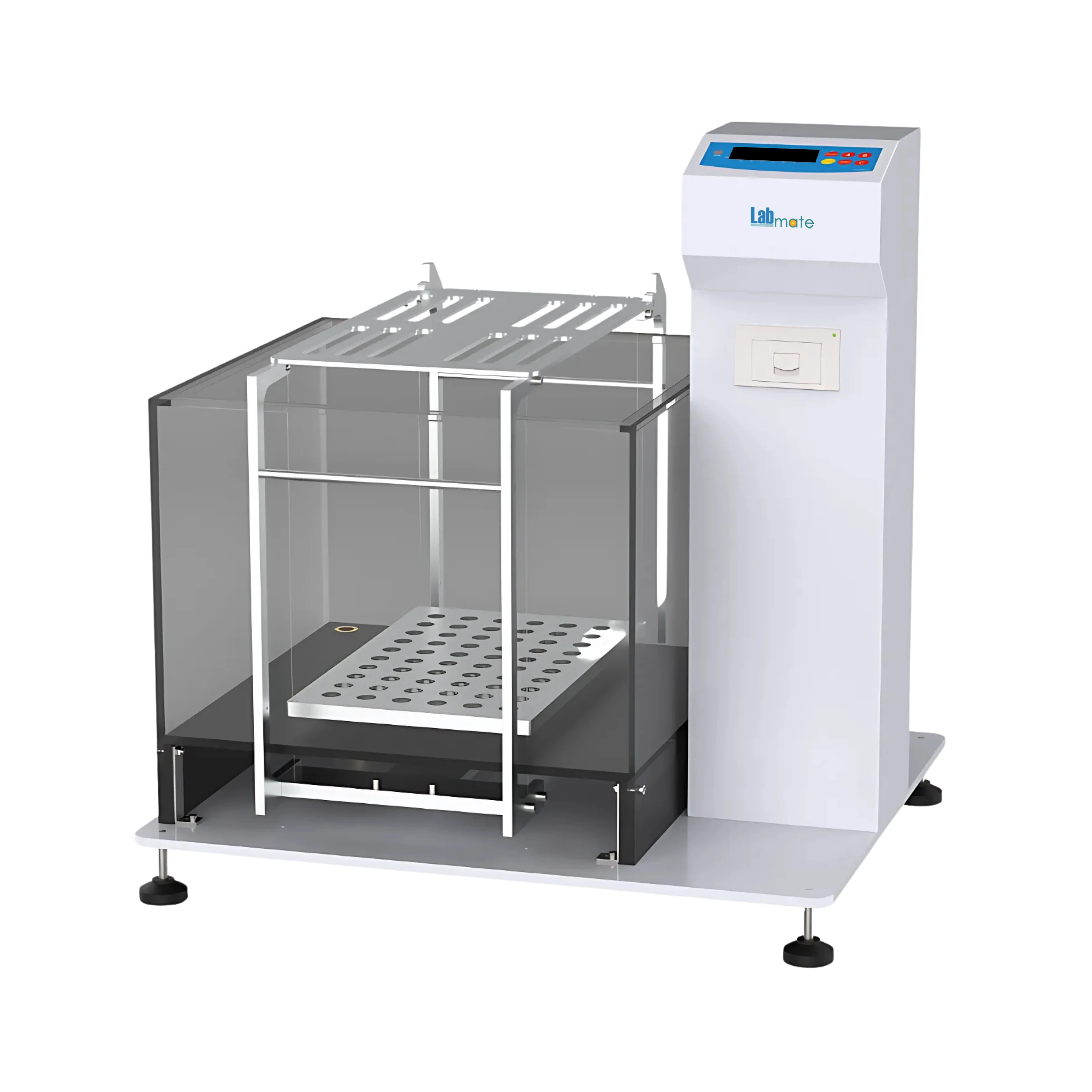

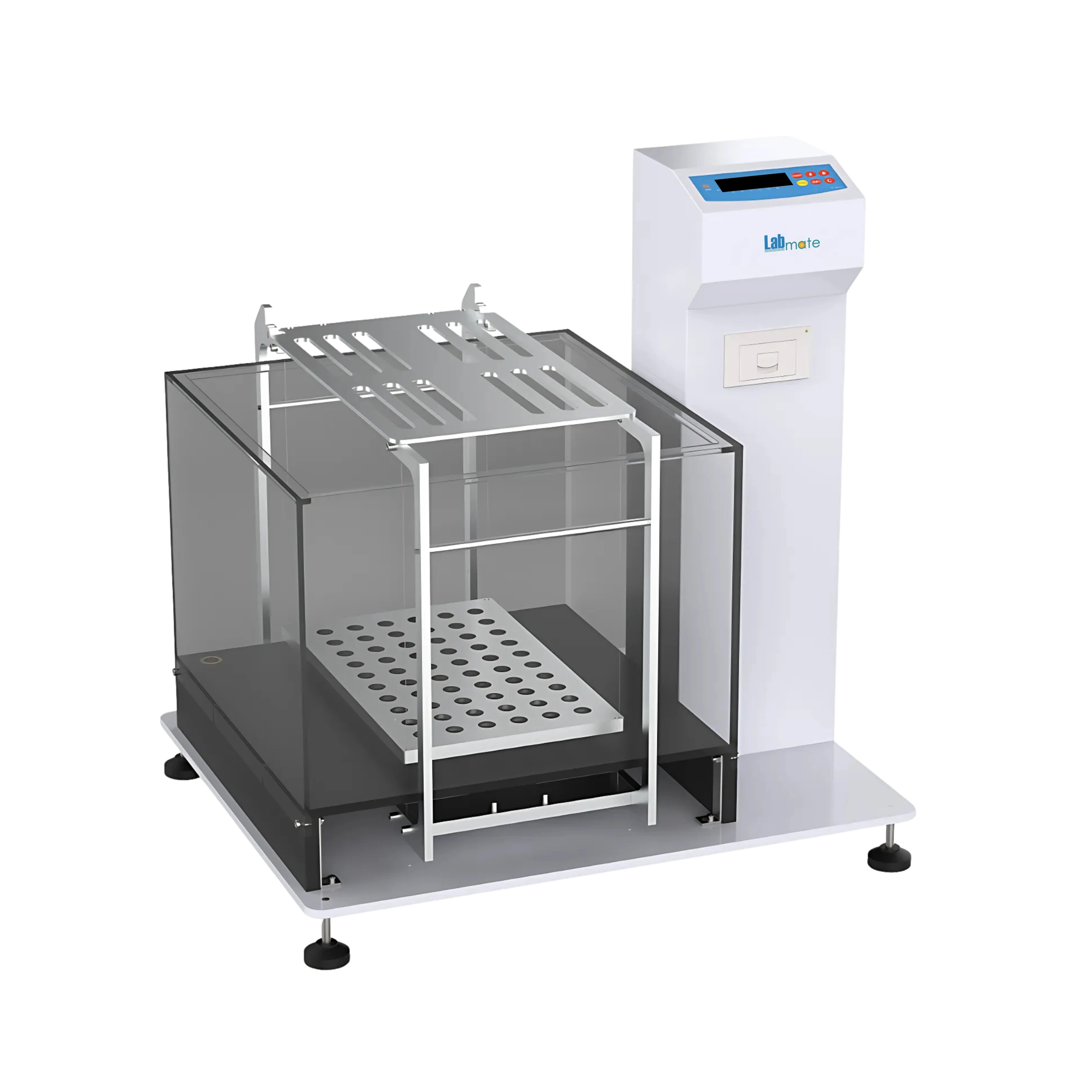

Floor-standing Density Meter LMDMF-A104 supports maximum measurement capacity of 60,000 g. It enables detection of ultra-large volume and ultra-heavy weight products with effortless performance. Its high-performance sensor ensures stable measurements for reliable evaluation of diverse materials. With actual water temperature compensation, it minimizes measurement deviations caused by temperature variations. Our Floor-standing Density Meter is ideal for evaluating automotive parts, aerospace materials, rubber, plastics, alloys.
Specifications
| Maximum Measurement Weight | 60,000 g |
| Weighing Accuracy | 0.5 g |
| Density Range | 0.001 to 99.999 g/cm³ |
| Density Accuracy | 0.001 g/cm³ |
| Measurement Speed | 20 seconds/time |
| Maximum Measuring Volume | 710 × 490 × 380 mm |
| Measurement Type | Solid form with density greater than 1 or less than 1 |
| Result Display | Density, volume, percentage content |
| Parameter Setting | Water temperature setting, measurement medium density setting, binary material mixing ratio |
| Dimension | 1250 × 1110 × 990 mm |
| Weight | 164 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Floor Standing Density Meter LMDMF-A104 | $ 8325 | Each of 1 |
Features
Quick Measurement
Automatic Calibration
Adjustable Parameter Settings
Water Tank System
Aluminium Alloy Frame
RS-232C interface
Standard Accessories
| Model No | Accessory |
| LMDMF-A104-H1 | Host |
| LMDMF-A104-H2 | Tweezer |
| LMDMF-A104-H3 | Thermometer |
| LMDMF-A104-H4 | Calibration Weight |
| LMDMF-A104-H5 | Power Transformer |
Applications
Floor-standing Density Meter LMDMF-A104 supports measurement of large volume products, heavy weight materials, and high-foaming rate samples across aerospace, metallurgy, ceramics, mining, material science, industrial settings.
