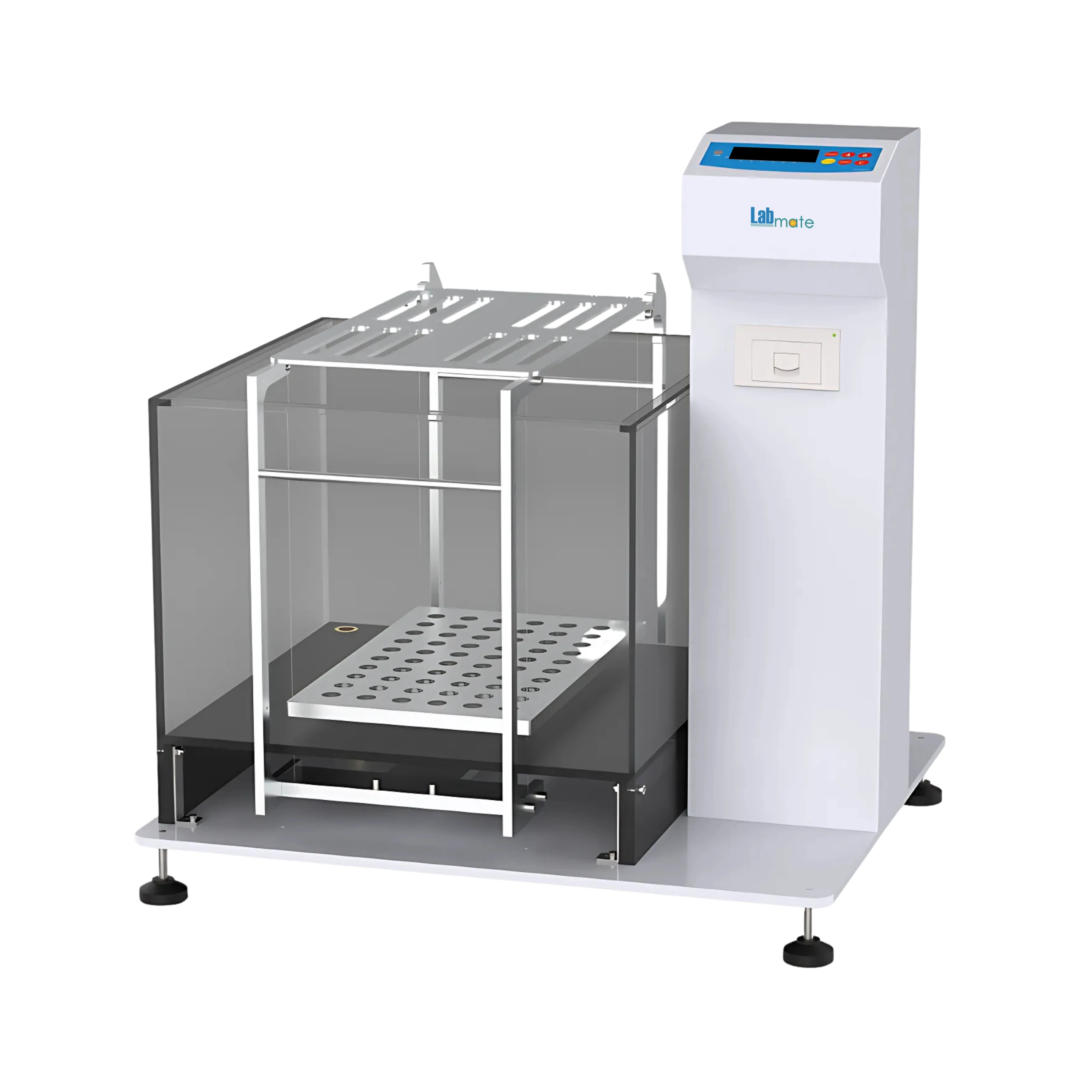

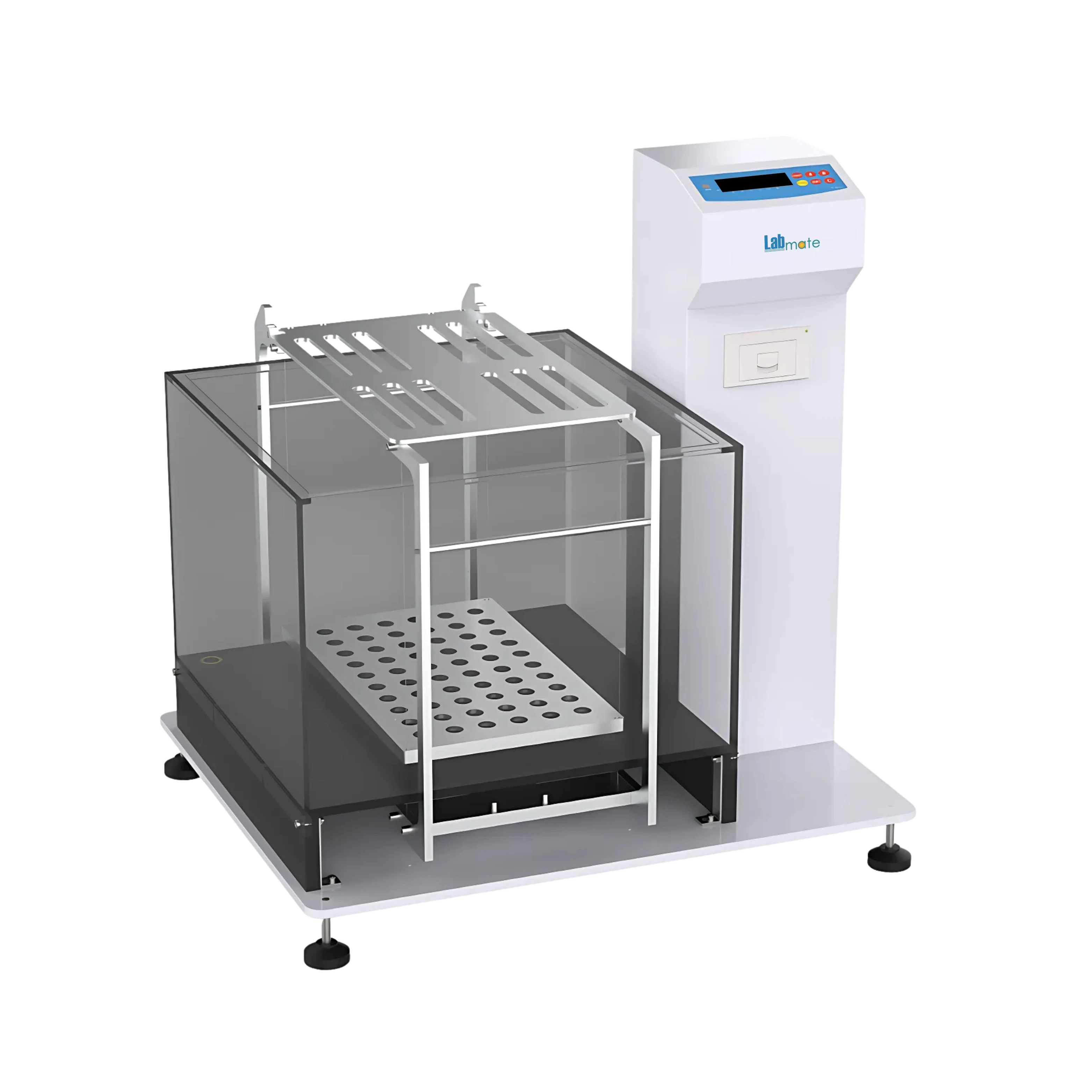

Floor-standing Density Meter LMDMF-A101 features maximum measurement weight of 20,000g. It allows setting of water temperature, measurement medium density, and binary material mixing ratio. It performs automatic calculation for effortless and quick measurement results. It employs water as medium, with inlet and outlet valves for easy tank management. Our Floor-standing Density Meter is ideal for measuring density of large, heavy, foamy, industrial materials.
Specifications
| Maximum Measurement Weight | 20,000 g |
| Weighing Accuracy | 0.2 g |
| Density Range | 0.001 to 99.999 g/cm³ |
| Density Accuracy | 0.001 g/cm³ |
| Maximum Measuring Volume | 710 × 490 × 380 mm |
| Measurement Speed | 20 seconds/time |
| Measurement Type | Solid form with density greater than 1 or less than 1 |
| Result Display | Density, volume, percentage content |
| Parameter Setting | Water temperature setting, measurement medium density setting, binary material mixing ratio |
| Dimension | 1250 × 1110 × 990 mm |
| Weight | 164 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Floor Standing Density Meter LMDMF-A101 | $ 6537.5 | Each of 1 |
Features
Ultra-Large Capacity
Aluminum Alloy Frame
Quick Measurement
High-Performance Sensor
Rs-232C Communication Interface
Water Temperature Compensation
Standard Accessories
| Model No | Accessory |
| LMDMF-A101-H1 | Host |
| LMDMF-A101-H2 | Tweezer |
| LMDMF-A101-H3 | Thermometer |
| LMDMF-A101-H4 | Calibration Weight |
| LMDMF-A101-H5 | Power Transformer |
Applications
Floor-standing Density Meter LMDMF-A101 is suitable for automotive, aerospace, metallurgy, ceramics, and laboratory settings, for testing oversized and high-volume products.
