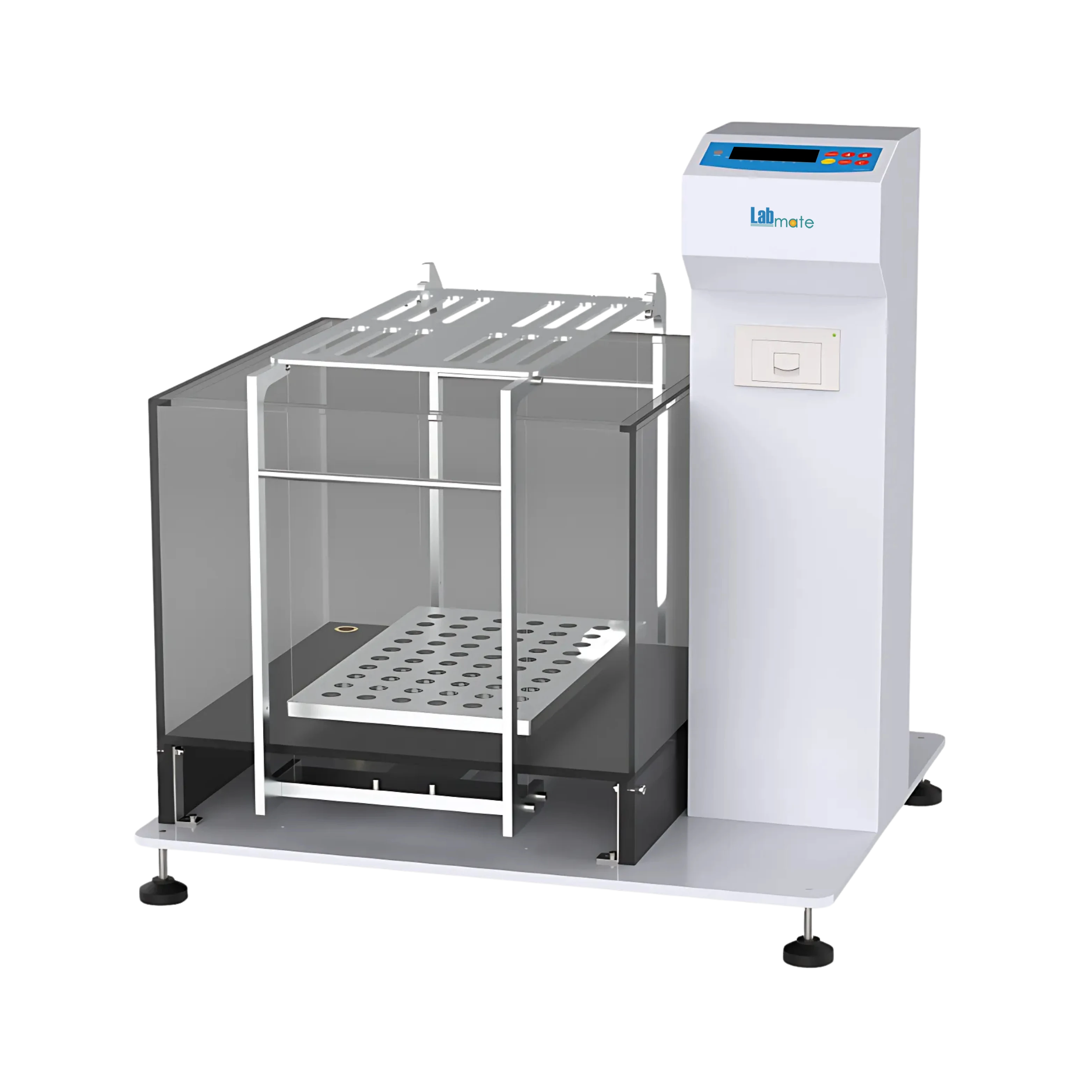

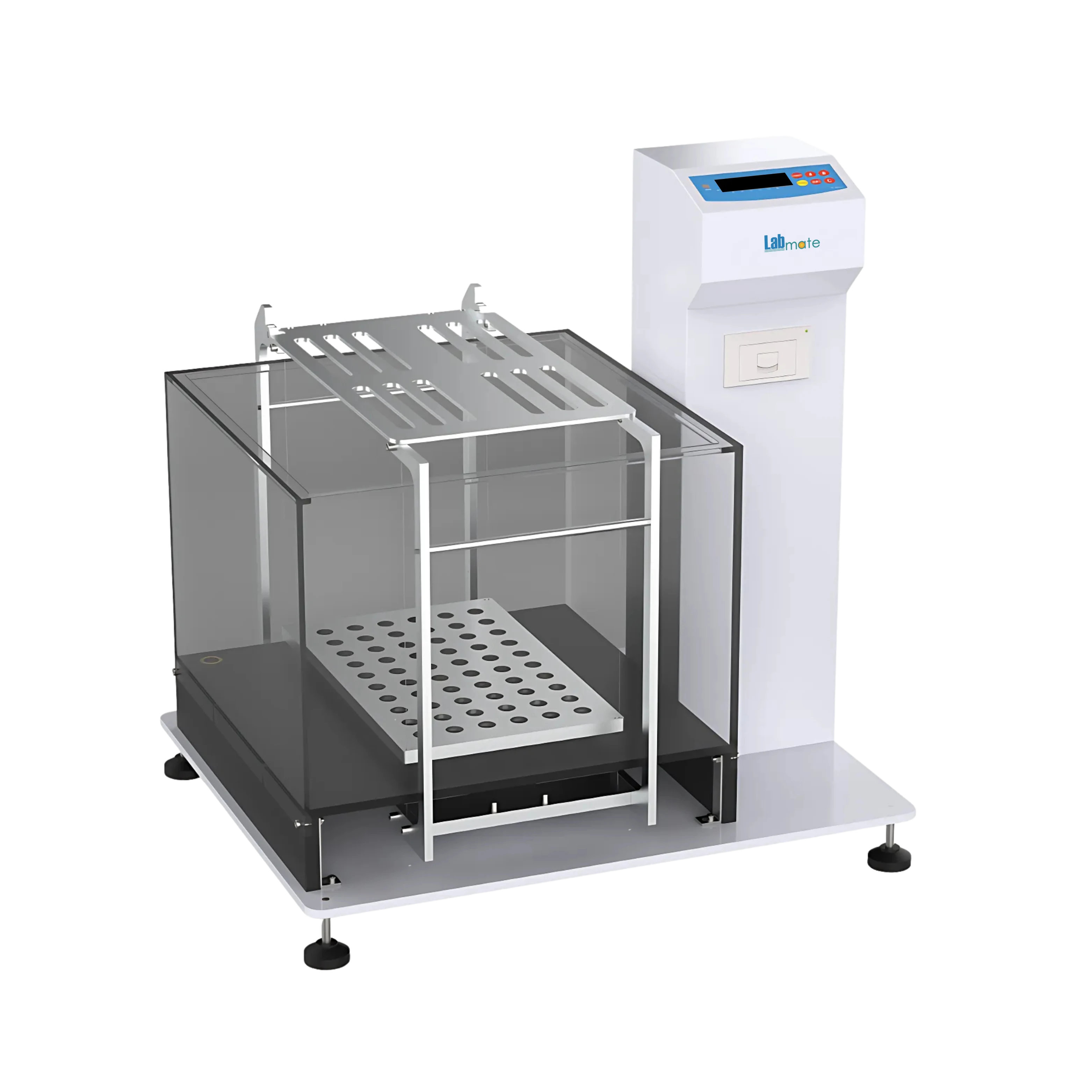

Floor-standing Density Meter LMDMF-A102 is equipped with maximum measurement weight of 30,000g. It meets density measurement requirements for ultra-large volume and ultra-heavy weight products. It provides adjustable settings for water temperature, measurement medium density, and material mixing ratio. It features aluminium alloy frame for durable and lightweight construction. Our Floor-standing Density Meter is ideal for testing automotive, aerospace, metal, ceramic, rubber, plastic materials.
Specifications
| Maximum Measurement Weight | 30,000 g |
| Weighing Accuracy | 0.2 g |
| Density Range | 0.001 to 99.999 g/cm³ |
| Density Accuracy | 0.001 g/cm³ |
| Measurement Speed | 20 seconds/time |
| Maximum Measuring Volume | 710 × 490 × 380 mm |
| Measurement Type | Solid form with density greater than 1 or less than 1 |
| Result Display | Density, volume, percentage content |
| Parameter Setting | Water temperature setting, measurement medium density setting, binary material mixing ratio |
| Dimension | 1250 × 1110 × 990 mm |
| Weight | 164 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Floor Standing Density Meter LMDMF-A102 | $ 6787.5 | Each of 1 |
Features
Quick Measurement
Automatic Calculation
High-Performance Sensor
Inlet, Outlet Valves
RS-232C Communication Interface
Water Temperature Compensation
Standard Accessories
| Model No | Accessory |
| LMDMF-A102-H1 | Host |
| LMDMF-A102-H2 | Tweezer |
| LMDMF-A102-H3 | Thermometer |
| LMDMF-A102-H4 | Calibration Weight |
| LMDMF-A102-H5 | Power Transformer |
Applications
Floor-standing Density Meter LMDMF-A102 supports density measurement in automotive, aerospace, ceramics, metals, plastics, rubber, and laboratories.
