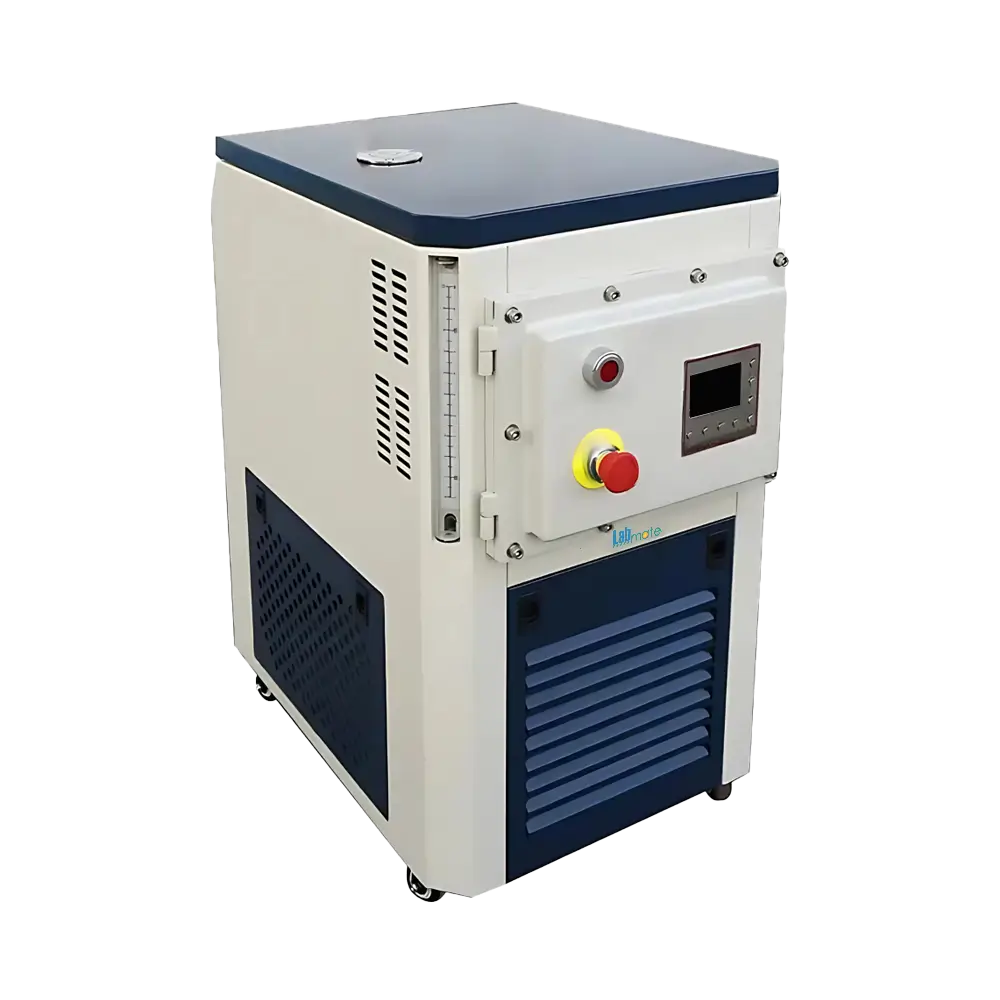

Explosion Proof Heating Circulator LMEHC-A103 operators within RT to 200℃ with 35-liter reservoir capacity. It features dedicated PT100 sensor port for external temperature monitoring. Equipped with control panel hosting an emergency stop button for instant shutdown during hazards. Incorporates bath fluid observation window for easy visual inspection of liquid conditions. Our Circulator is ideal for high-thermal control for reactors, fermenters, and extraction systems.
Specifications
| Working Temperature Range | RT to 200℃ |
| Reservoir Capacity | 35 L |
| Flow Rate | 42L/min |
| Lifting Distance | 22m |
| Explosion-Proof Grade | dIIBT4 |
| Temperature Control Accuracy | ±1℃ |
| Heating Power | 9000W |
| Circulating Pump Power | 370W |
| Power Consumption | 9370W |
| Power Supply | 380V/50Hz |
| Dimensions | 520×720×1130 mm |
| Weight | 90 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Heating Circulator LMEHC-A103 | $ 3962.5 | Each of 1 |
Features
Sealed circulation
Inline filter device
Stainless steel piping
Liquid level indicator
Mobile casters
Fluid outlet/inlet ports
Applications
Explosion Proof Heating Circulator LMEHC-A103 is applied for high-temperature control for reactors, fermenters, extraction systems, mixing tanks, calorimeters, and other pilot-scale or production equipment.
