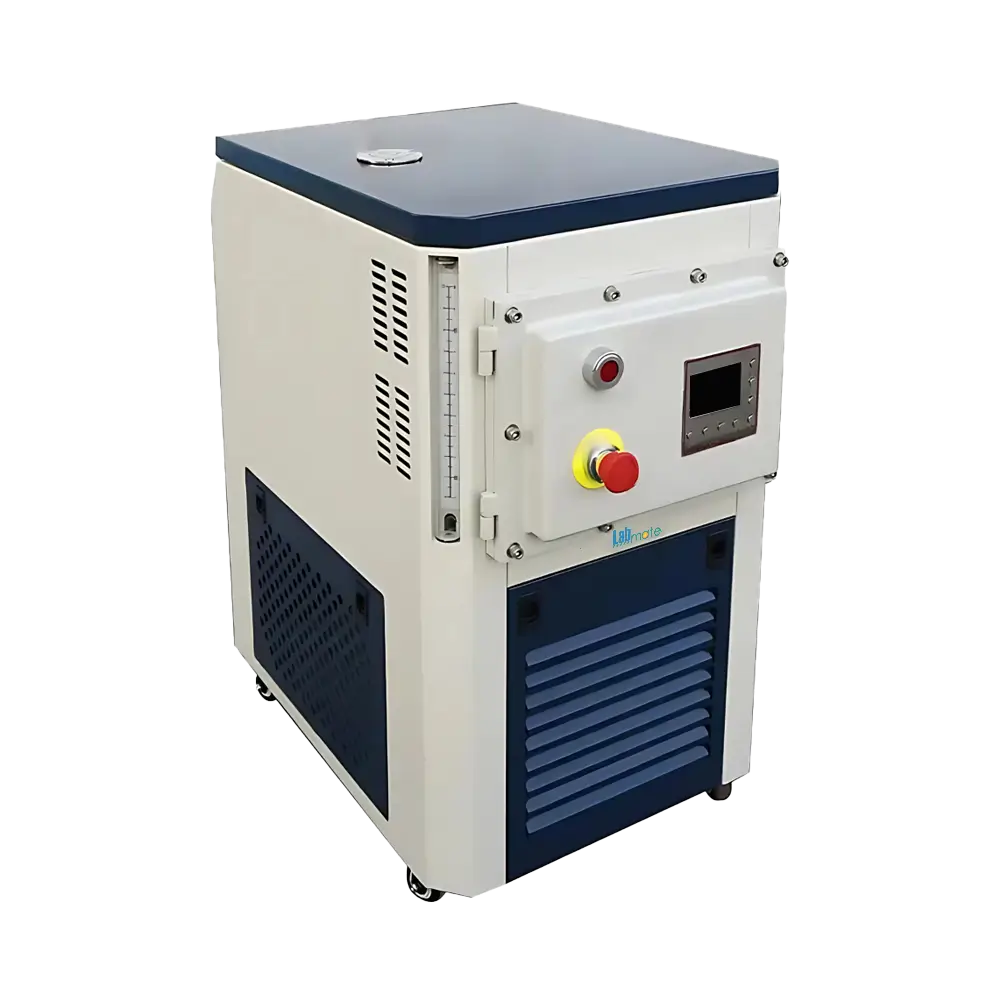

Explosion Proof Heating Circulator LMEHC-A101 is designed with maximum temperature of 200℃. It features level indicator for real-time monitoring of heat transfer liquid inside tank. Equipped with built-in filter that keeps circulation pipeline clear and functioning smoothly. Incorporates ventilated housing to manage internal heat and protect sensitive components. Our Circulator ensures stable high temperatures in reactors, fermentation tanks, and pilot lines.
Specifications
| Working Temperature Range | RT to 200℃ |
| Reservoir Capacity | 10 L |
| Flow Rate | 30L/min |
| Lifting Distance | 15m |
| Explosion-Proof Grade | dIIBT4 |
| Temperature Control Accuracy | ±1℃ |
| Heating Power | 3000W |
| Circulating Pump Power | 250W |
| Power Consumption | 3250W |
| Power Supply | 220V/50Hz |
| Dimensions | 460×580×805 mm |
| Weight | 40 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Heating Circulator LMEHC-A101 | $ 3487.5 | Each of 1 |
Features
PID temperature control
Leakage proof
External sensor port
Stainless steel piping
Emergency stop button
Mobile casters
Fluid access ports
Applications
Explosion Proof Heating Circulator LMEHC-A101 ensures stable high-temperature control for reactors, fermentation tanks, extraction units, and pilot lines in pharmaceutical, biotechnology, food, and beverage sectors requiring consistent thermal regulation.
