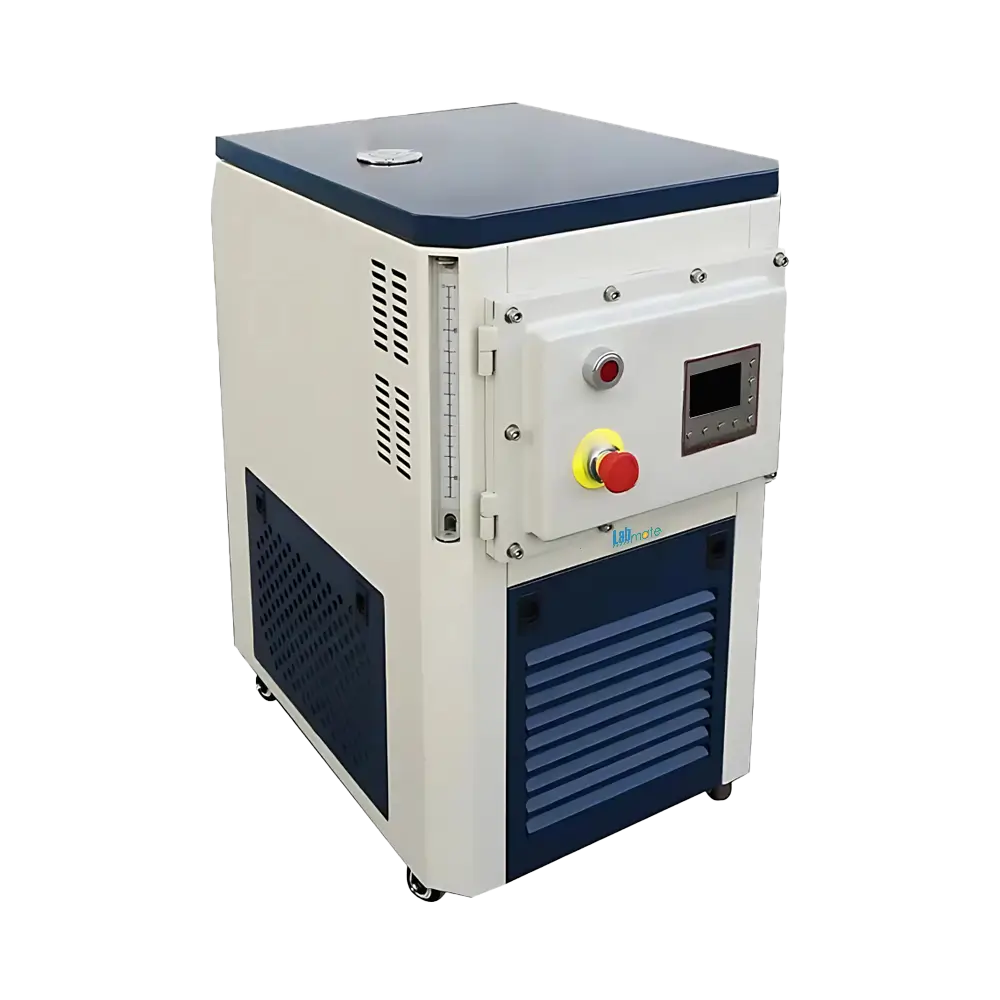

Explosion Proof Heating Circulator LMEHC-A100 provides maximum heating up to 200℃. It features PID control for stable temperature throughout operation. Equipped with safety elements including leakage, overheating, and overcurrent protection for enhanced reliability. It incorporates sealed loop to enhance thermal fluid lifespan and minimize contamination risks. Our Circulator ensures constant high temperatures in reactors, fermentation tanks, and extraction systems.
Specifications
| Working Temperature Range | RT to 200℃ |
| Reservoir Capacity | 5 L |
| Flow Rate | 20L/min |
| Lifting Distance | 6m |
| Explosion-Proof Grade | dIIBT4 |
| Temperature Control Accuracy | ±1℃ |
| Heating Power | 2000W |
| Circulating Pump Power | 100W |
| Power Consumption | 2100W |
| Power Supply | 220V/50Hz |
| Dimensions | 300×450×550 mm |
| Weight | 35 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Heating Circulator LMEHC-A100 | $ 3125 | Each of 1 |
Features
Inline filter device
External sensor port
Stainless steel piping
Liquid level indicator
Emergency stop button
Ventilation system
Fluid outlet/ inlet port
Applications
Explosion Proof Heating Circulator LMEHC-A100 is ideal for maintaining stable high temperatures in reactors, fermentation tanks, extraction systems, and pilot production lines across pharmaceutical, biotech, food, and beverage industries.
