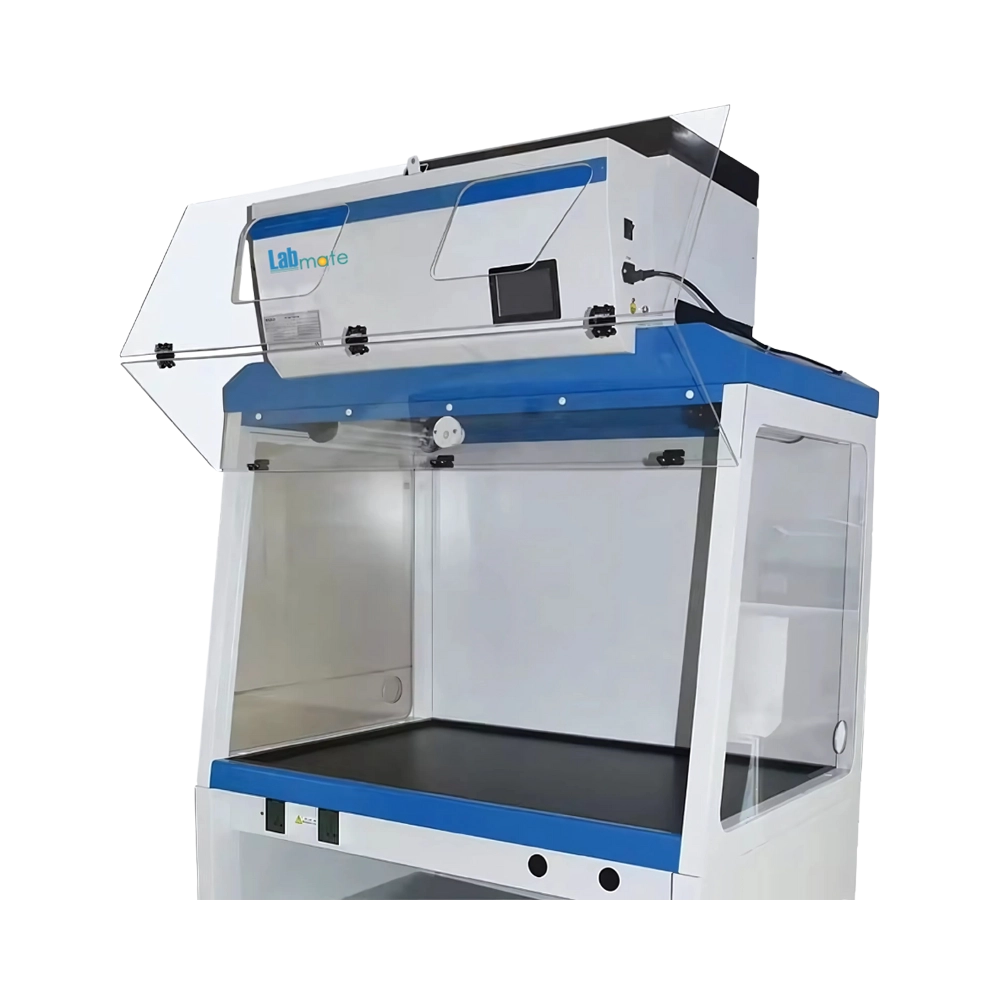

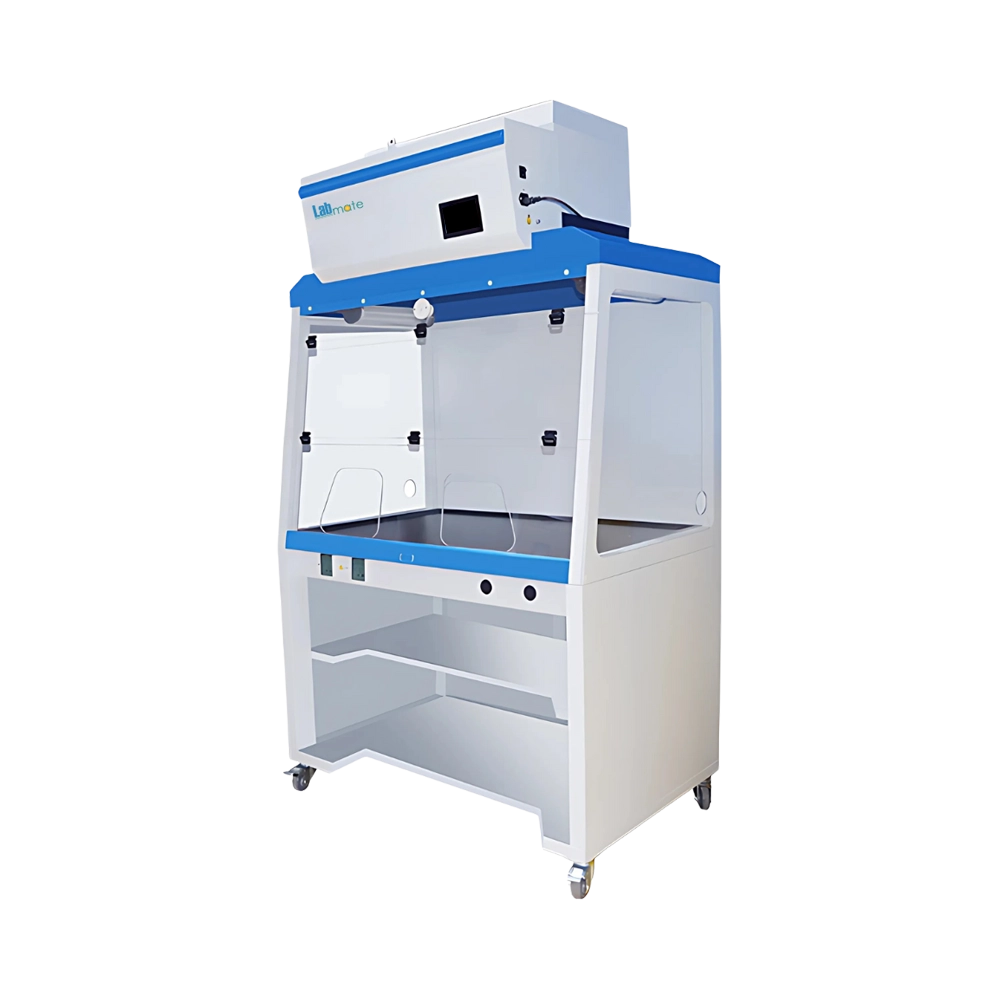

Ductless Fume Hood LMDL-A202

Ductless Fume Hood LMDL-A202

Ductless Fume Hood LMDL-A202 is a high-quality crossflow cabinet range for handling non-hazardous fumes to ensure a clean working environment. With an exhaust volume of 325 m³/h that works within airflow velocity of 0.25 to 0.35 m/s. Improved with push control microprocessor controller to maintain temperature and humidity for accurate results. Incorporated with transparent acrylic front door with 8° slope for Equipped with chemical filter for better working condition.

Get Quote
Cabinet Size 59 Inches
Airflow Velocity 0.25 to 0.35 m/s
Exhaust Volume 325 m³/h
Glass Door Thickness Front window: Manual
Display LCD Touch Panel
Max. Door Opening Height 650 mm
Working Surface Height 900 mm
Filter Chemical Filter
Blower Centrifugal blower
Illumination Lamp Fluorescent Lamp (16 W)
Illumination ≥ 400 Lux
Noise ≤ 55 dB
Power Consumption 500 W
Power Supply AC 220 / 110 V ± 10 % ; 50 / 60 Hz
Internal Dimension 1410 × 690 × 740 mm
External Dimension 1500 × 940 × 2140 mm
Gross Weight 380 kg

point.png Simplified with a high-resolution LCD touchscreen control panel for worry-free operation

point.png Equipped with an electronic control system maintains overload and overheating

point.png Supplied with integral probe sensors detect indoor air pollution and filter condition

point.png Built-in centrifugal blower with adjustable air speed

point.png Upgraded with an Audio / visual alarm for filter change

point.png Imported with explosion-proof fluorescent Illumination lamp

point.png Include memory function for power-failure conditions

point.png Chemical-resistant, double-layered phenolic resin workbench

point.png Reduced contamination risk with anti-bacteria powder-coated steel body

Model No Name Quantity Image
LFHC-07 Centrifugal Blower 1 LFHC-07
LFHC-08 Chemical Filter 2 LFHC-08
LFHC-14 Fluorescent Lamp 3 (16 W) LFHC-14
LFHC-34 Waterproof Socket 2 (Total Load: 500 W) LFHC-34

Model No Name Quantity Image
LFHC-10 Electric height adjustable base stand (Max. Route: 400 mm, Max. Load: 400 kg, Load Speed: 5 mm/s, Power: 100 - 200 W; AC 220 / 110 V ± 10 % ; 50 / 60 Hz) 1 LFHC-10
LFHC-18 Gas Tap 1 LFHC-18
LFHC-20 HEPA Filter 1 LFHC-20
LFHC-29 UV Lamp 1 LFHC-29
LFHC-32 Water Sink 1 LFHC-32
LFHC-33 Water Tap 1 LFHC-33

It is used to protect lab samples and equipment from contamination. Commonly used in medical laboratories, medical industrial services, and food processing plants.
