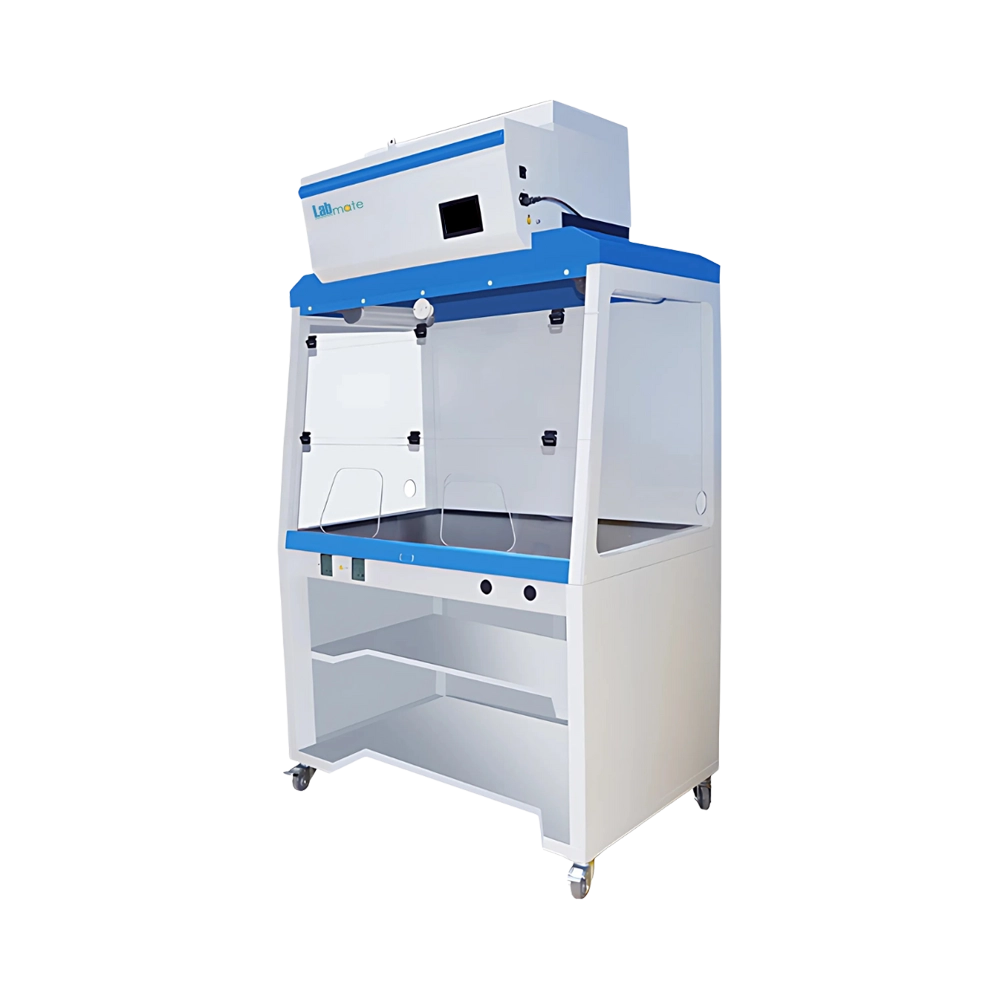

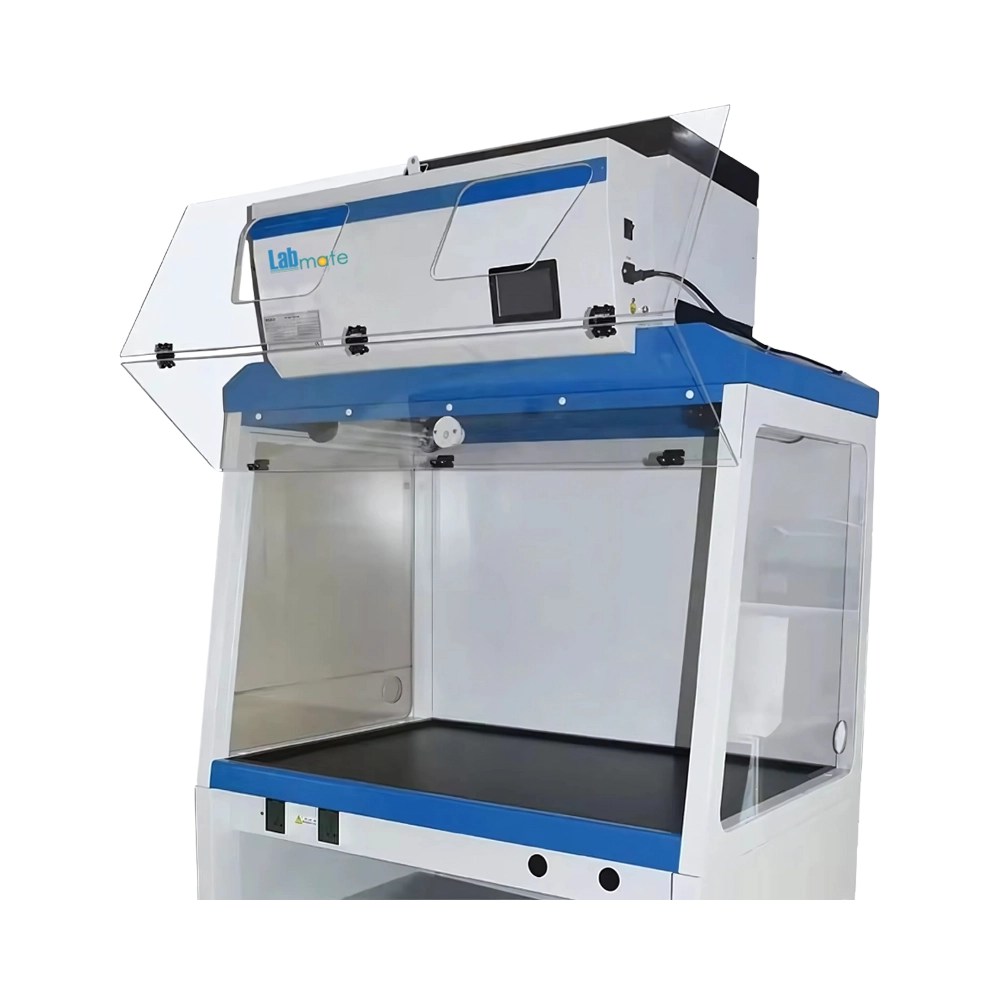

Ductless Fume Hood LMDL-A201 is a high-quality crossflow cabinet range for handling non-hazardous fumes to ensure a clean working environment. With an exhaust volume of 105 m³/h that works within airflow velocity of 0.25 to 0.35 m/s. Improved with push control microprocessor controller to maintain temperature and humidity for accurate results. Incorporated with transparent acrylic front door with 8° slope for Equipped with chemical filter for better working condition.
Get Quote| Cabinet Size | 47 Inches |
| Airflow Velocity | 0.25 to 0.35 m/s |
| Exhaust Volume | 105 m³/h |
| Glass Door Thickness | Front window: Manual |
| Display | LCD Touch Panel |
| Max. Door Opening Height | 650 mm |
| Working Surface Height | 900 mm |
| Filter | Chemical Filter |
| Blower | Centrifugal blower |
| Illumination Lamp | Fluorescent Lamp (16 W) |
| Illumination | ≥ 400 Lux |
| Noise | ≤ 55 dB |
| Power Consumption | 400 W |
| Power Supply | AC 220 / 110 V ± 10 % ; 50 / 60 Hz |
| Internal Dimension | 1110 × 690 × 740 mm |
| External Dimension | 1200 × 880 × 2140 mm |
| Gross Weight | 310 kg |
Simplified with a high-resolution LCD touchscreen control panel for worry-free operation
Equipped with an electronic control system maintains overload and overheating
Supplied with integral probe sensors detect indoor air pollution and filter condition
Built-in centrifugal blower with adjustable air speed
Upgraded with an Audio / visual alarm for filter change
Imported with explosion-proof fluorescent Illumination lamp
Include memory function for power-failure conditions
Chemical-resistant, double-layered phenolic resin workbench
Reduced contamination risk with anti-bacteria powder-coated steel body
| Model No | Name | Quantity | Image |
|---|---|---|---|
| LFHC-07 | Centrifugal Blower | 1 |  |
| LFHC-08 | Chemical Filter | 2 |  |
| LFHC-14 | Fluorescent Lamp | 2 (16 W) |  |
| LFHC-34 | Waterproof Socket | 2 (Total Load: 500 W) |  |
| Model No | Name | Quantity | Image |
|---|---|---|---|
| LFHC-10 | Electric height adjustable base stand (Max. Route: 400 mm, Max. Load: 400 kg, Load Speed: 5 mm/s, Power: 100 - 200 W; AC 220 / 110 V ± 10 % ; 50 / 60 Hz) | 1 |  |
| LFHC-18 | Gas Tap | 1 |  |
| LFHC-20 | HEPA Filter | 1 |  |
| LFHC-29 | UV Lamp | 1 |  |
| LFHC-32 | Water Sink | 1 |  |
| LFHC-33 | Water Tap | 1 |  |
It is used to protect lab samples and equipment from contamination. Commonly used in medical laboratories, medical industrial services, and food processing plants.
