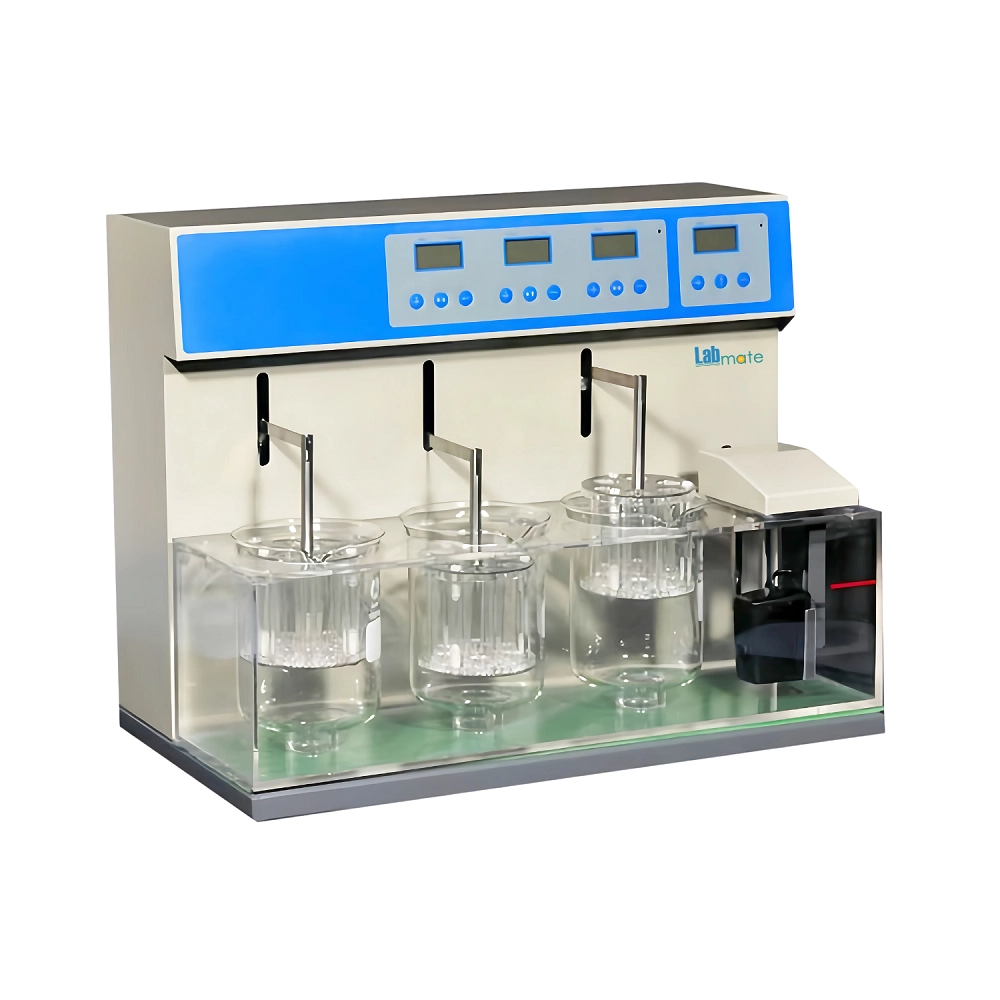

Disintegration Tester LMDT-A102 is equipped with 3 baskets, each with a capacity of 1000ml. It features a speed range of 30 to 32 rpm, providing consistent and precise oscillation and a uniform disintegration process. Our tester maintains temperature control from RT to 50 °C for accurate testing across various product types. It is integrated with LED for real-time data display and parameter monitoring.
Specifications
| Beaker Capacity | 1000 ml |
| Speed Range | 30 to 32 rpm |
| Basket Lifting Height | 55 ±1 mm |
| Minimum Spacing | 25 ±2 mm |
| Mesh Size | Standard 2 mm |
| Temperature Range | RT to 50°C |
| Temperature Precision | ±0.3°C |
| Timing Range | 1 to 900 min |
| Time Precision | ±0.5 min |
| Working Time | >24 hours |
| Power Consumption | 600 W |
| Power Supply | AC220V/110V ±10%, 50/60Hz |
| Dimension (W × D × H) | 540×320 ×440 mm |
| Packaging Dimension (W × D ×H) | 660 × 410 × 530 mm |
| Weight | 23 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Disintegration Tester LMDT-A102 | $ 1987.5 | Pack of 1 |
Features
Microprocessor controlled
Stainless steel basket and paddle
Magnetic pump for temperature uniformity
Pharmacopeial compliance
Standard Accessories
Beakers × 3
Applications
Disintegration Tester is designed to determine disintegration time for solid dosage forms like tablets and capsules under controlled conditions and is widely used in pharmaceutical quality control, R&D in drug formulation, and regulatory compliance.
Selection Guide
Disintegration Tester LMDT-A102 is designed for testing the disintegration time of pharmaceutical dosage forms such as tablets and capsules, in compliance with pharmacopeial standards. This model features a large 1000 ml beaker capacity, making it perfect for high-volume testing environments like pharmaceutical research labs and quality control departments. The speed range of 30 to 32 rpm and accurate basket lifting height ensure consistent and reproducible results. With a minimum spacing of 25 ±2 mm, the unit accommodates a variety of sample sizes without compromising performance. Its usage is backed by standard certifications aligned with global pharmacopoeias, ensuring regulatory compliance. This tester is suitable for stability studies, formulation development, and dissolution studies in R&D and production quality assurance. Customers should consider this model if their application demands high-capacity, accurate, and compliant disintegration analysis.
Similar Products
$ 3700 / Each of 1
$ 2850 / Pack of 1
Frequently Asked Questions
1 What is a Disintegration Tester?
A Disintegration Tester is an apparatus designed to assess the disintegration of tablets, capsules or other solid dosage forms under controlled conditions.
2 Why is Disintegration Test important?
It is important to ensure that the capsule or tablet will break down and release the Active Pharmaceutical Ingredient (API) in a timely manner.
3 Can Disintegration Tester be used for all types of dosage forms?
It can be used for dosage forms such as film-coated tablets, soft gelatin capsules and pellets.
4 What is the role of Disintegration Tester in stability studies?
It is used to evaluate how tablet or capsule will perform over time under varying environmental conditions.
