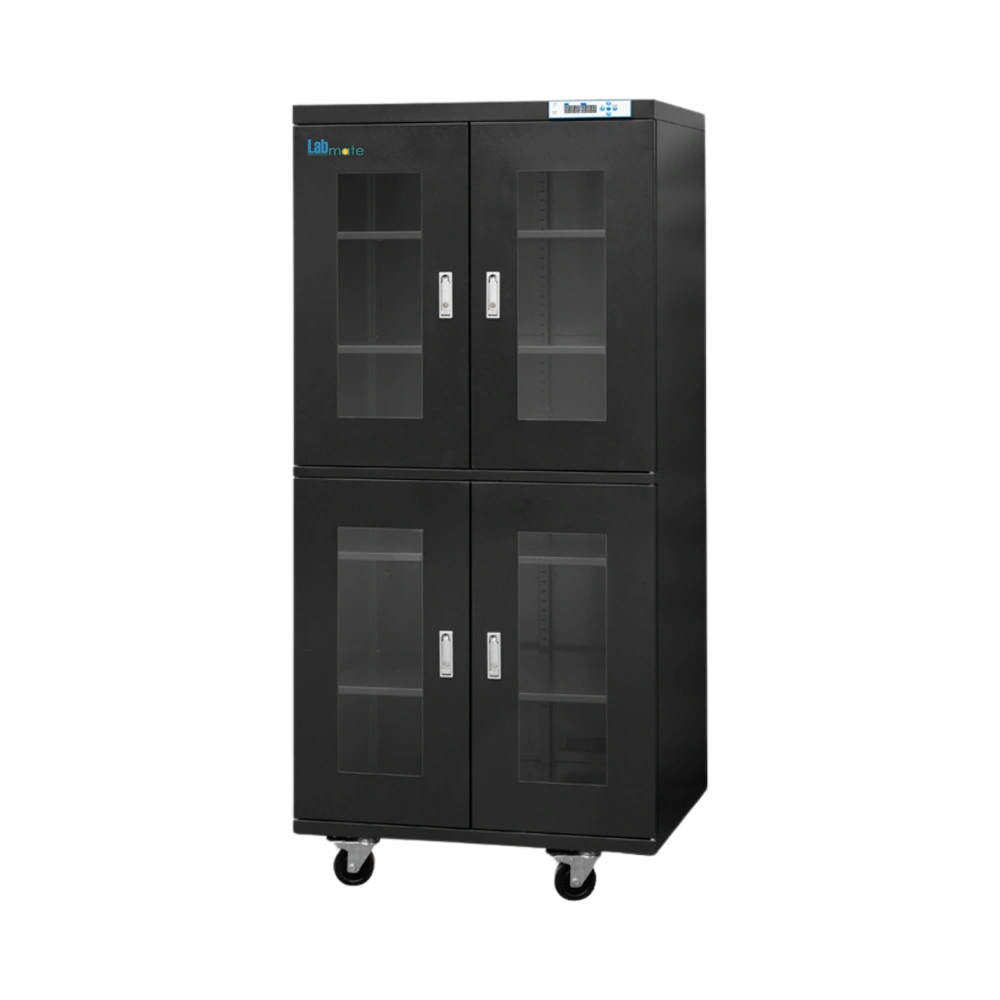

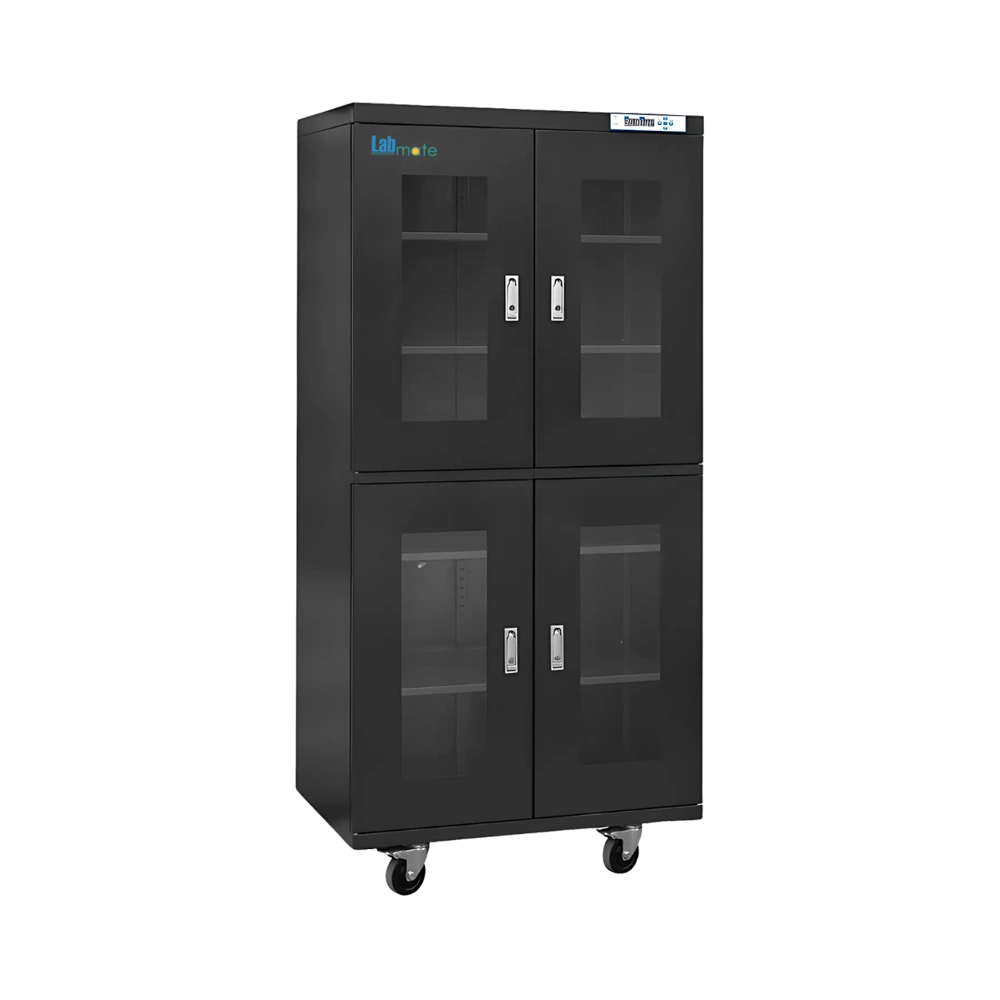

Desiccator Dry Cabinet LMDCC-D107 features an 870 L capacity for bulk storage of moisture-prone components and delicate samples. Integrated with tempered glass viewing windows for clear observation without opening the chamber. It features 4 independent magnetic-seal doors, enabling section-wise access without disturbing the entire environment. Built with 1.2 mm galvanized steel coated in anti-static powder for enhanced durability, corrosion resistance. Our Desiccator Dry Cabinet offers 10⁶ to 10⁸ Ω surface resistance to protect charge-sensitive PCBs and semiconductors.
Specifications
| Storage Capacity | 870 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 4 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 15 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 898 × 572 × 1698 mm |
| Exterior Dimension(W×D×H) | 900× 600 × 1890 mm |
| Net Weight | 110 Kg |
| Gross Weight | 130 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-D107 | $ 5712.5 | Each of 1 |
Features
LED Display Panel
Reinforced PU Castors
5 Perforated Shelves
High Load Bearing Capacity
Flat Press Zinc Alloy Lock
Optional Accessories
| Model no. | Accessory |
| LMDCC-D107-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D107-A2 | Open Door Buzzer Alarm |
| LMDCC-D107-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D107-D1 | Data Logging System With USB Interface |
| LMDCC-D107-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D107 provides a humidity- and static-controlled environment for safe storage of MEMS, biosensors, accelerometers, and pressure sensors.
Similar Products
$ 3675 / Each of 1
$ 3575 / Each of 1
$ 3412.5 / Each of 1
$ 5812.5 / Each of 1
$ 3300 / Each of 1
$ 3525 / Each of 1
$ 2350 / Each of 1
$ 3350 / Each of 1
$ 3215 / Each of 1
$ 2712.5 / Each of 1
$ 3735 / Each of 1
$ 3650 / Each of 1
$ 3650 / Each of 1
$ 8515 / Each of 1
$ 3770 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
