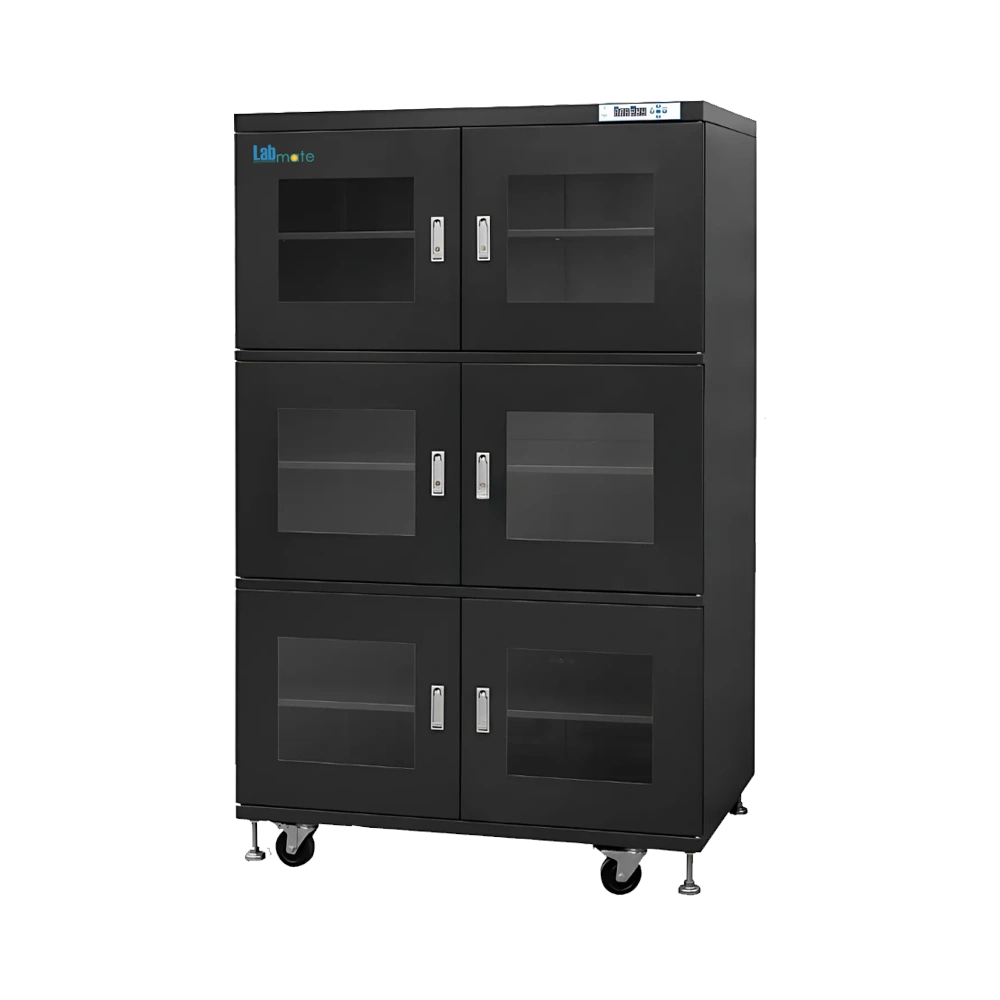

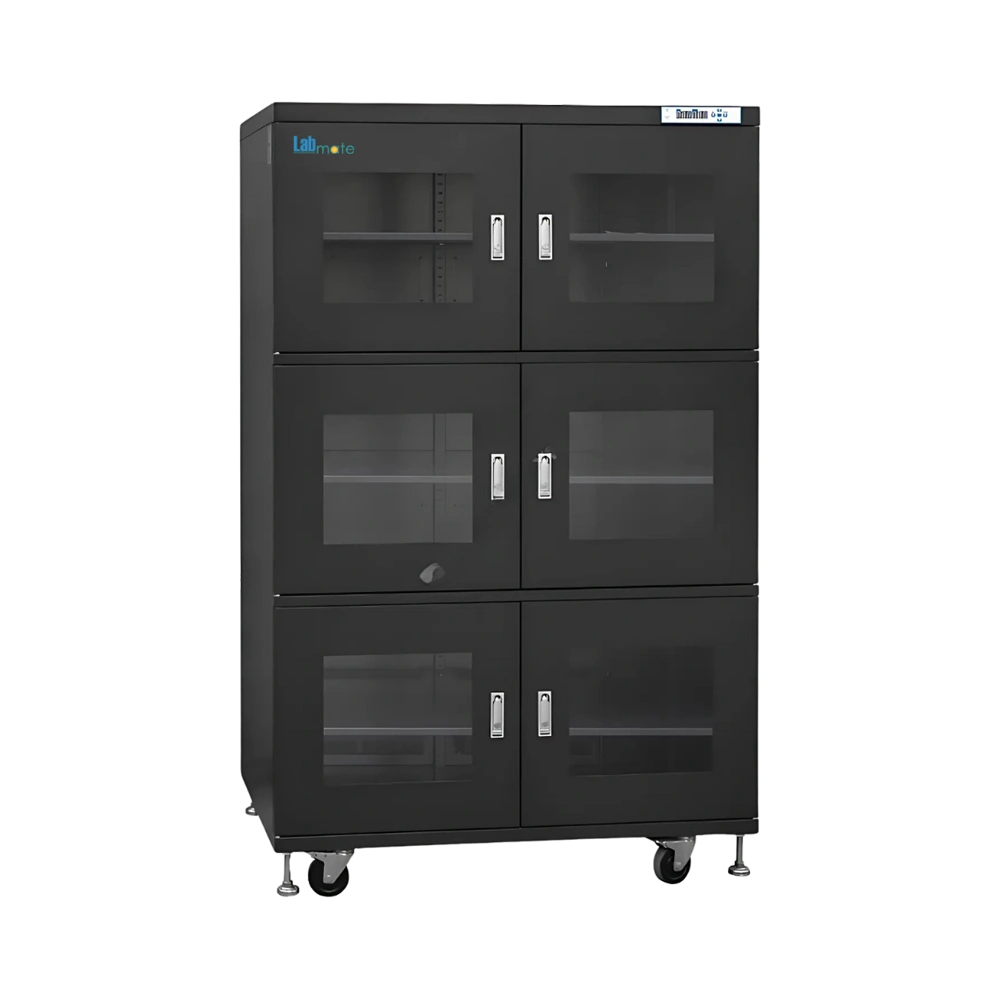

Baking Dry Cabinet LMBDC-A104 provides a 1436 L internal chamber designed for extensive storage. Integrated with 5 height adjustable perforated shelves for organized placement. It features surface resistance of 10⁶ to 10⁸ Ω and ESD-safe PU wheels to ensure secure relocation. Built with 1.2 mm galvanized steel body and anti-static powder spray coating for durability. Our Dry Cabinet handles up to 100 kg maximum load without structural deformation.
Specifications
| Storage Capacity | 1436 L |
| Temperature And Humidity Range | 40℃, Less than 10%RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 6 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 1198 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Features
Six Door Configuration
LED Display
Tempered Glass Window
Rapid Humidity Recovery
Flat Base Zinc Alloy Lock
Optional Accessories
| Model no. | Accessory |
| LMBDC-A104-A1 | Over Humidity Buzzer Alarm |
| LMBDC-A104-A2 | Open Door Buzzer Alarm |
| LMBDC-A104-A3 | Three-Color Flashing Light Alarm |
| LMBDC-A104-D1 | Data Logging System With USB Interface |
| LMBDC-A104-S1 | Extra Shelf |
Applications
Baking Dry Cabinet LMBDC-A104 is crucial for preserving the structural integrity and performance of crystals, silicon wafers, and delicate semiconductor substrates by maintaining a stable, low-humidity environment.
