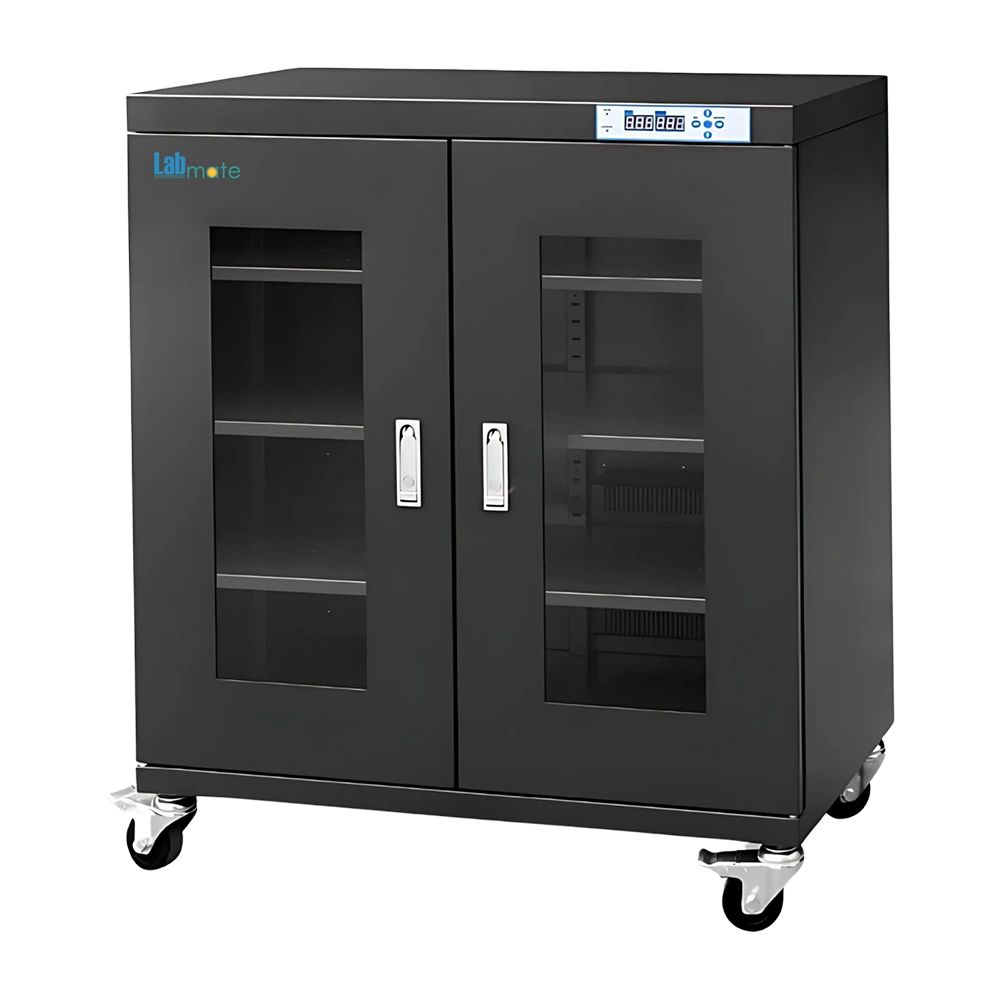

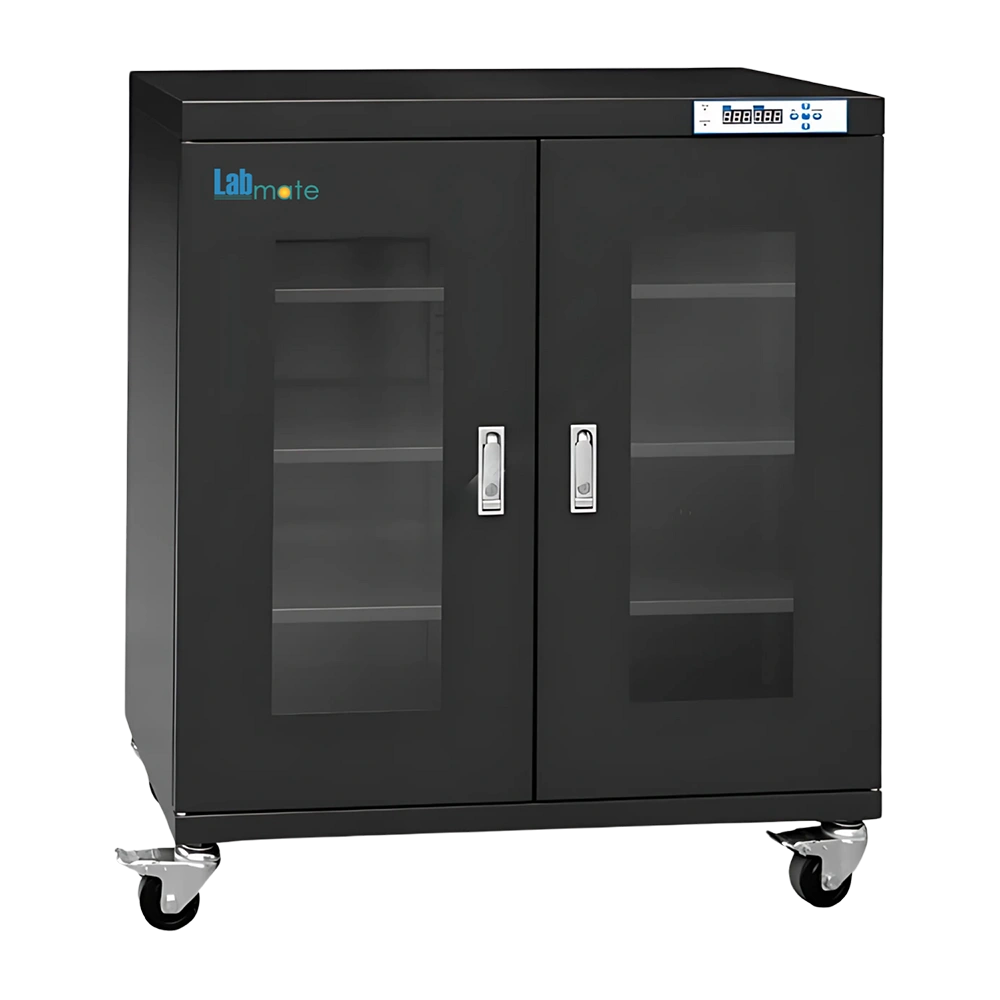

Baking Dry Cabinet LMBDC-A100 offers 320 L interior for handling bulk batches of moisture-sensitive components. Integrated with 3 adjustable shelves to accommodate various load sizes efficiently. It features 1.2 mm galvanized steel with anti-static powder spray coating for enhanced longevity. It offers PU wheels with ESD-safe properties that ensure stability and mobility. Our Dry Cabinet supports a maximum loading capacity of 80 kg, suitable for heavy-duty material preservation.
Specifications
| Storage Capacity | 320 L |
| Temperature And Humidity Range | 40℃, Less than 10%RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 450 × 1010 mm |
| Net Weight | 54 Kg |
| Gross Weight | 70 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Baking Dry Cabinet LMBDC-A100 | $ 4000 | Each of 1 |
Features
LED Display
Black Exterior
Flat Base Zinc Alloy Lock
Tempered Front Glass Window
Dual Air Tight Doors
Optional Accessories
| Model no. | Accessory |
| LMBDC-A100-A1 | Over Humidity Buzzer Alarm |
| LMBDC-A100-A2 | Open Door Buzzer Alarm |
| LMBDC-A100-A3 | Three-Color Flashing Light Alarm |
| LMBDC-A100-D1 | Data Logging System With USB Interface |
| LMBDC-A100-S1 | Extra Shelf |
Applications
Baking Dry Cabinet LMBDC-A100 is ideal for preserving ICs, PCBs, and semiconductors in a stable, moisture-controlled environment.
