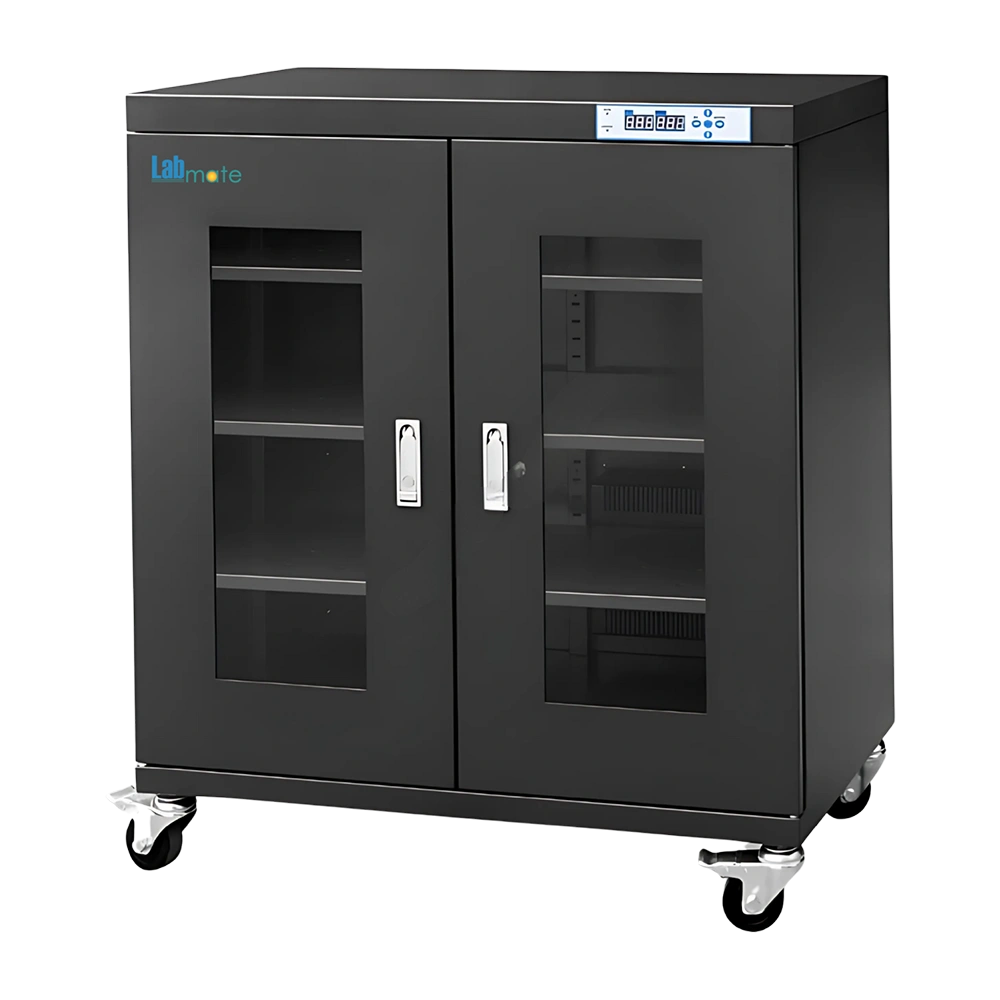

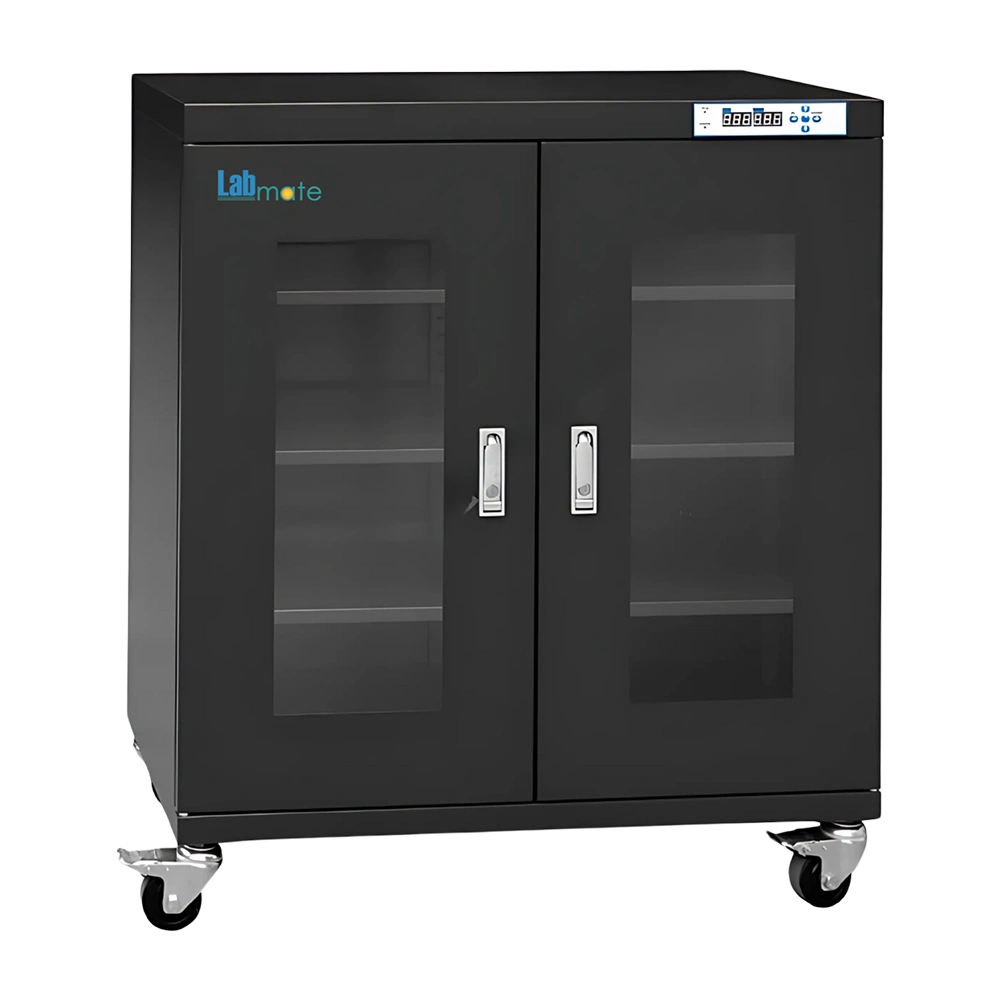

Baking Dry Cabinet LMBDC-A101 offers 435 L capacity supports bulk storage of moisture-sensitive materials. It features tempered viewing windows that allow easy inspection without opening. Incorporated with flat base zinc alloy lock with anti-theft functionality for enhanced security. Equipped with dual airtight magnetic doors for convenient accessibility. Our Dry Cabinet includes an LED interface for effortless humidity supervision.
Specifications
| Storage Capacity | 435 L |
| Temperature And Humidity Range | 40℃, Less than 10%RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 572 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 600 × 1010 mm |
| Net Weight | 59 Kg |
| Gross Weight | 82 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Baking Dry Cabinet LMBDC-A101 | $ 4562.5 | Each of 1 |
Features
ESD-Compliant Structure
Optimized Load Handling
Smooth-Rolling PU Wheels
Galvanized Steel Construction
Triple Modular Shelves
Optional Accessories
| Model no. | Accessory |
| LMBDC-A101-A1 | Over Humidity Buzzer Alarm |
| LMBDC-A101-A2 | Open Door Buzzer Alarm |
| LMBDC-A101-A3 | Three-Color Flashing Light Alarm |
| LMBDC-A101-D1 | Data Logging System With USB Interface |
| LMBDC-A101-S1 | Extra Shelf |
Applications
Baking Dry Cabinet LMBDC-A101 is essential for protecting PCBs, MSDs, and circuits in a stable, low‑humidity chamber.
