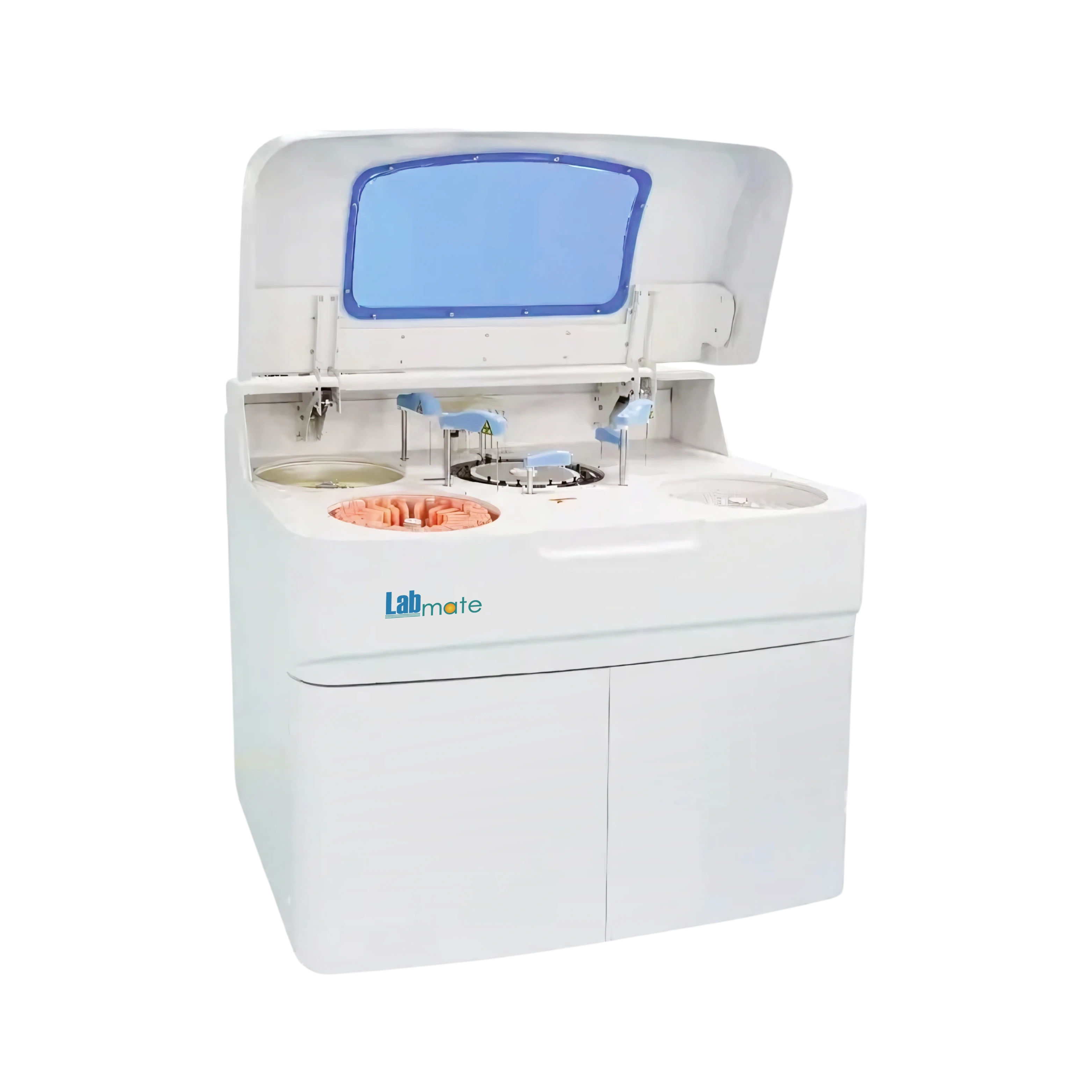

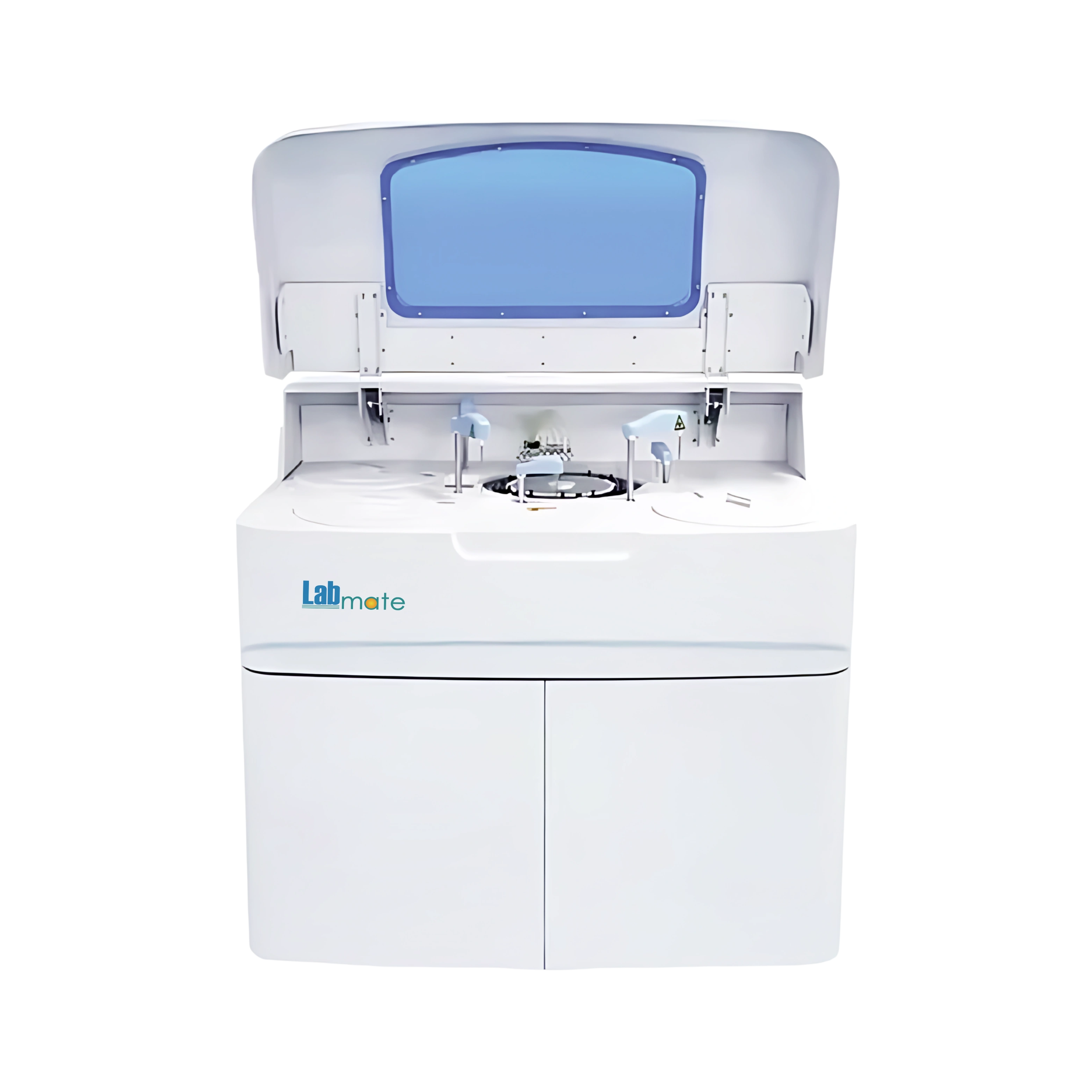

Auto Chemistry Analyzer LMACA-A300 is a versatile analyzer that allows for the swift incorporation of new techniques. It Performs chemical tests of samples such as blood, serum, urine, and plasma. The analyzer is fully automated offering a remarkable throughput of 1200 tests per hour in the wavelength of 340 to 800nm. The system comprises reagents, controllers, and calibrators, and its operational mode is random access, with the added flexibility of batch processing.
Catalog Send Mail WhatsappSpecifications
| Throughput | 1200 tests/hour with ISE, 800 tests/hour |
| Sample Volume | 2 to 70 µl |
| Reagent Volume | 20 to 350 µl |
| Sample Positions | 150 sample positions |
| Reagent Positions | 180 refrigerated reagent positions |
| Wavelength | 340 to 800 nm |
| Humidity | 30 to 80% |
| Analysis Method | Endpoint, Fixed-time, Rate (Kinetic) |
| Cuvettes | 160 reusable cuvettes, optical length 6mm |
| Mixed Probe | Independent stirring |
| Stat Function | Yes |
| Light Source | 12V/20W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Calibration | Linear: K factor, 1-point, 2-point, and multipointNon-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5 |
| Quality Control | Real-time QC Westward multi-ruleCumulative sum check Twin Plot(2D) |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| Temperature | 10 to 30°C |
| Temperature Control | 37±0.1°C, real-time monitor |
| Water Consumption | Deionized water: 20 L/H |
| Power Supply | AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 1500 W |
| External Dimension (W×D×H) | 1360 × 791 × 1157 mm |
| Package Dimension (W×D×H) | 1348 × 928 × 1399 mm |
| Net Weight | 286 kg |
| Gross Weight | 390 kg |
Features
Leverages intelligent software for enhanced functionality
Guarantees seamless workflow without interruptions
Efficiently manages inventory to reduce costs
Integrates a built-in barcode scanner for streamlined processes
Utilizes premium-quality components for reliable performance
Optimizes the efficiency of reagents and consumables
Incorporates crash and collision detection mechanisms for safety
Offers programmable automatic stand-by and wake-up functions for convenience
Equipped with a refrigerated tray featuring an independent switch
Offers a user-friendly graphical interface with a touchscreen monitor
Enhanced with Automatic interior and exterior probe and cuvette washing system
Incorporated with an external Printer with the availability of multiple reporting modes
Boasts the capability to program and store an extensive array of protocols, neatly organized on a user-defined panel
Applications
It plays a pivotal role in the field of clinical laboratories and healthcare, histopathology laboratories for testing medicine, disease diagnosis, monitoring patient health, and assessing the effectiveness of treatment.
Similar Products
Frequently Asked Questions
1 What is an Auto Chemistry Analyzer?
An Auto Chemistry Analyzer is an apparatus designed to perform chemical analyses on biological samples.
2 What types of tests can be performed using Auto Chemistry Analyzer?
It can perform a wide range of clinical tests such as Liver function tests, Kidney function tests, Lipid profiles, Electrolyte tests, Blood glucose tests and Enzyme activity measurements.
3 What types of samples can be processed by Auto Chemistry Analyzer?
It can process liquid biological samples such as Blood, Urine, Cerebrospinal fluid (CSF) and Synovial fluid.
4 What is the role of Auto Chemistry Analyzer in clinical research?
It is used in clinical research for accurate processing of large volumes of samples.
5 Can Auto Chemistry Analyzer detect both acute and chronic conditions?
It can detect biomarkers associated with both acute and chronic conditions.
6 Is Auto Chemistry Analyzer suitable for both hospital and outpatient settings?
It can be used in both hospital and outpatient settings.
7 Can Auto Chemistry Analyzer handle both routine and emergency tests?
It can be used for both routine and emergency testing.
8 Is Auto Chemistry Analyzer suitable for research labs?
It is widely used in research labs for clinical studies and experiments that require biochemical testing.
9 Can Auto Chemistry Analyzer detect multiple diseases at once?
It can test for multiple biomarkers in a single sample.
10 Can Auto Chemistry Analyzer handle contamination risks?
It is designed with safety mechanisms such as sealed sample containers, automated reagent dispensing and self-cleaning systems to prevent contamination.
