Auto Chemistry Analyzer LMACA-A100

Auto Chemistry Analyzer LMACA-A100

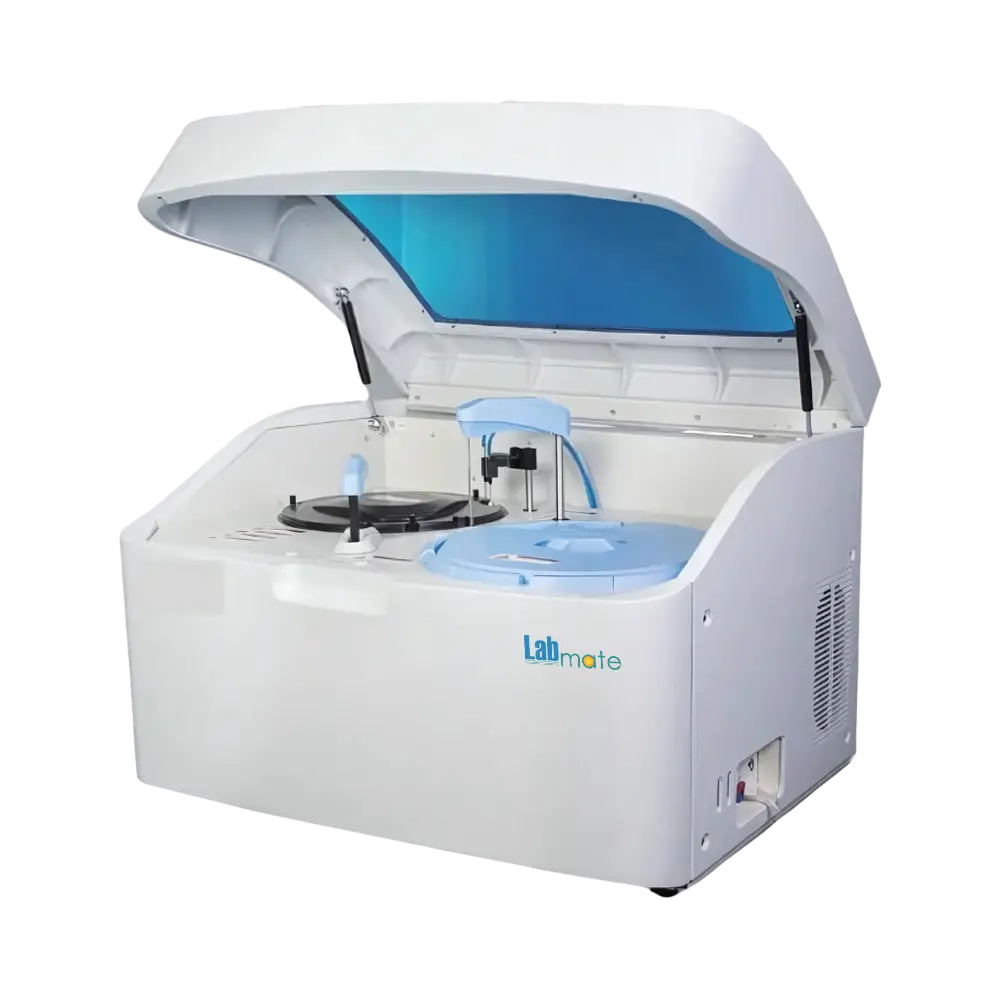

Auto Chemistry Analyzer LMACA-A100 is a fully automated tabletop chemistry analyzer that has a capacity of 400 tests per hour. Designed with a sample loading volume of 2 to 70 µl. All parameters are displayed on an LCD display with an eye-monitoring configuration. Its simple layout makes sure that the foundation for analytical genius endures for a long time. Enhanced with comprises reagents, controllers, and calibrators with random execution with bath operation support.

Get Quote
Throughput 400 test/hour
Sample volume 2 to 70 µl
Reagent volume 20 to 350 µl
Sample position 60/90 sample position
Reagent position 45 reagent position
Wavelength 340,405,450,510,546,578,630,700 nm
Absorbance 0 to 3,0 Abs
Humidity 30 to 80%
Washing Automatic cuvettes washing
Probe washing Automatic washing interior and exterior
Reagent cooling Refrigerated trays with independent switch
cuvettes 120 reusable cuvettes, optical length 6mm
Mixed probe Independent stirring
Start function Yes
Light source 12V/30W halogen lamp
Spectrophotometry Post-spectral spectrophotometry
Calibration Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5
Quality control Real-time QC, Westward multi-rule, Cumulative sum check, Twin Plot(2D)
Software Windows 7/8/10, 32 or 64bit
LIS system Bi-direction, support HL7 protocol
Interface LAN port access Printer External, multiple reporting mode available
Temperature 10 to 30 °C
Temperature Control 37 ± 0.1°C, real-time monitor
Water Consumption Deionized water: 12L/H
Power supply AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 300W
External Dimension (W×D×H) 1167×780×1016 mm
Package dimension 1348×928×1399 mm
Net weight 193 kg
Gross weight 267 kg

point.png Intelligent software with an innovative program

point.png Automatic backup and rousing functions that are customized

point.png Its sensor includes an anti-collision property

point.png Intended for end-less use, cooling tray with separate switch

point.png Enhanced efficiency with a user-friendly visual graphical interface with a touchscreen

point.png Power full testing ability, top-notch components

point.png Efficient utilization of consumables and reagents

This instrument is employed in several pathology laboratories to obtain serum, plasma, urine, or any other type of body fluids, aiding in the diagnosis, and monitoring the management of a wide range of medical condition
