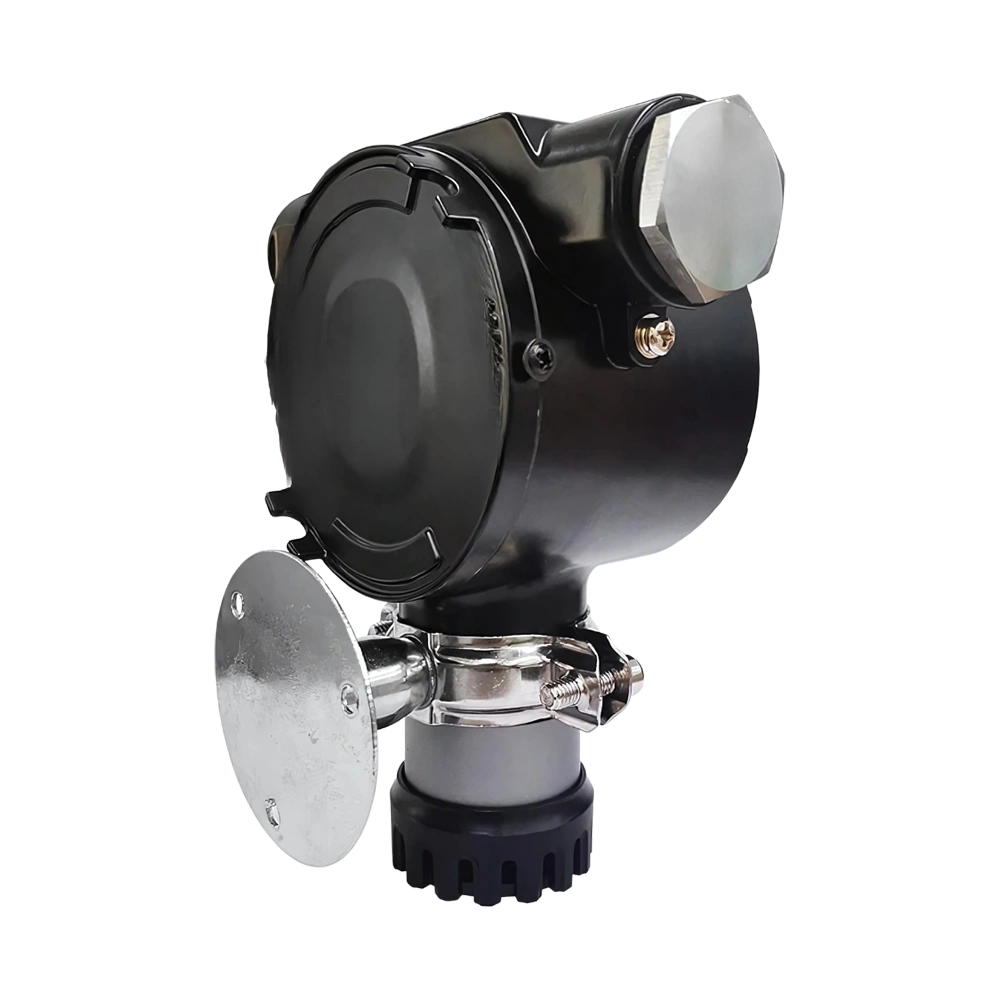

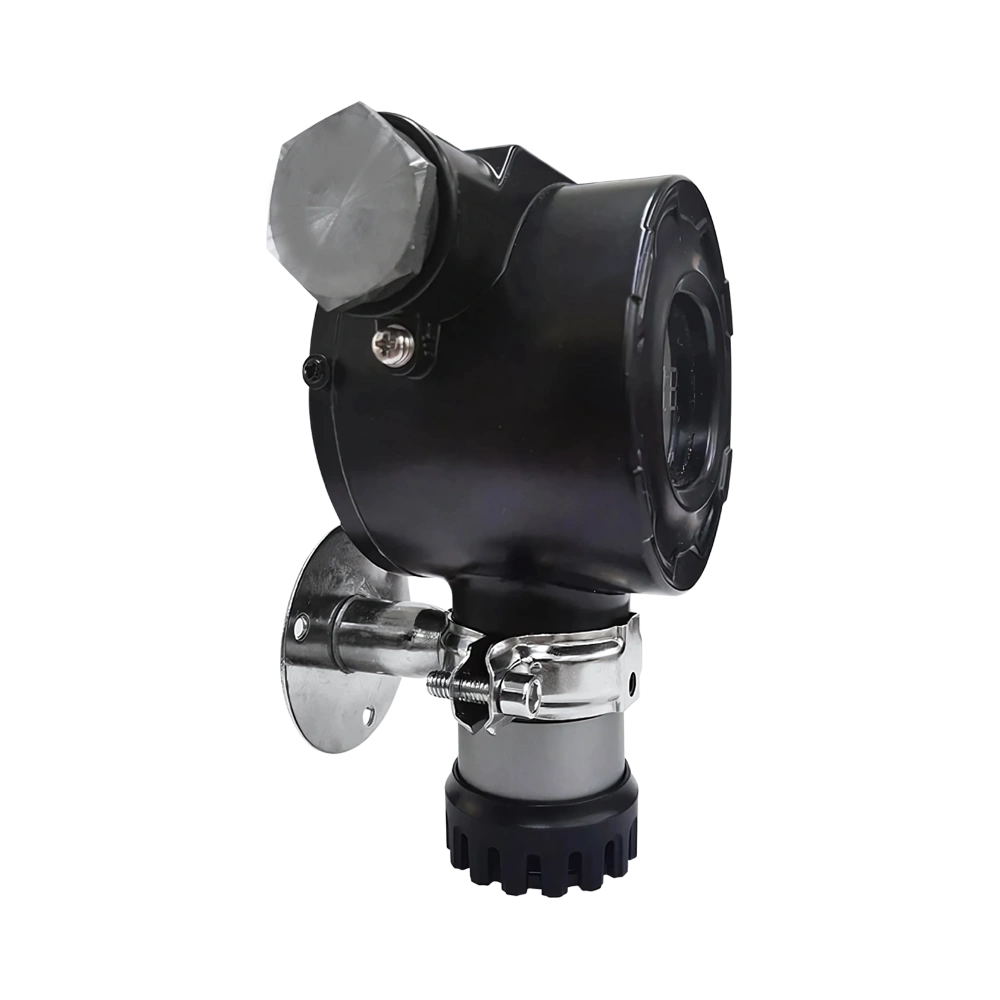

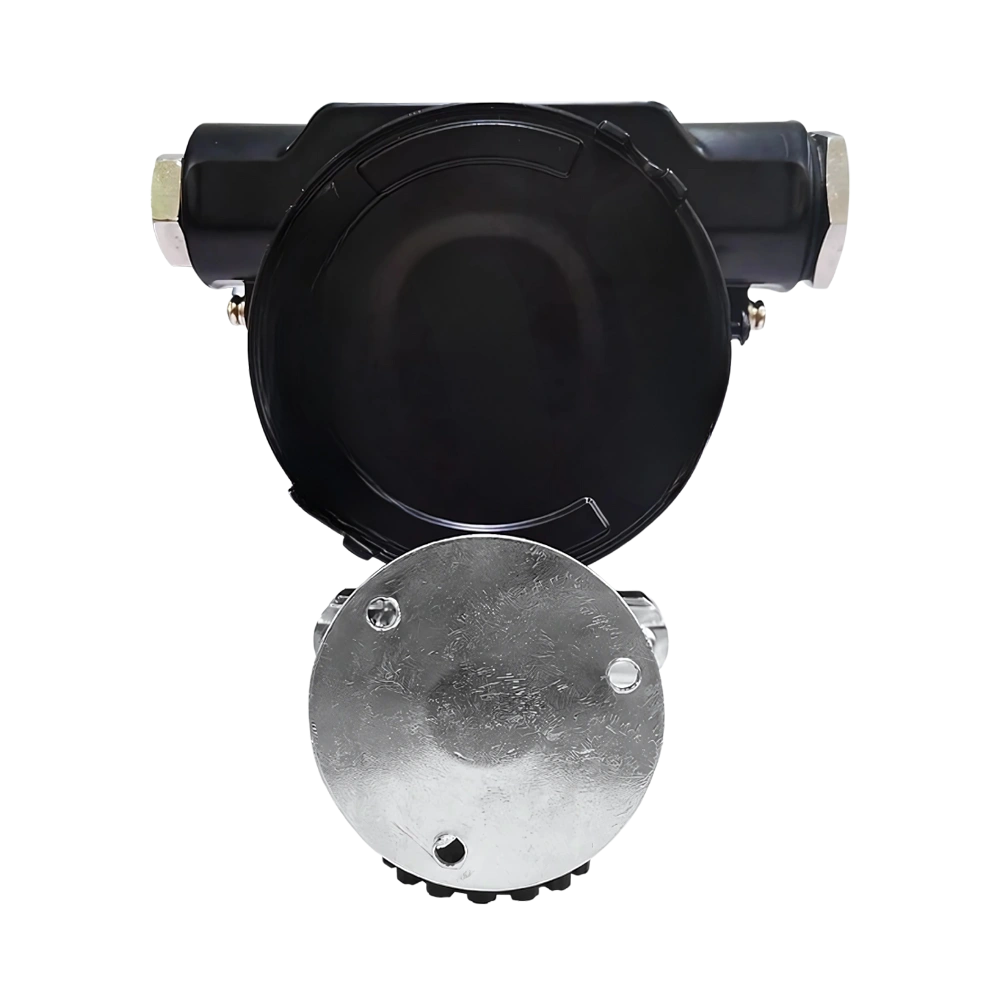

Ammonia Gas Detector LMAMD-A100 provides detection range of 0 to 100 ppm. It features real-time data display with two standard relay output channels for alarm signaling. Equipped with multiple mounting options, including wall, pipeline, and flow-type setups for flexibility. Incorporates magnetic and remote-control functionality for safe operation in explosion-prone zones. Our Gas Detector monitors NH₃ in industrial, utility, agricultural, and food processing areas.
Specifications
| Gas Detected | NH₃ |
| Measurement Range | 0 to 100 ppm |
| Detection Principle | Electrochemistry |
| Resolution | 0.1ppm |
| Accuracy | Less than or equal to ±2 to 5% FS |
| Display | LED display |
| Working Temperature Range | -20 to 55℃ |
| Working Pressure | 86 to 106 kPa |
| Humidity | 0 to 95%RH |
| Power Dissipation | Toxic gas: Less than or equal to 2.5W, |
| Signal Output | 4 to 20mA, RS485 |
| Wireless Transmission | LORA |
| Housing Material | Die-cast aluminum |
| Electrical Interface | Standard internal screw thread M20 × 1.5 |
| Protection Grade | IP66/68 |
| Explosion-Proof Grade | IECEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb ；ATEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb |
| Power Supply | 24V DC |
| Dimension | 157.8×128.8×69.6 mm |
| Net Weight | 1 Kg |
| Gross Weight | 1.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Ammonia Gas Detector LMAMD-A100 | $ 1787.5 | Each of 1 |
Features
Lightweight
24h online monitoring
Intrinsic safety circuit
Computer connectivity
Die-cast aluminum case
Applications
Ammonia Gas Detector LMAMD-A100 is employed for continuous NH₃ monitoring in chemical plants, utilities, agricultural storage, and food processing zones, ensuring reliable performance in confined, hazardous, industrial conditions.
